Description

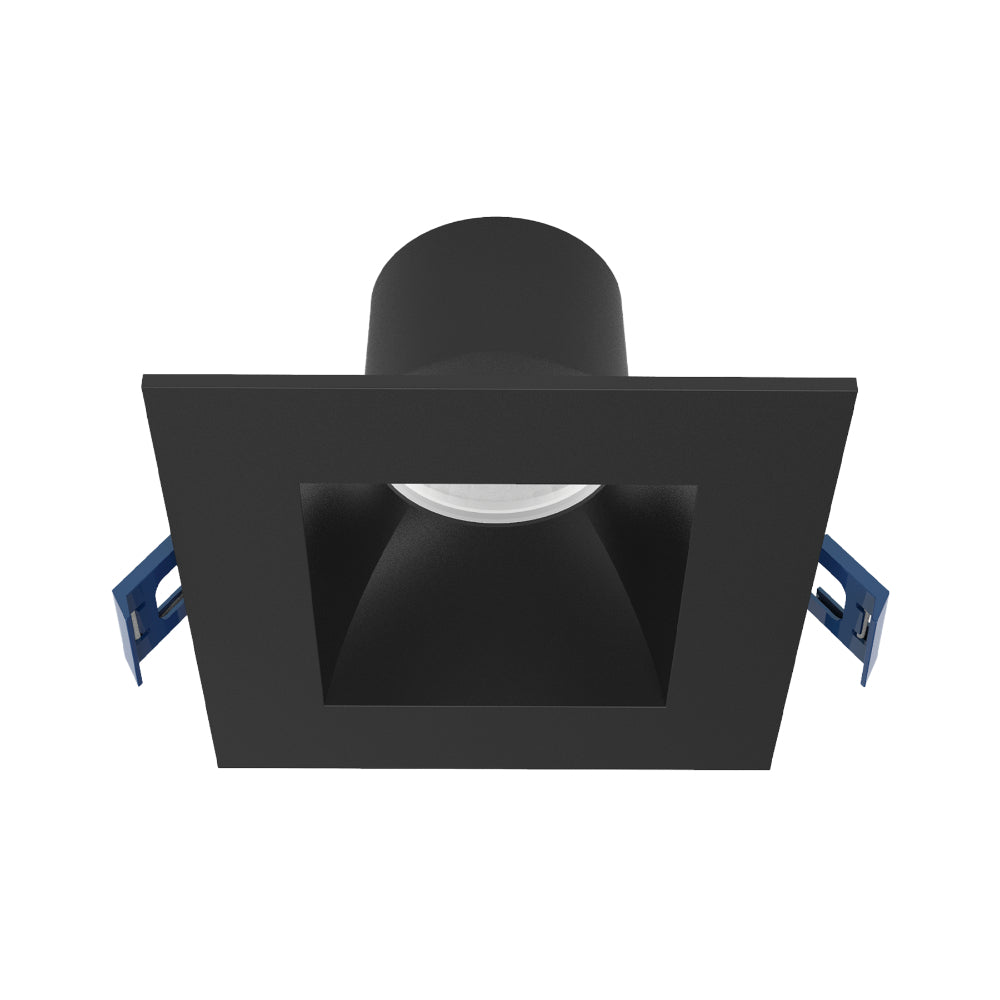

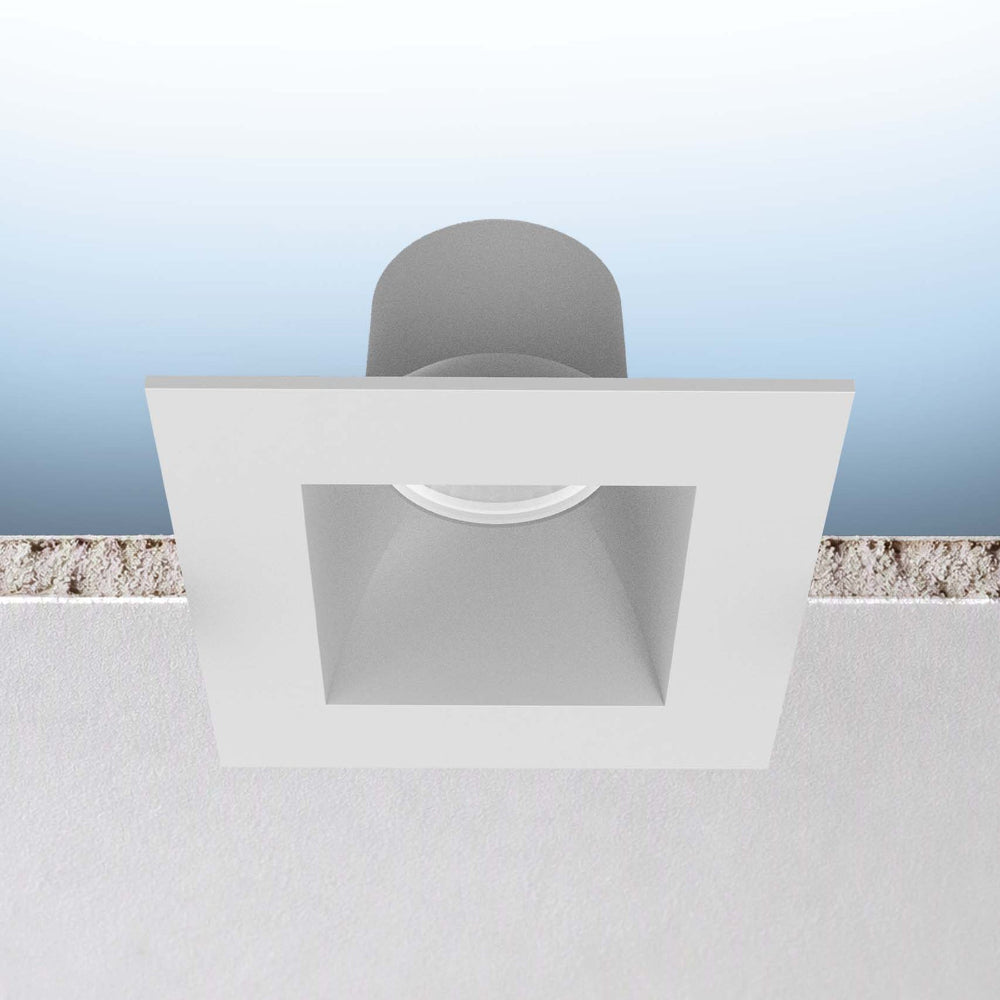

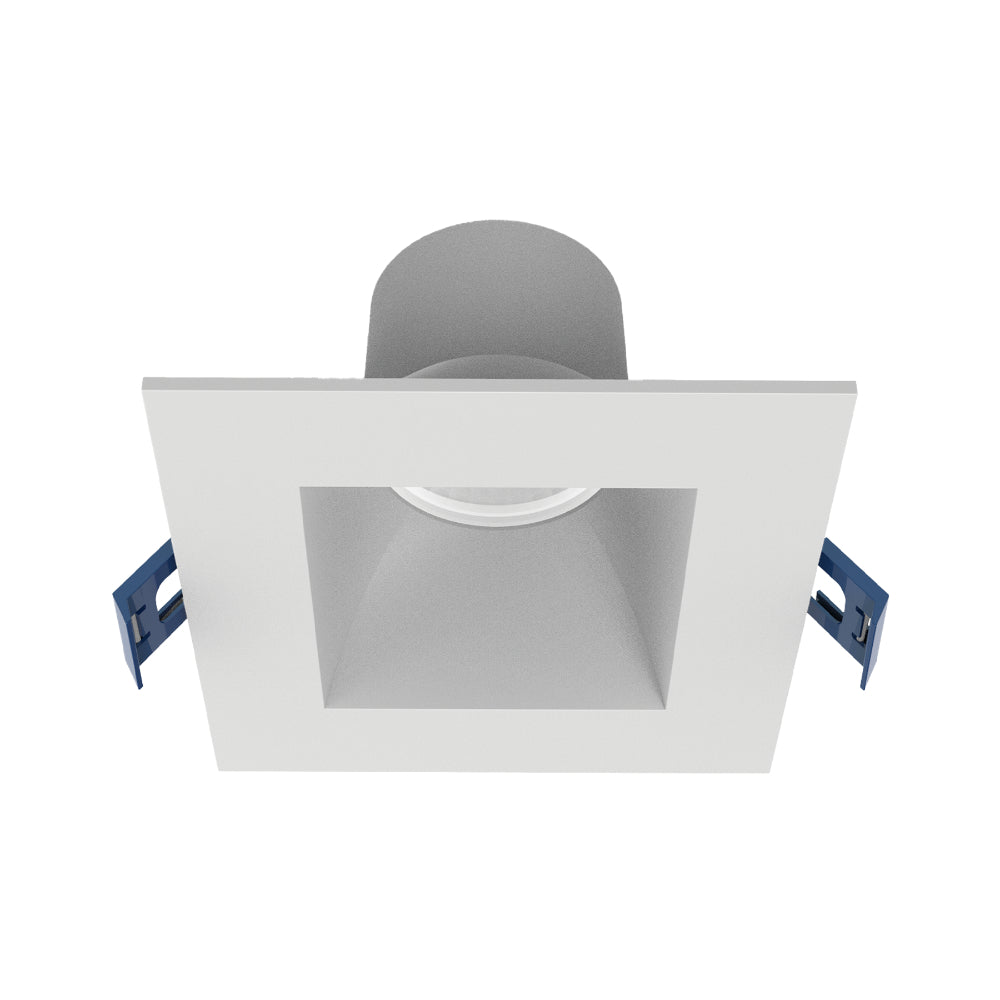

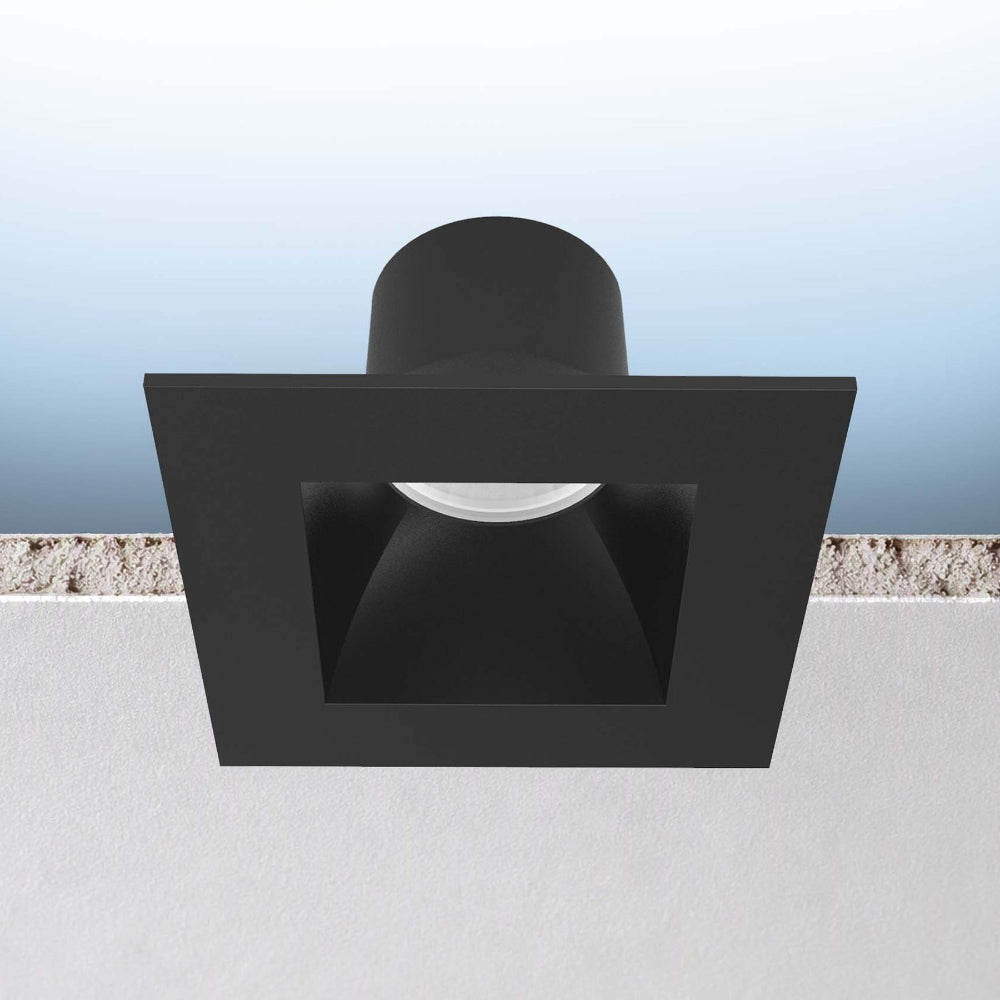

Luxrite 4" Regressed Canless Spotlight - Square - 5 CCT Select Universal Voltage/Dual Dimming
Specifications
- Item description: LED/RDL4/5CCT/SQ/UNV/DD/BK
- Size: 4 Inch
- Shape: 4 Inch Square Regressed

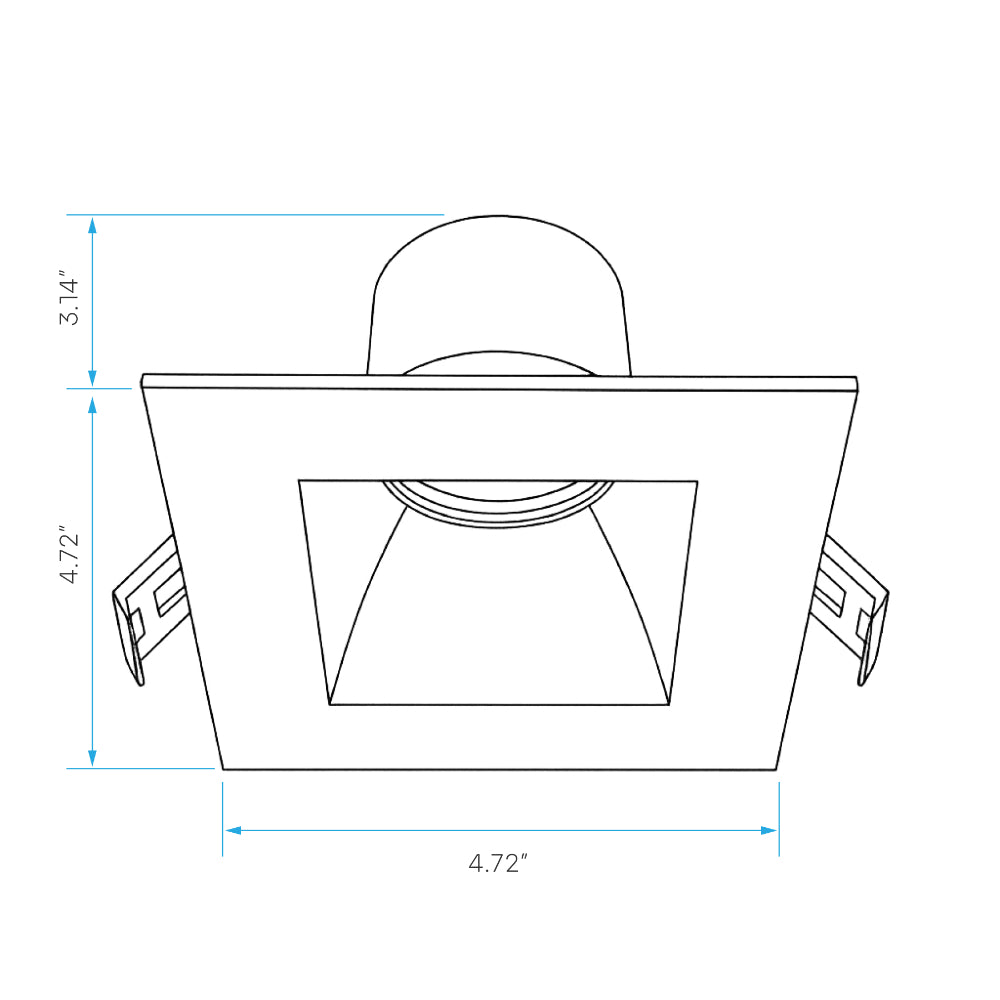

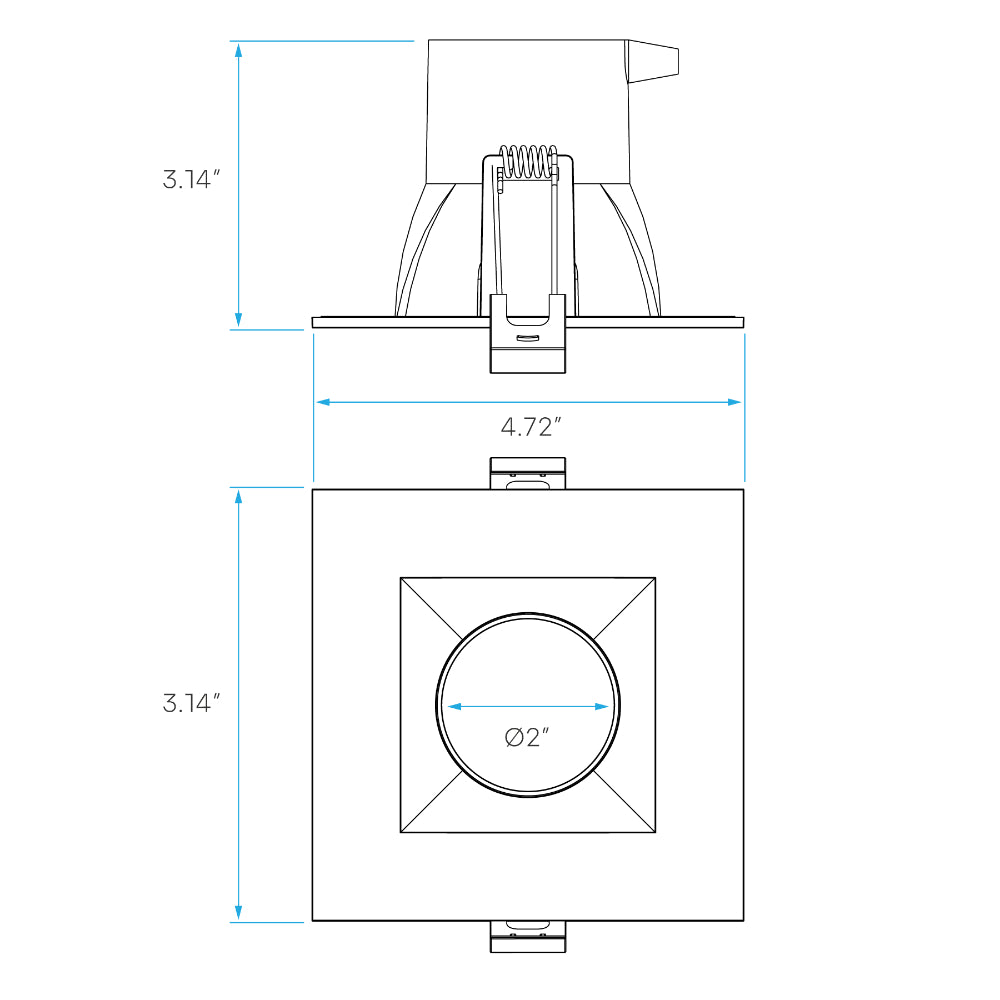

- Dimensions:
- Length: 4.72 Inch
- Width: 4.72 Inch
- Depth: 3.14 Inch
- Cutout: Ø4 Inch
- Plate: LR41002 (#1), LR41006 (#3), LR41010 (R1), LR41011 (#4)

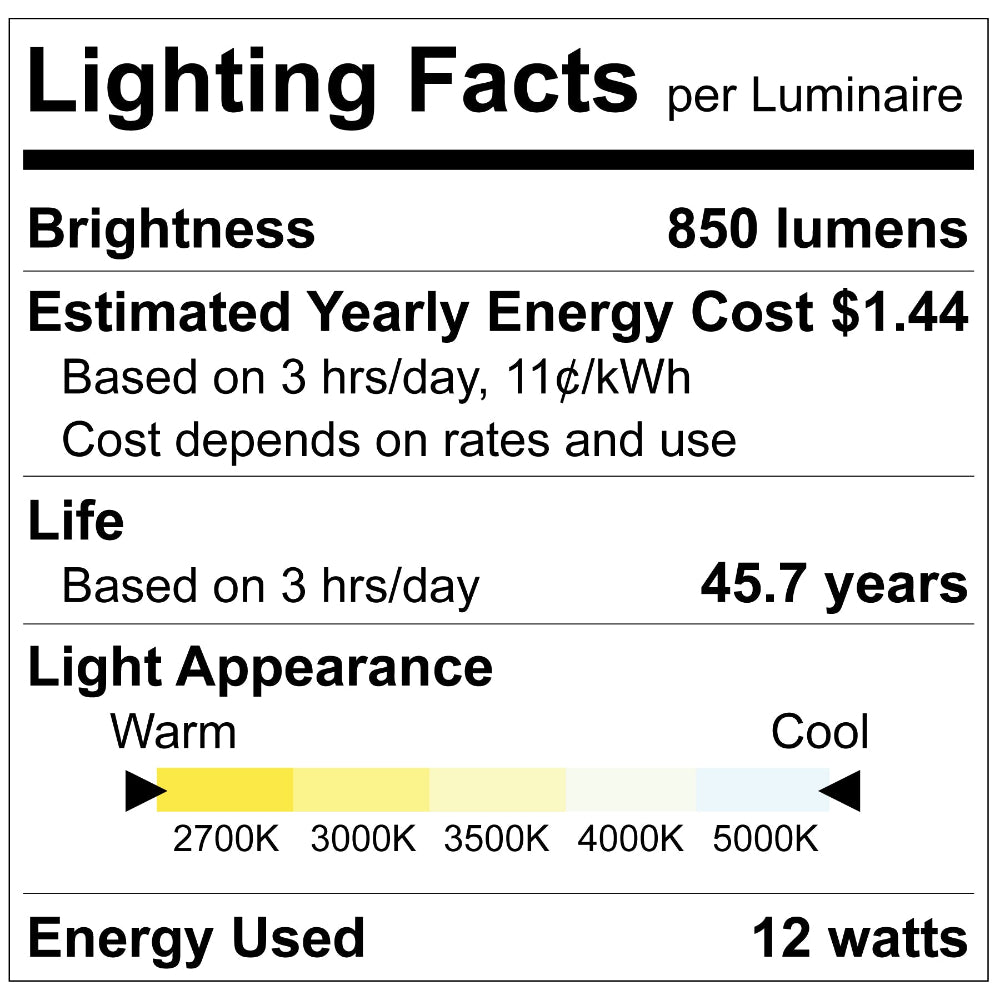

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 850
- Beam Angle: 45º
- CRI: 90
Electrical
- Power (Wattage): 12
- Input Volts: 120-277V
- Rated Lifetime: 50000
- Dimmable: Dual Dimming TRIAC/0-10V
- Power Factor: 0.9
- Input Current: 0.1A
- Frequency: 60Hz
- Lumen Efficacy: 71
- Operating Temp:
- Min: -4º
- Max: 104º
Product Files
Click forLuxrite LR23371 Specification Sheet
Click forLuxrite LR23371 Family Specification Sheet
Click forLuxrite LR23371 Install Guide
Click forLuxrite LR23371 Dimmer Compatibility
Click forLuxrite LR23371 Warranty
