Description

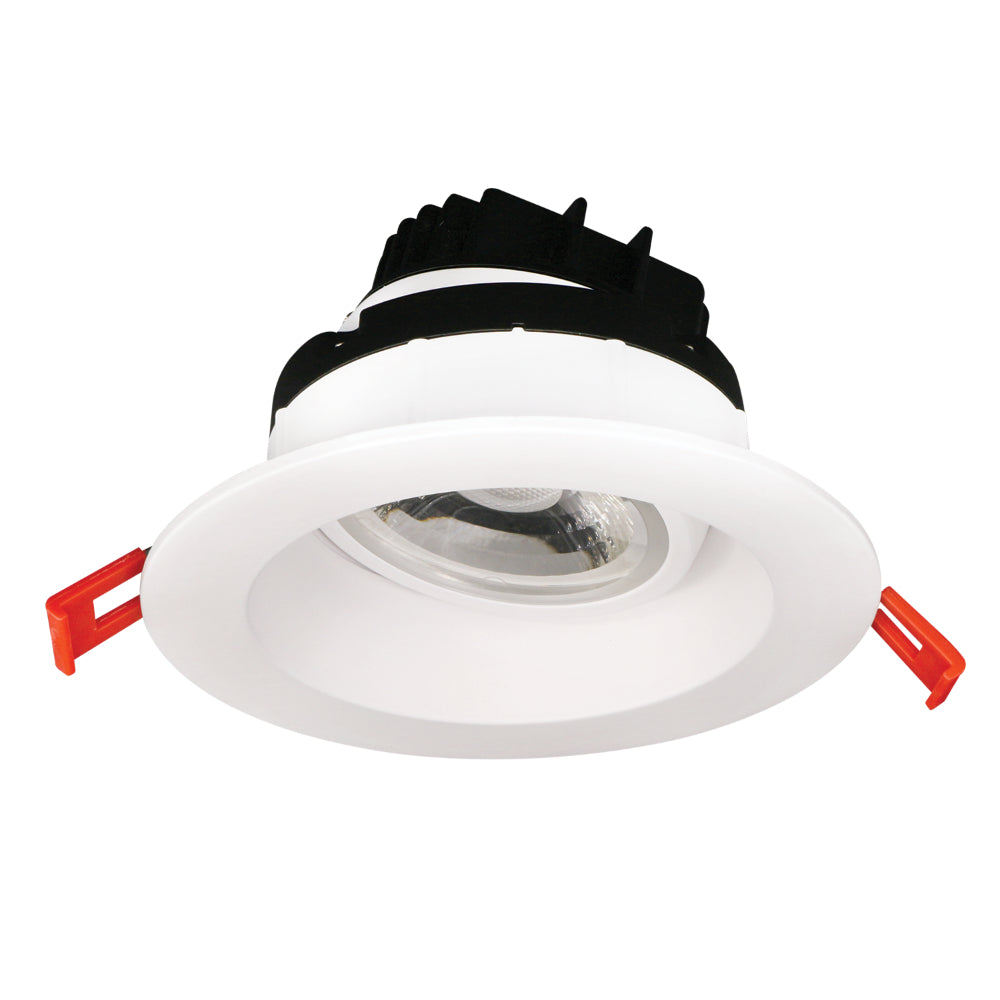

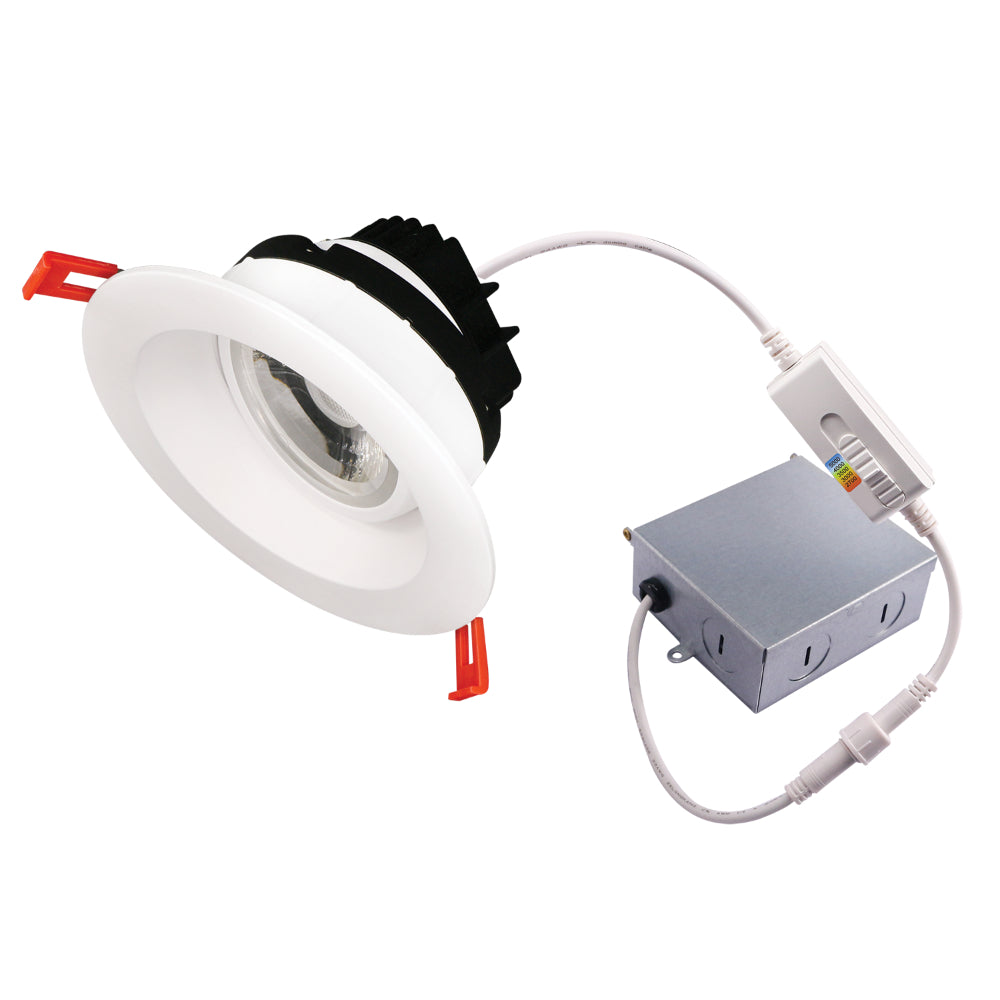

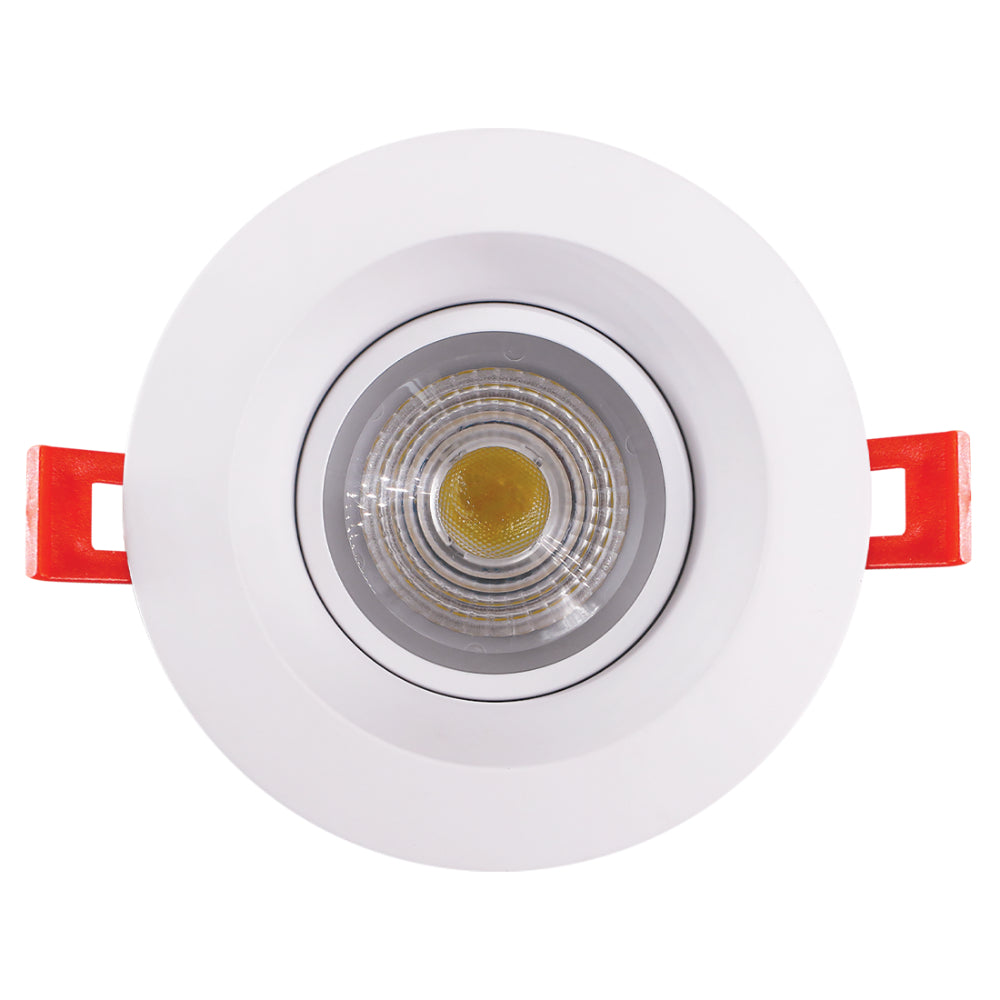

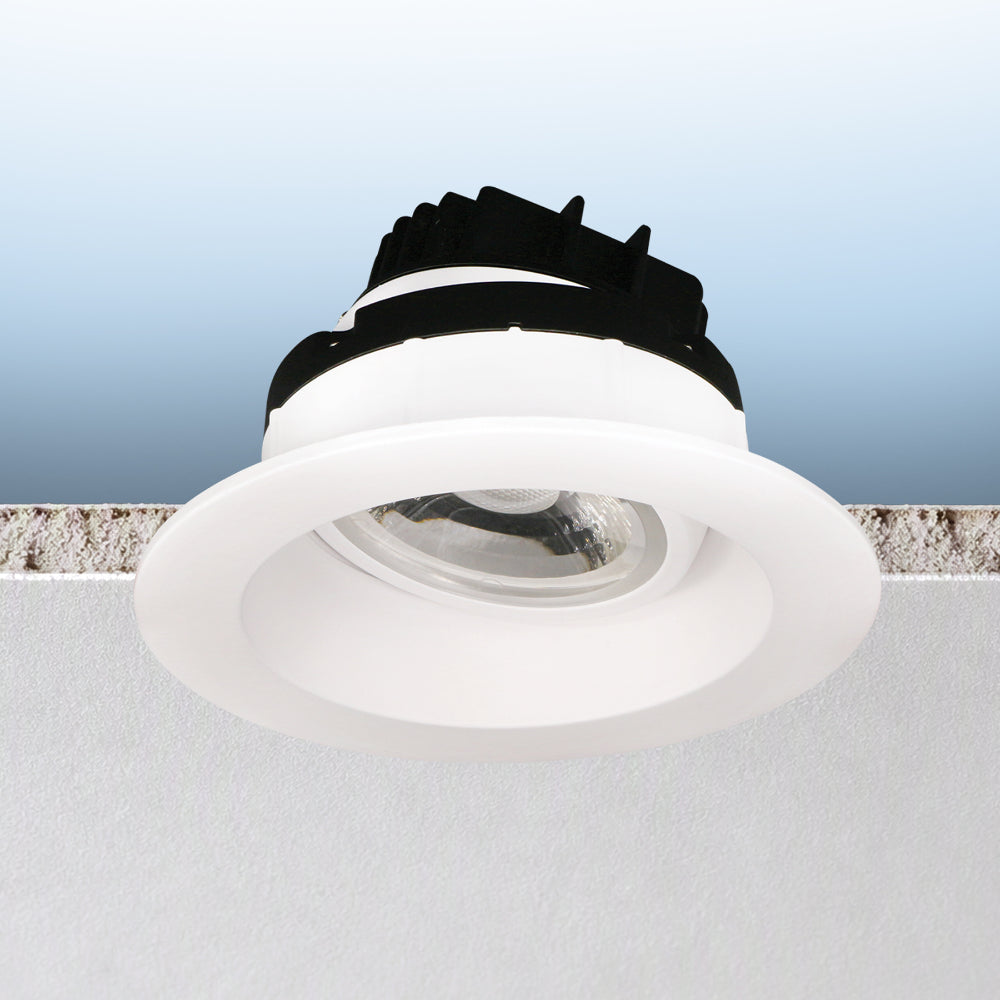

Luxrite 4" Regressed Gimbal Round 5CCT Canless Spotlight
Specifications
- Item description: LED12W/RDL4/GB/5CCT/FL
- Size: 4 Inch
- Shape: 4 Inch Deep Gimbal

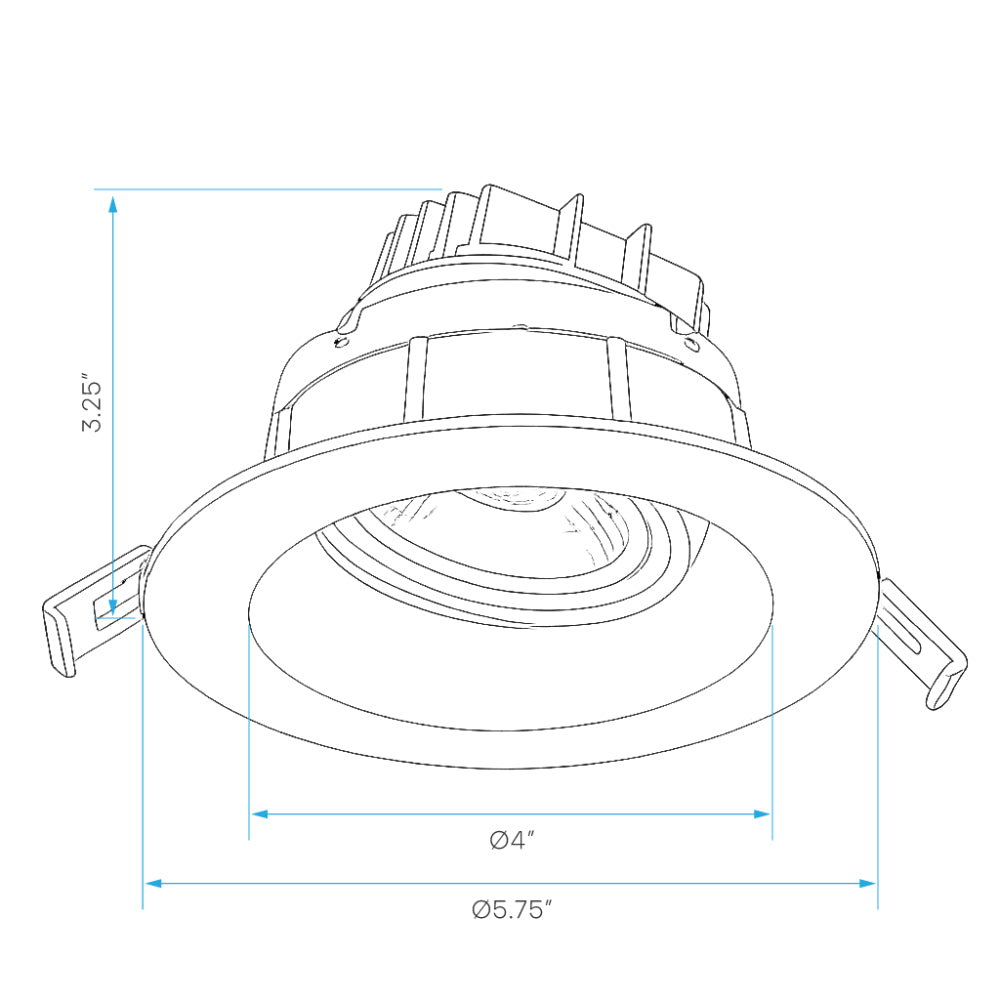

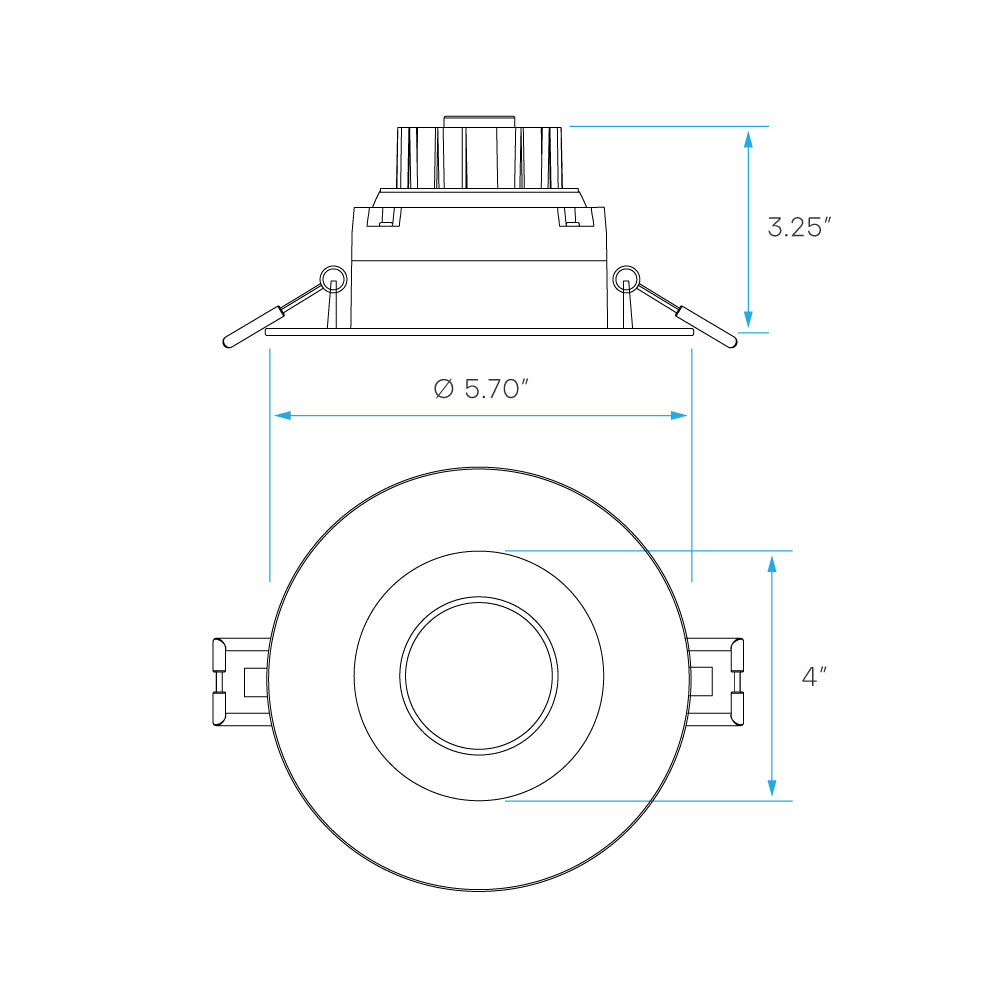

- Dimensions:
- Width: Ø 5.70 Inch
- Height: 2.24 Inch
- Finish: White
- Cutout: 4.87 Inch
- Plate: LR41004 (#3), LR41006 (#4), LR41010 (#R2)

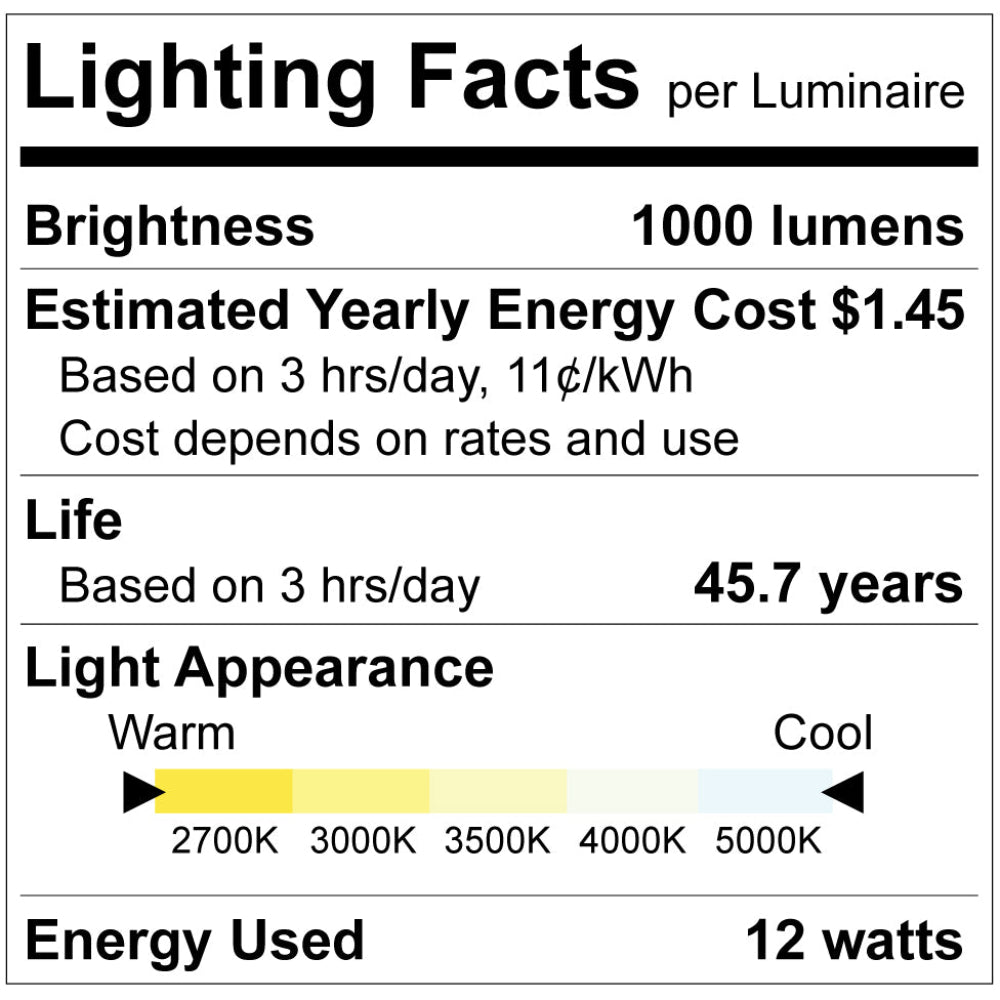

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 1000
- Beam Angle: 40°
- CRI: 90
Electrical
- Power (Wattage): 12
- Input Volts: 120V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: 0.98
- Input Current: 120Ma
- Frequency: 60Hz
- Watt Replacement: 50
- Lumen Efficacy: 83
- Operating Temp:
- Min: -4°
- Max: 104°
