Luxrite 4" Regressed Interchangeable - 5 CCT Selectable High Output 60º - Dual Dimming/Universal Voltage

LuxriteSKU: LR24966
Price:
$0.00 USD

Description

Luxrite 4" Regressed Interchangeable - 5 CCT Selectable High Output 60º - Dual Dimming/Universal Voltage

Specifications

  • Item description: LED/DLMD4HO/5CCT/ UNV/DD /WFL
  • Size: 4 Inch
  • Shape: 4 Inch Interchangeable

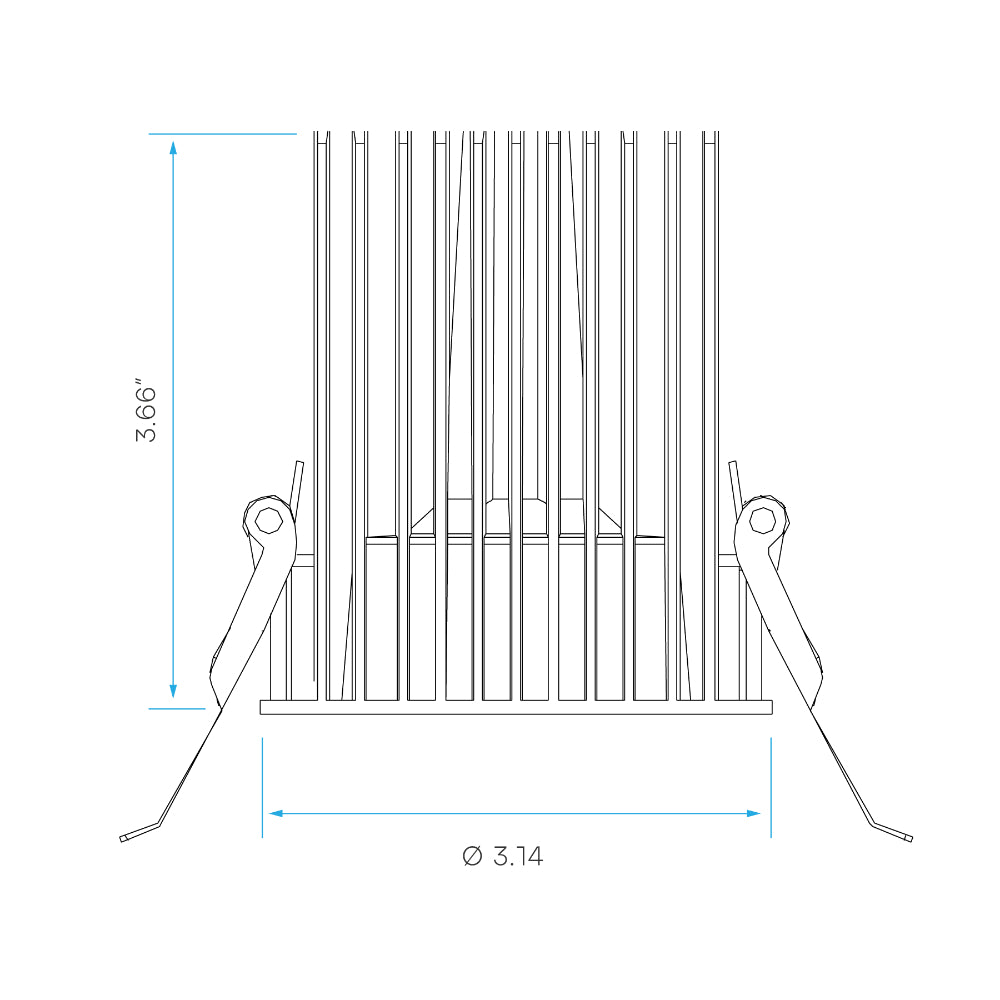

  • Dimensions:
    • Length: Ø3.14 Inch
    • Depth: 3.66 Inch
  • Finish: Black
  • Cutout: Ø3.75 Inch
  • Plate: LR41004 (#2), LR41006 (#2), LR41010 (#L2), LR41011 (#3)

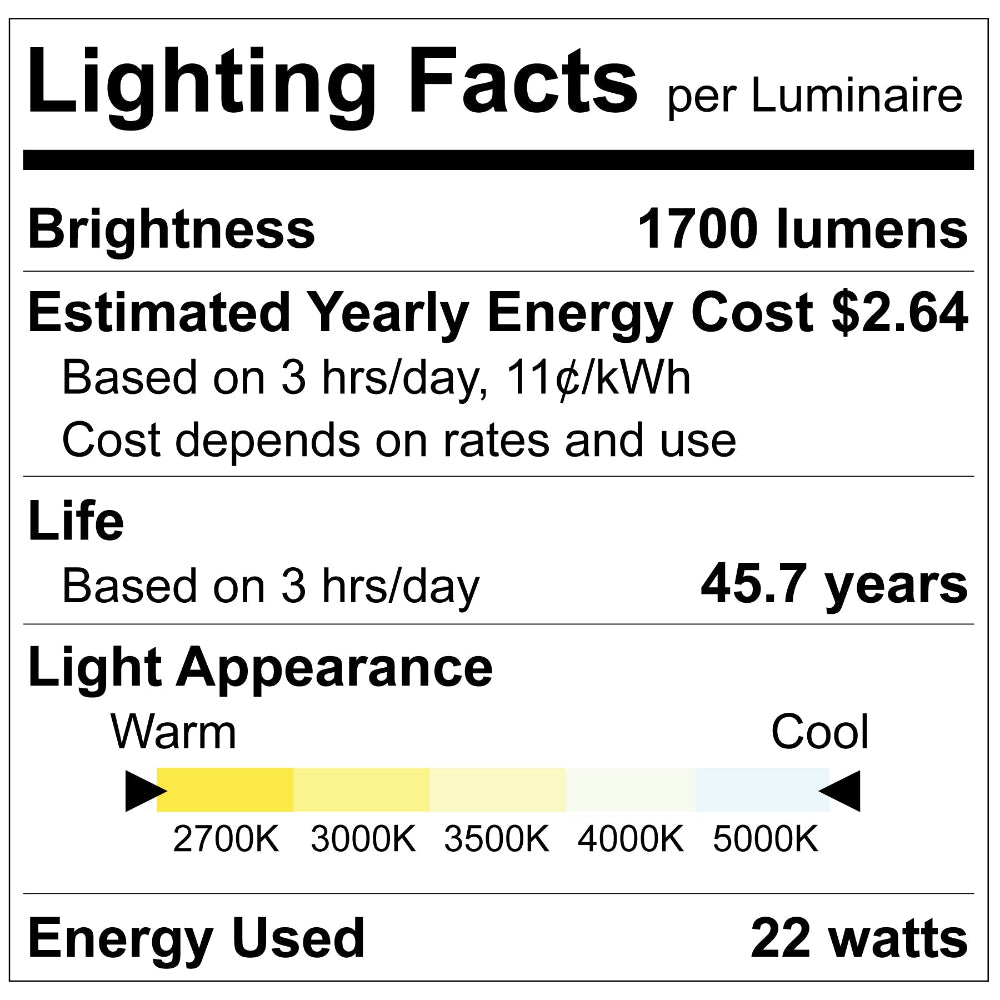

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 1700
  • Beam Angle: 60º
  • CRI: 90

Electrical

  • Power (Wattage): 22
  • Input Volts: 120-277V
  • Rated Lifetime: 50000
  • Dimmable: Dual Dimming TRIAC/0-10V
  • Power Factor: 0.9
  • Frequency: 60Hz
  • Lumen Efficacy: 77
  • Operating Temp:
    • Min: -4º
    • Max: 104º
Product Files

Click forLuxrite LR24966 Specification Sheet

Click forLuxrite LR24966 Install Guide

Click forLuxrite LR24966 Dimmer Compatibility

Click forLuxrite LR24966 Warranty
