Description

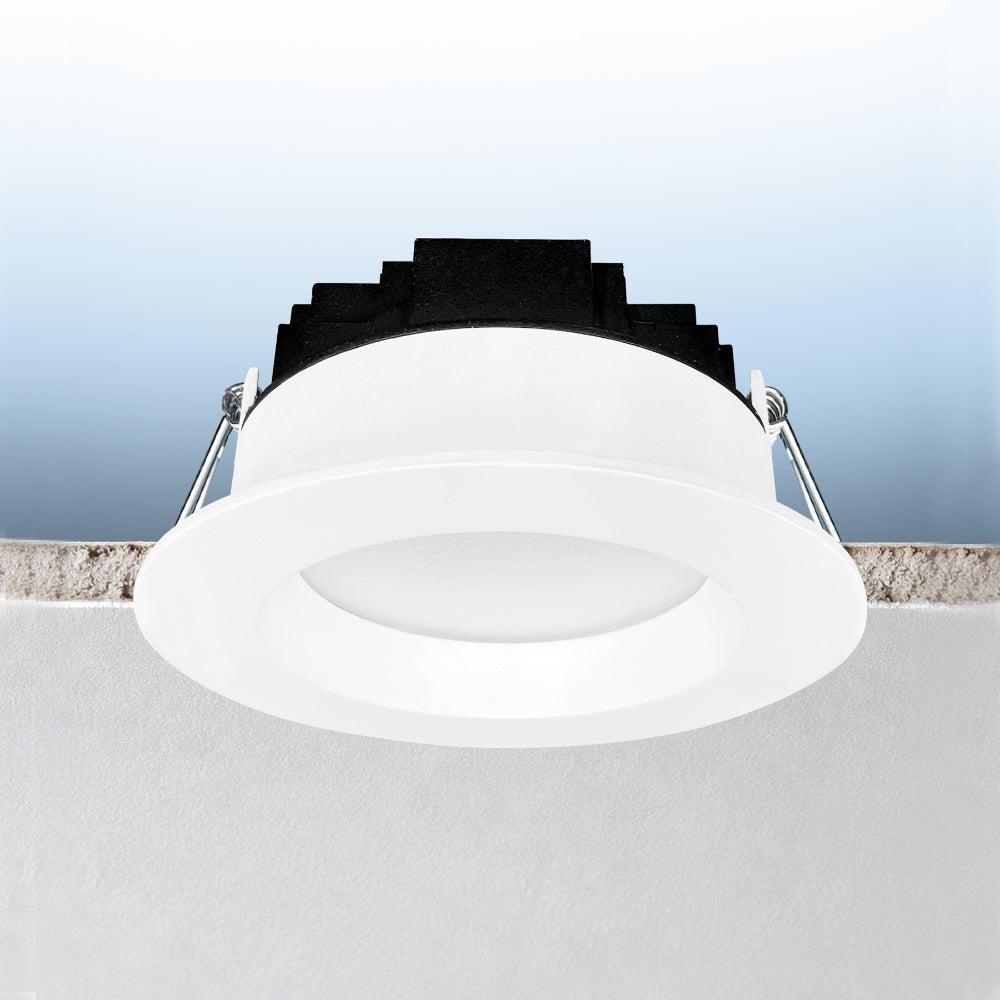

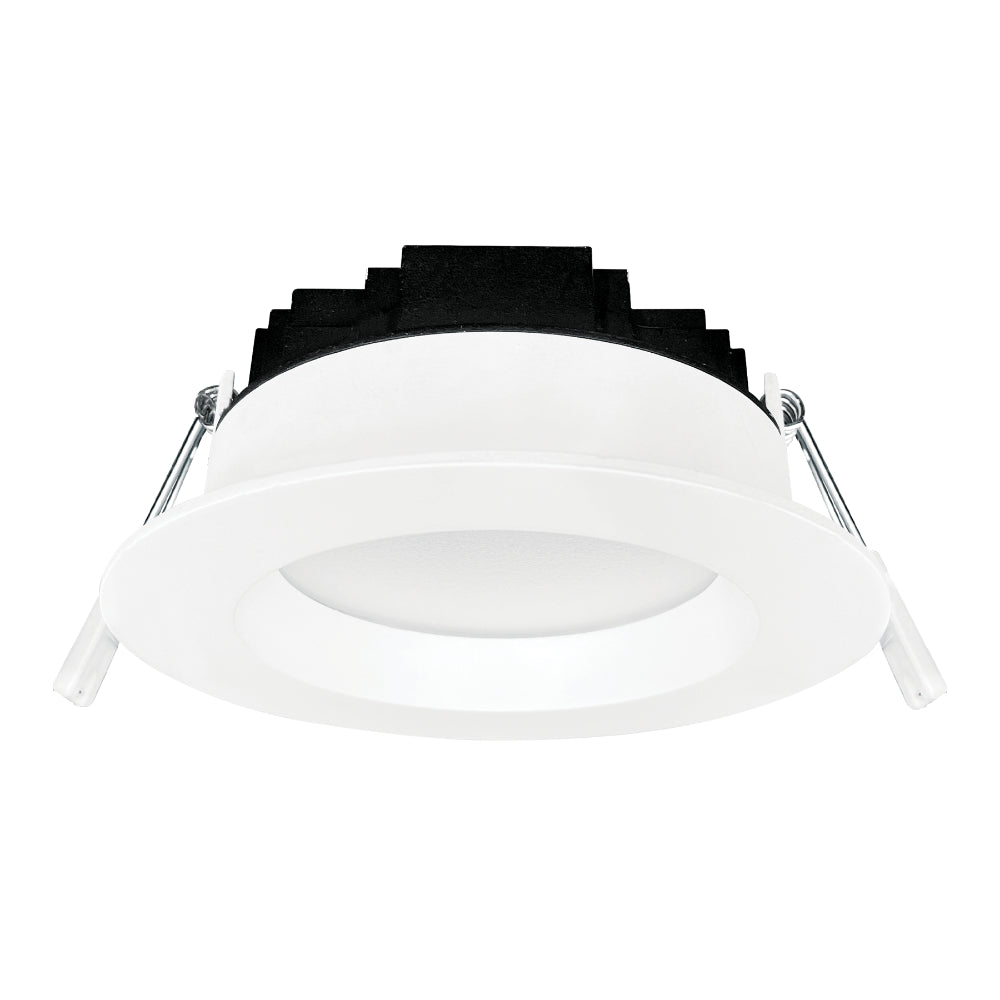

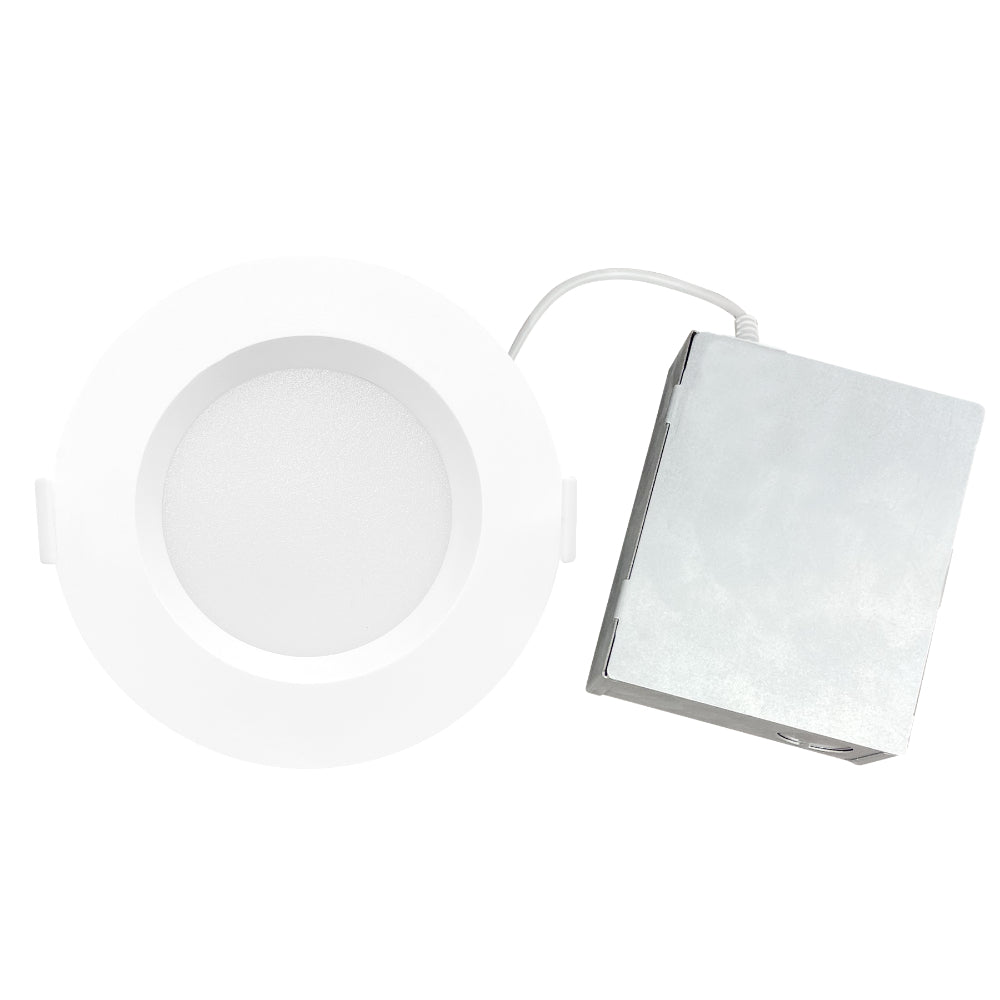

Luxrite 4" Regressed Mini Panel 5CCT - High Output
Specifications
- Item description: LEDRMP4/HO/5CCT/RD/WT/D
- Size: 4 Inch
- Shape: 4 Inch Regressed Mini Panel

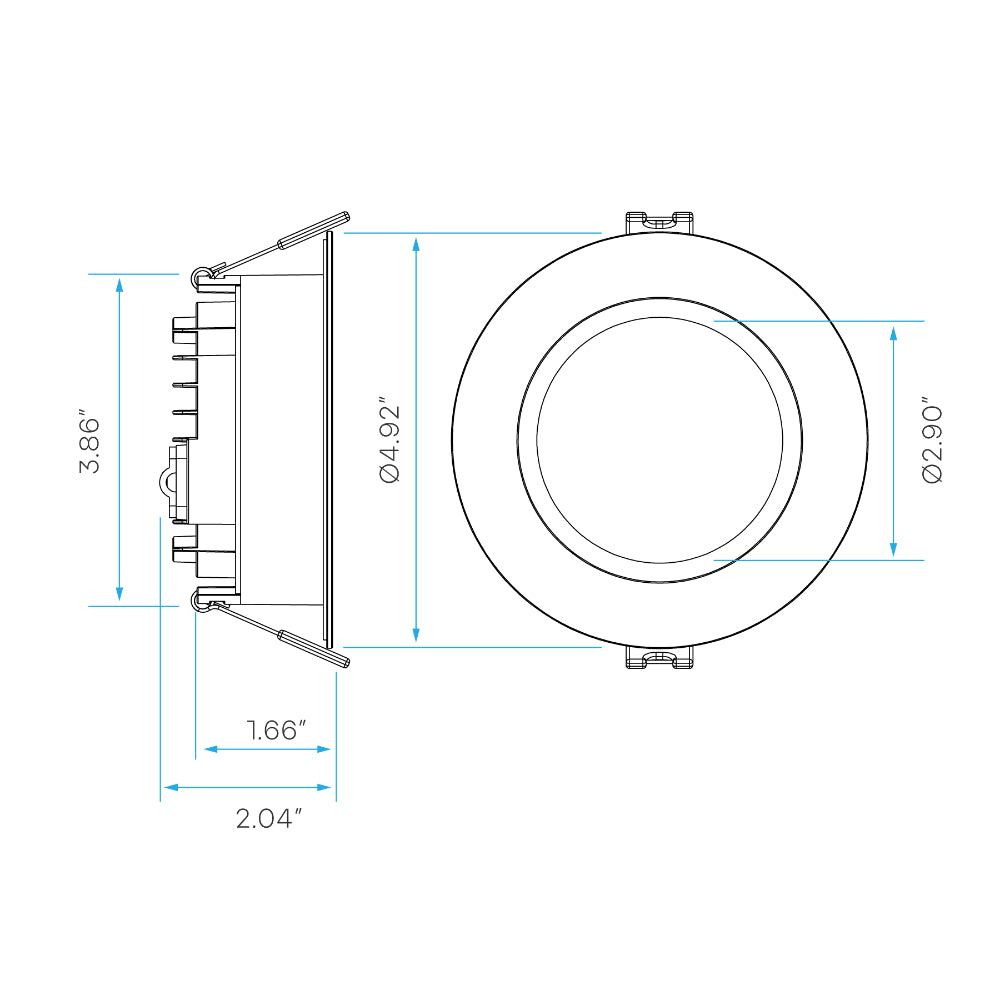

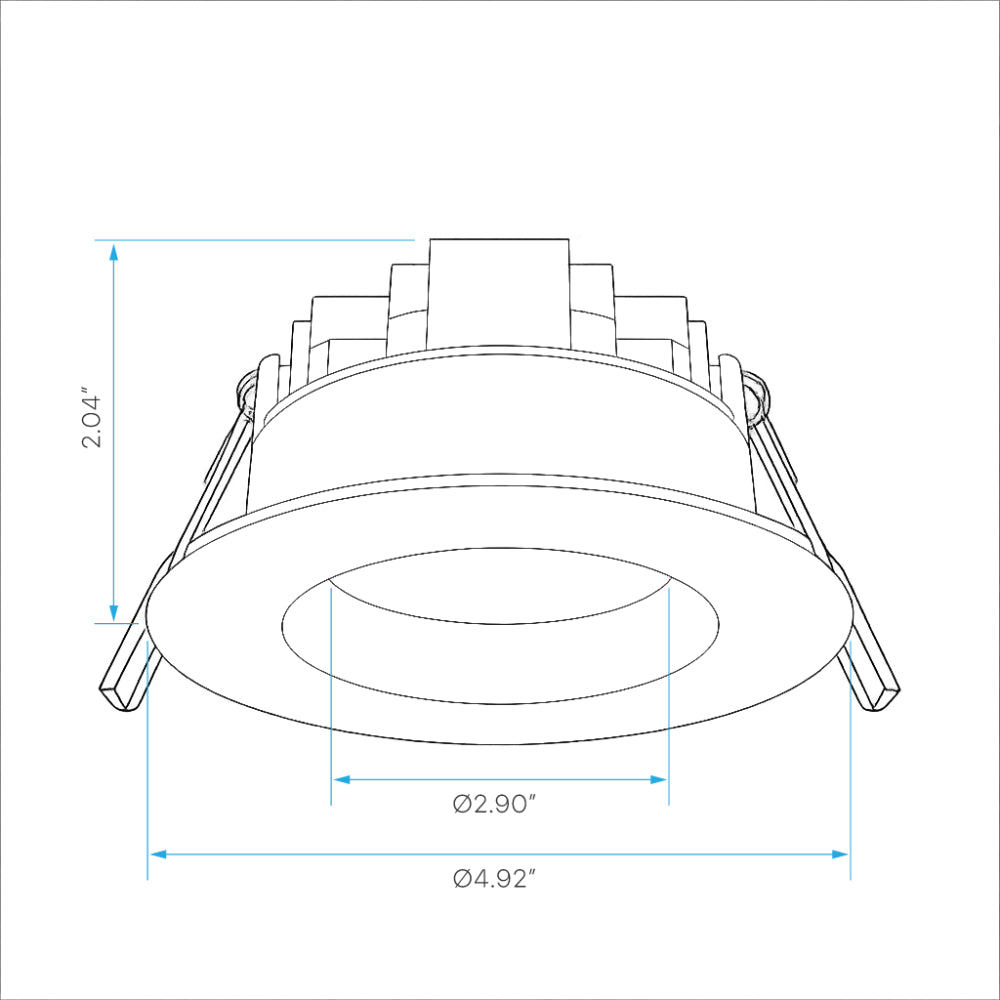

- Dimensions:
- Width: Ø4.92 Inch
- Height: 2.04 Inch
- Finish: White
- Cutout: Ø4.33 Inch
- Plate: LR41002 (#1), LR41010 (#R1)

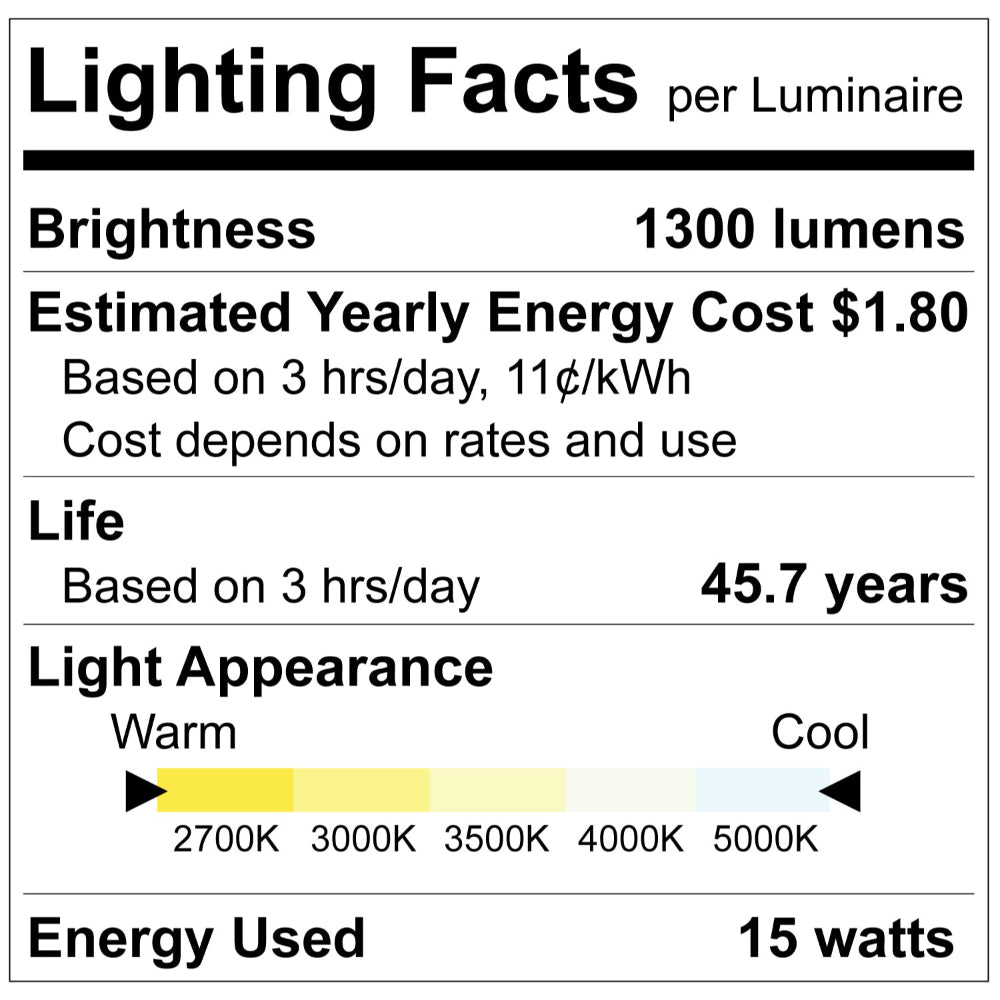

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 1300
- Beam Angle: 106°
- CRI: 80
Electrical
- Power (Wattage): 15
- Input Volts: 120V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: 0.9
- Frequency: 60Hz
- Lumen Efficacy: 87
- Operating Temp:
- Min: -4°
- Max: 104°
Product Files
Click forLuxrite LR22632 Specification Sheet
Click forLuxrite LR22632 Install Guide
Click forLuxrite LR22632 Dimmer Compatibility
Click forLuxrite LR22632 Warranty
Click forLuxrite LR22632 Certificate Of Compliance
Click forLuxrite LR22640 Install Guide
Click forLuxrite LR22640 Dimmer Compatibility
