Luxrite 4" Regressed Mini Panel Dim To Warm + 5CCT & 2 Wattage Selectable - Universal Voltage/Dual Dimming

LuxriteSKU: LR22832
Price:
$0.00 USD

Description

Luxrite 4" Regressed Mini Panel Dim To Warm + 5CCT & 2 Wattage Selectable - Universal Voltage/Dual Dimming

Specifications

  • Item description: LEDRMP4/2WO/5CCT/UDTW/RD/WT/UNV/DD
  • Size: 4 Inch
  • Shape: 4 Inch Regressed Mini Panel

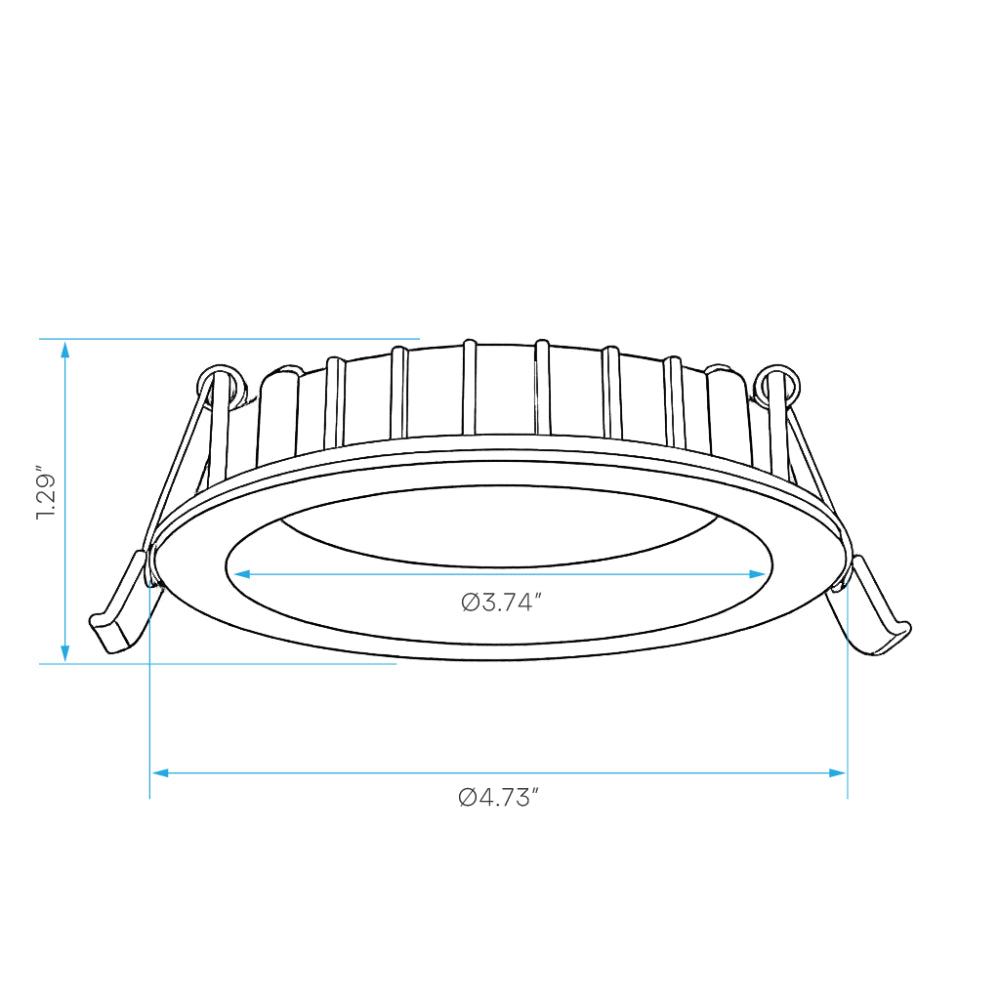

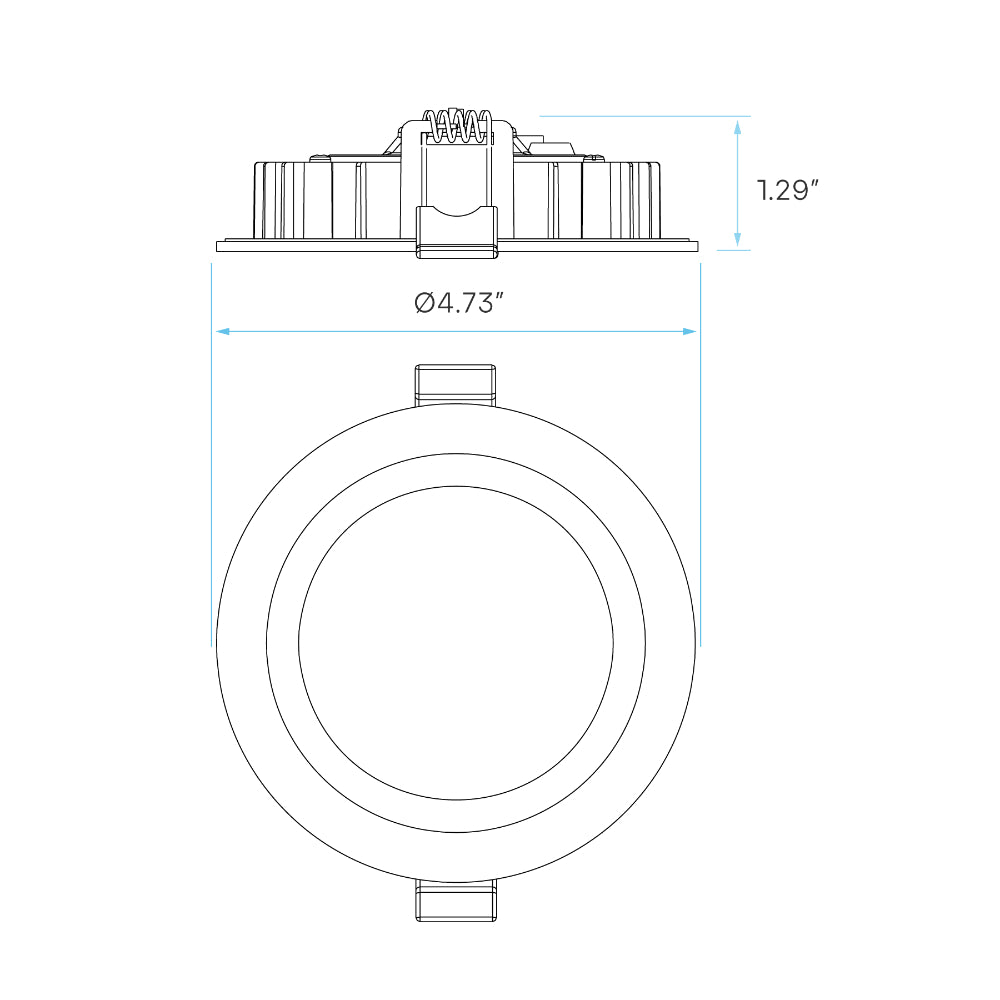

  • Dimensions:
    • Width: Ø4.73 Inch
    • Depth: 1.29 Inch
  • Finish: White
  • Cutout: Ø4.25 Inch
  • Plate: LR41002 (#1), LR41006 (#3), LR41010 (#R1), LR41011 (#4)

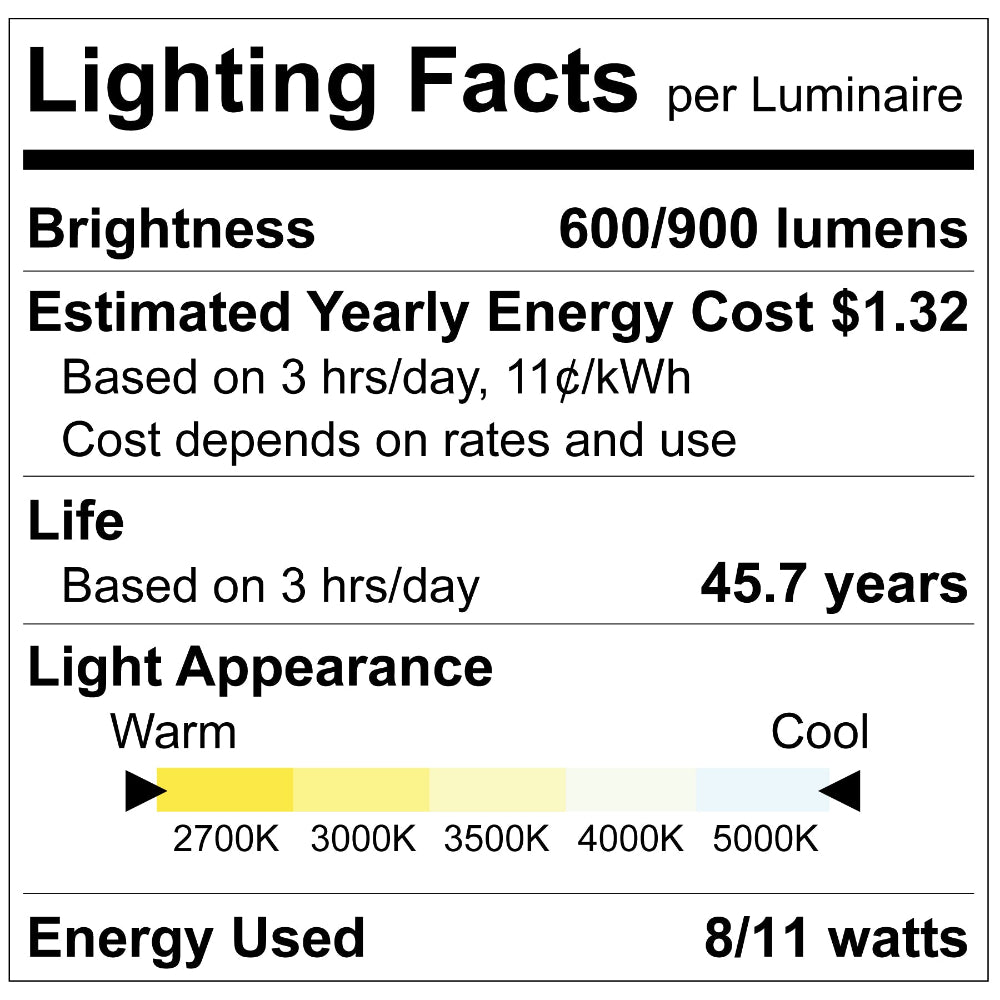

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 600/900
  • Beam Angle: 100°
  • CRI: 90

Electrical

  • Power (Wattage): 8/10
  • Input Volts: 120-277V
  • Rated Lifetime: 50000
  • Dimmable: Dual Dimming TRIAC/0-10V
  • Input Current: 92Ma
  • Frequency: 60Hz
  • Lumen Efficacy: 75/81
  • Operating Temp:
    • Min: -4º
    • Max: 104º
Product Files

Click forLuxrite LR22832 Specification Sheet

Click forLuxrite LR22832 Family Specification Sheet

Click forLuxrite LR22832 Install Guide

Click forLuxrite LR22832 Dimmer Compatibility

Click forLuxrite LR22832 Warranty
