Description

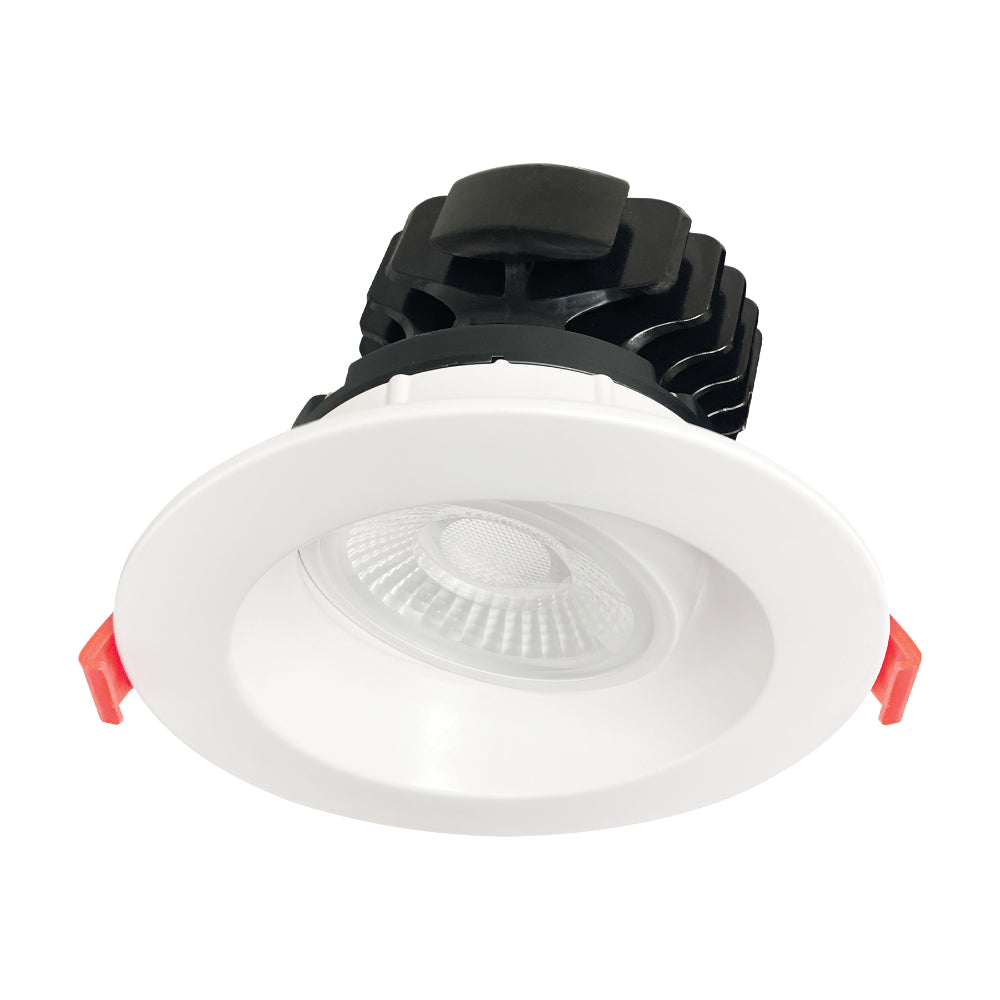

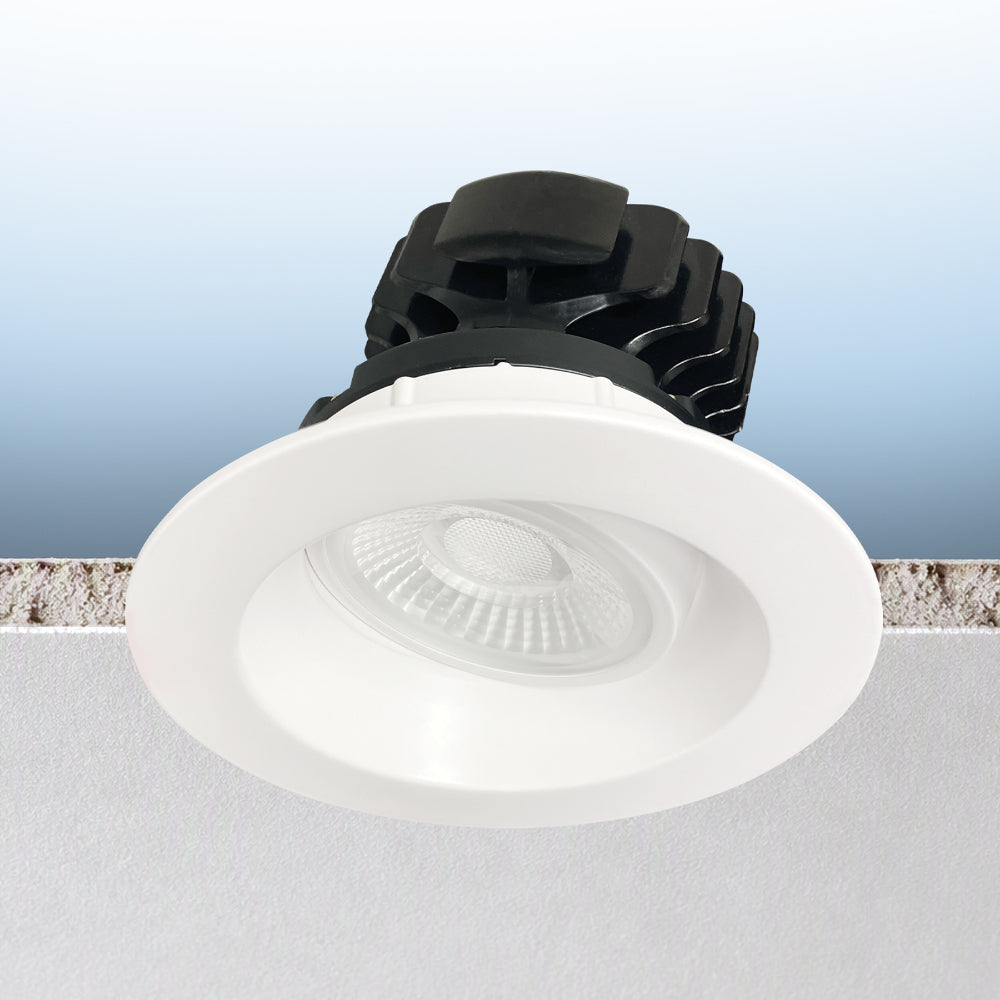

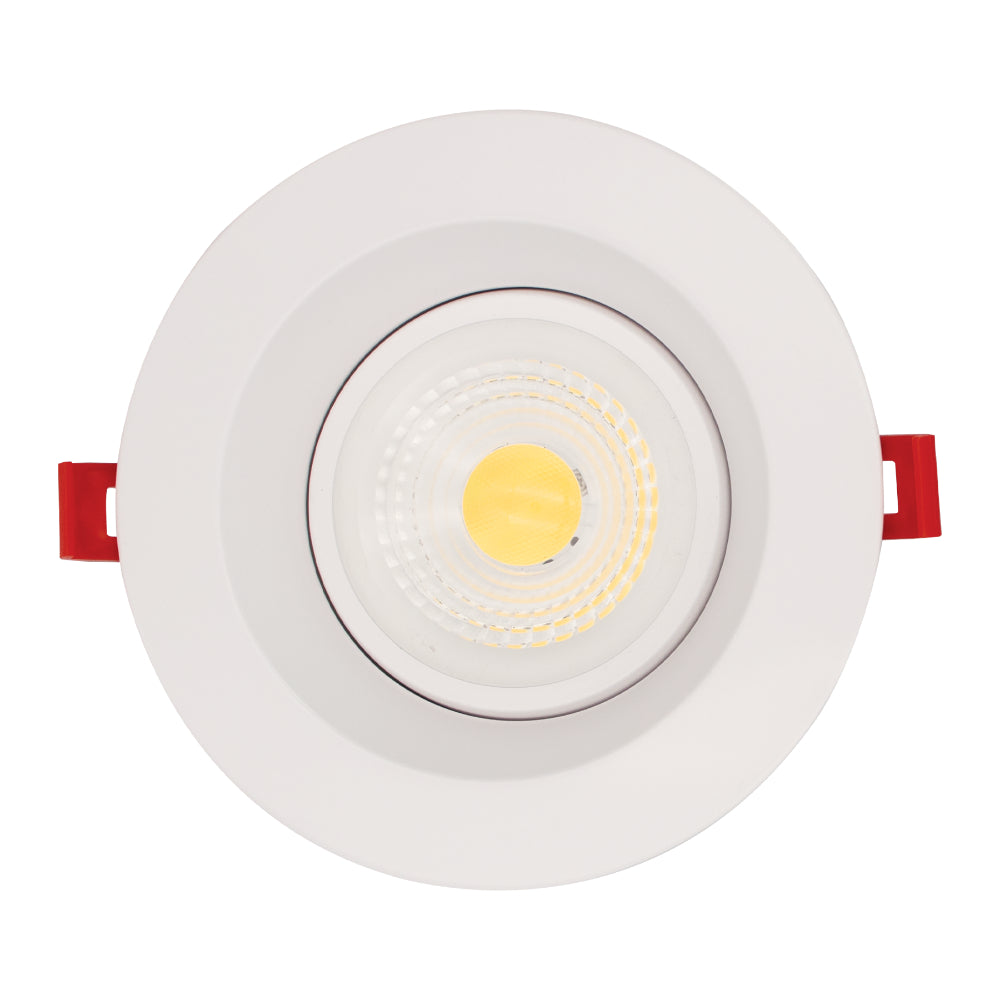

Luxrite 4" Regressed Recessed Gimbal - High Output
Specifications
- Item description: LED18W/RDL4/GB/HO/5CCT/FL
- Size: 4 Inch
- Shape: 4 Inch Deep Gimbal

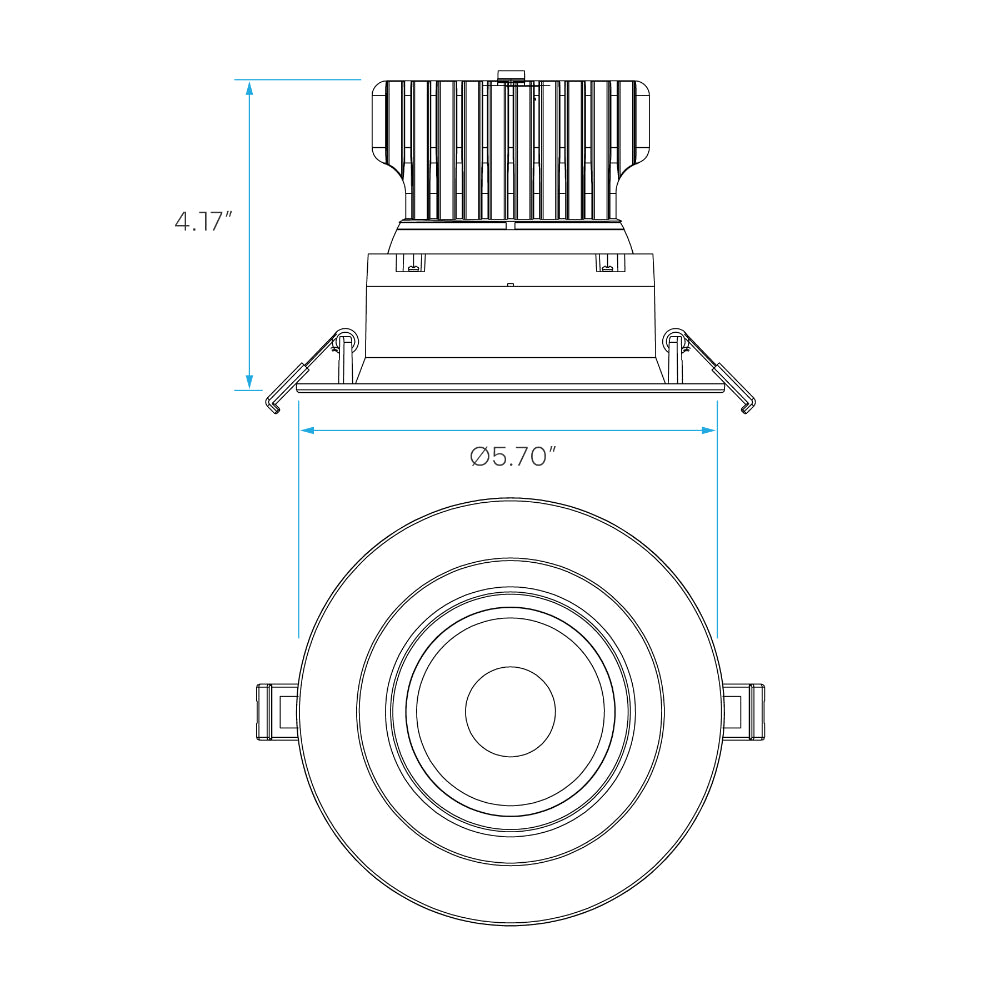

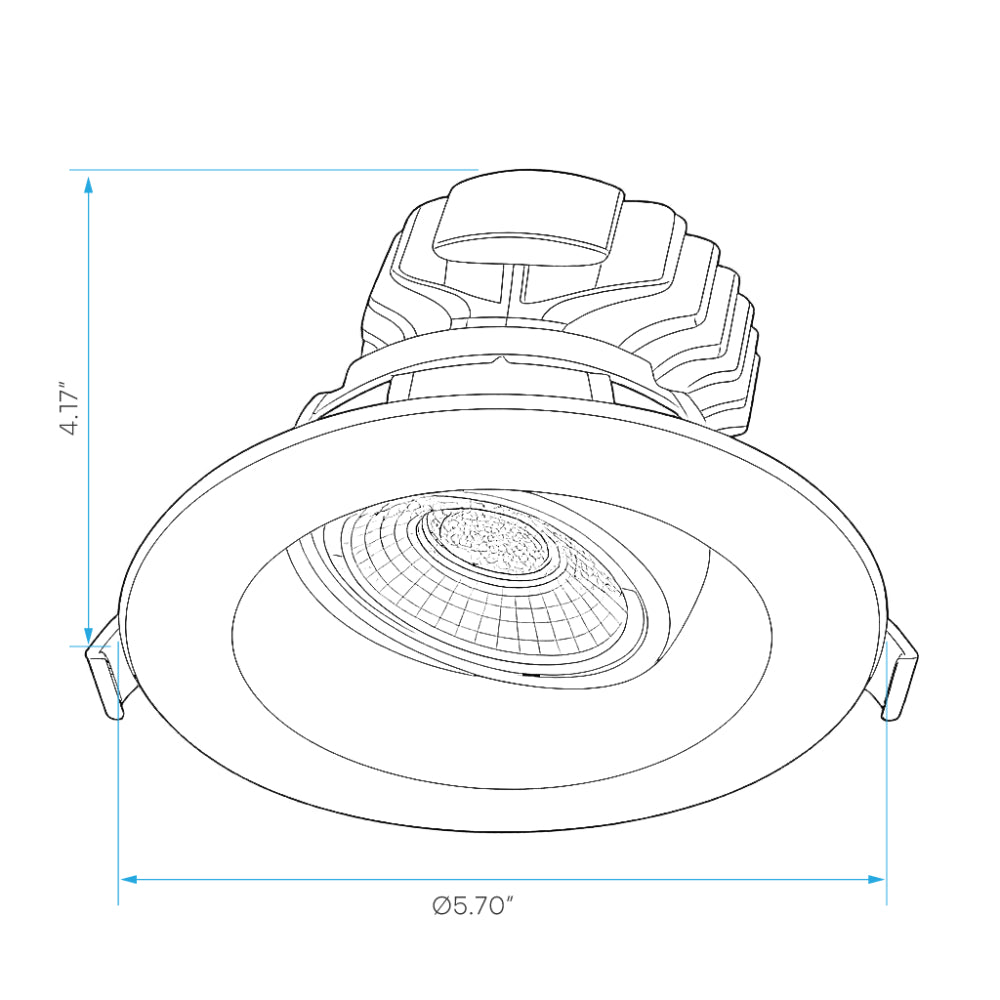

- Dimensions:
- Width: Ø5.70 Inch
- Depth: 4.17 Inch
- Finish: White
- Cutout: Ø4.92 Inch
- Plate: LR41004 (#3), LR41006 (#4), LR41010 (#R2)

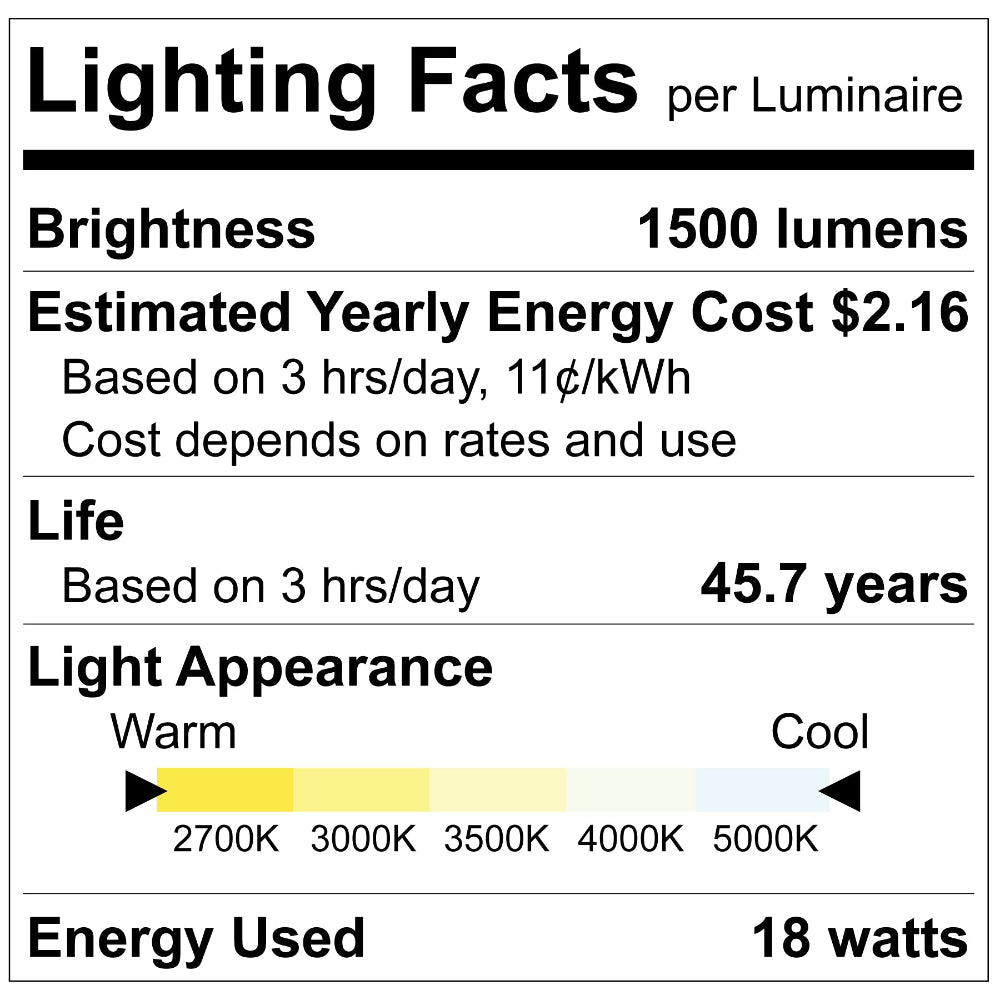

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 1500
- Beam Angle: 60º
- CRI: 90
Electrical
- Power (Wattage): 18
- Input Volts: 120V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: 0.9
- Frequency: 60Hz
- Lumen Efficacy: 83
- Operating Temp:
- Min: -4º
- Max: 104º
Product Files
Click forLuxrite LR23228 Specification Sheet
Click forLuxrite LR23228 Install Guide
