Luxrite 4" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Dual Dimming/Universal Voltage

LuxriteSKU: LR25460
Select Beam Angle: 38 Degree
Price:
$0.00 USD

Description

Luxrite 4" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Dual Dimming/Universal Voltage

Specifications

  • Item description: LED/TLMD4HO/5CCT/RD/WT/UNV/DD
  • Size: 4 Inch
  • Shape: Regressed Trimless

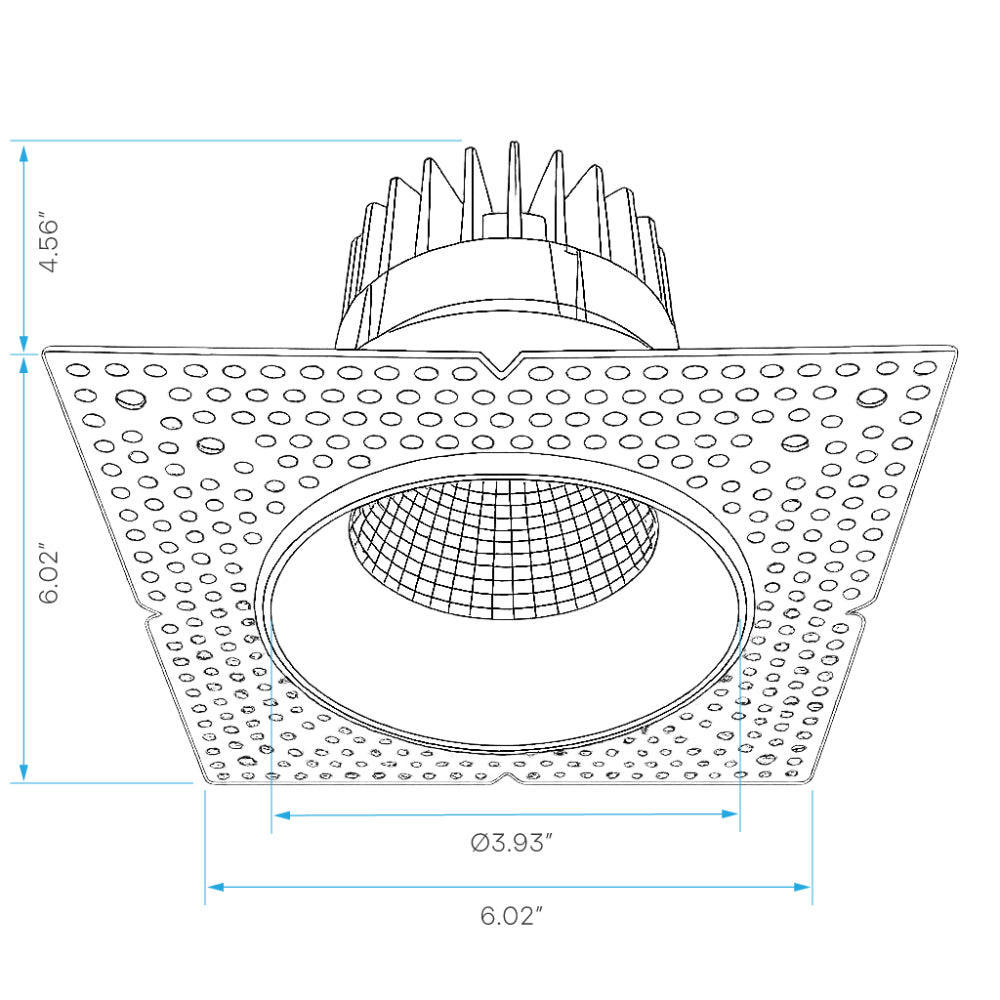

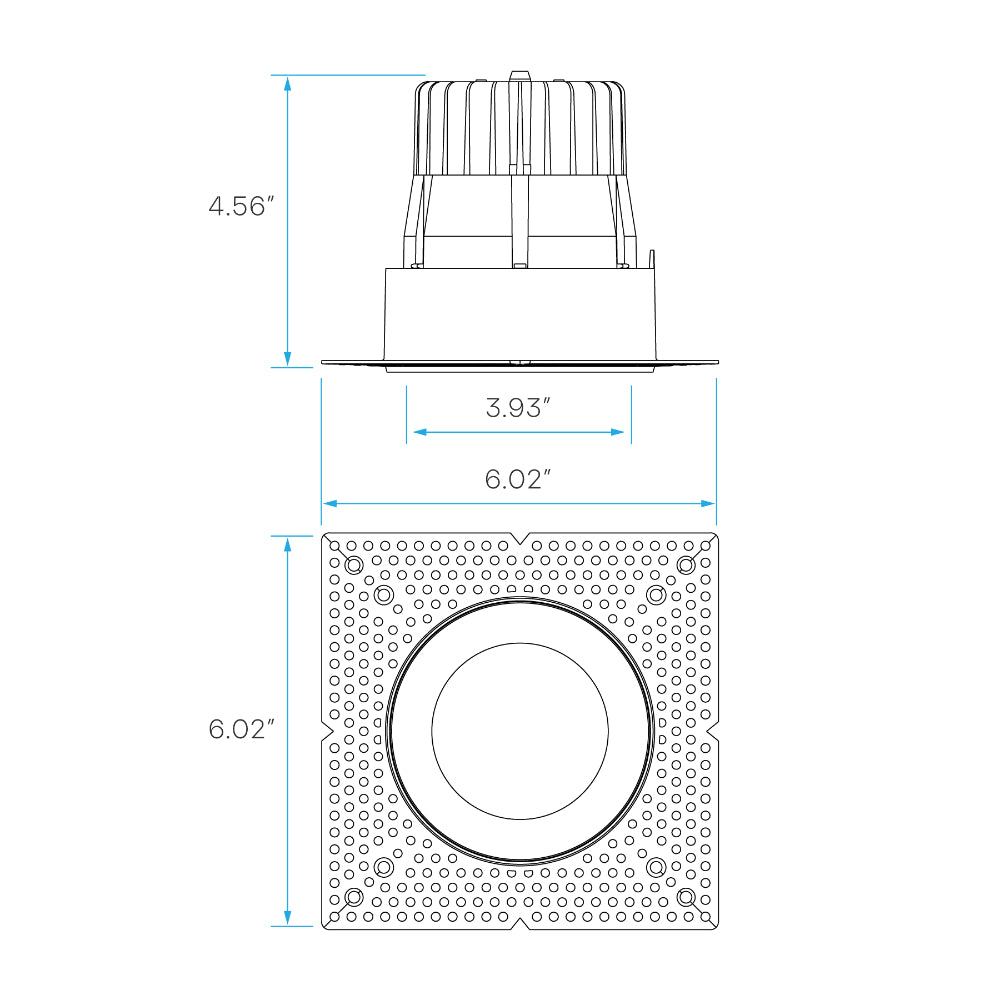

  • Dimensions:
    • Length: 6.02 Inch
    • Width: 6.02 Inch
    • Depth: 4.56 Inch
  • Finish: White
  • Cutout: Ø4.25 Inch
  • Plate: LR41002 (#1), LR41004 (#3), LR41006 (#3), LR41010 (#R1), LR41011 (#4)

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 2000
  • CRI: 90

Electrical

  • Power (Wattage): 25
  • Input Volts: 120-277V
  • Rated Lifetime: 50000
  • Dimmable: Dual Dimming TRIAC/0-10V
  • Power Factor: 0.9
  • Frequency: 60Hz
  • Lumen Efficacy: 80
  • Operating Temp:
    • Min: -4º
    • Max: 113º
Product Files

Click forLuxrite LR25460 Specification Sheet

Click forLuxrite LR25460 Family Specification Sheet

Click forLuxrite LR25460 Install Guide

Click forLuxrite LR25460 Dimmer Compatibility

Click forLuxrite LR25460 Warranty

Click forLuxrite LR25465 Dimmer Compatibility

Click forLuxrite LR25465 Warranty
