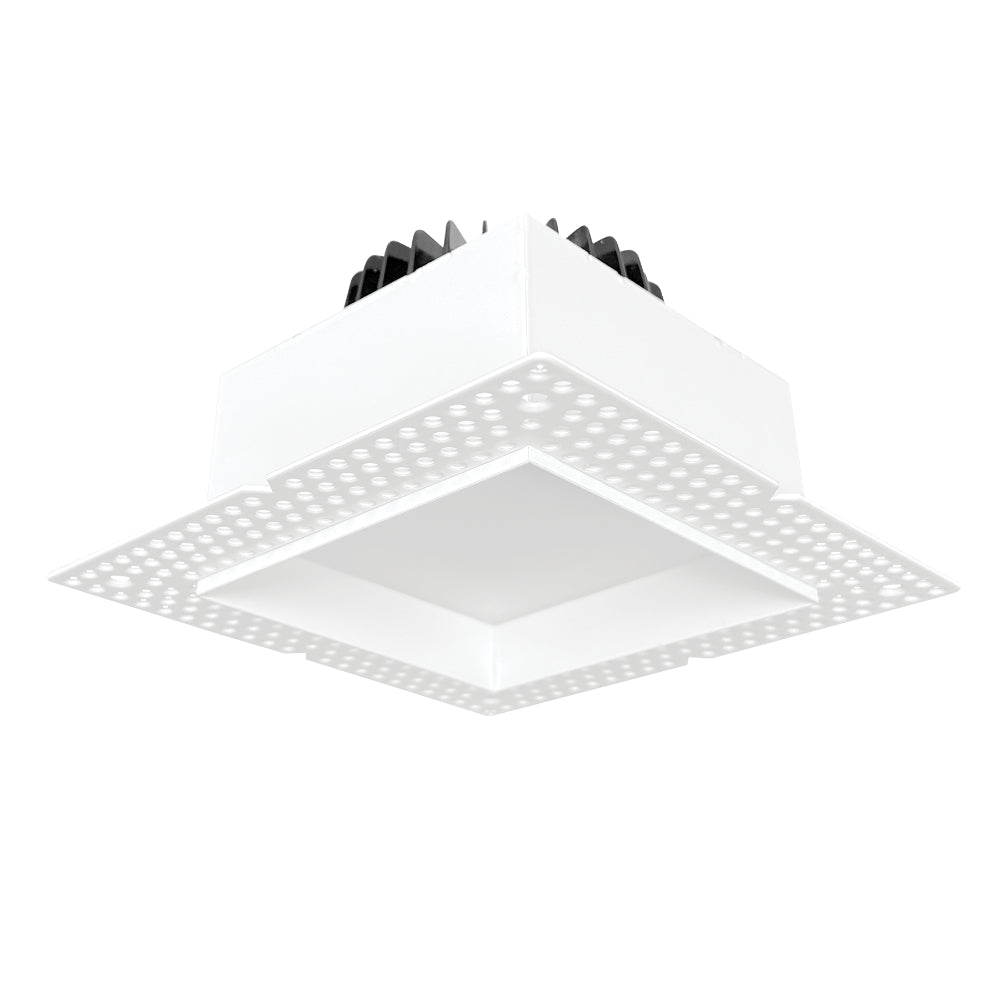

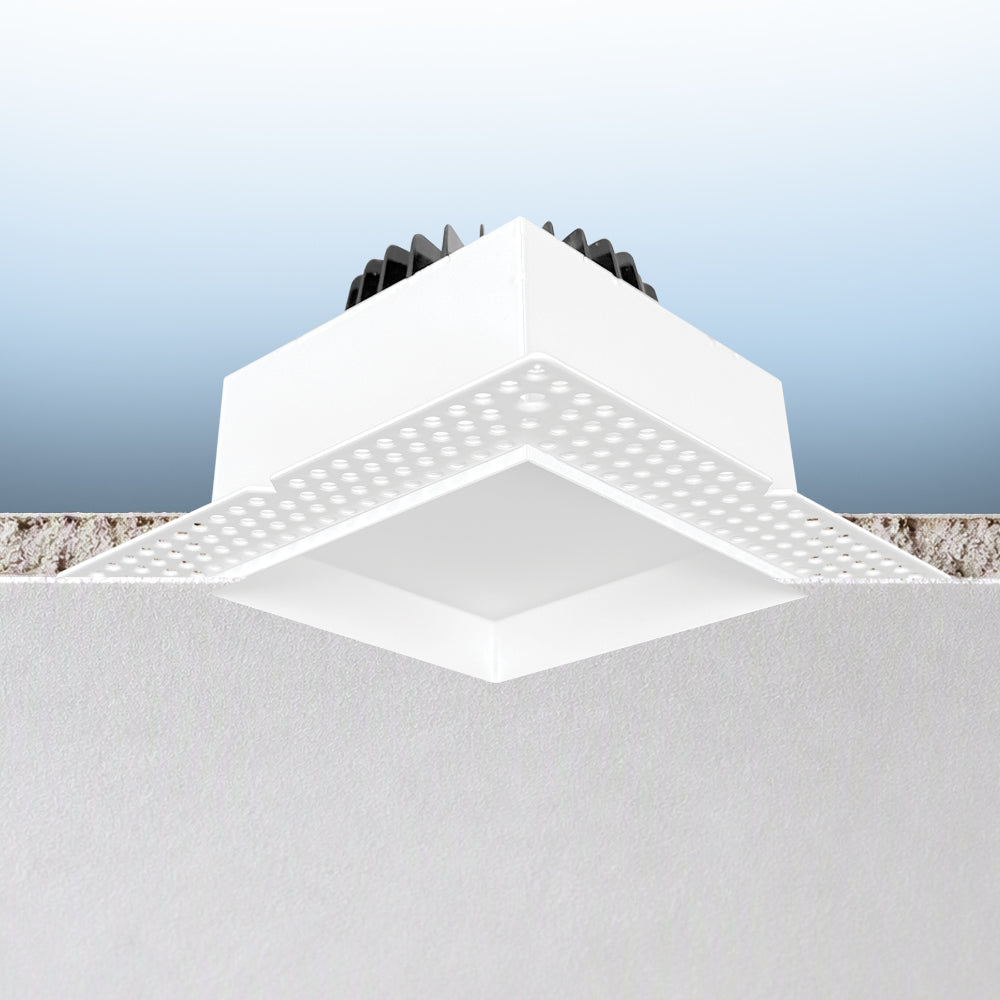

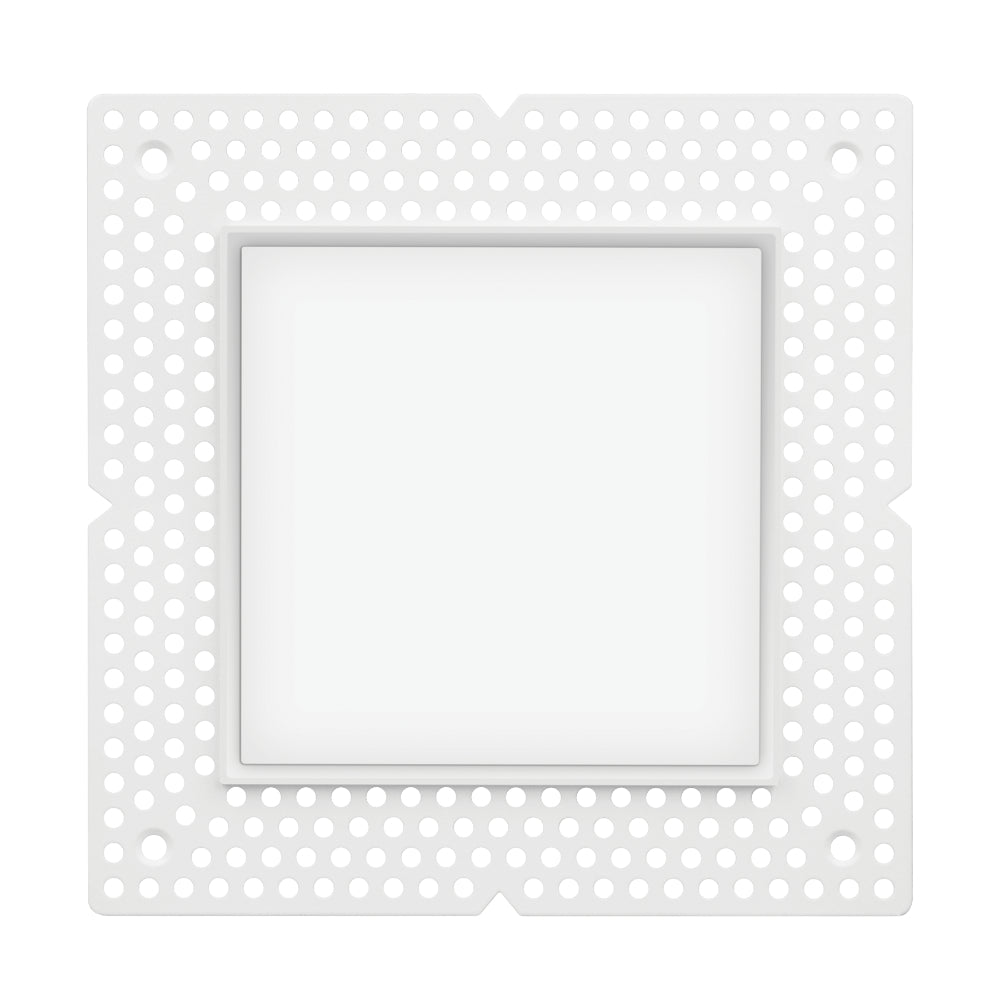

Luxrite 4" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Universal Voltage/Dual Dimming/Universal Voltage Square
Luxrite 4" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Universal Voltage/Dual Dimming/Universal Voltage Square Additional Image 1
Luxrite 4" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Universal Voltage/Dual Dimming/Universal Voltage Square Additional Image 2
Luxrite 4" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Universal Voltage/Dual Dimming/Universal Voltage Square Additional Image 3
Luxrite 4" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Universal Voltage/Dual Dimming/Universal Voltage Square Additional Image 4
Luxrite 4" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Universal Voltage/Dual Dimming/Universal Voltage Square Additional Image 5
Luxrite 4" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Universal Voltage/Dual Dimming/Universal Voltage Square Additional Image 6
Roll over image to zoom in Click on image to zoom
Luxrite 4" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Universal Voltage/Dual Dimming/Universal Voltage SquareLuxrite 4" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Universal Voltage/Dual Dimming/Universal Voltage Square Additional Image 1Luxrite 4" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Universal Voltage/Dual Dimming/Universal Voltage Square Additional Image 2Luxrite 4" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Universal Voltage/Dual Dimming/Universal Voltage Square Additional Image 3Luxrite 4" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Universal Voltage/Dual Dimming/Universal Voltage Square Additional Image 4Luxrite 4" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Universal Voltage/Dual Dimming/Universal Voltage Square Additional Image 5Luxrite 4" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Universal Voltage/Dual Dimming/Universal Voltage Square Additional Image 6

Luxrite 4" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Universal Voltage/Dual Dimming/Universal Voltage Square

LuxriteSKU: LR25439
Price:
$0.00 USD

Description

Luxrite 4" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Universal Voltage/Dual Dimming/Universal Voltage Square

Specifications

  • Item description: LED/TLMD4HO/RGS/5CCT/SQ/WT/UNV/DD/FL
  • Size: 4 Inch
  • Shape: Regressed Trimless

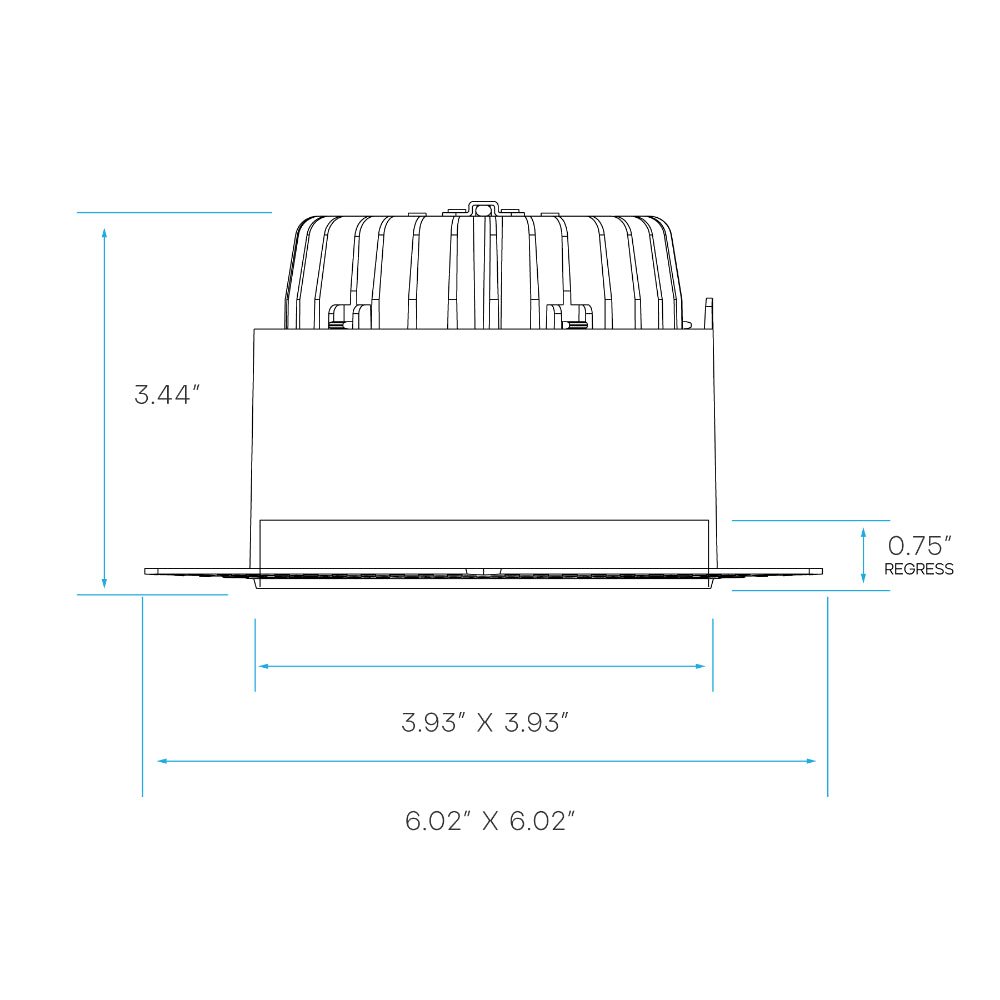

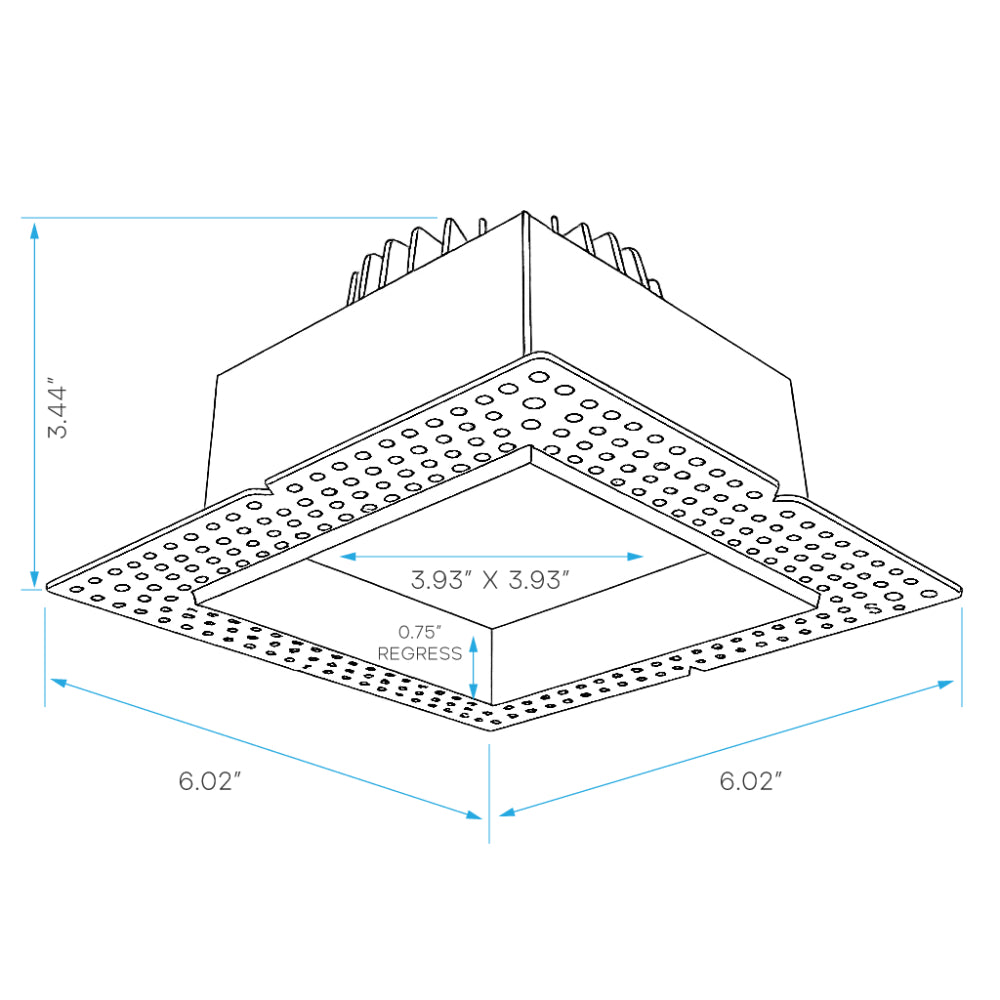

  • Dimensions:
    • Length: 6.02 Inch
    • Width: 6.02 Inch
    • Depth: 3.44 Inch
  • Finish: White
  • Cutout: 4.25 Inch x 4.25 Inch

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 1950

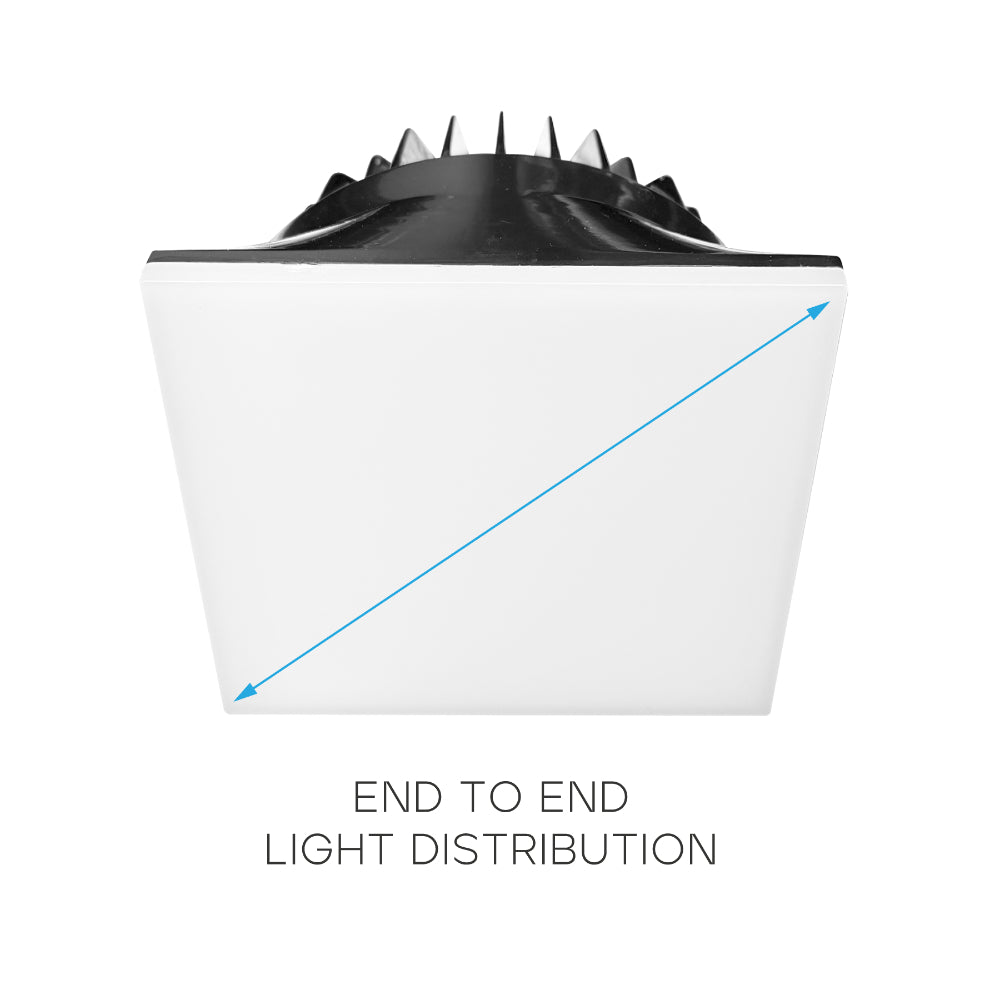

  • Beam Angle: 110º
  • CRI: 90

Electrical

  • Power (Wattage): 25
  • Input Volts: 120-277V
  • Rated Lifetime: 50000
  • Dimmable: Dual Dimming TRIAC/0-10V
  • Power Factor: 0.9
  • Frequency: 60Hz
  • Lumen Efficacy: 78
  • Operating Temp:
    • Min: -4º
    • Max: 113º
Product Files

Click forLuxrite LR25439 Specification Sheet

Click forLuxrite LR25439 Install Guide

Click forLuxrite LR25439 Dimmer Compatibility

Click forLuxrite LR25439 Warranty
