Luxrite 4" Smart Mini Panel RGB + Tunable White - Round

LuxriteSKU: LR22740
Price:
$0.00 USD

Description

Luxrite 4" Smart Mini Panel RGB + Tunable White - Round

Specifications

  • Item description: LED/SMP4/RGB/CCT/RD
  • Size: 4 Inch
  • Shape: 4 Inch Smart Mini Panel

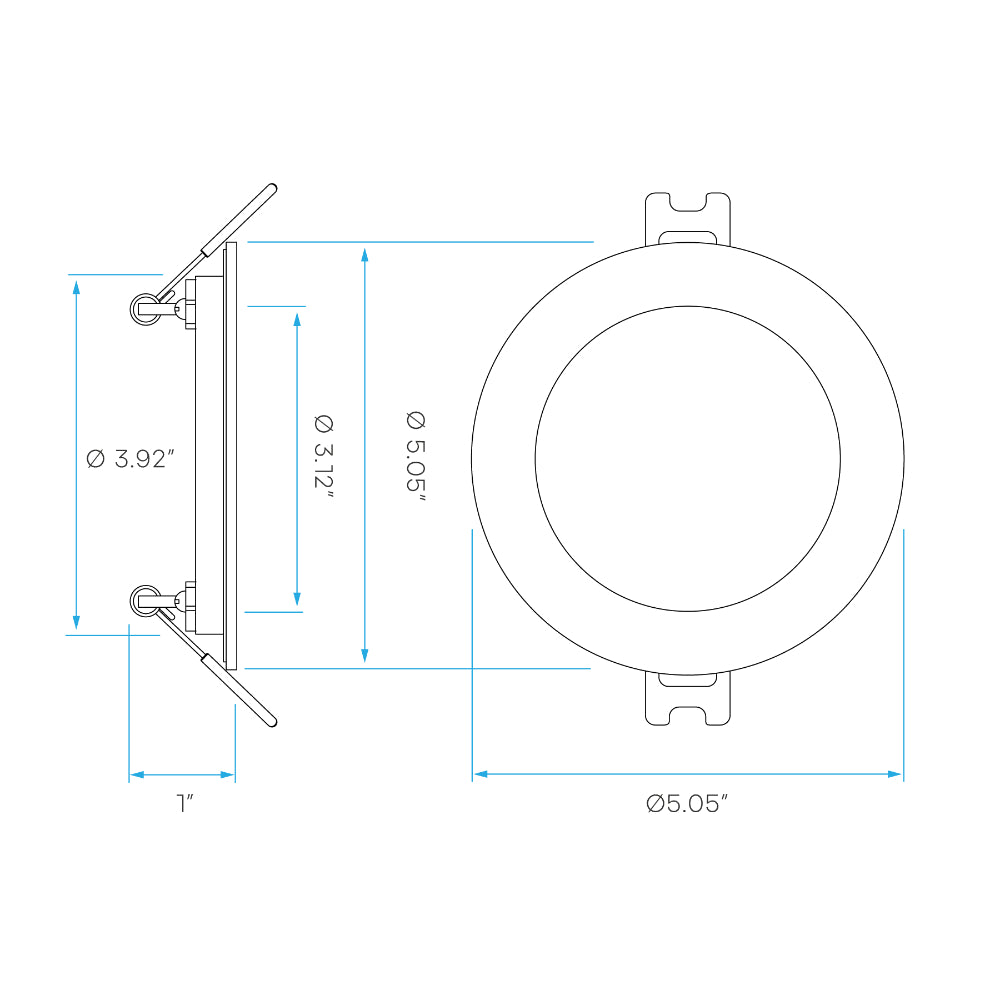

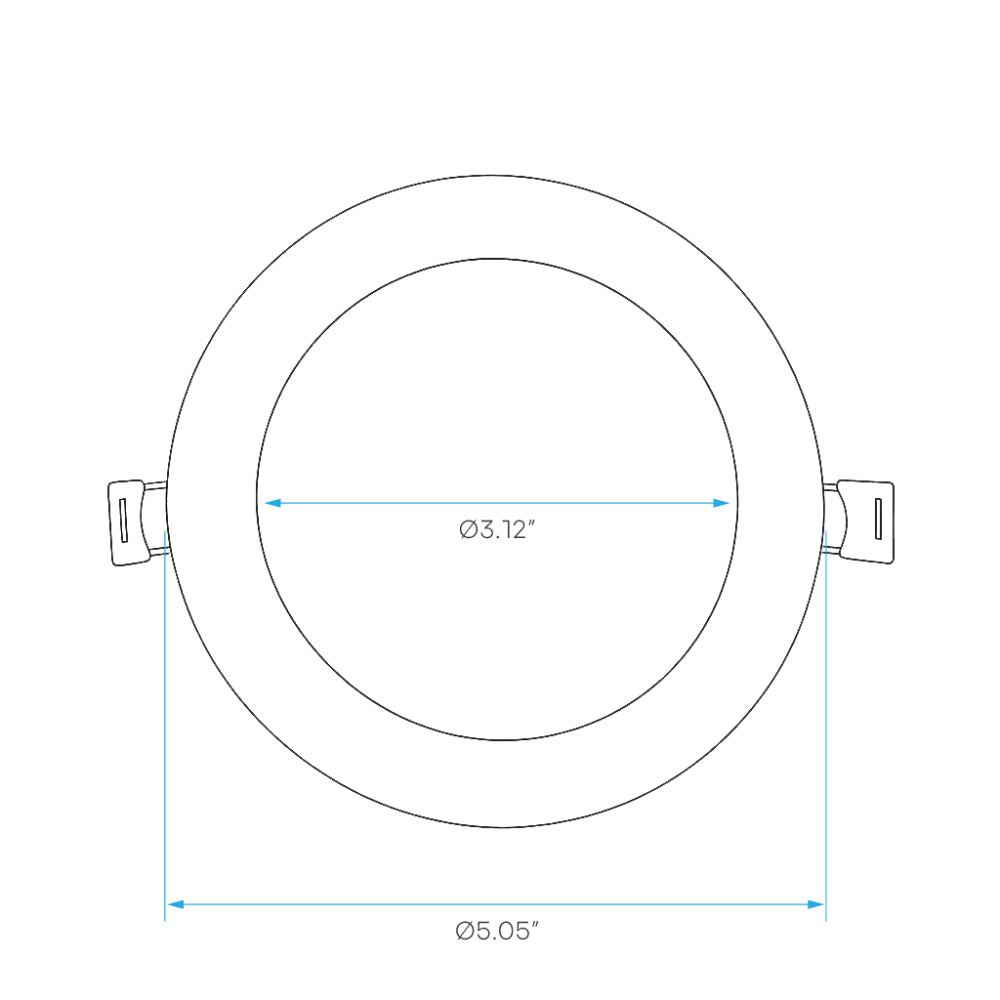

  • Dimensions:
    • Width: Ø5.05 Inch
    • Depth: 1 Inch
  • Finish: White
  • Cutout: Ø4.3 Inch
  • Plate: LR41002 (#1), LR41006 (#3), LR41010 (#R1), LR41011 (#4)

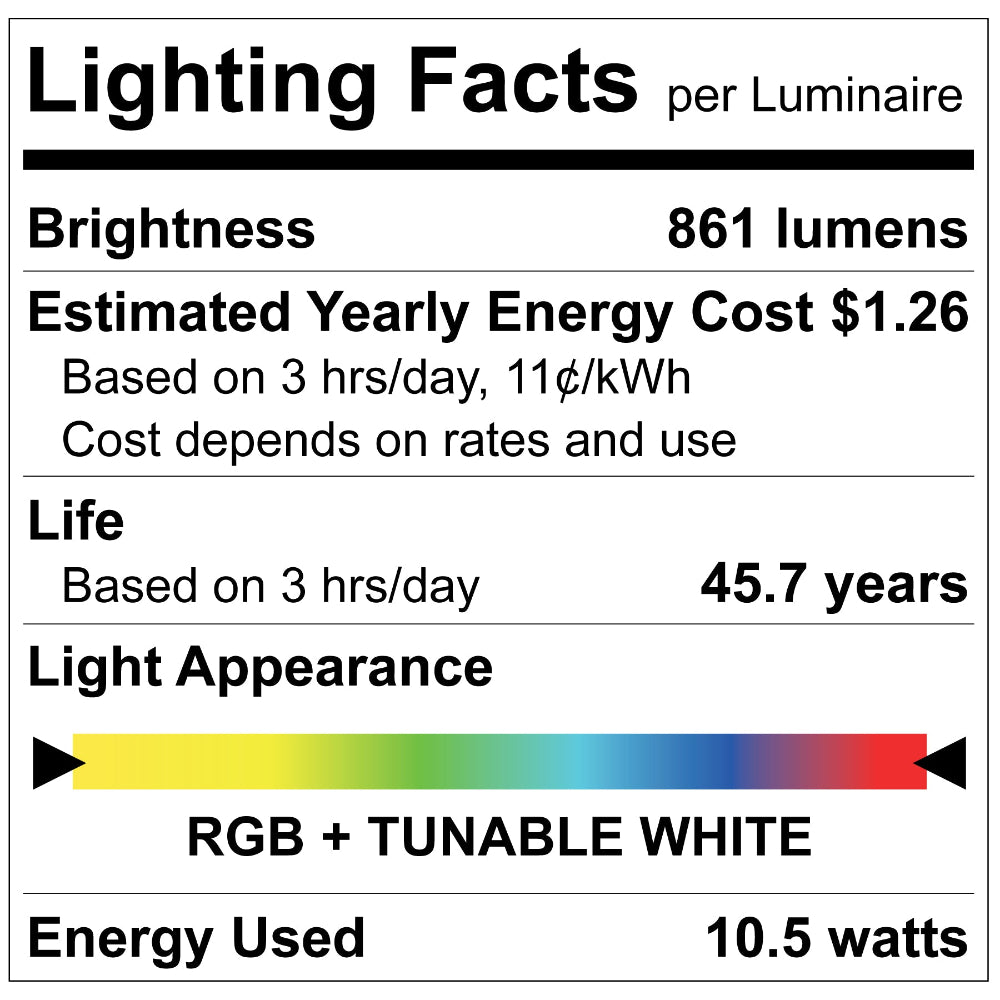

Photometric

  • Color (Temp): Rgb + Tunable White
  • Color (CCT): Rgbw 2000-5000K
  • Lumen: 861
  • Beam Angle: 180º
  • CRI: 90

Electrical

  • Power (Wattage): 10.5
  • Input Volts: 120V
  • Rated Lifetime: 50000
  • Dimmable: Via App
  • Input Current: 87Ma
  • Frequency: 50/60Hz
  • Lumen Efficacy: 64
  • Operating Temp:
    • Min: -4º
    • Max: 113º
Product Files

Click forLuxrite LR22740 Specification Sheet

Click forLuxrite LR22740 Family Specification Sheet

Click forLuxrite LR22740 Install Guide

Click forLuxrite LR22740 Warranty
