Description

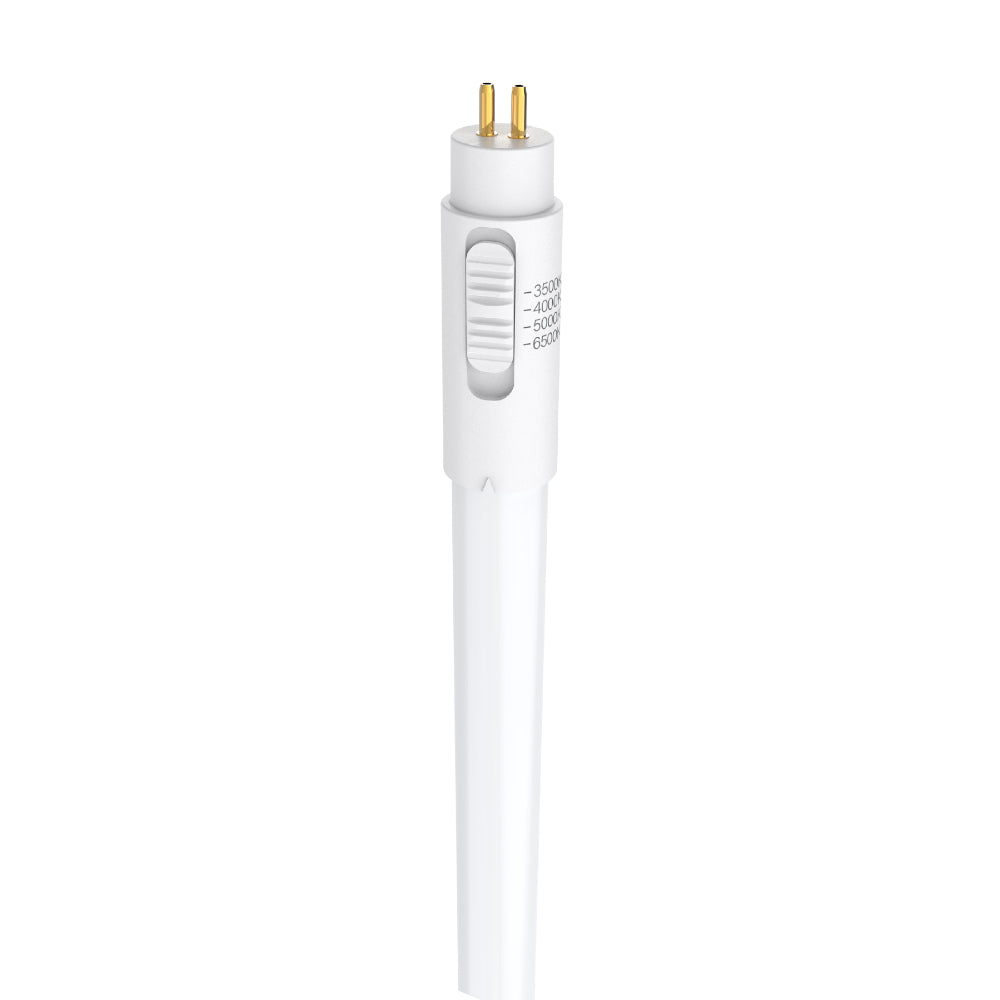

Luxrite 4' T5 Bypass Ballast - 4CCT Selectable LED Lamp
Specifications
- Item description: LED24T5/4CCT/48/B
- Size: 48 Inch
- Shape: T5
- Base: G5

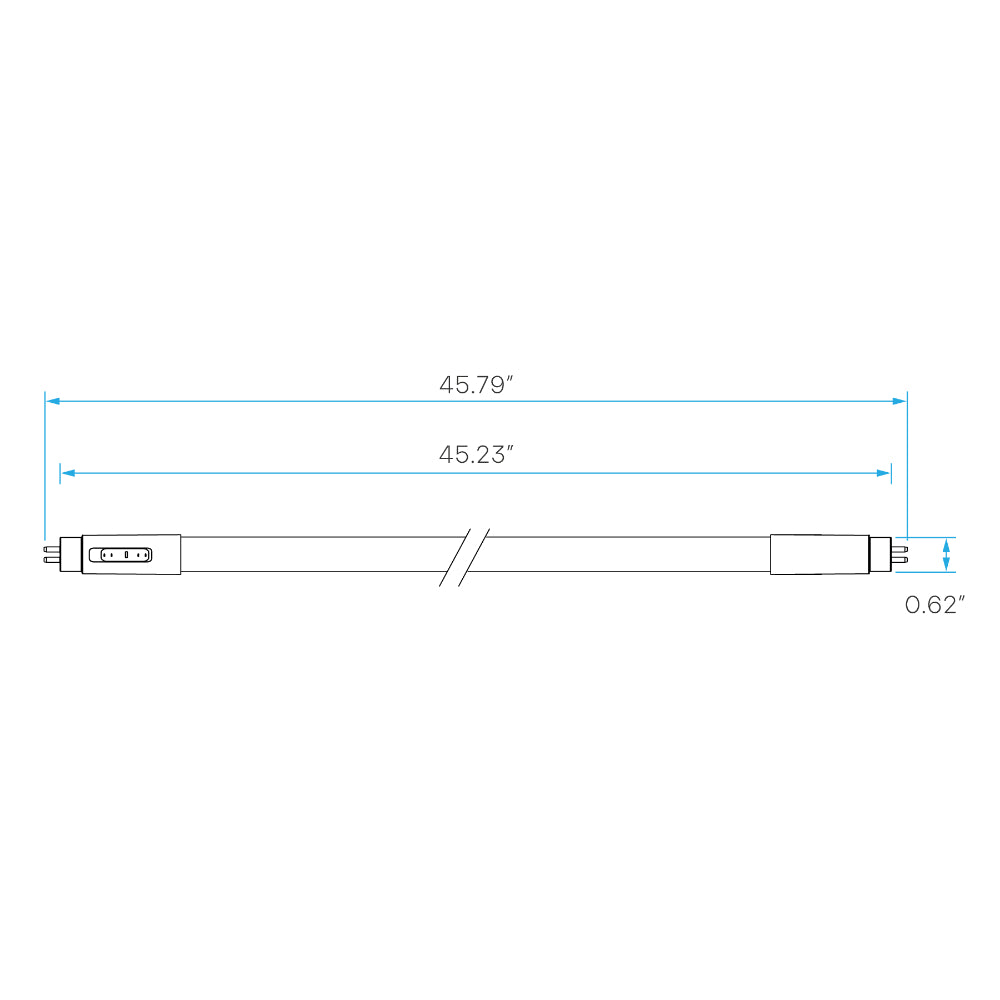

- Dimensions:
- Length: 45.23 Inch
- Width: 0.62 Inch
- Finish: Frost
- MOL: 45.23 Inch
Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 3500K/4000K/5000K/6500K
- Lumen: 3120
- Beam Angle: 180º
- CRI: 83
Electrical
- Power (Wattage): 24
- Input Volts: 120-277V
- Rated Lifetime: 50000
- Power Factor: 0.9
- Frequency: 50/60Hz
- Bypass 1 Side Input: Yes
- Bypass 2 Side Input: Yes
- Watt Replacement: 54
- Lumen Efficacy: 133
- Operating Temp:
- Min: -4º
- Max: 113º
Product Files
Click forLuxrite LR34154 Specification Sheet
