Description
Luxrite 4" Wattage Selectable 4CCT Commercial Downlight
Specifications
- Item description: LED/CDL4HO/3WO/4CCT/JB
- Size: 4 Inch
- Shape: 4 Inch Round

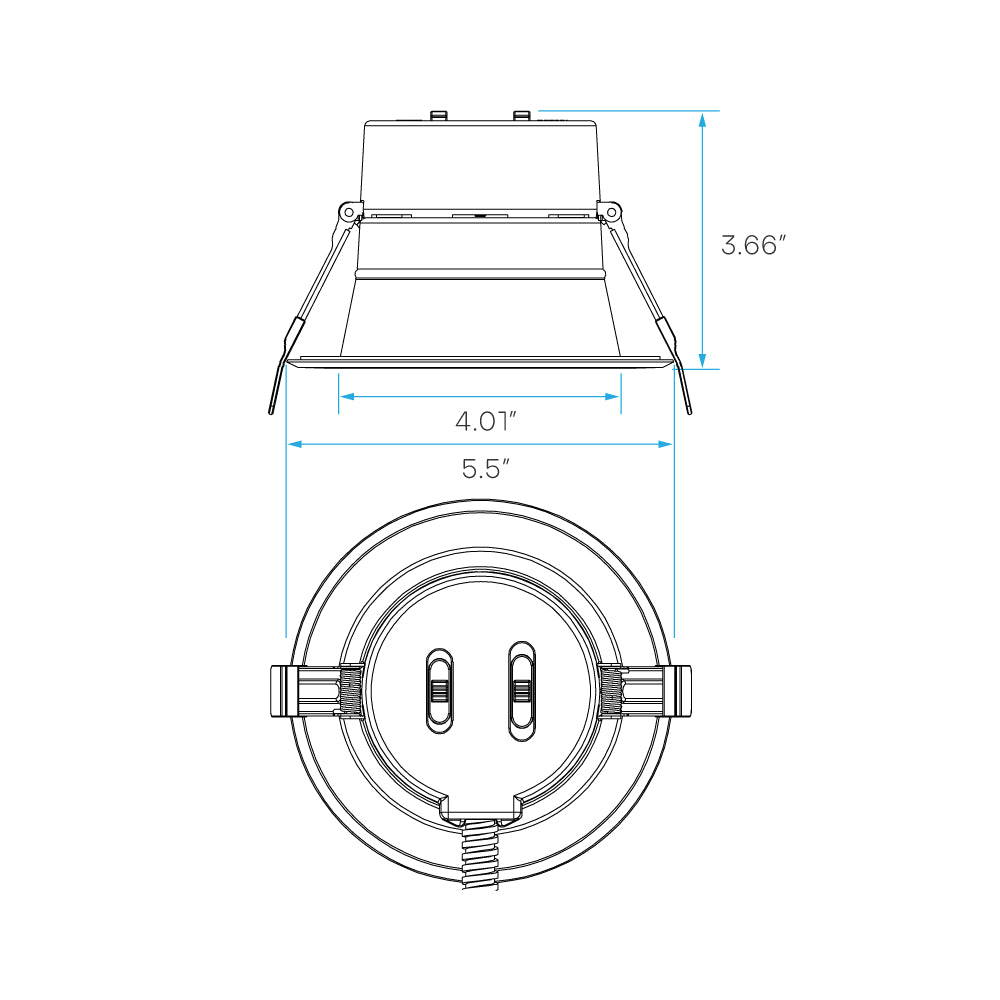

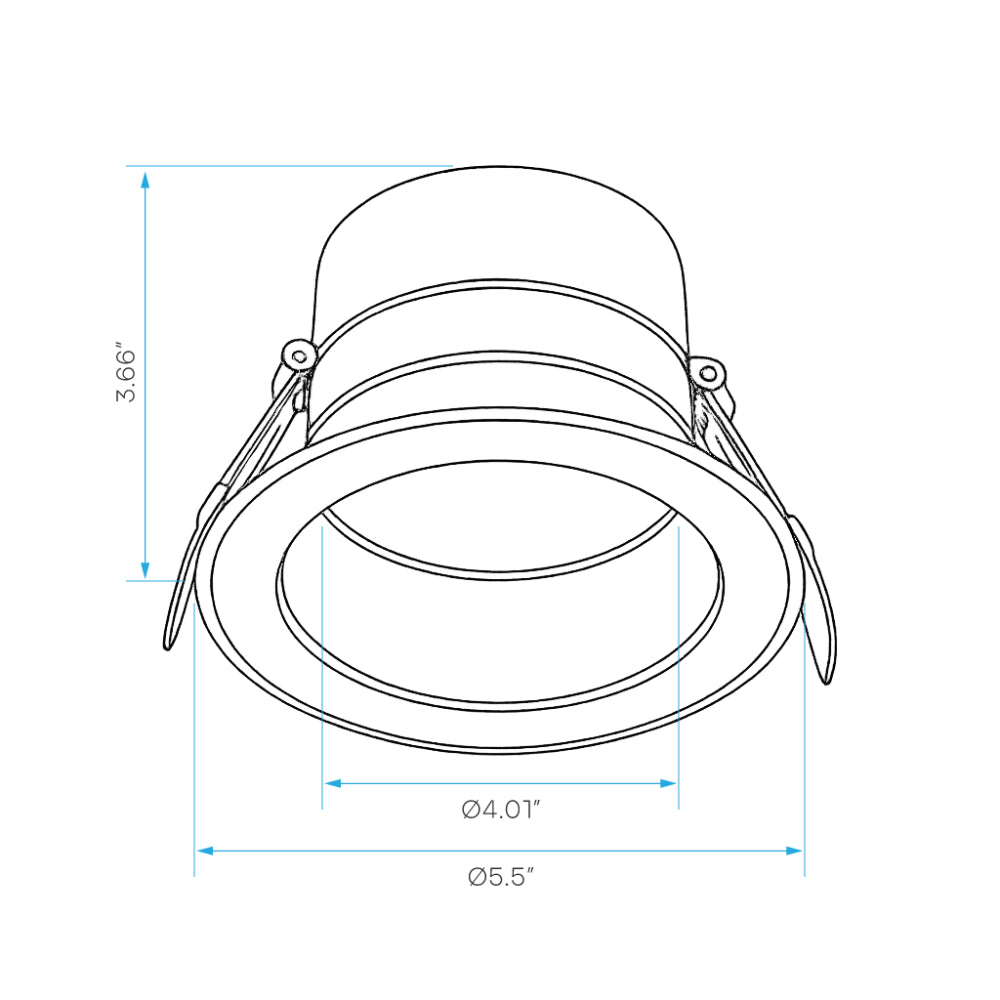

- Dimensions:
- Width: Ø 5.5 Inch
- Height: 3.66 Inch
- Finish: White
- Cutout: 4.3 Inch
- Plate: LR41002 (#1), LR41004 (#3), LR41006 (#3), LR41010 (#R1), LR41011 (#4)
Photometric

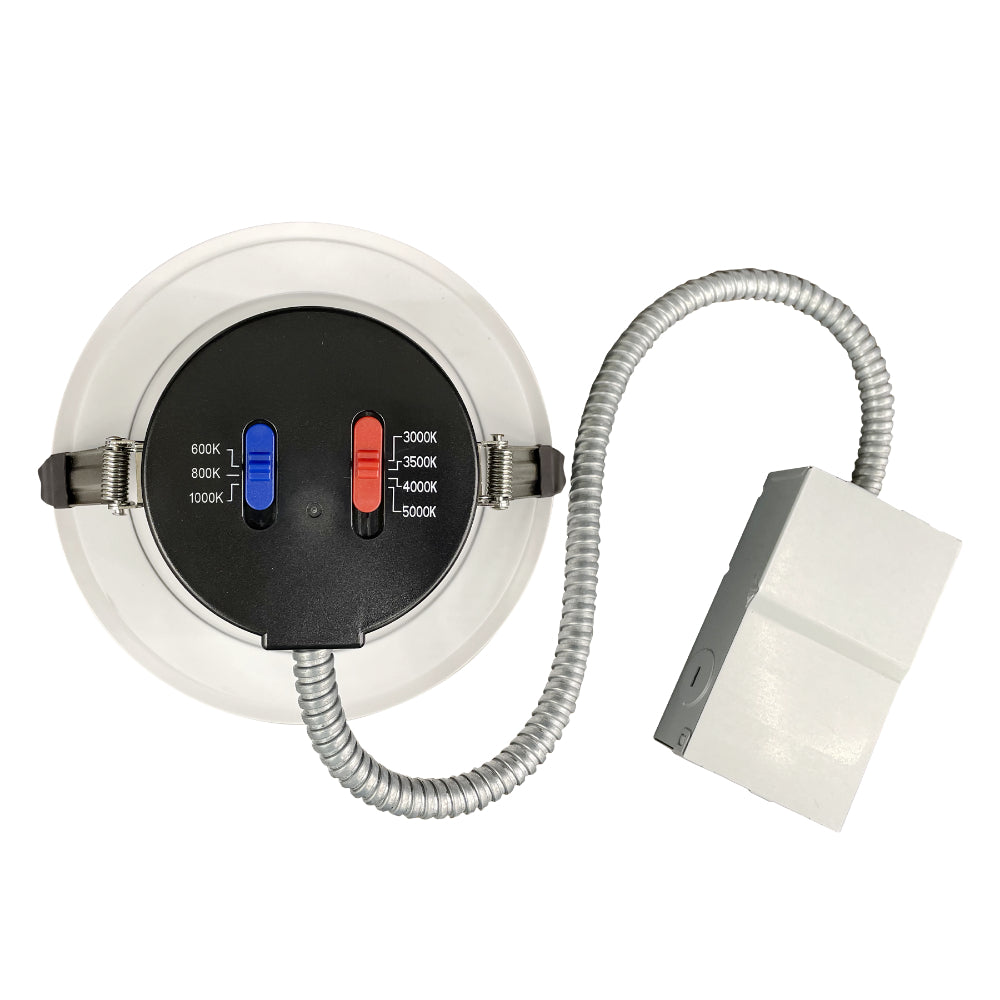

- Color (Temp): CCT Selectable
- Color (CCT): 3000K/3500K/4000K/5000K

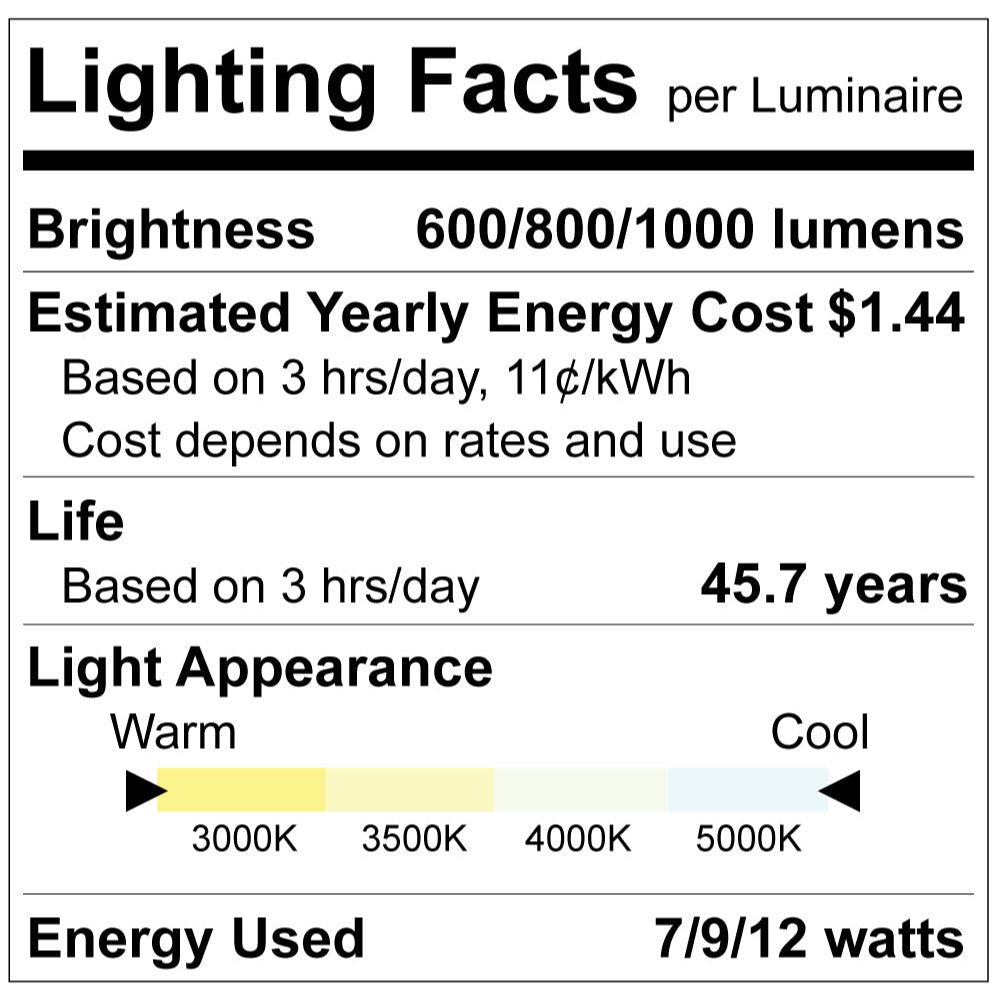

- Lumen: 600/800/1000
- Beam Angle: 80°
- CRI: 80
Electrical
- Power (Wattage): 7/9/12
- Input Volts: 120-277V
- Rated Lifetime: 50000
- Dimmable: 0-10V
- Power Factor: 0.9
- Input Current: 110Ma
- Frequency: 50/60Hz
- Lumen Efficacy: 83
- Operating Temp:
- Min: -4°
- Max: 104°
Product Files
Click forLuxrite LR23947 Specification Sheet
