Description

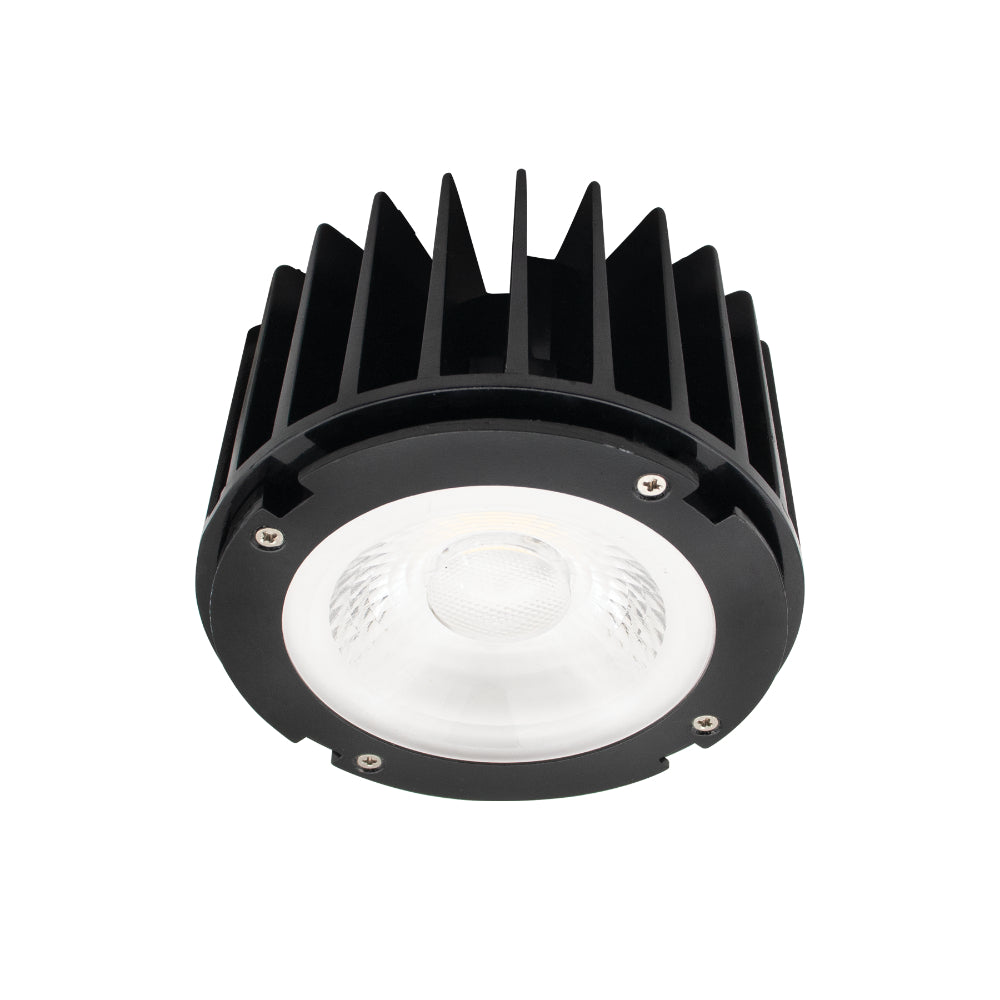

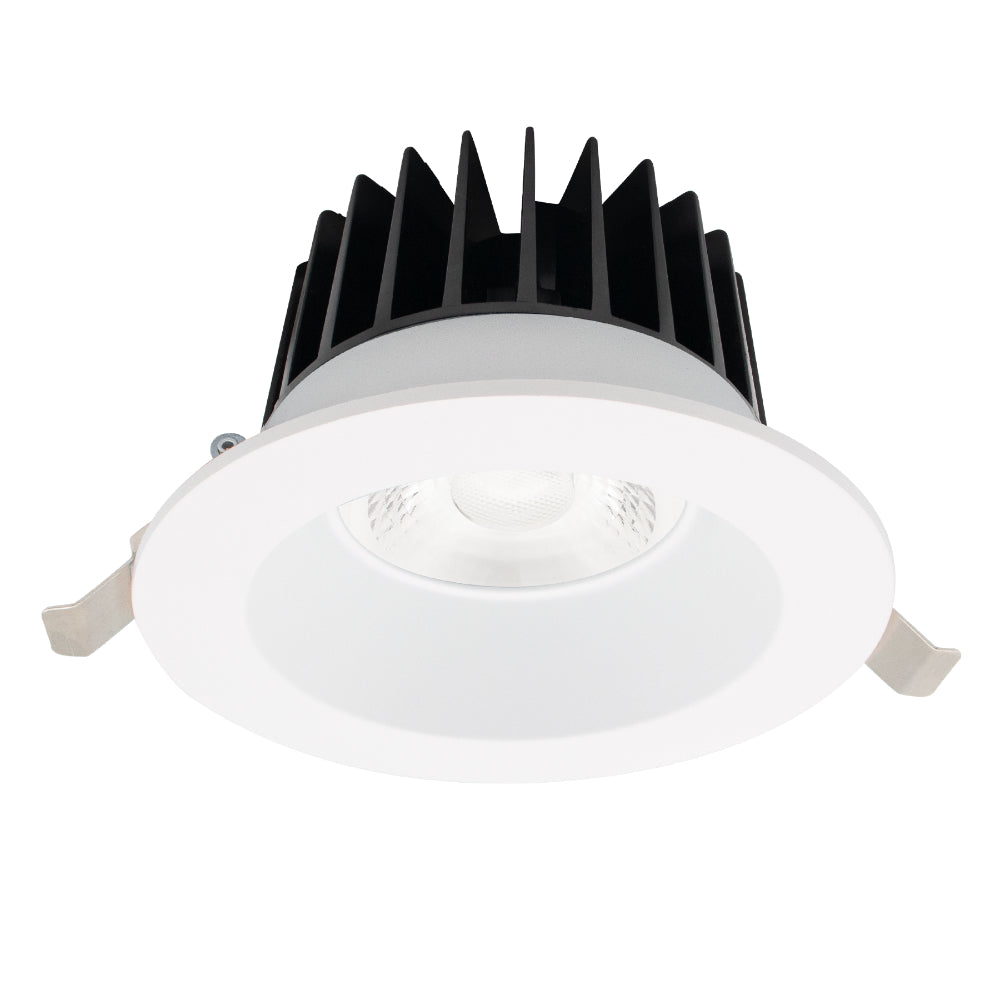

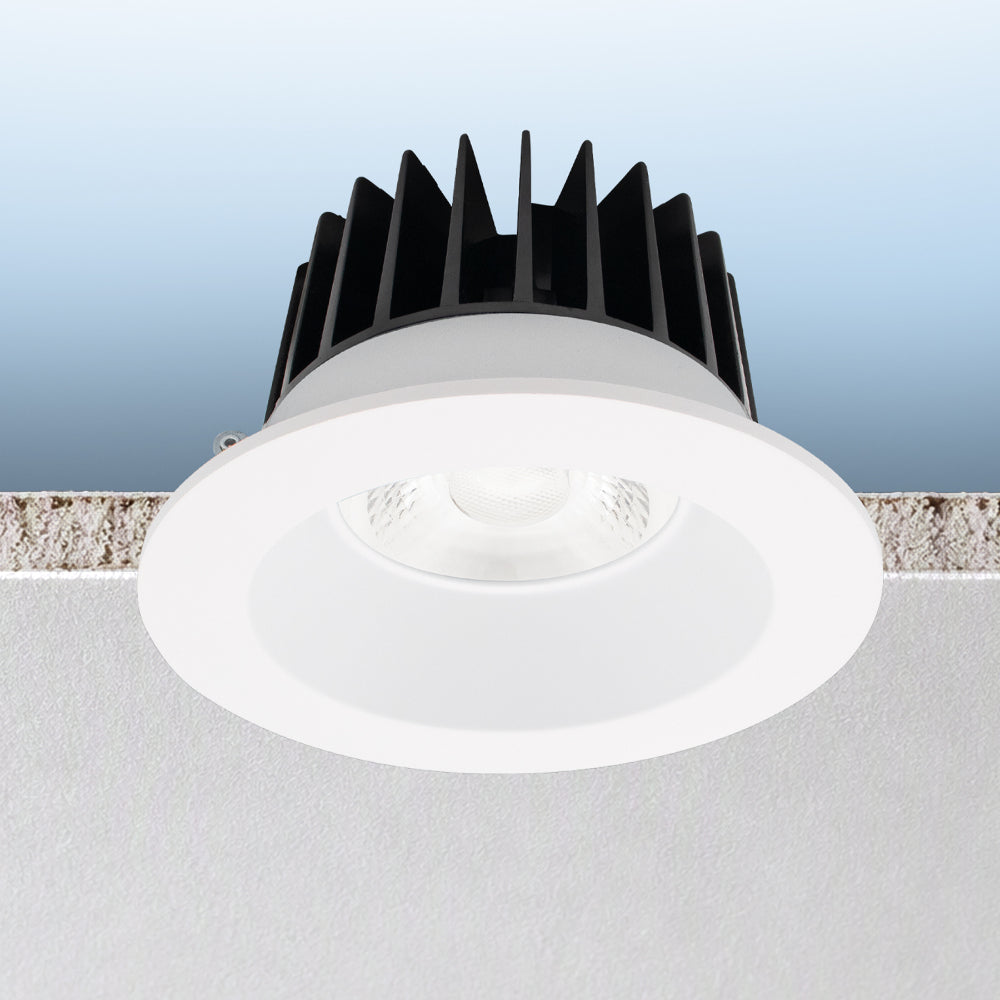

Luxrite 5-6" Regressed Interchangeable - CCT Selectable Universal Voltage/Dual Dimming
Specifications
- Item description: LED/DLMD5-6HO/5CCT/UNV/DD
- Size: 5-6 Inch
- Shape: 5-6 Inch Interchangeable

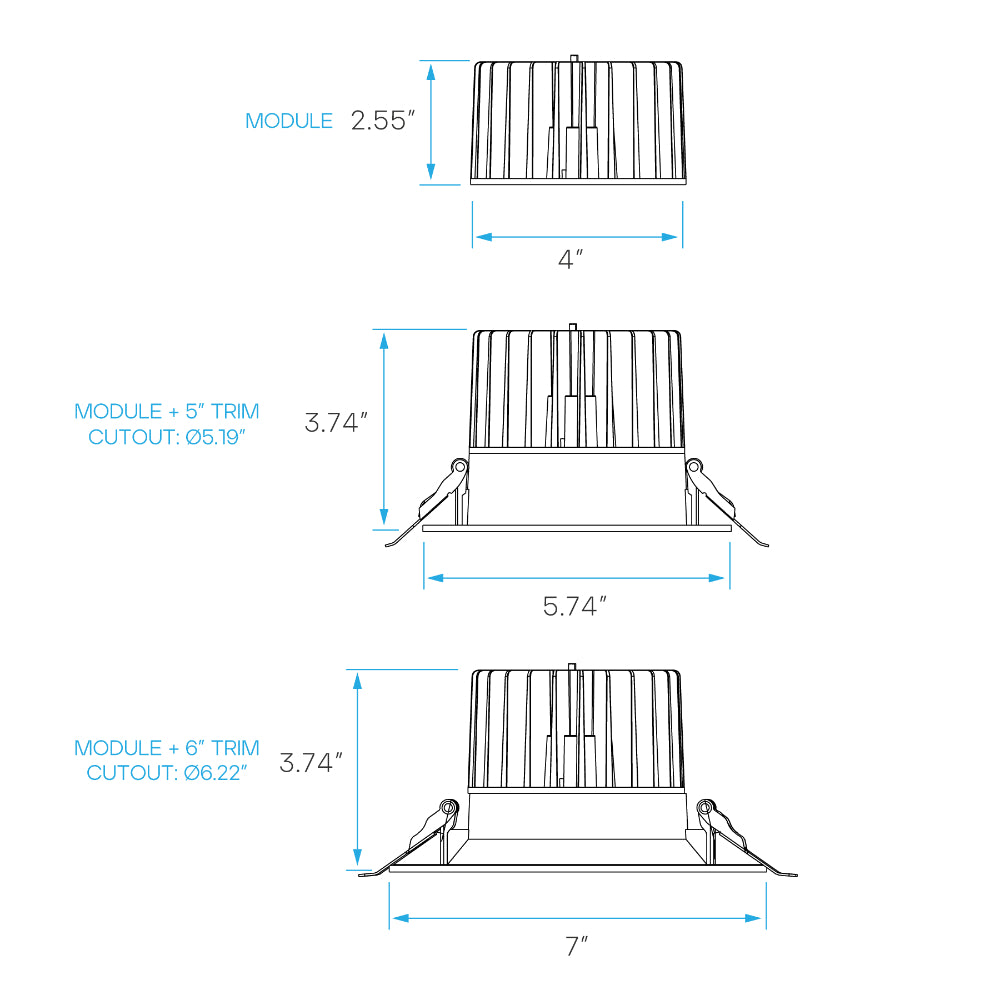

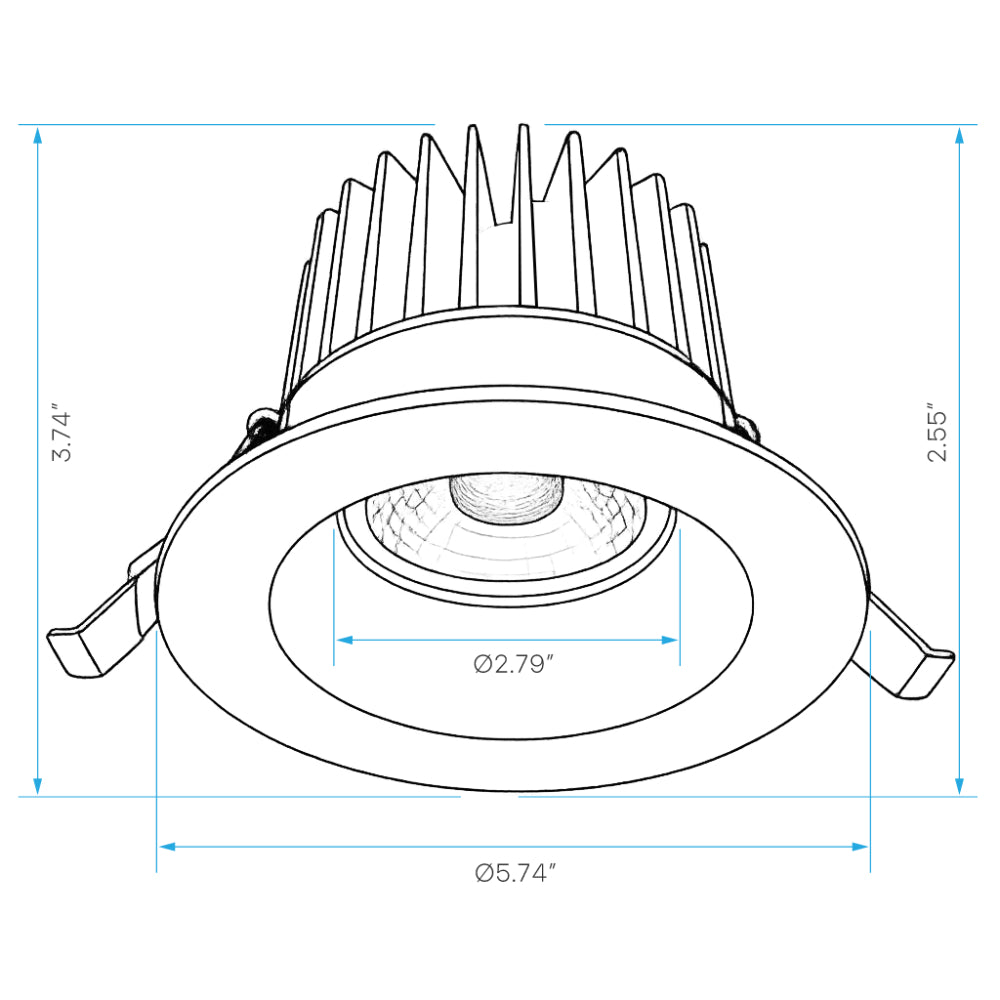

- Dimensions:
- Width: Ø4 Inch
- Depth: 2.55 Inch
- Finish: Black
- Cutout: Ø5.19 Inch W/5 Inch Trim - Ø6.22 Inch W/6 Inchtrim
Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 1800
- CRI: 90
Electrical
- Power (Wattage): 22
- Input Volts: 120-277V
- Rated Lifetime: 50000
- Dimmable: Dual Dimming TRIAC/0-10V
- Power Factor: 0.9
- Frequency: 60Hz
- Lumen Efficacy: 77
- Operating Temp:
- Min: -4º
- Max: 104º
Product Files
Click forLuxrite LR24990 Specification Sheet
Click forLuxrite LR24990 Install Guide
Click forLuxrite LR24990 Dimmer Compatibility
Click forLuxrite LR24990 Warranty
Click forLuxrite LR24991 Install Guide
