Luxrite 5-6" Retrofit - 5CCT Selectable High Output Downlight

LuxriteSKU: LR23799
Select Shape: Round Smooth
Price:
$0.00 USD

Description

Luxrite 5-6" Retrofit - 5CCT Selectable High Output Downlight

Specifications

  • Item description: LED/DL5-6HO/5CCT/FL/RD
  • Size: 5-6 Inch
  • Base: E26 Adapter

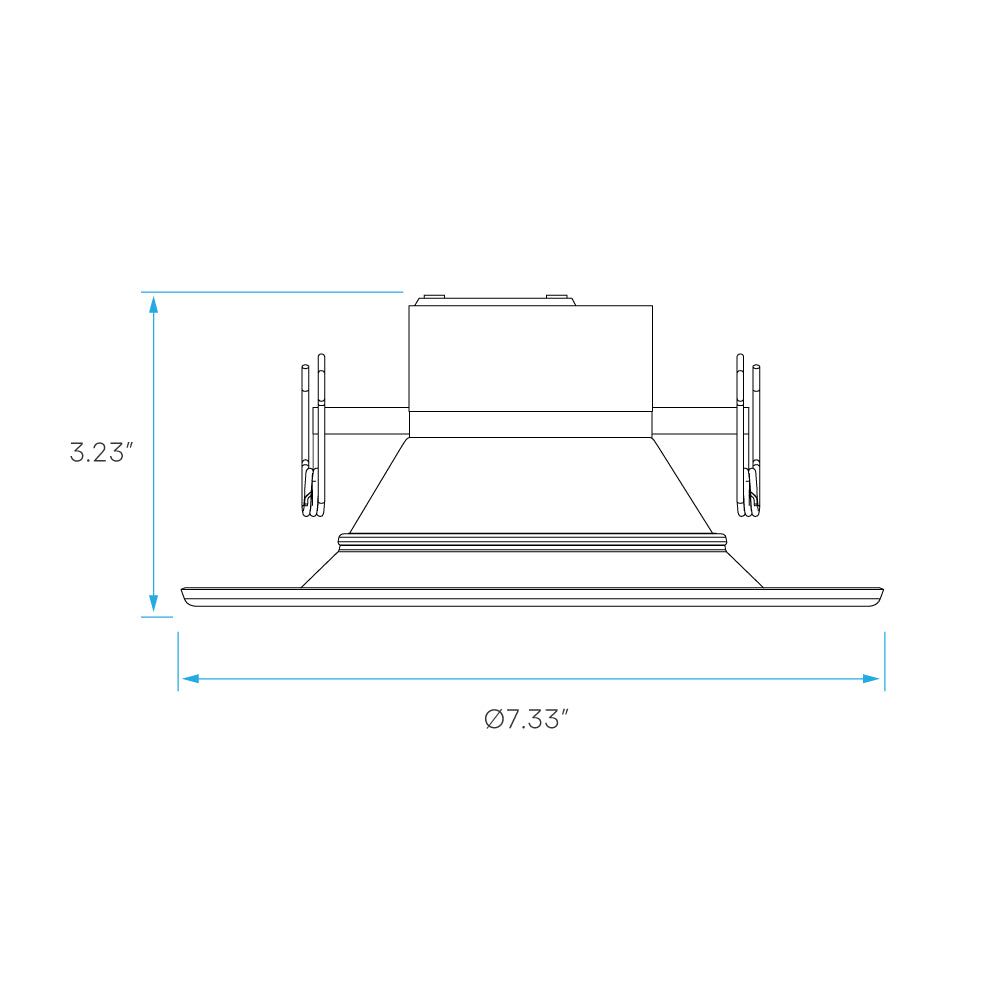

  • Dimensions:
    • Length: Ø7.32
    • Depth: 3.23 Inch
  • Finish: White

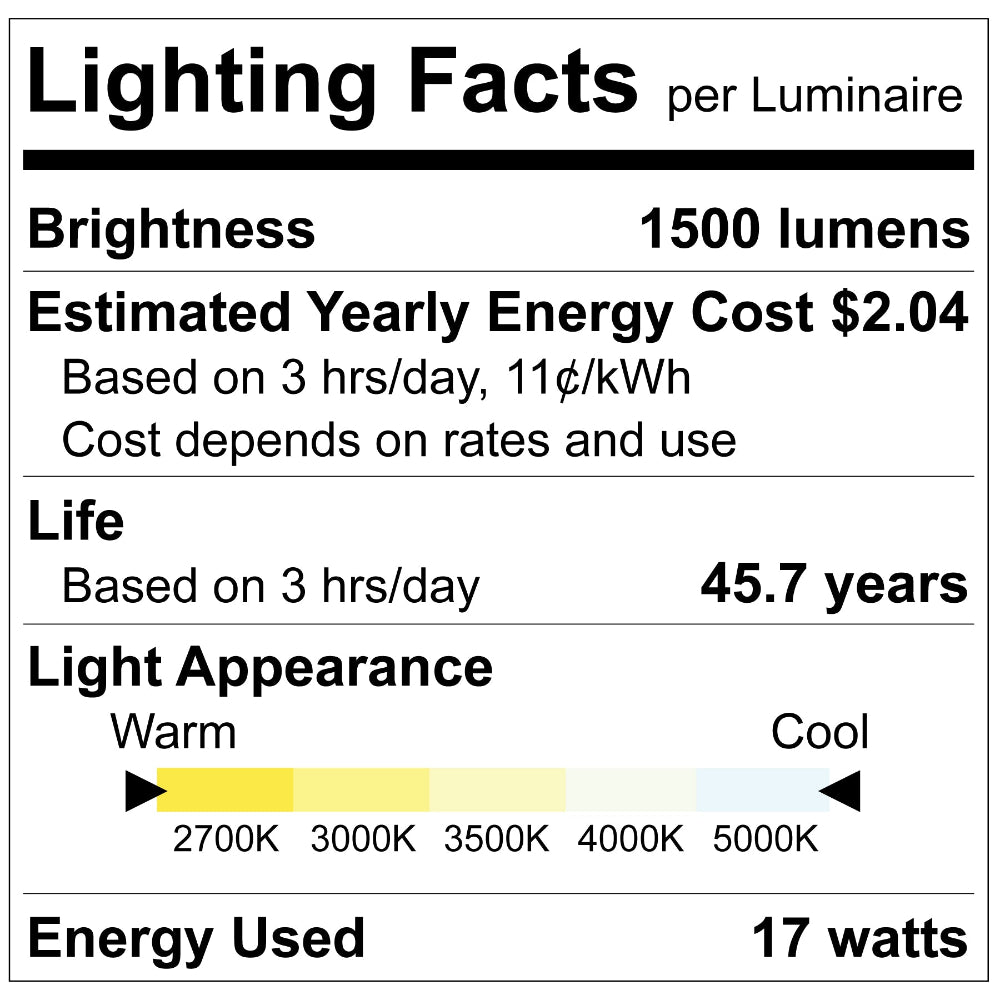

Photometric

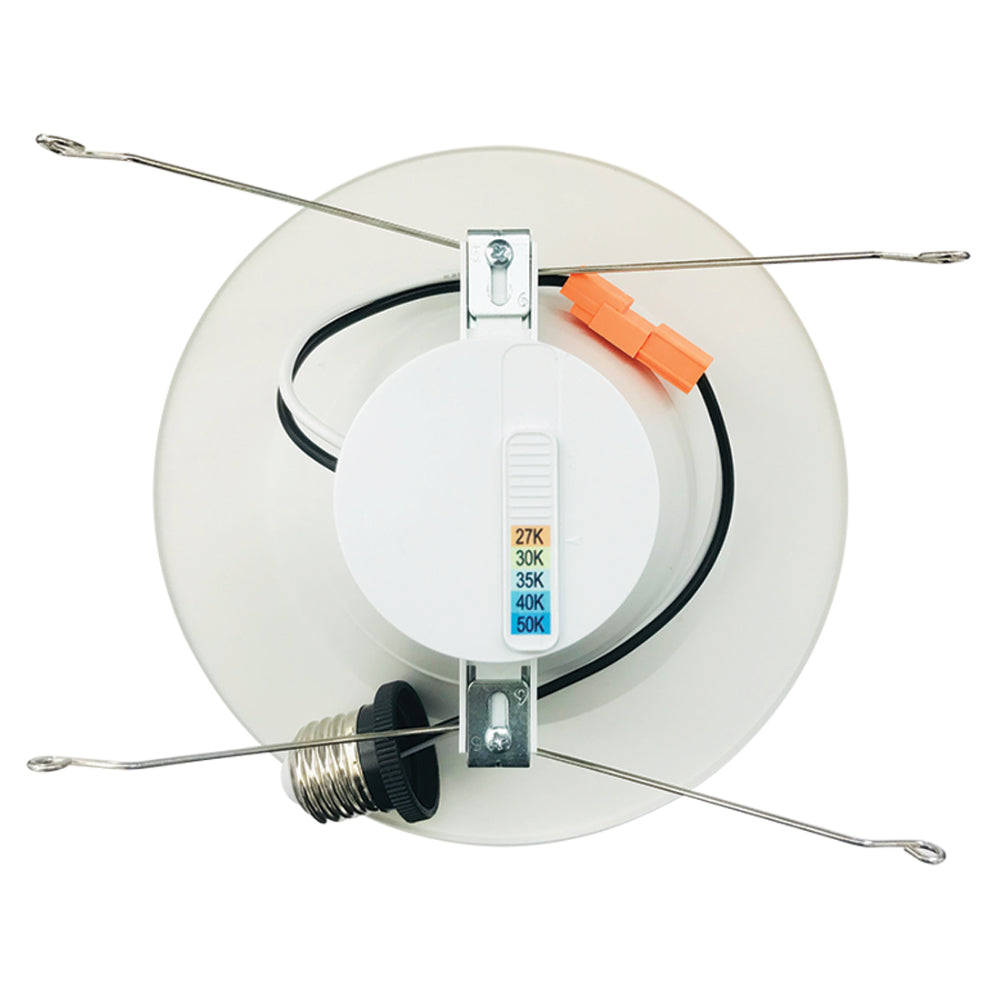

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 1500
  • Beam Angle: 110º
  • CRI: 90

Electrical

  • Power (Wattage): 17
  • Input Volts: 120V
  • Rated Lifetime: 50000
  • Dimmable: Triac
  • Power Factor: 0.9
  • Frequency: 60Hz
  • Watt Replacement: 90
  • Lumen Efficacy: 85
  • Operating Temp:
    • Min: -4º
    • Max: 104º
Product Files

Click forLuxrite LR23799 Specification Sheet

Click forLuxrite LR23799 Install Guide

Click forLuxrite LR23799 Dimmer Compatibility

Click forLuxrite LR23799 Warranty

Click forLuxrite LR23799 Certificate Of Compliance

Click forLuxrite LR23798 Dimmer Compatibility

Click forLuxrite LR23798 Warranty

Click forLuxrite LR23798 Certificate Of Compliance
