Description
Luxrite 5" Eco Backlit Mini Panel Canless Spotlight - 5CCT Selectable High Output
Specifications
- Item description: LED/EMINI5/PANEL/5CCT/HO/RD
- Size: 5 Inch

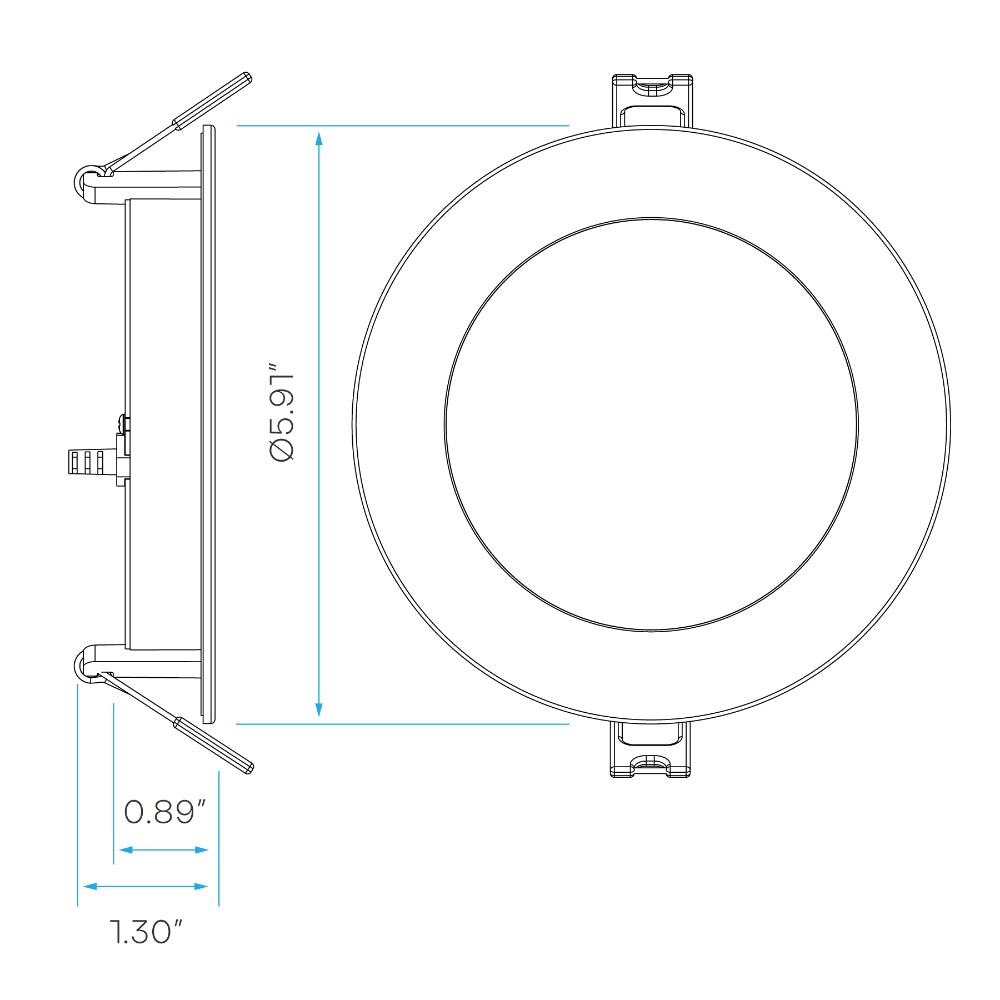

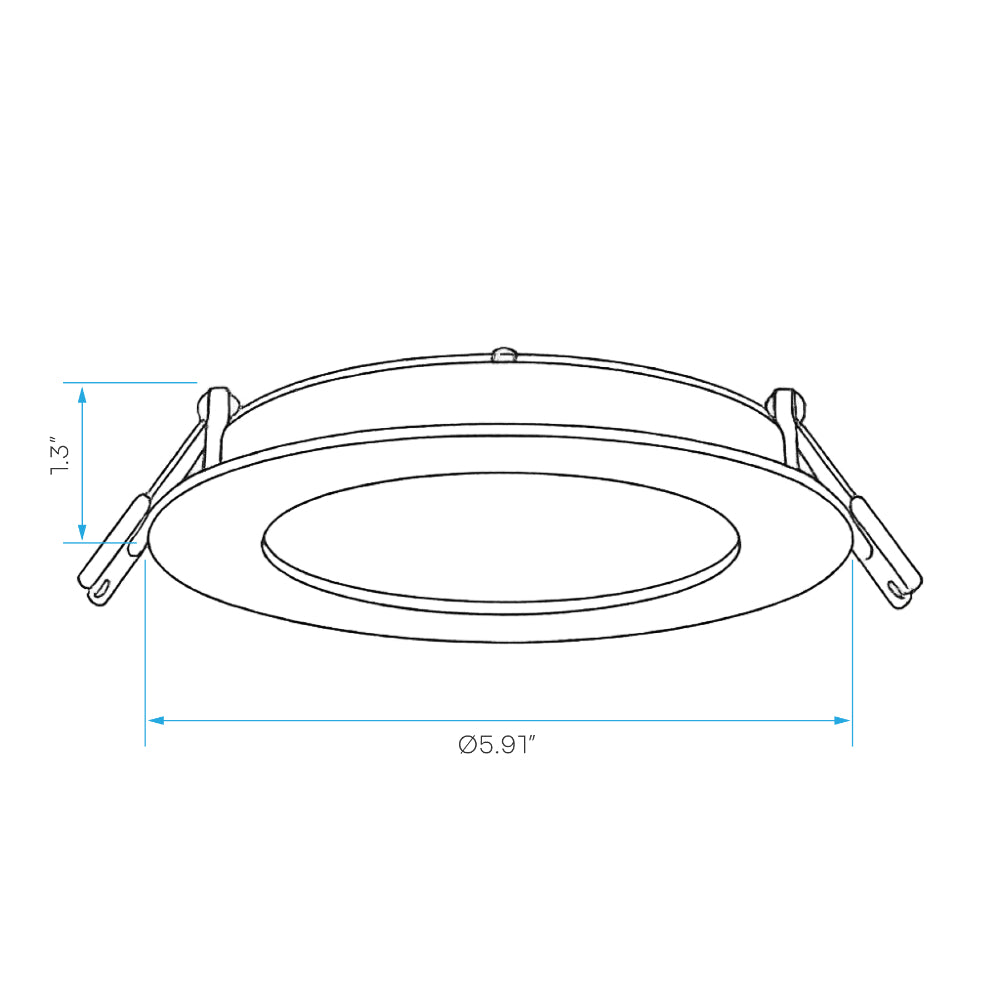

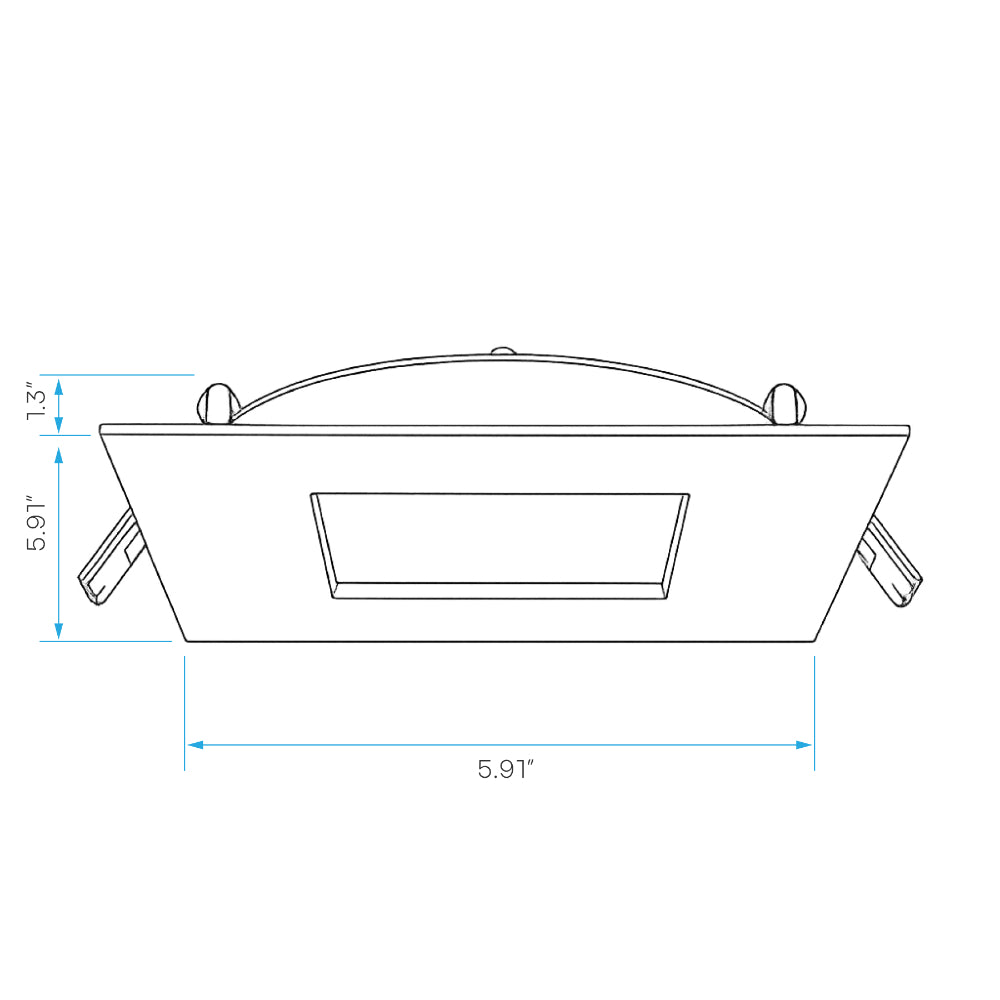

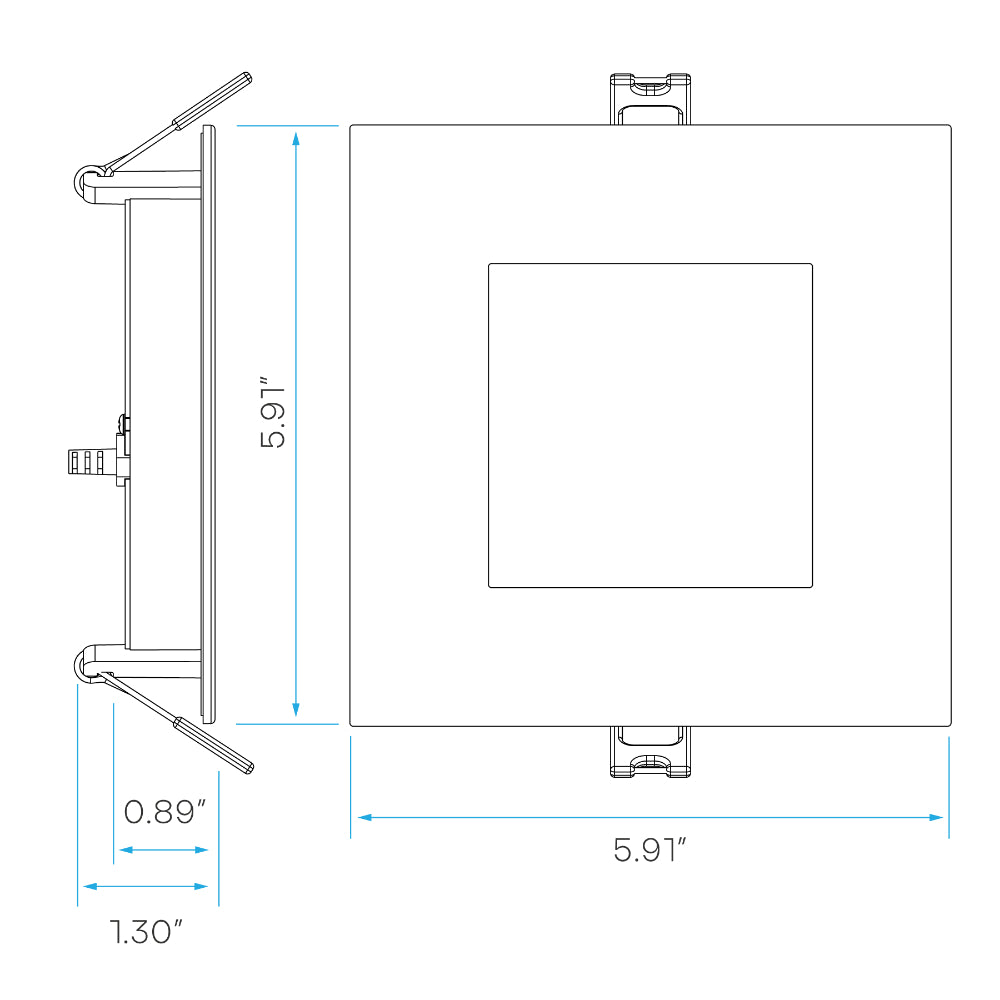

- Dimensions:
- Width: Ø5.91 Inch
- Depth: 1.3 Inch
- Finish: White
- Cutout: Ø5.24 Inch
- Plate: LR41004 (#3), LR41006 (#4), LR41010 (#R2)

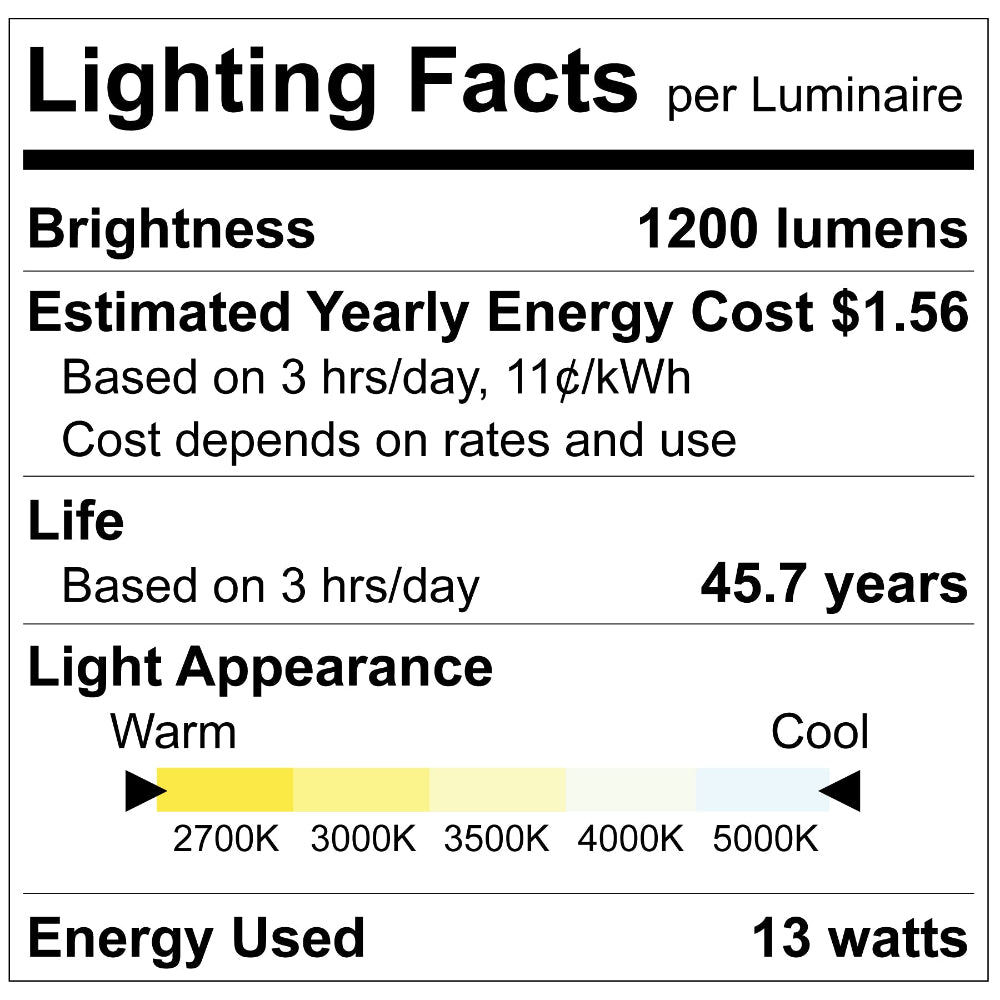

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 1200
- Beam Angle: 100°
- CRI: 80
Electrical
- Power (Wattage): 13
- Input Volts: 120V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: 0.9
- Input Current: 0.13A
- Frequency: 60Hz
- Lumen Efficacy: 92
- Operating Temp:
- Min: -4°
- Max: 104°
Product Files
Click forLuxrite LR23922 Specification Sheet
Click forLuxrite LR23922 Install Guide
Click forLuxrite LR23922 Dimmer Compatibility
Click forLuxrite LR23922 Warranty
Click forLuxrite LR23922 Certificate Of Compliance
Click forLuxrite LR23926 Dimmer Compatibility
