Luxrite 5" Mini Panel Round 5CCT Smooth Canless Wafer Spotlight

LuxriteSKU: LR23749

Price:
Sale price$0.00 USD

Description

Luxrite 5" Mini Panel Round 5CCT Smooth Canless Wafer Spotlight

Specifications

  • Item description: LED/MINI5/PANEL/5CCT/RD
  • Size: 5 Inch
  • Shape: 5 Inch Round Smooth

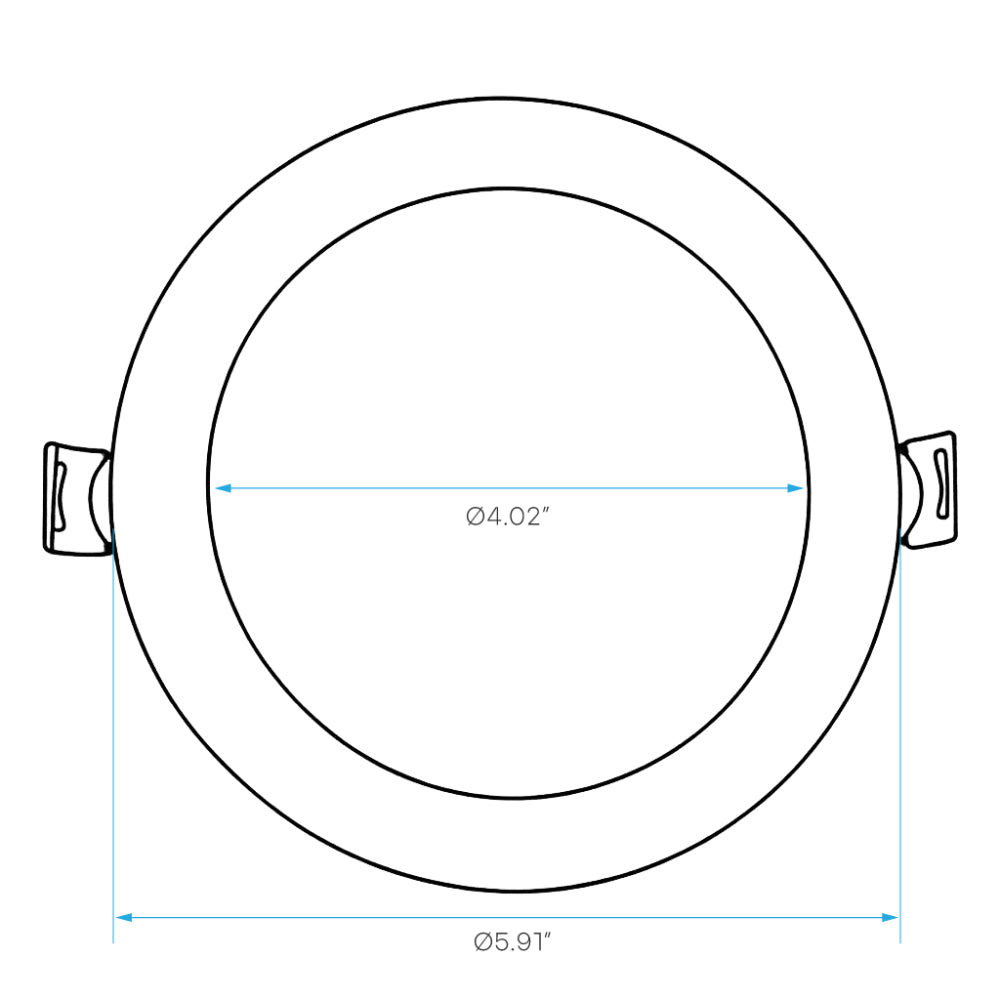

  • Dimensions:
    • Width: Ø5.91 Inch
    • Depth: 0.96 Inch
  • Finish: White
  • Cutout: Ø5.12 Inch
  • Plate: LR41004 (#3), LR41006 (#4), LR41010 (#R2)

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 1000
  • Beam Angle: 180º
  • CRI: 80

Electrical

  • Power (Wattage): 12
  • Input Volts: 120V
  • Rated Lifetime: 50000
  • Dimmable: Triac
  • Power Factor: >0.9
  • Frequency: 60Hz
  • Lumen Efficacy: 83
  • Operating Temp:
    • Min: -4º
    • Max: 113º
Product Files

Click forLuxrite LR23749 Specification Sheet

Click forLuxrite LR23749 Install Guide

Click forLuxrite LR23749 Dimmer Compatibility

Click forLuxrite LR23749 Warranty

Click forLuxrite LR23749 Certificate Of Compliance
