Description

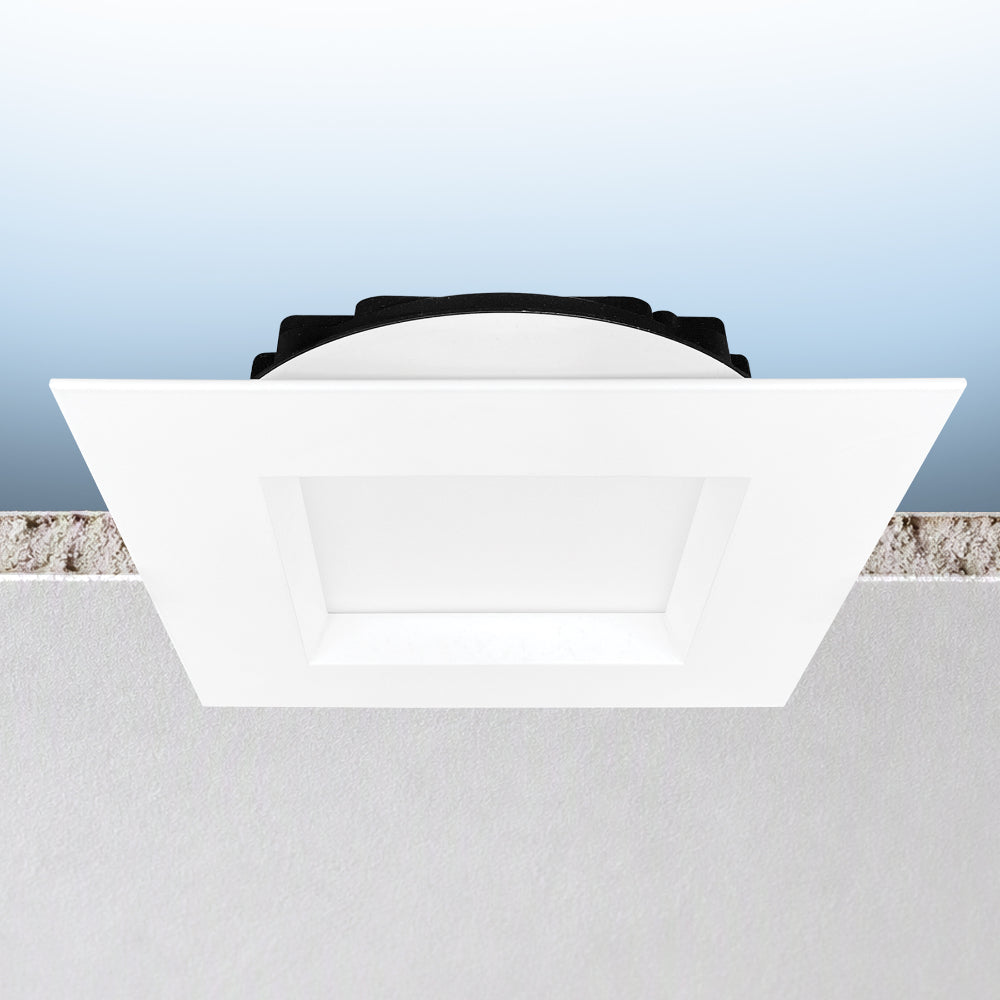

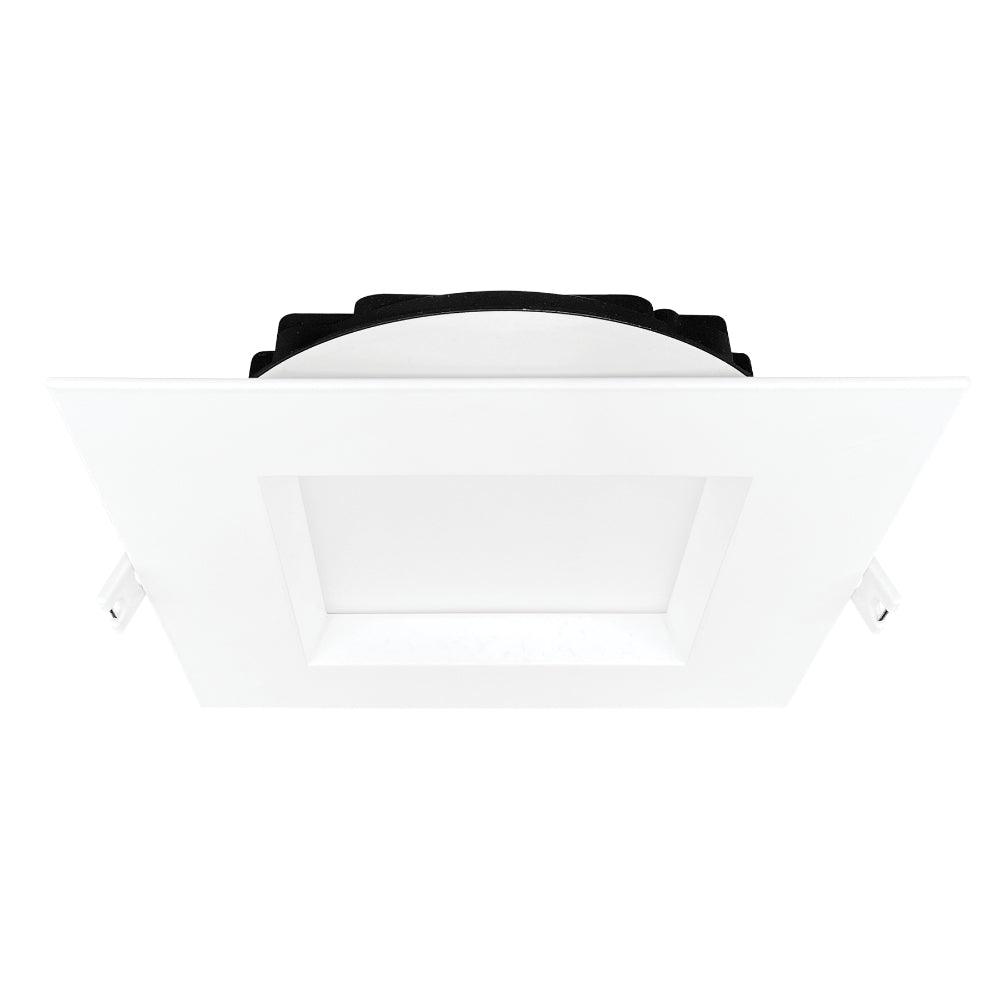

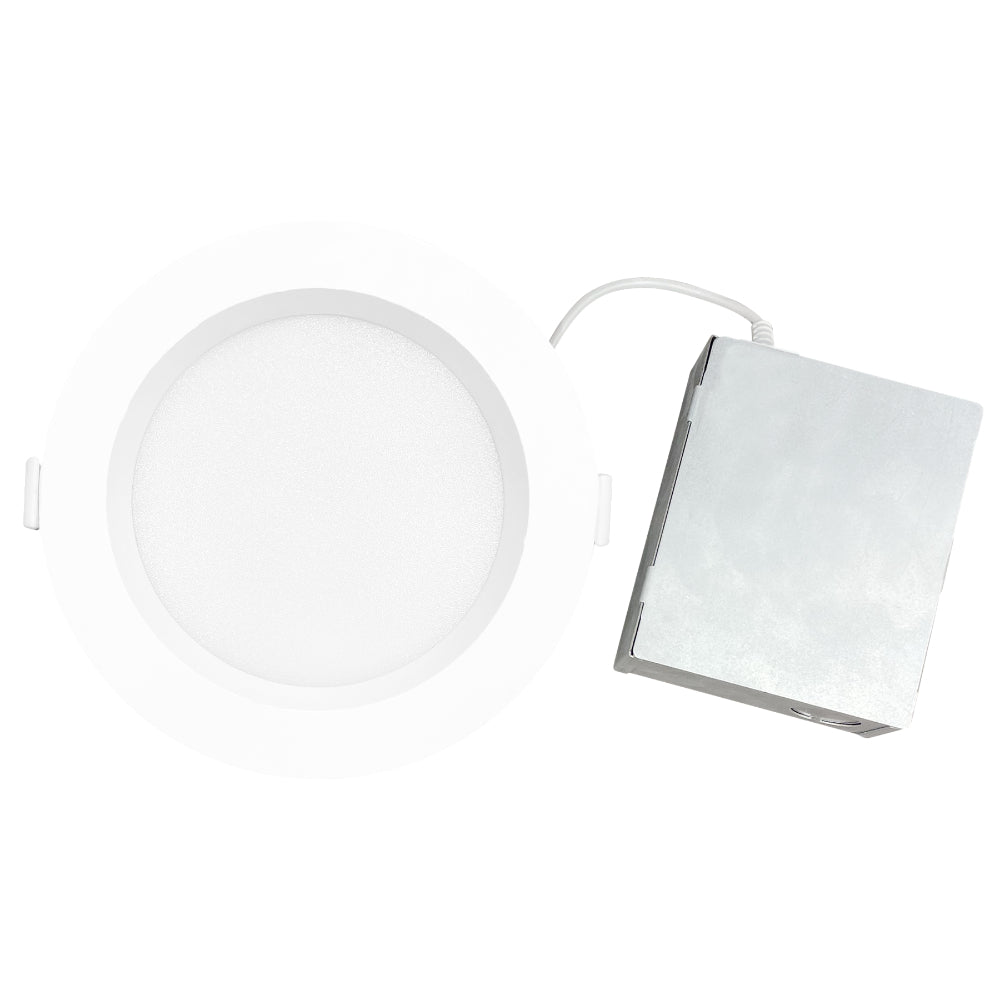

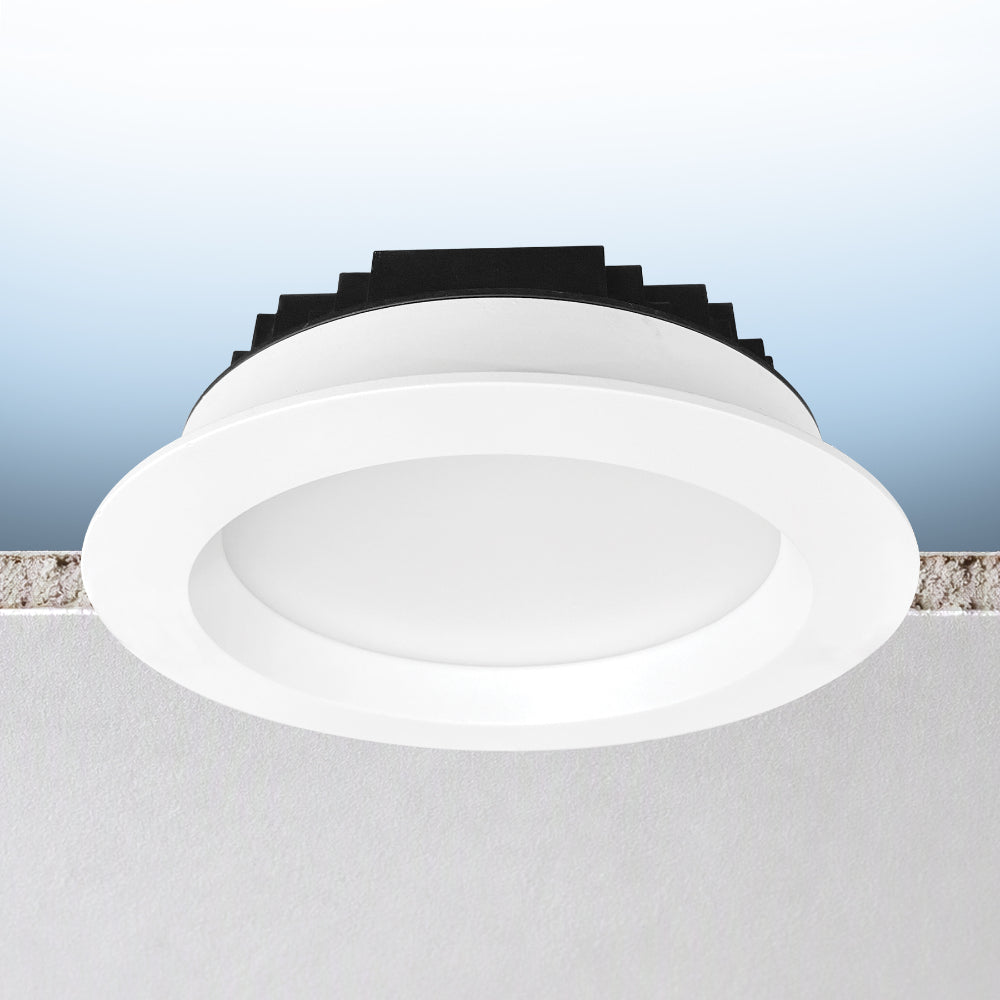

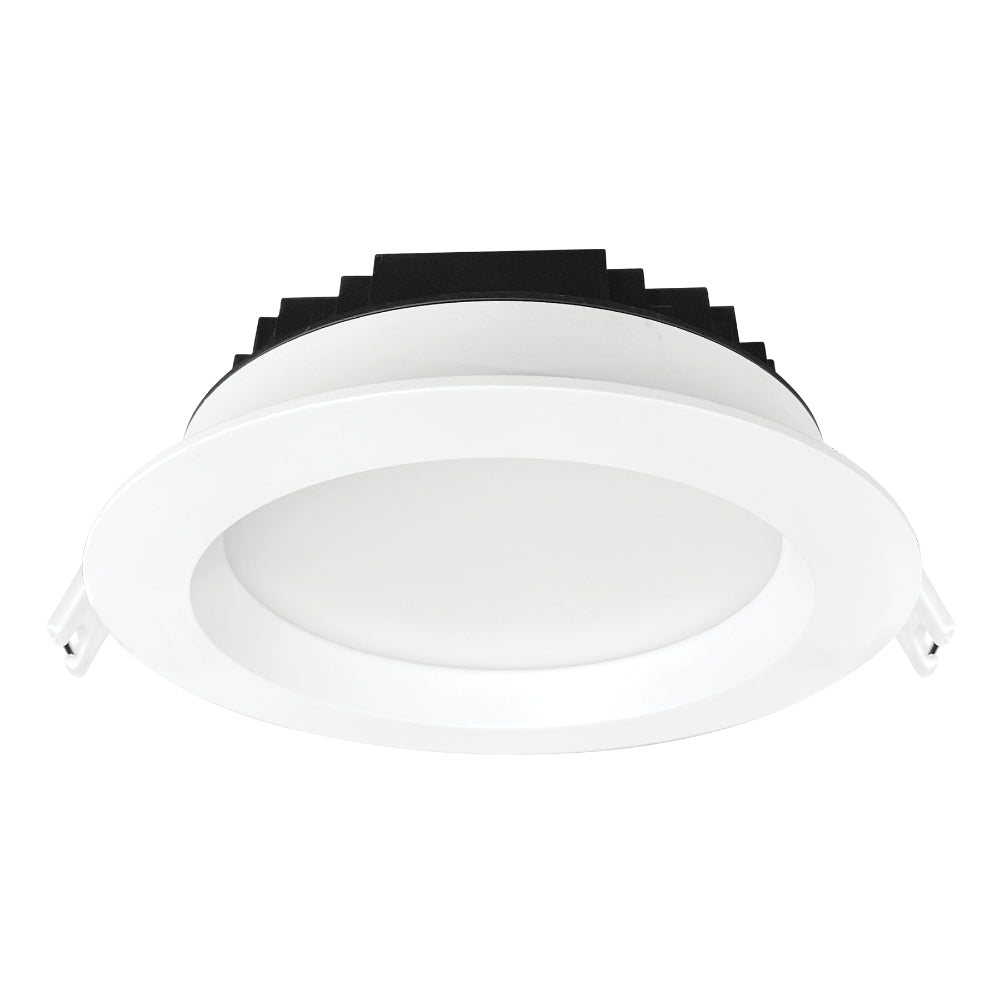

Luxrite 5" Regressed Mini Panel 5CCT - High Output
Specifications
- Item description: LEDRMP5/HO/5CCT/RD/WT/D
- Size: 5 Inch
- Shape: 5 Inch Regressed Mini Panel

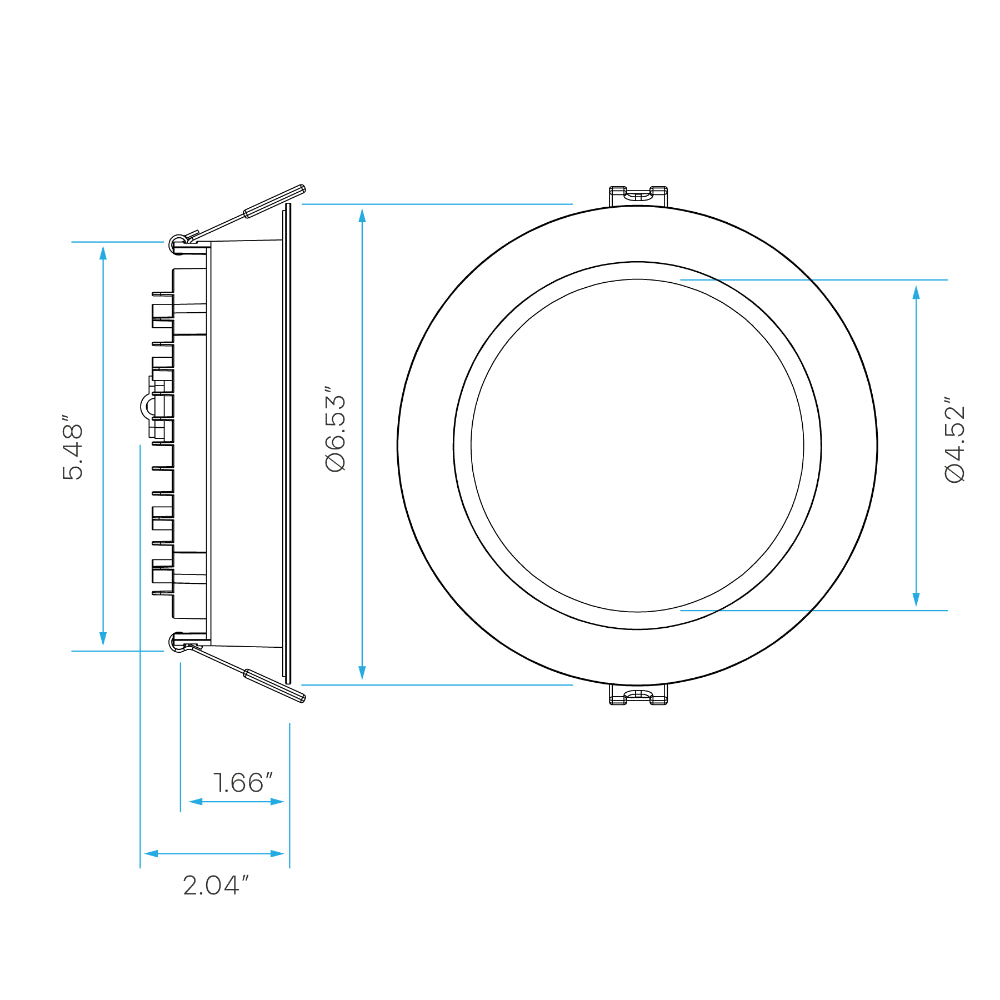

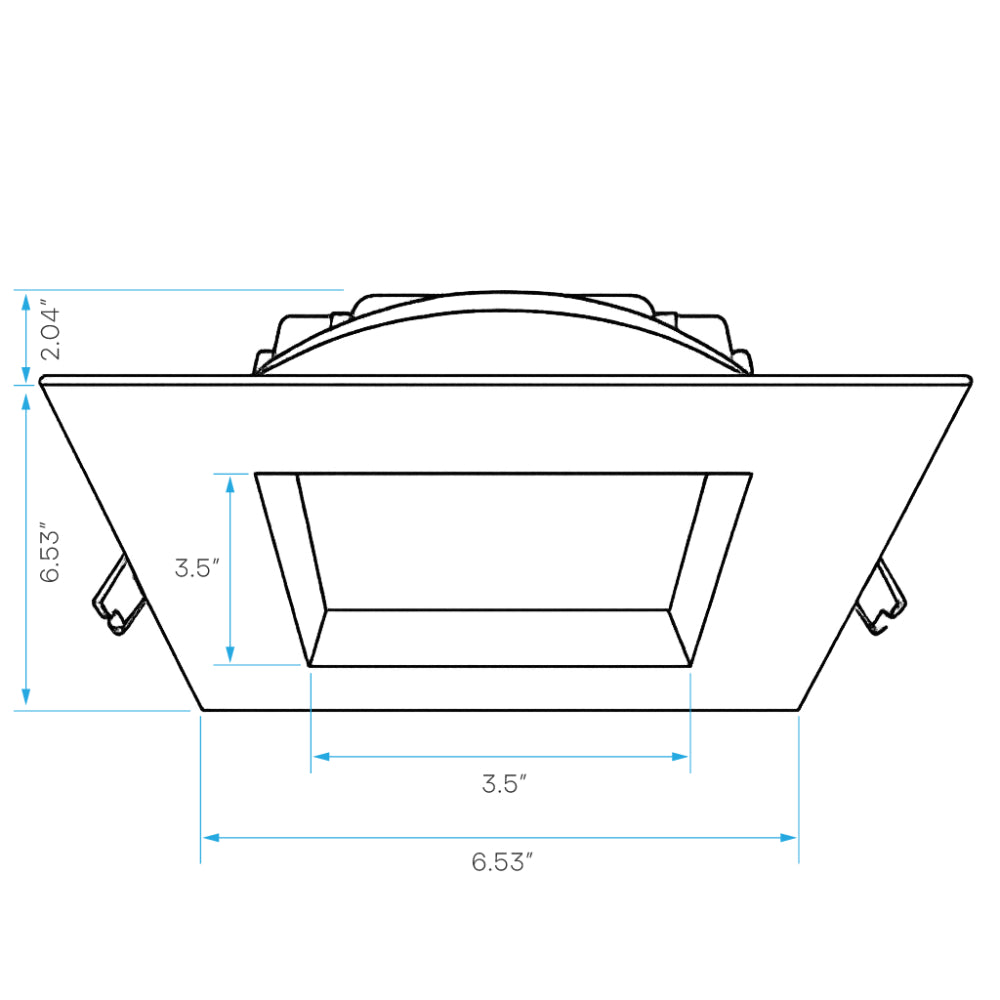

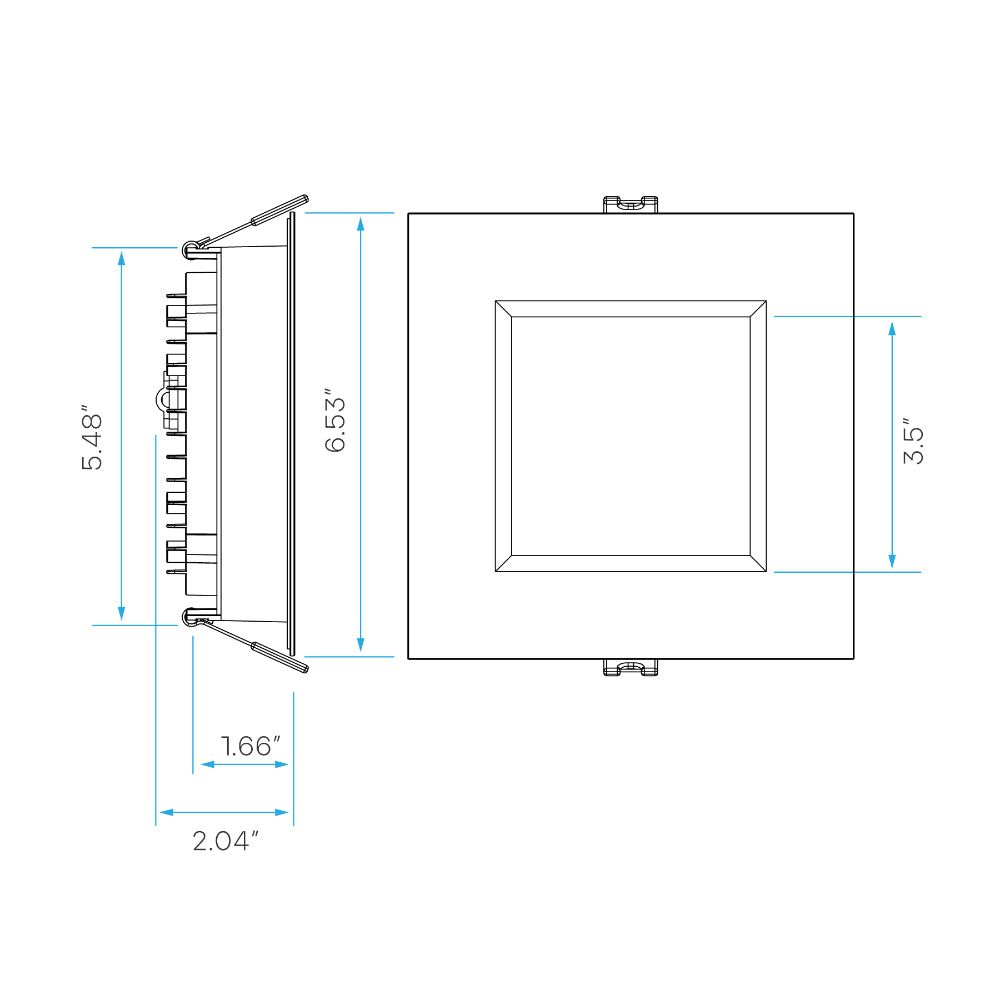

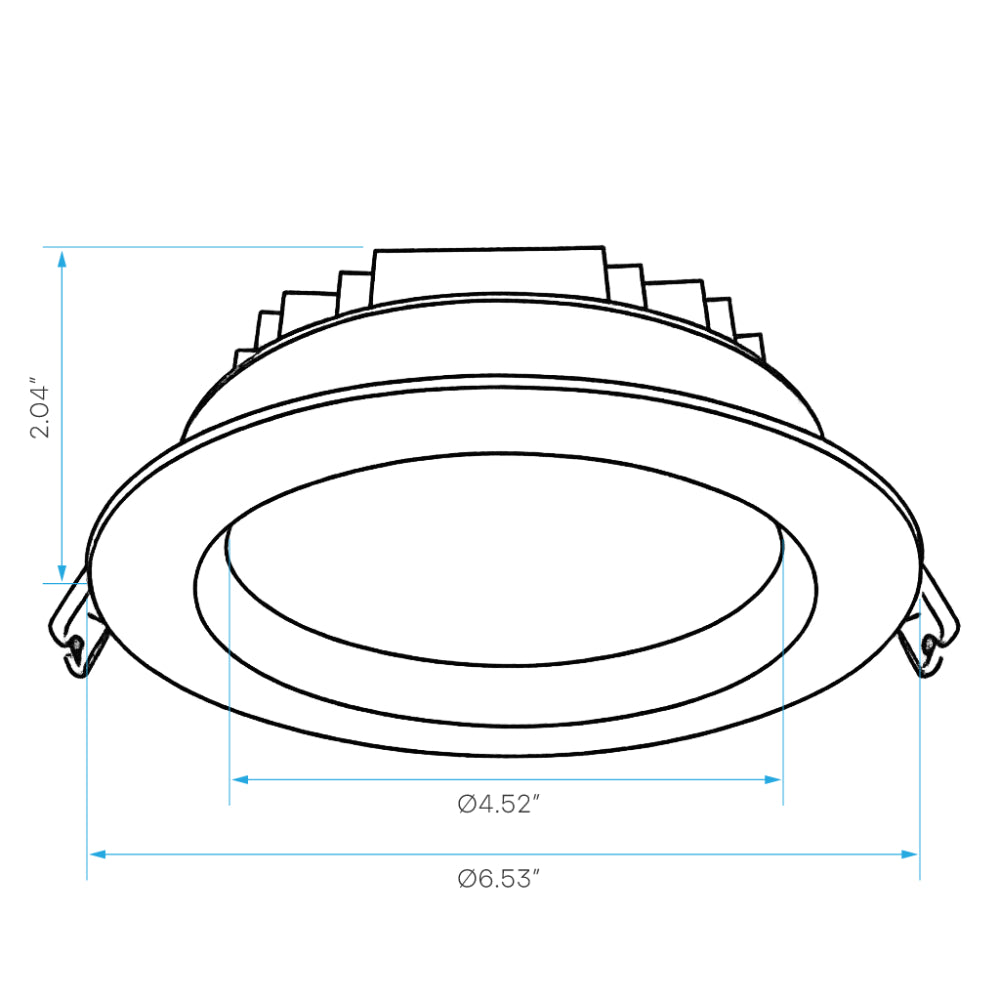

- Dimensions:
- Width: Ø6.53 Inch
- Height: 2.04 Inch
- Finish: White
- Cutout: Ø5.90 Inch
- Plate: LR41002 (#2), LR41006 (#5), LR41010 (#R3)

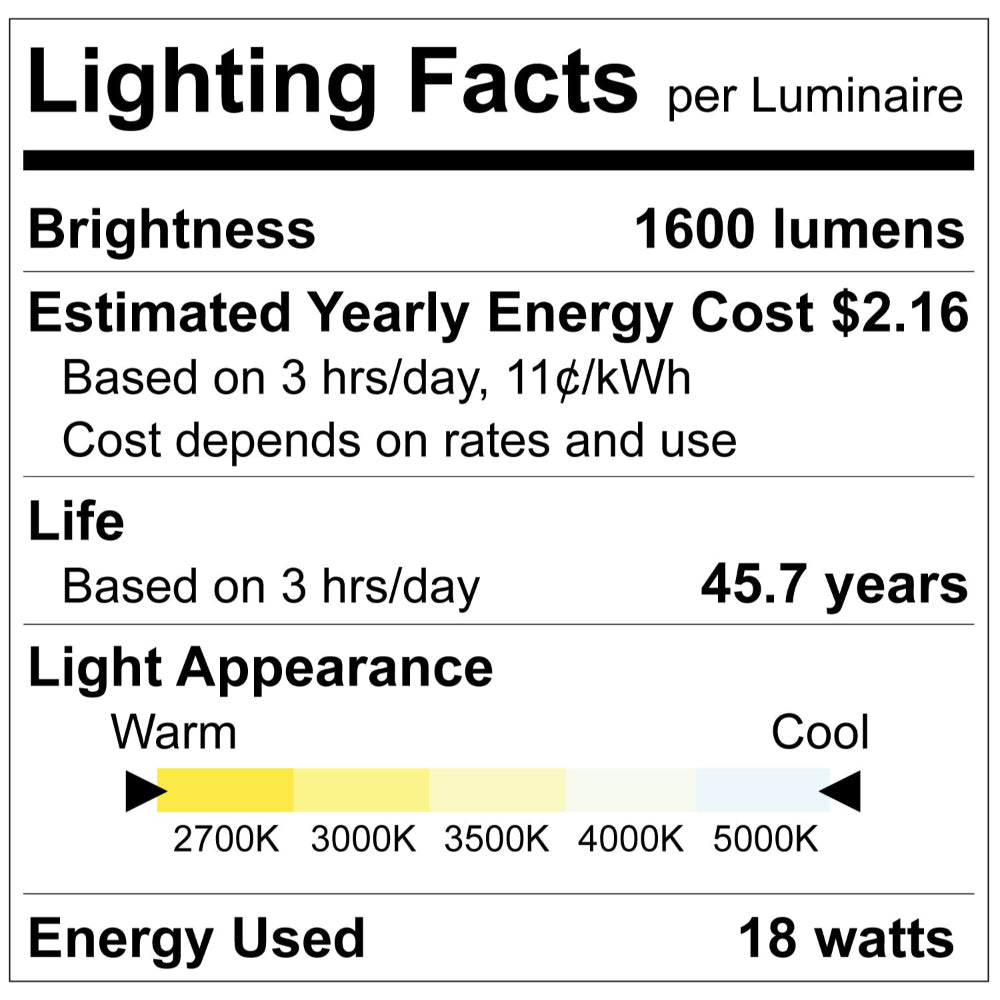

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 1600
- Beam Angle: 110°
- CRI: 80
Electrical
- Power (Wattage): 18
- Input Volts: 120V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: 0.9
- Frequency: 60Hz
- Lumen Efficacy: 89
- Operating Temp:
- Min: -4°
- Max: 104°
