Description

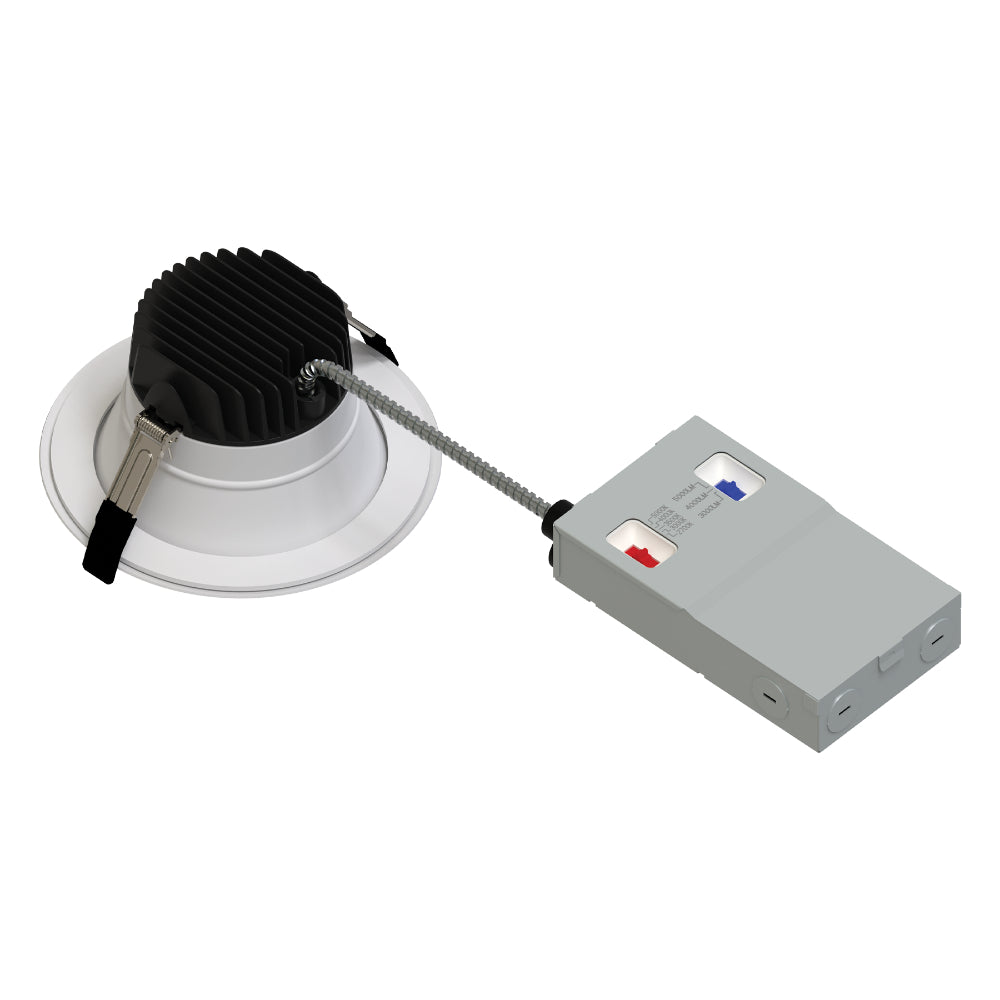

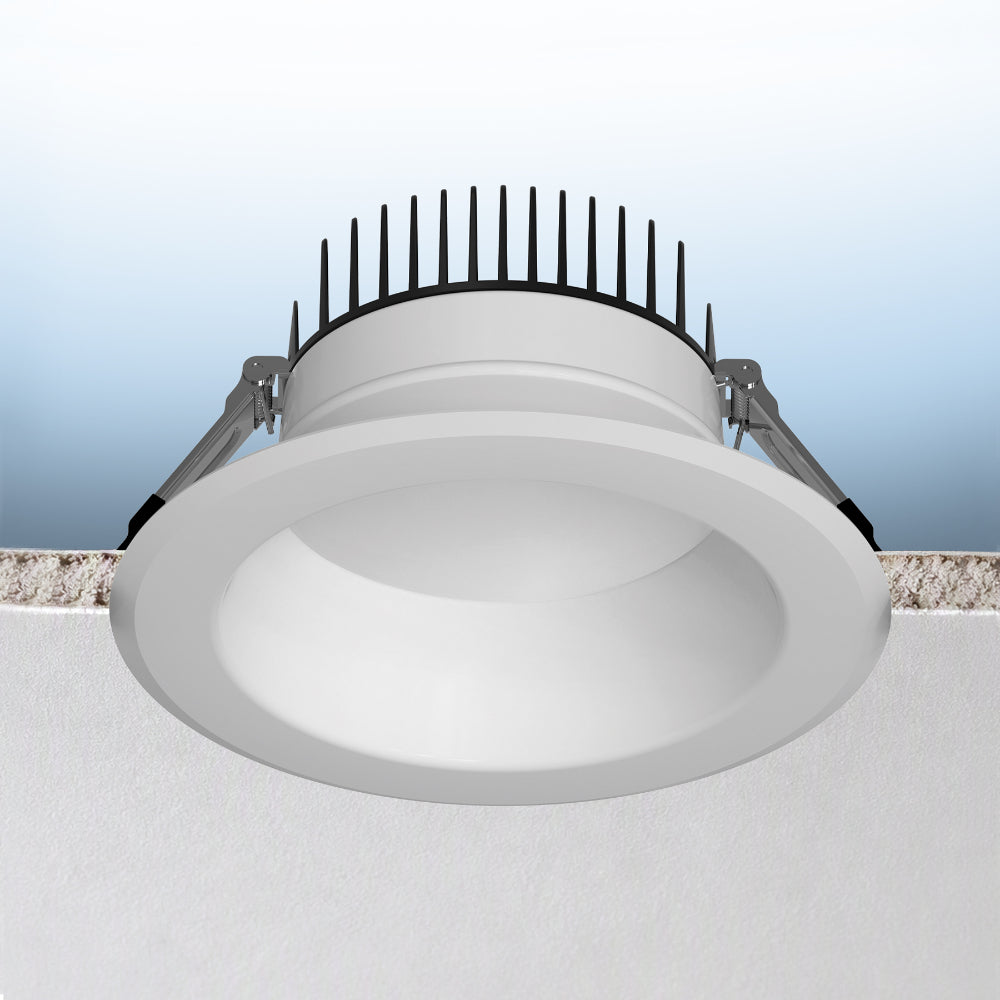

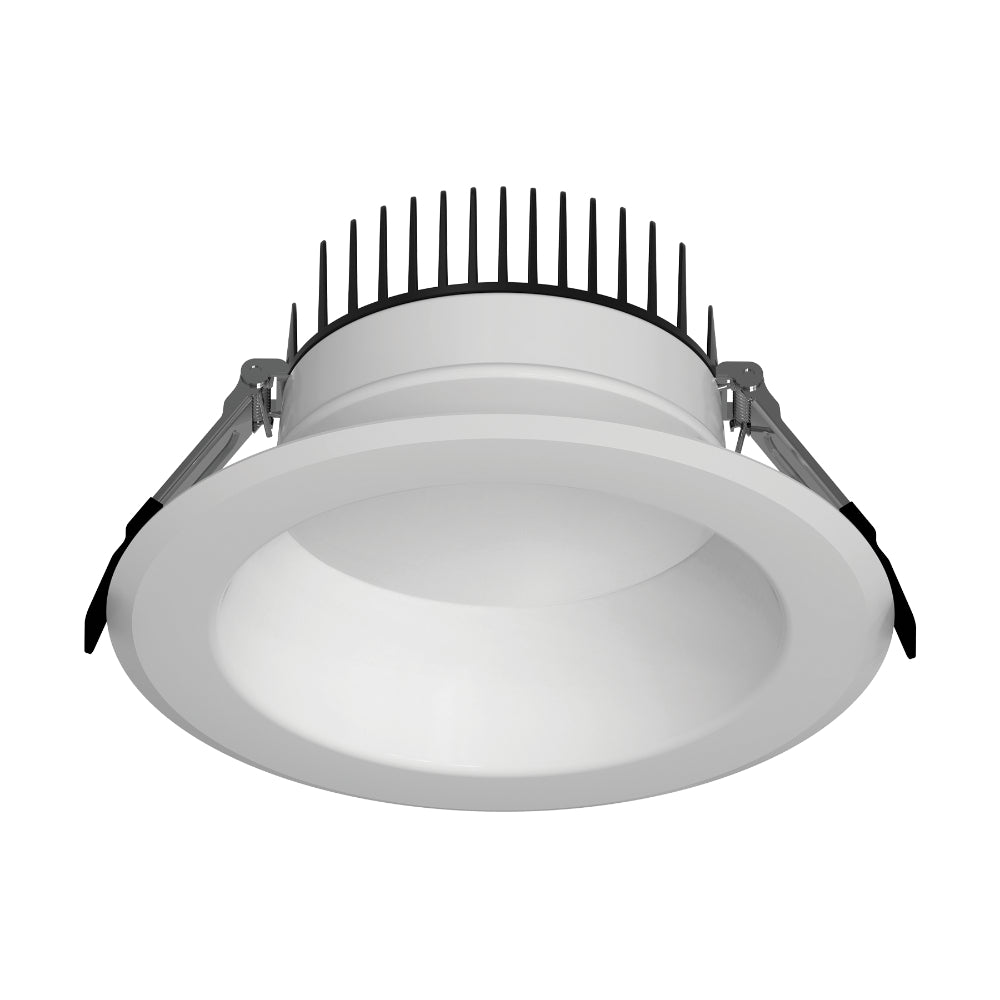

Luxrite 6" 5 CCT & 3 Wattage Selectable - Universal Voltage/Dual Dimming High Output Commercial Downlight
Specifications
- Item description: LED/CDL6/VHO/3WO/5CCT/JB/UNV/DD
- Size: 6 Inch
- Shape: 6 Inch Round

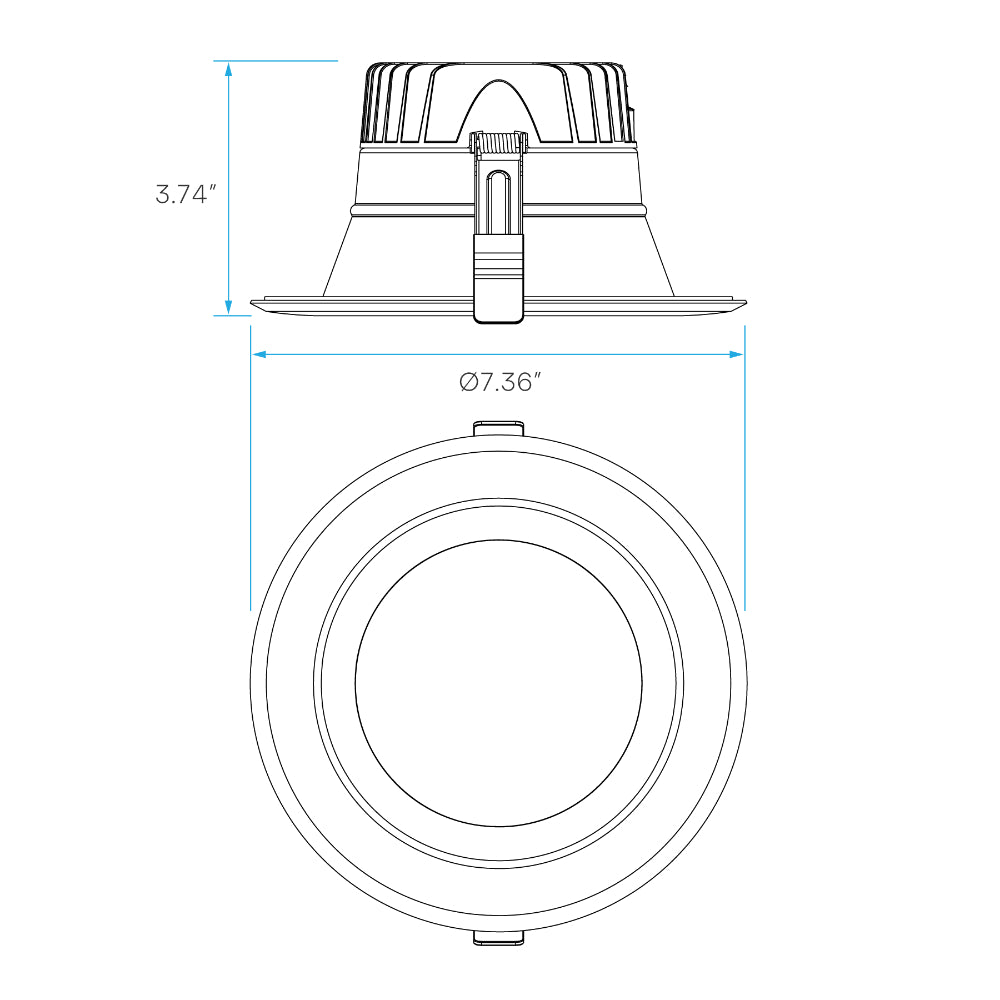

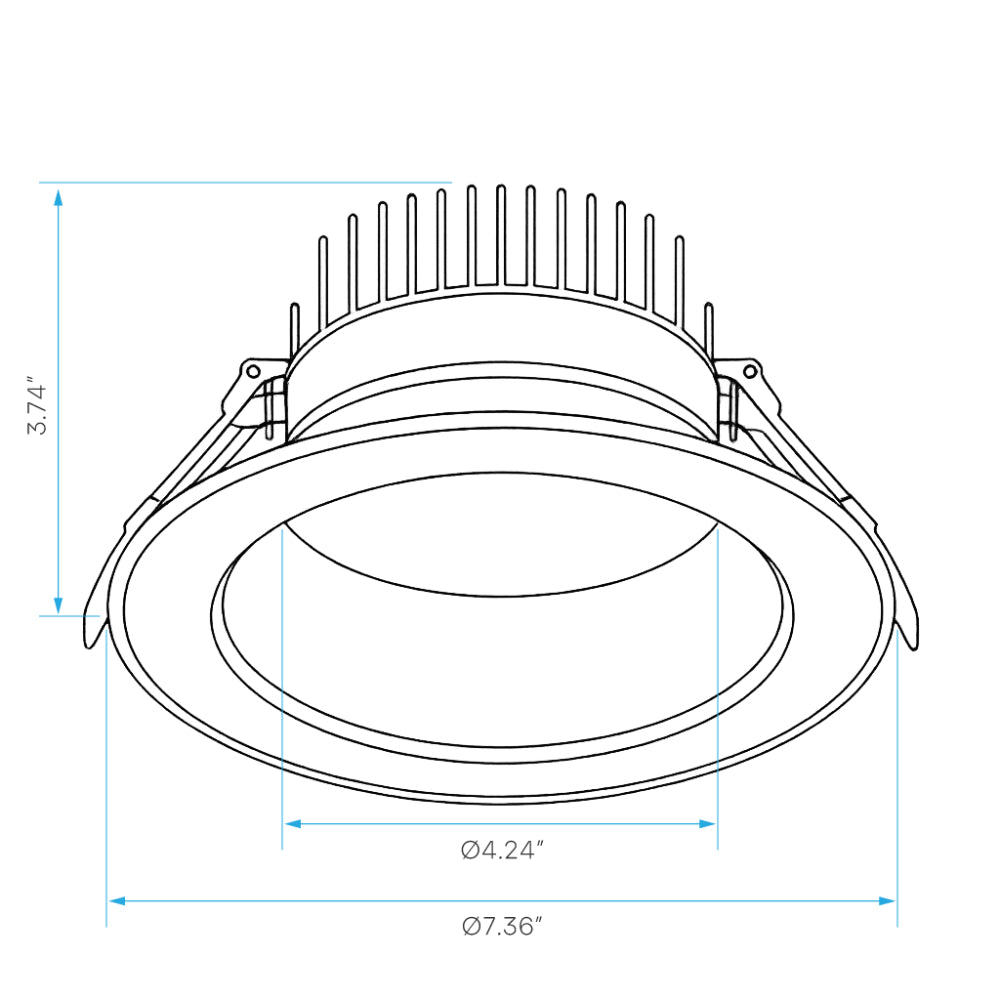

- Dimensions:
- Width: Ø 7.36 Inch
- Depth: 3.74 Inch
- Finish: White
- Cutout: Ø6 Inch
- Plate: LR41002 (#2), LR41006 (#5), LR41010 (#R3)

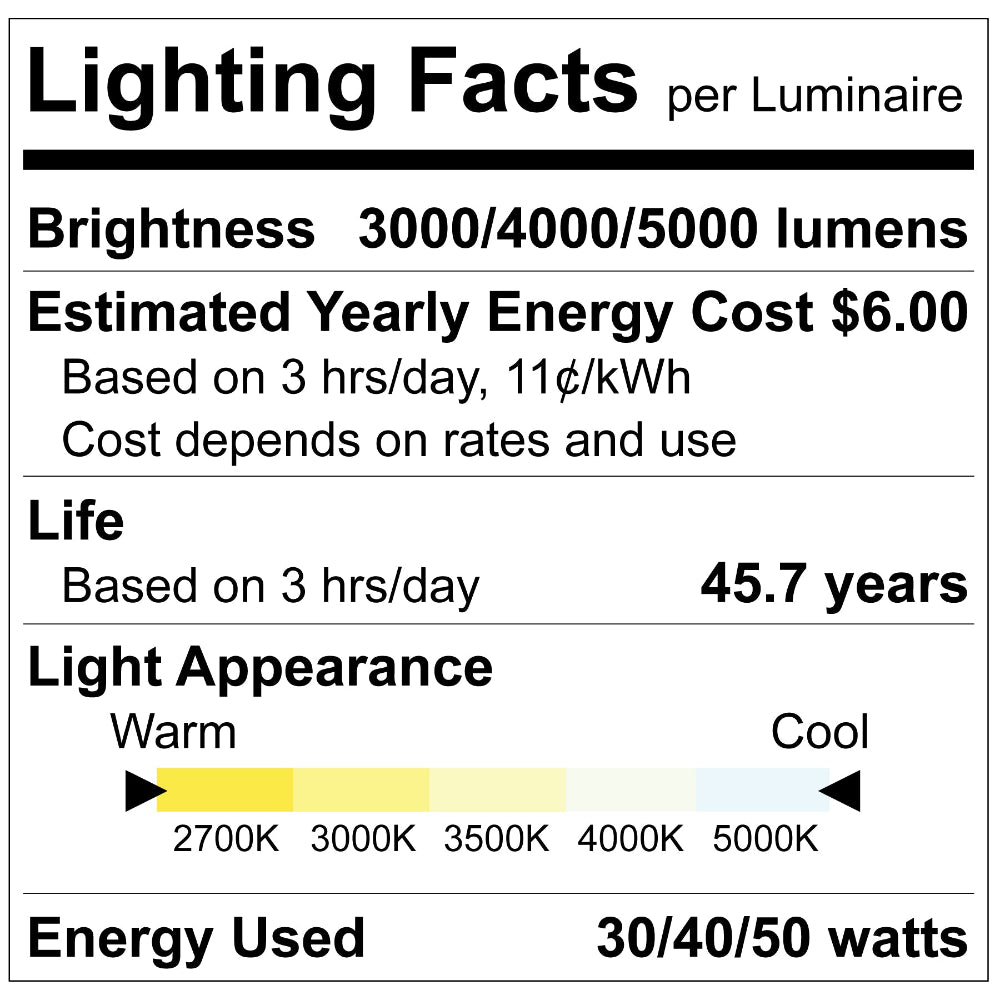

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 3000/4000/5000
- Beam Angle: 80°
- CRI: 90
Electrical
- Power (Wattage): 30/40/50
- Input Volts: 120-277V
- Rated Lifetime: 50000
- Dimmable: TRIAC/0-10V
- Power Factor: 0.9@120V 0.7@277V
- Input Current: 470Ma
- Frequency: 50/60Hz
- Lumen Efficacy: 100
- Operating Temp:
- Min: -13°
- Max: 104°
Product Files
Click forLuxrite LR23981 Specification Sheet
Click forLuxrite LR23981 Install Guide
