Description

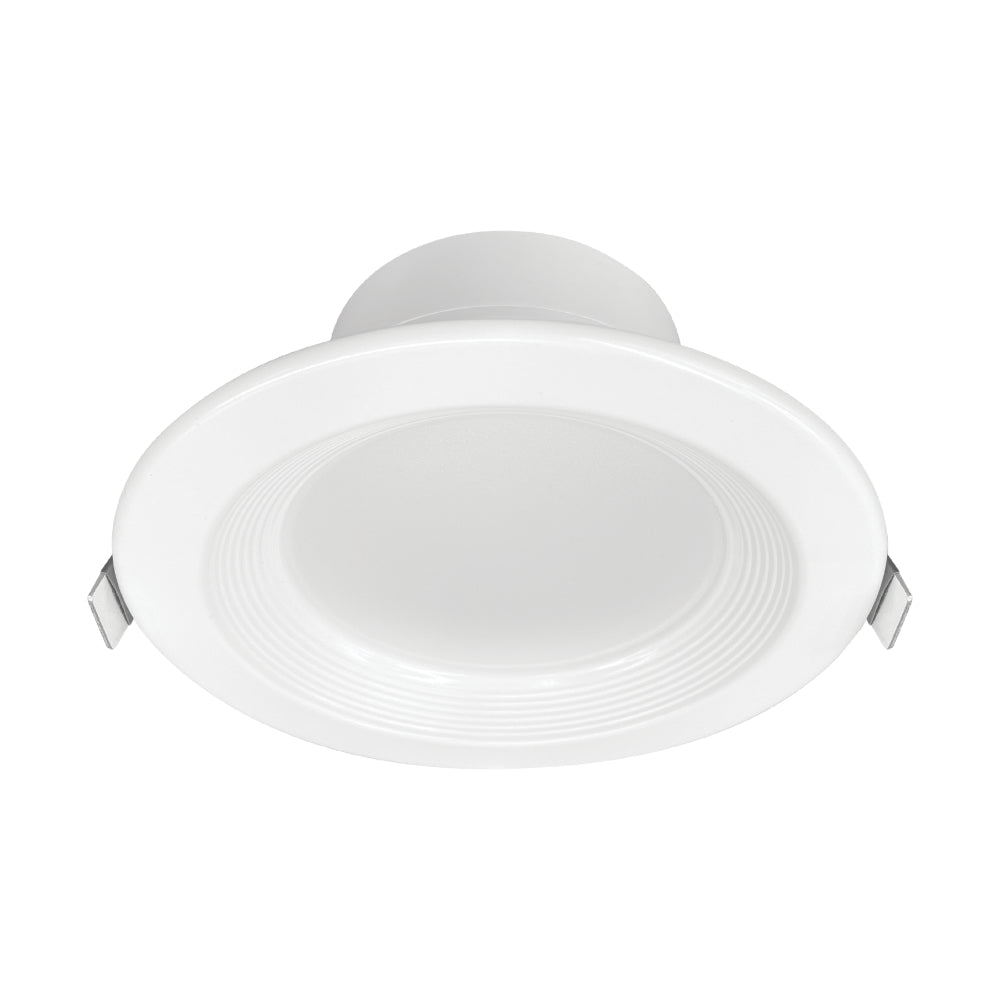

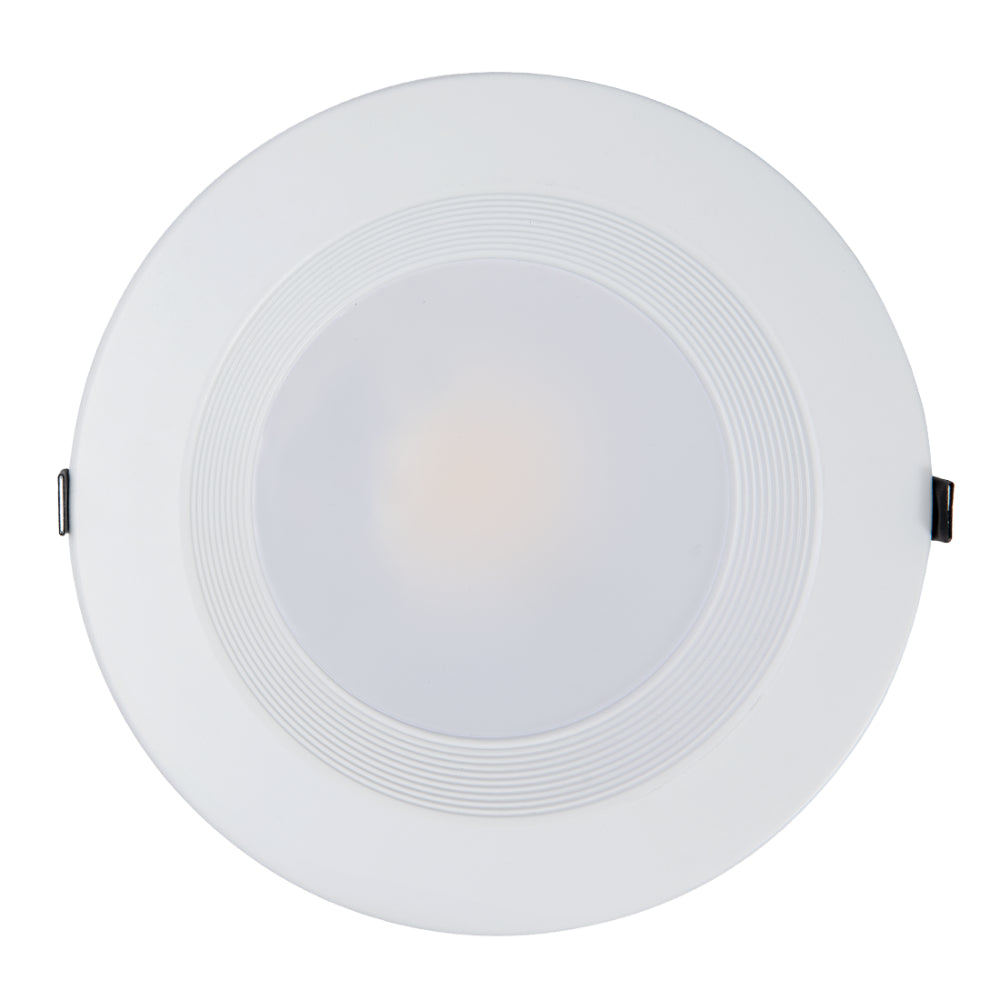

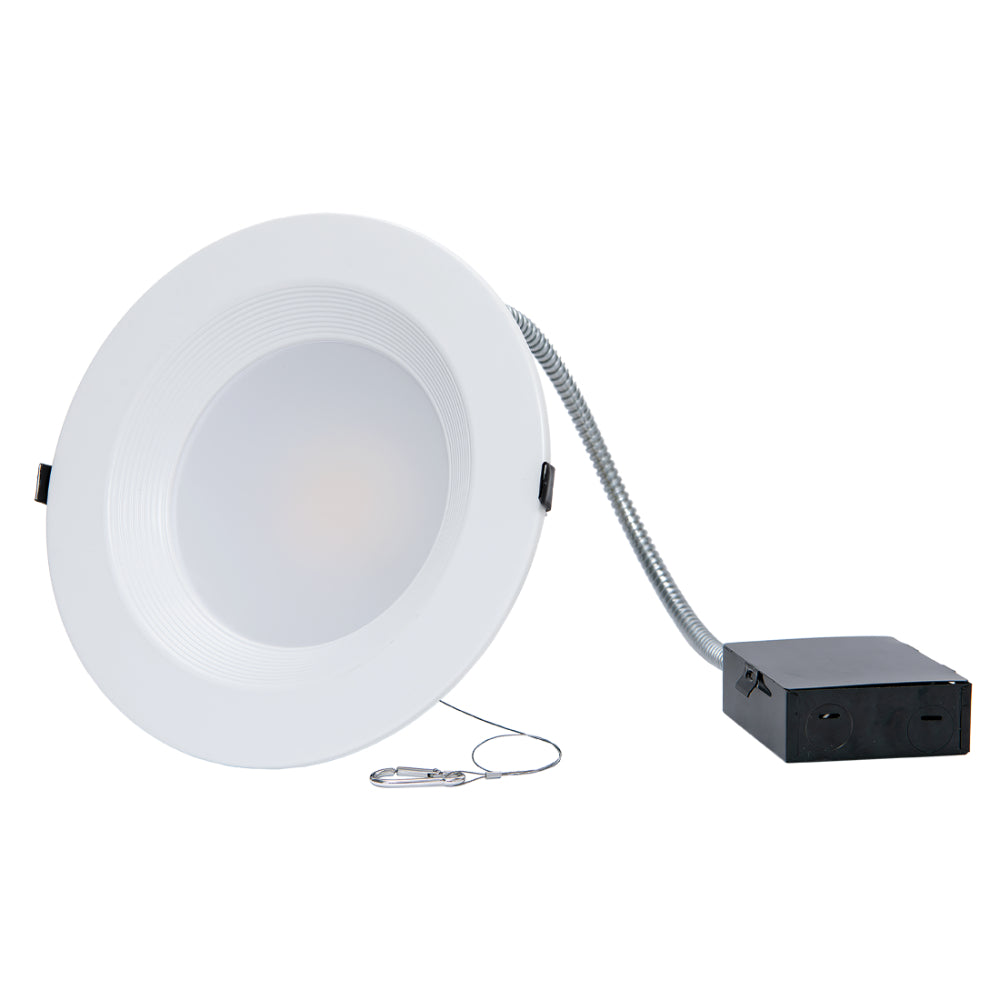

Luxrite 6" Baffled CCT & Wattage Selectable Universal Voltage Dual Dimming Commercial Downlight
Specifications
- Item description: LED/CDL6HO/3WO/5CCT/B/JB/UNV/DD
- Size: 6 Inch
- Shape: 6 Inch Round

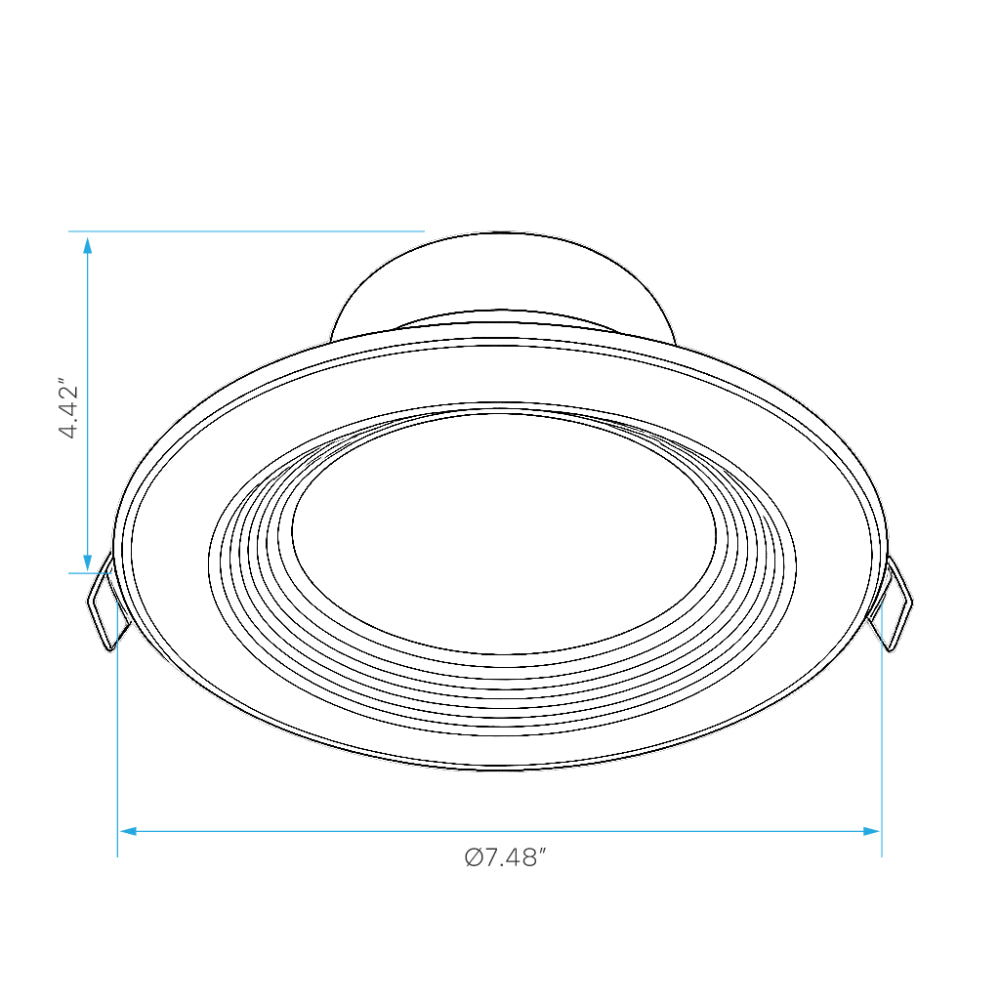

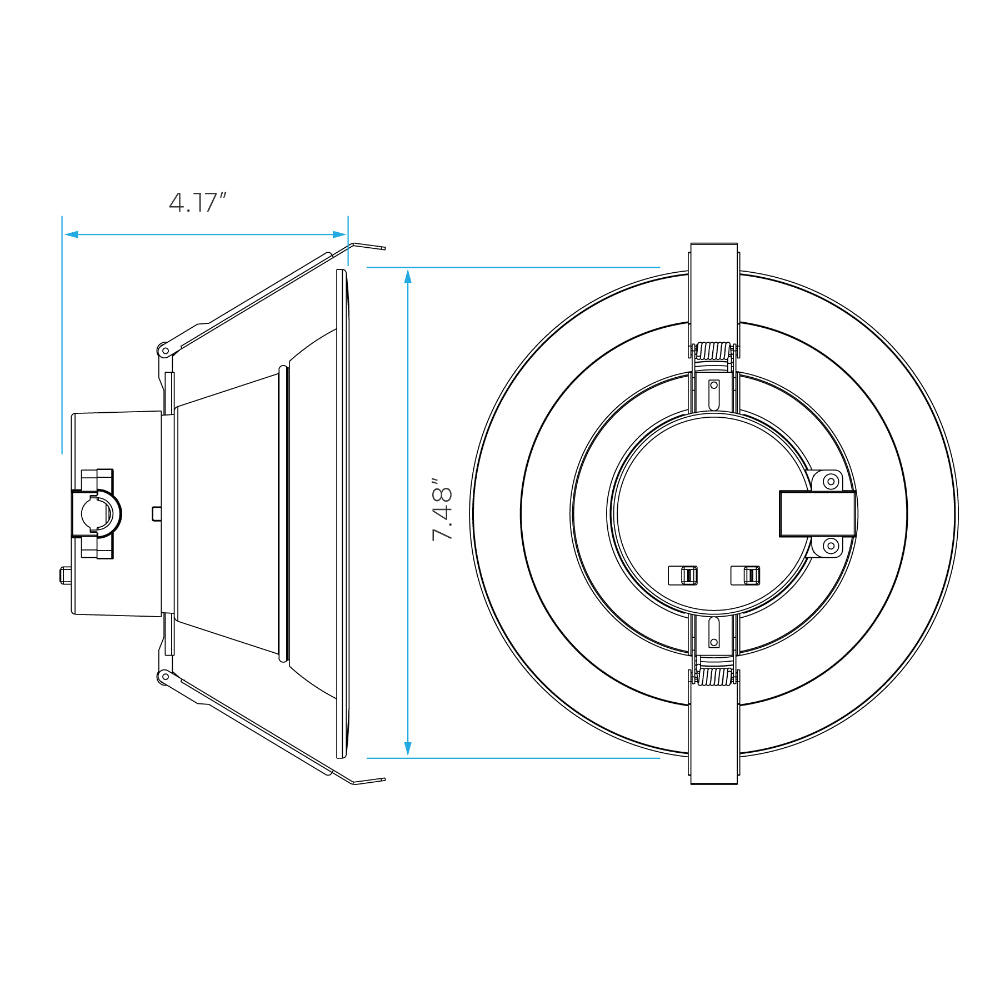

- Dimensions:
- Width: Ø7.48 Inch
- Height: 4.17 Inch
- Finish: White
- Cutout: 6.3 Inch
- Plate: LR41002 (#2), LR41006 (#5), LR41010 (#R3)

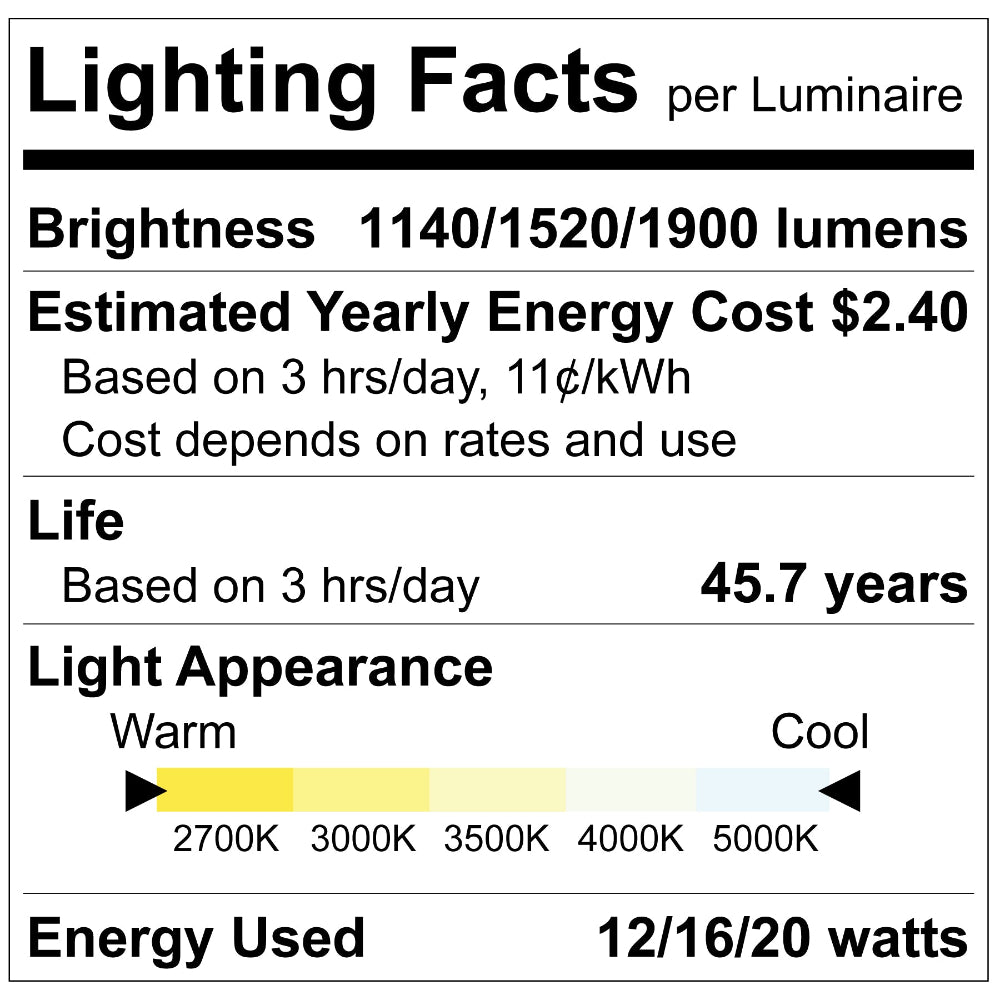

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 1140/1520/1900
- Beam Angle: 100º
- CRI: 80
Electrical
- Power (Wattage): 12/16/20
- Input Volts: 120-277V
- Rated Lifetime: 50000
- Dimmable: Dual Dimming TRIAC/0-10V
- Power Factor: 0.9
- Input Current: 170Ma
- Frequency: 50/60Hz
- Lumen Efficacy: 95
- Operating Temp:
- Min: -13°
- Max: 104°
Product Files
Click forLuxrite LR23976 Specification Sheet
Click forLuxrite LR23976 Install Guide
