Description

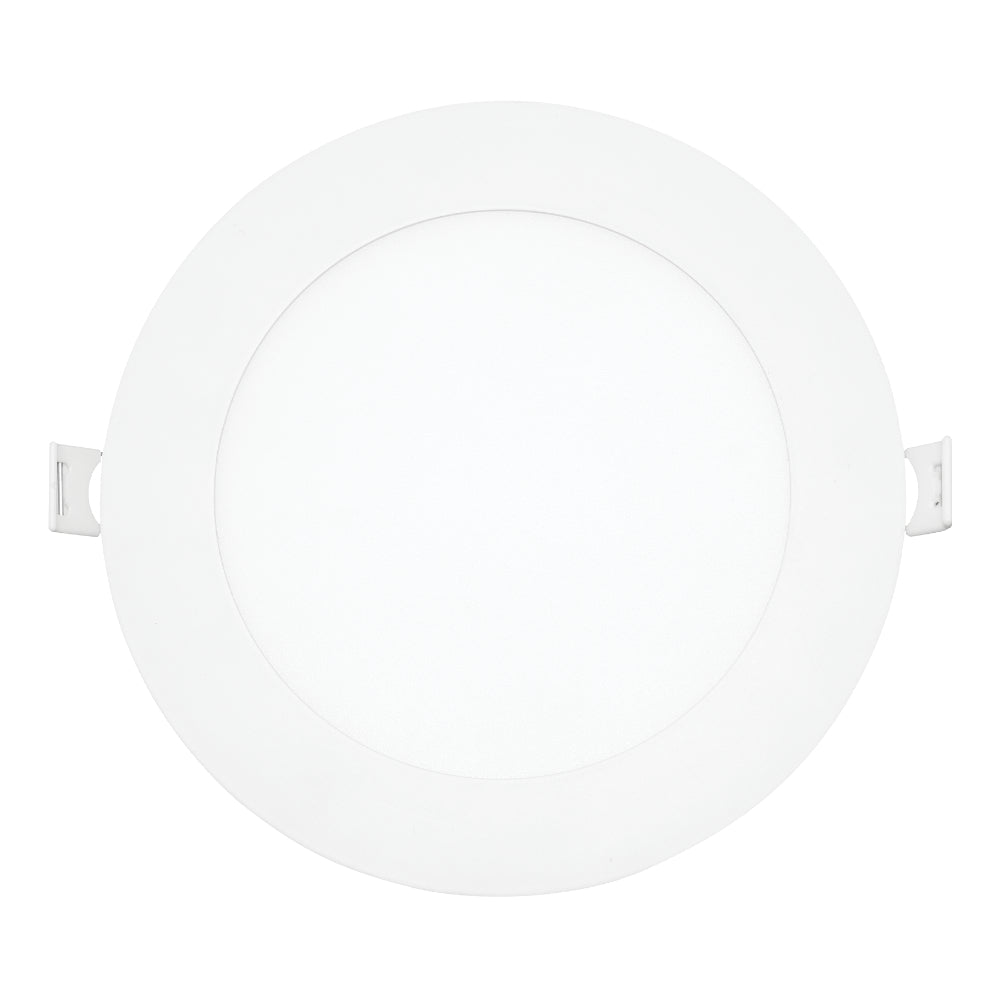

Luxrite 6" Mini Panel Canless Spotlight - CCT & Wattage Selectable Dual Dimming/Universal Voltage - High Output
Specifications
- Item description: LED/MINI6/PNL/3WO/5CCT/RD/UNV/DD
- Size: 6 Inch
- Shape: 6 Inch Mini Panel

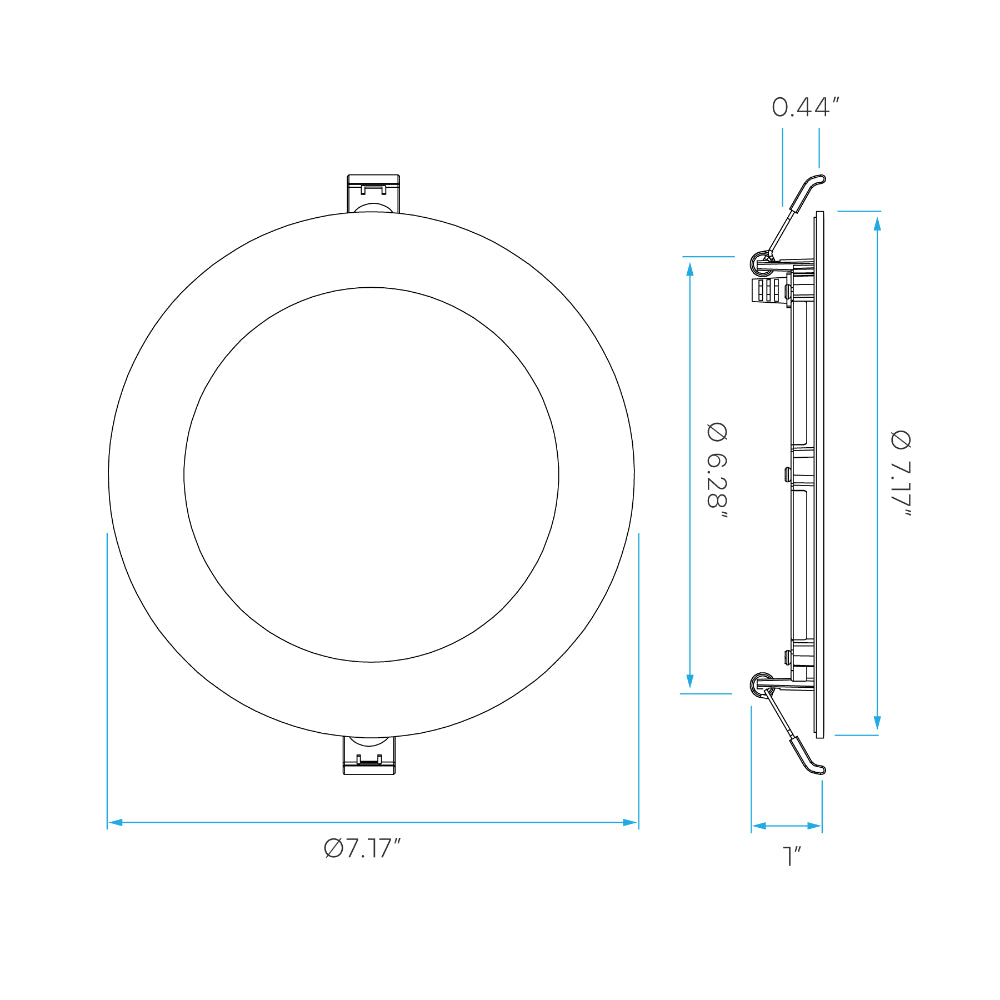

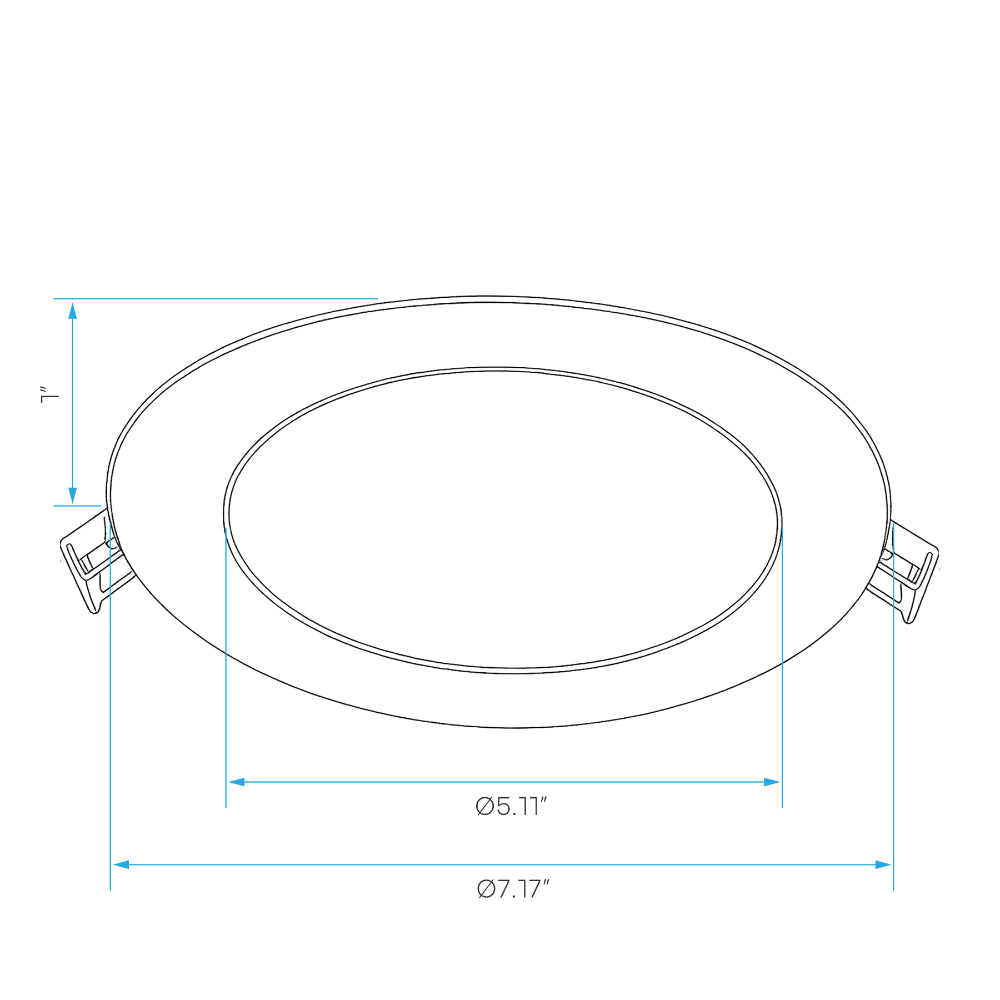

- Dimensions:
- Width: Ø7.17 Inch
- Depth: 0.44 Inch
- Finish: White
- Cutout: Ø6.30 Inch
- Plate: LR41002 (#2), LR41006 (#5), LR41010 (#R3)

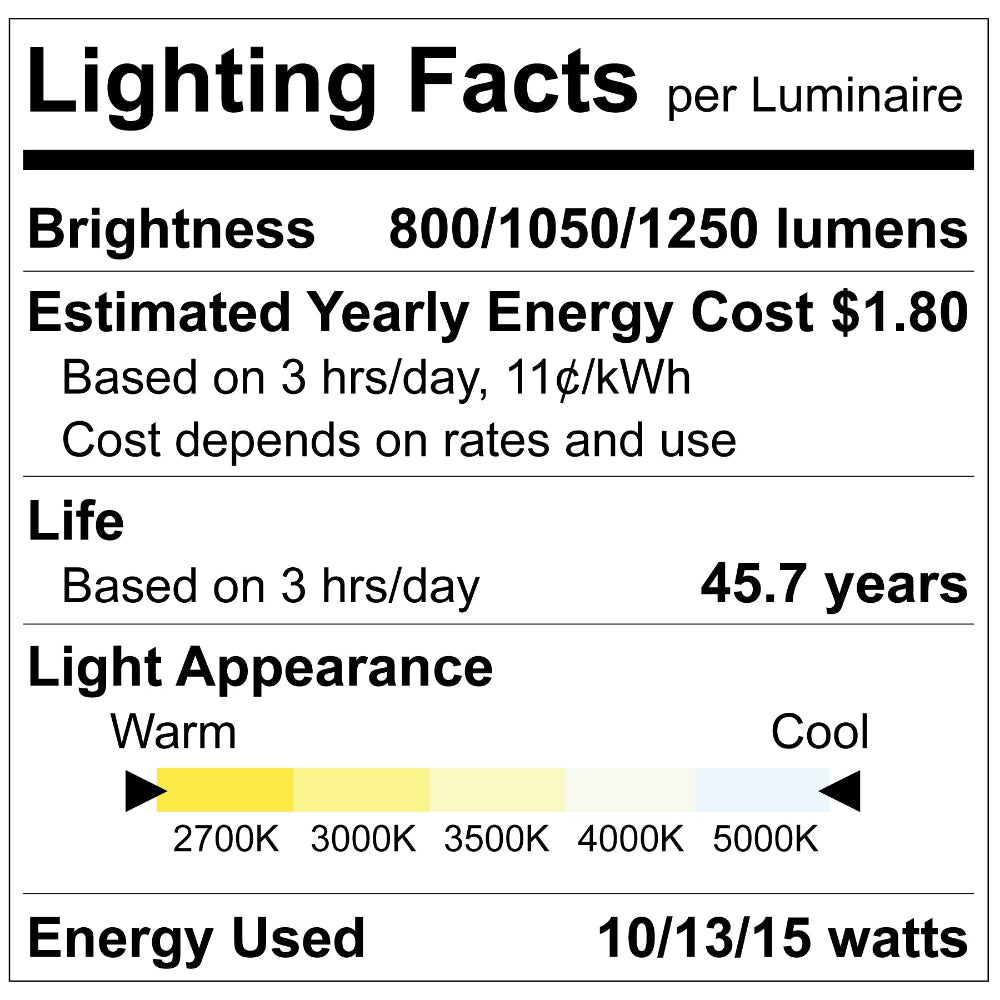

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 800/1050/1250
- Beam Angle: 105°
- CRI: 90
Electrical
- Power (Wattage): 10/13/15
- Input Volts: 120-277V
- Rated Lifetime: 50000
- Dimmable: TRIAC/0-10V
- Power Factor: 0.9
- Frequency: 50/60Hz
- Lumen Efficacy: 82
- Operating Temp:
- Min: -4°
- Max: 104°
Product Files
Click forLuxrite LR23932 Specification Sheet
Click forLuxrite LR23932 Install Guide
Click forLuxrite LR23932 Dimmer Compatibility
Click forLuxrite LR23932 Warranty
Click forLuxrite LR23932 Certificate Of Compliance
Click forLuxrite LR23934 Install Guide
Click forLuxrite LR23934 Dimmer Compatibility
