Description

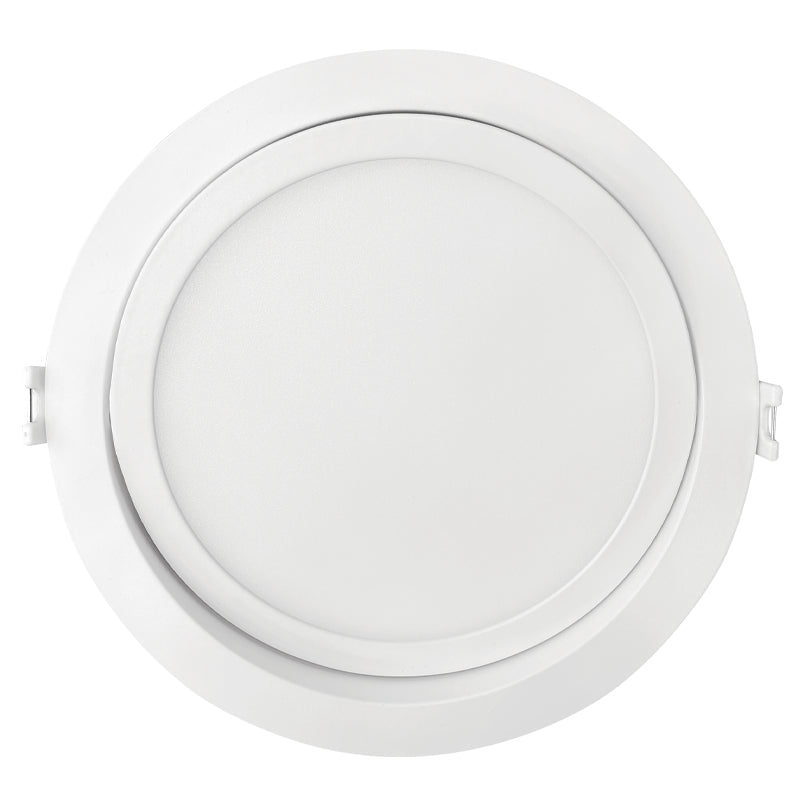

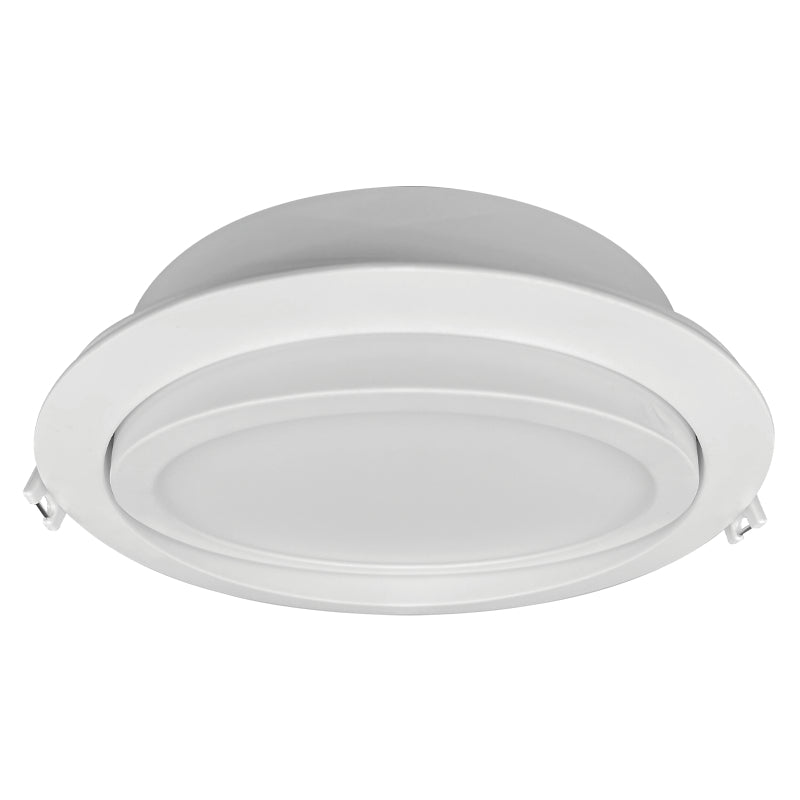

Luxrite 6" Mini Panel Round 5CCT Ho Gimbal Canless Wafer Spotlight
Specifications
- Item description: LED/MINI6/PANEL/5CCT/RD/GB/HO
- Size: 6 Inch
- Shape: 6 Inch Round Gimbal

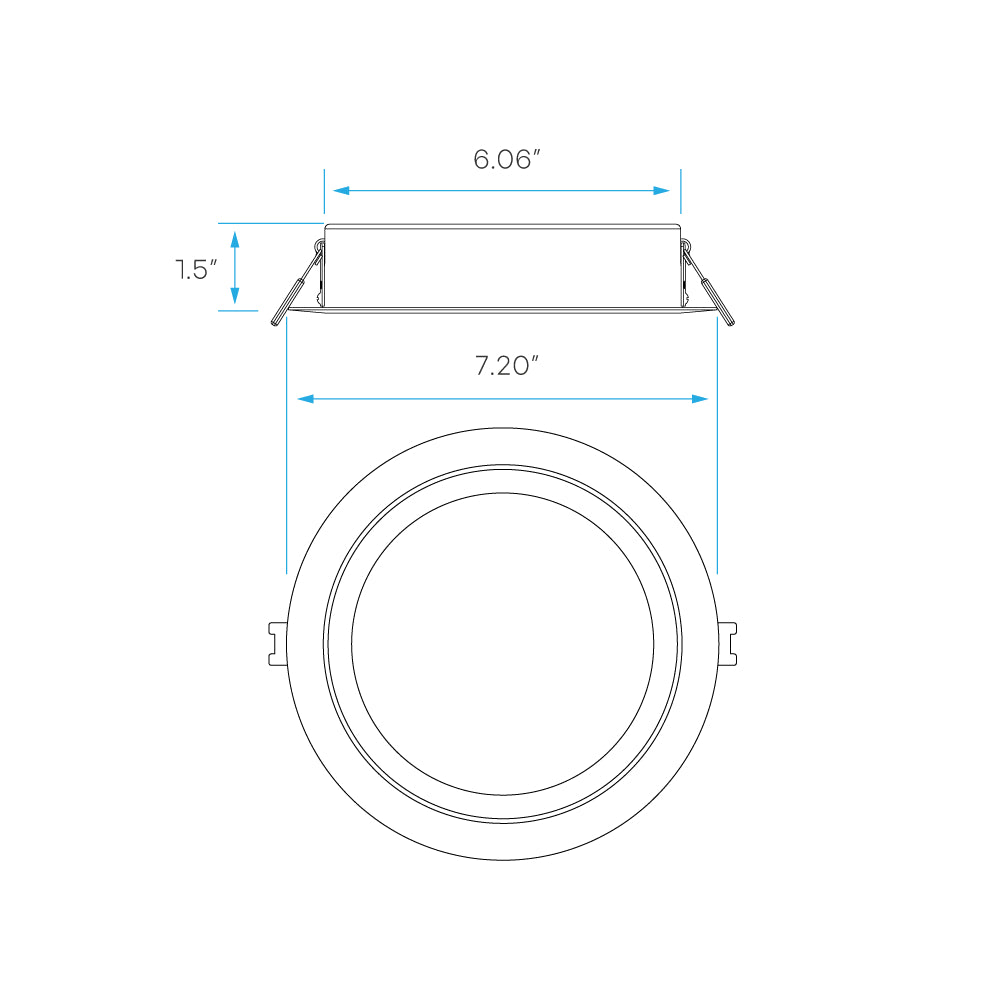

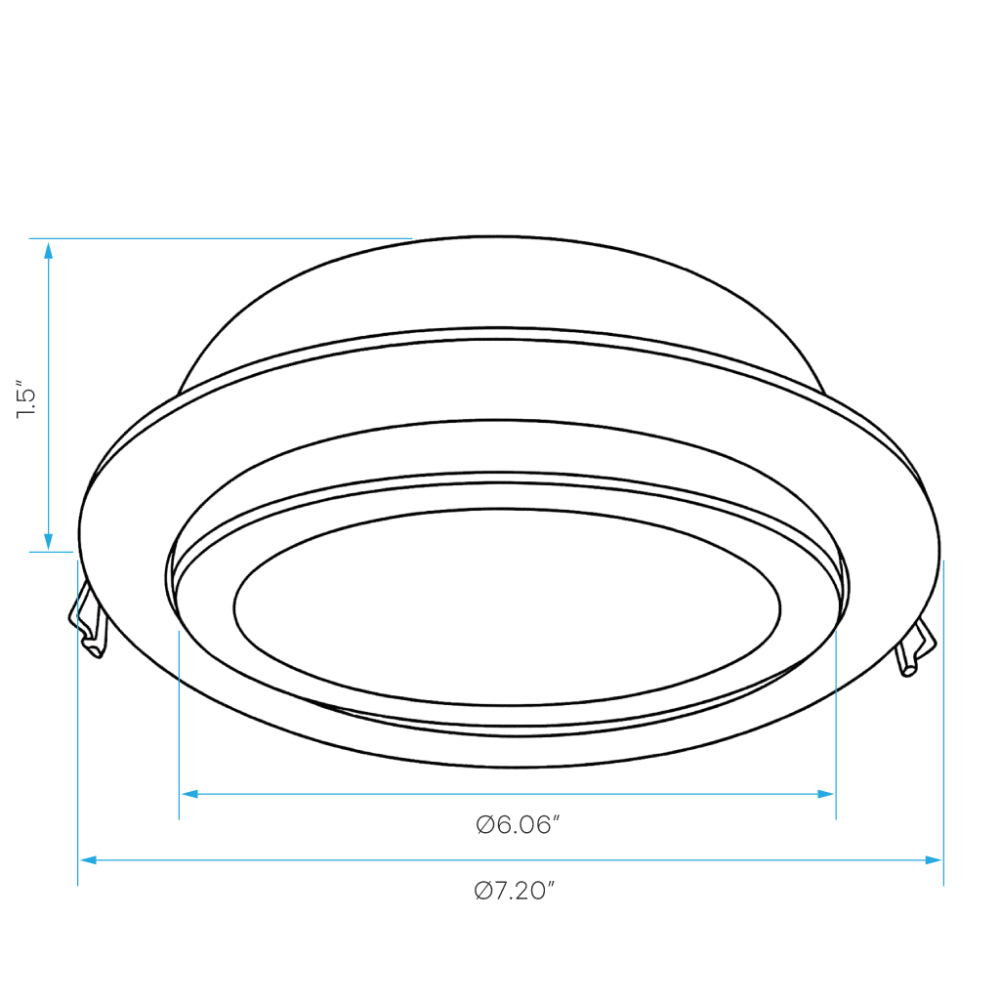

- Dimensions:
- Width: Ø7.20 Inch
- Height: 1.5 Inch
- Finish: White
- Cutout: Ø6.29 Inch
- Plate: LR41002 (#2), LR41006 (#5), LR41010 (#R3)
Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 1400
- Beam Angle: 120°
- CRI: 80
Electrical
- Power (Wattage): 15
- Input Volts: 120V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: 0.9
- Input Current: 0.1A
- Frequency: 60Hz
- Operating Temp:
- Min: -4°
- Max: 113°
Product Files
Click forLuxrite LR23746 Specification Sheet
Click forLuxrite LR23746 Install Guide
Click forLuxrite LR23746 Dimmer Compatibility
