Description

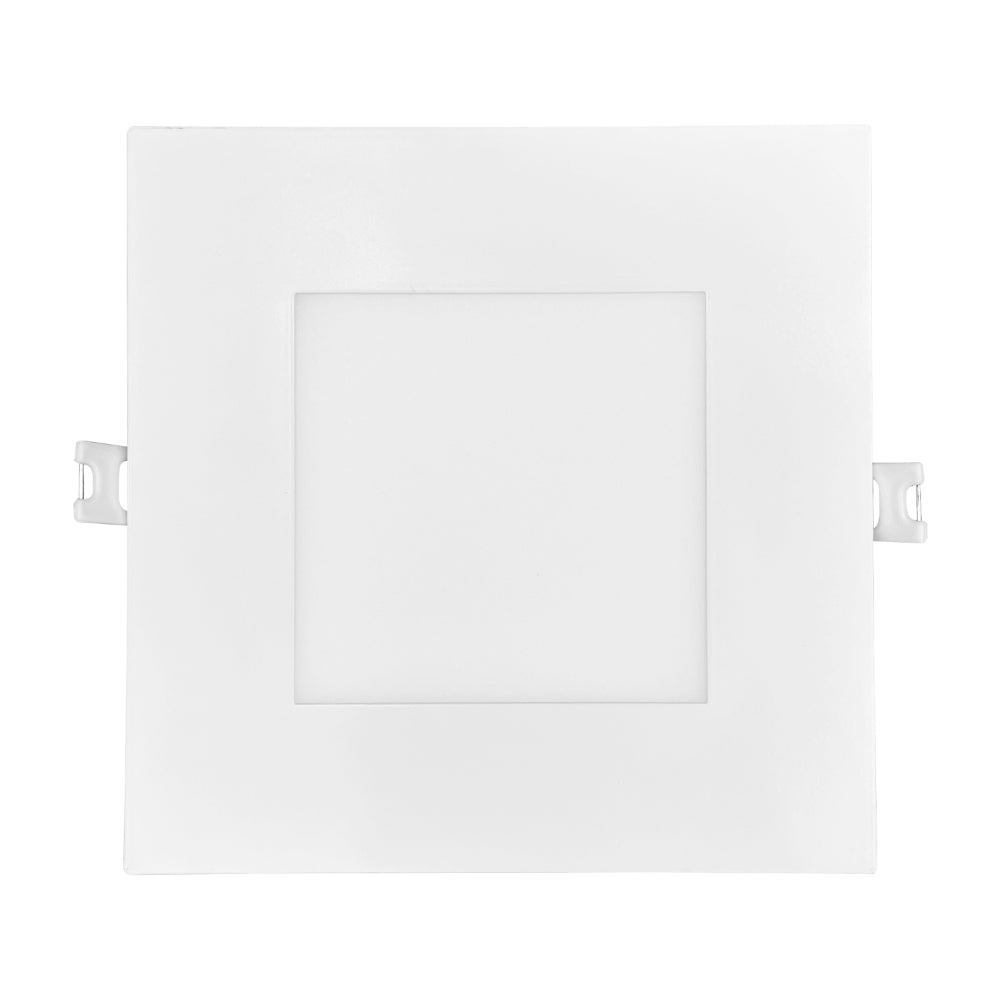

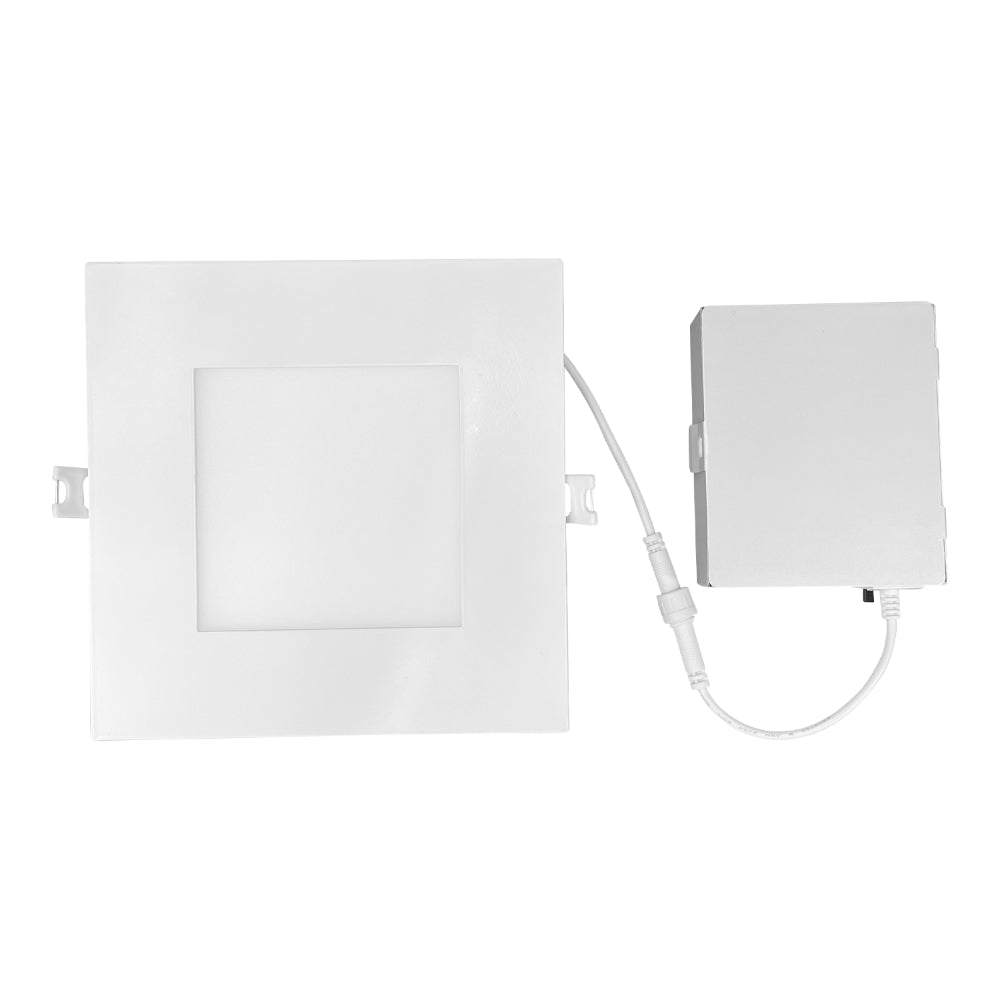

Luxrite 6" Mini Panel Square 5CCT High Output Smooth Canless Wafer Spotlight
Specifications
- Item description: LED/MINI6/PANEL/5CCT/SQ/HO
- Size: 6 Inch
- Shape: 6 Inch Square Smooth

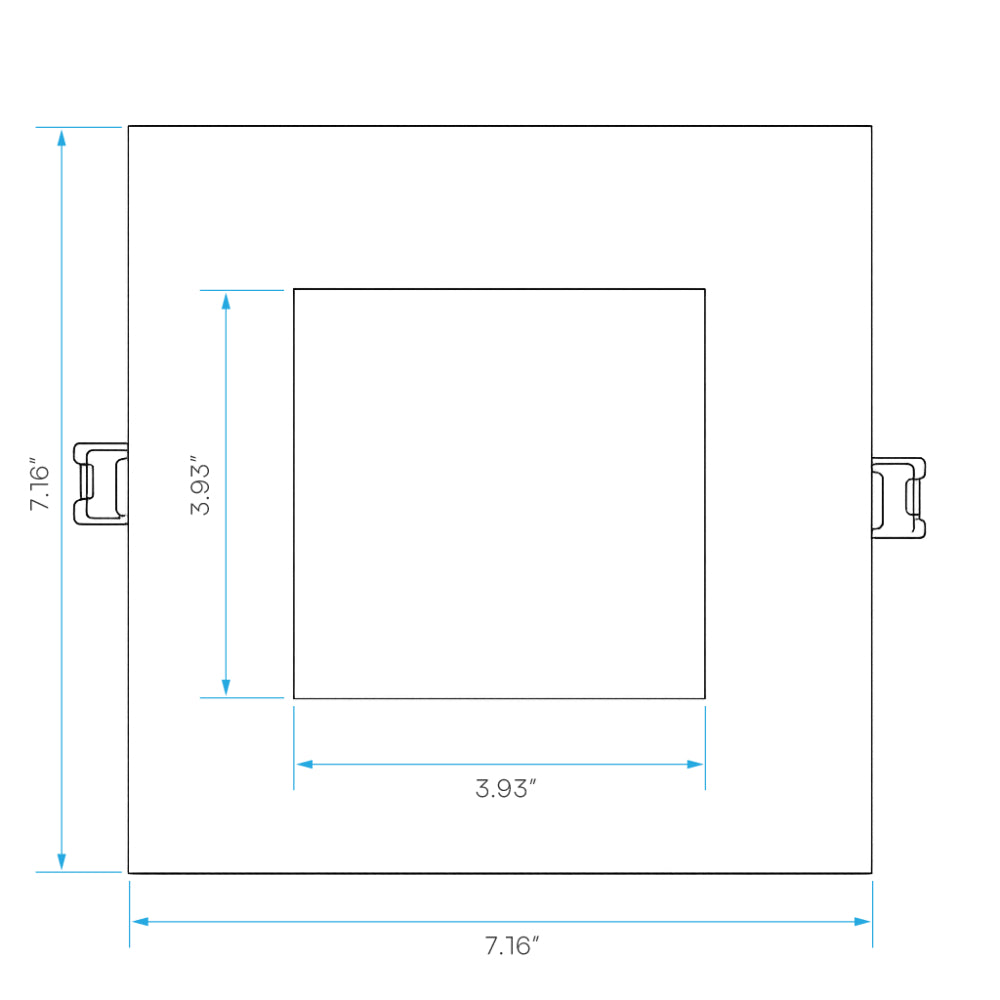

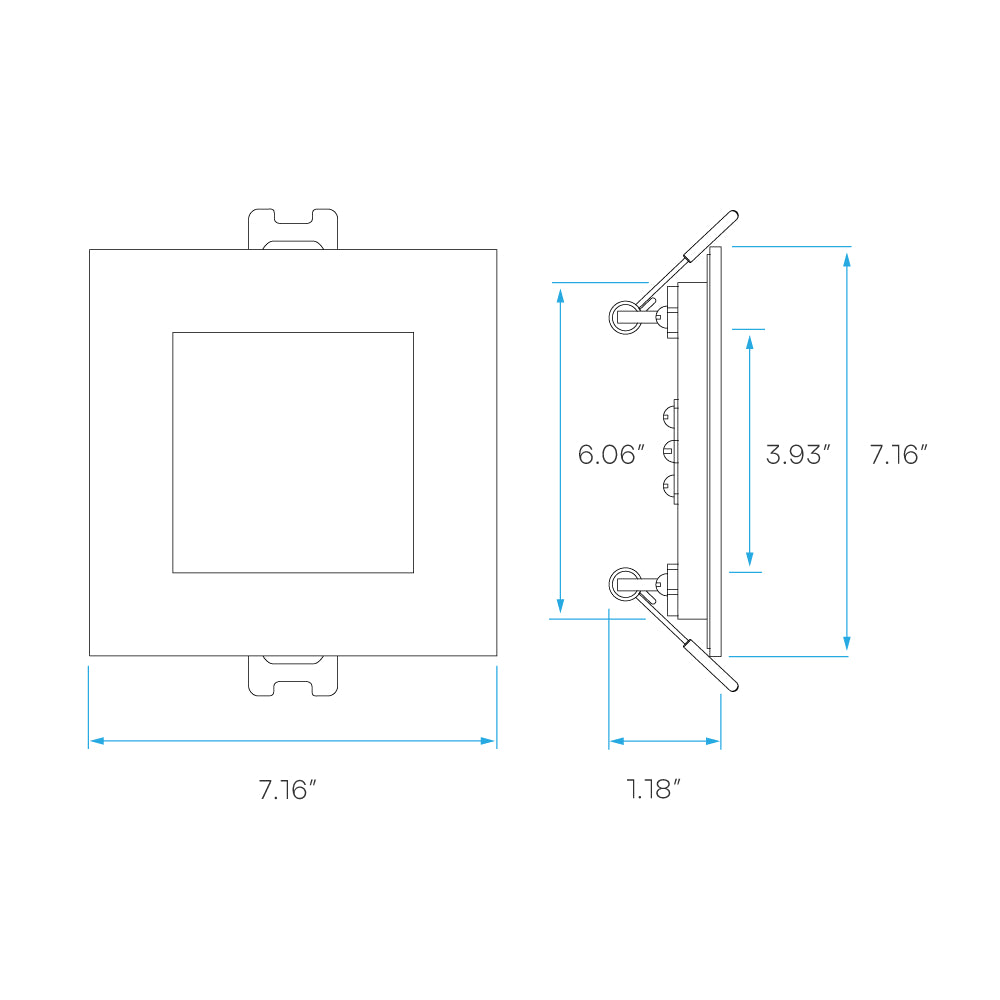

- Dimensions:
- Length: 7.16 Inch
- Width: 7.16 Inch
- Height: 1.02 Inch
- Finish: White
- Cutout: 6.22 Inch
- Plate: LR41002 (#2), LR41006 (#5), LR41010 (#R3)

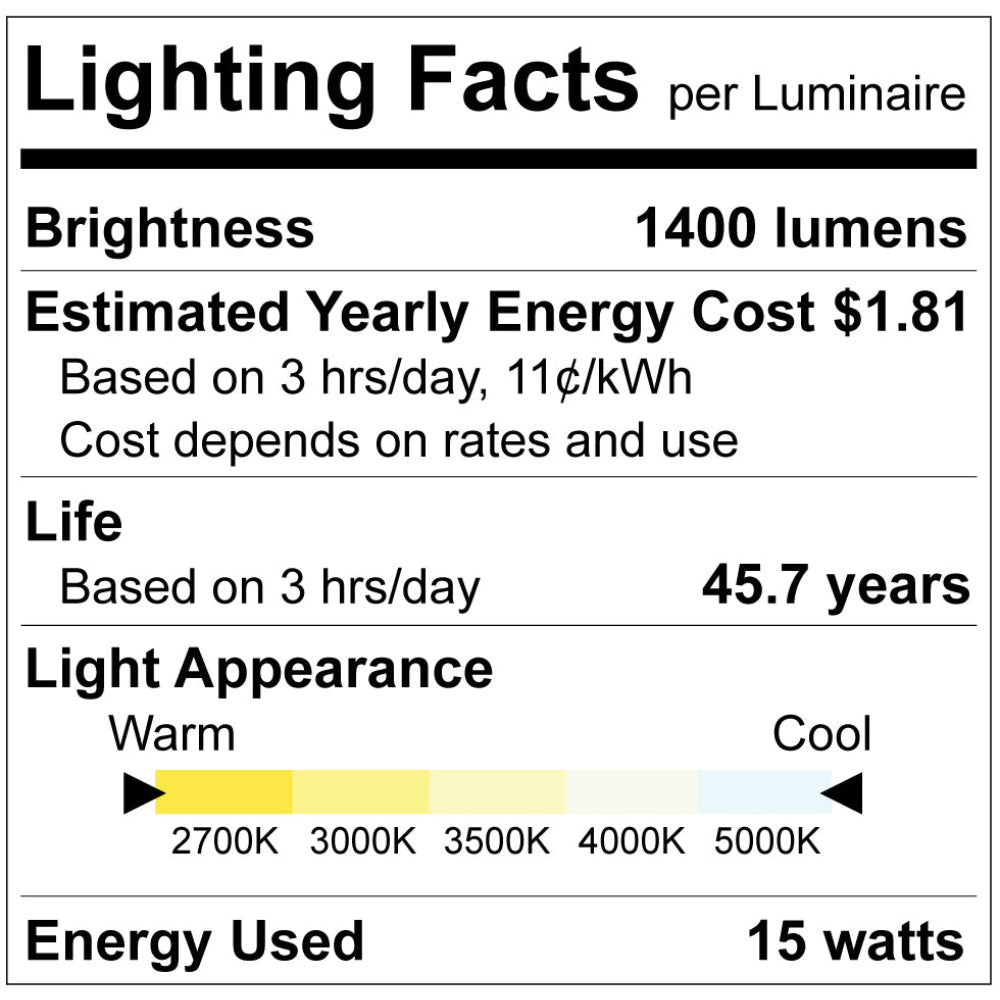

Photometric

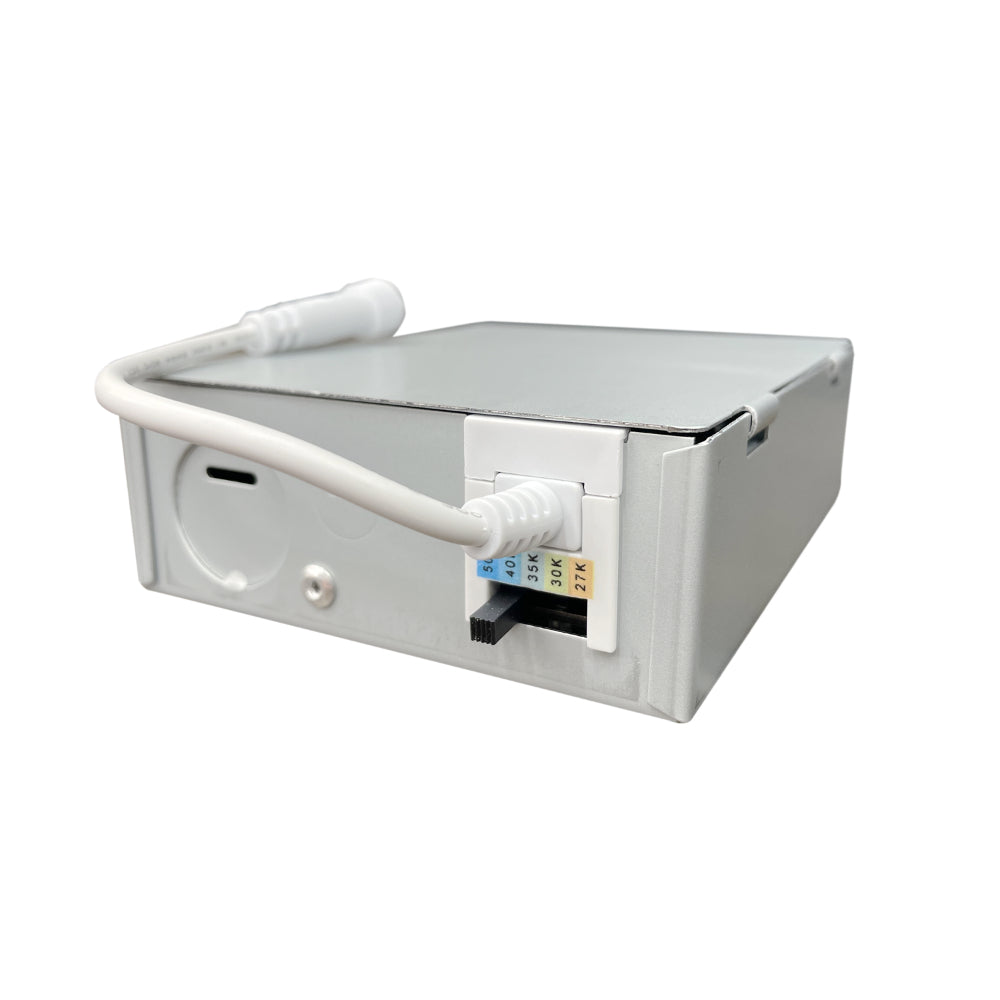

- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 1400
- Beam Angle: 180°
- CRI: 80
Electrical
- Power (Wattage): 15
- Input Volts: 120V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: 0.9
- Frequency: 50/60Hz
- Lumen Efficacy: 93
- Operating Temp:
- Min: -4°
- Max: 113°
Product Files
Click forLuxrite LR23747 Specification Sheet
Click forLuxrite LR23747 Install Guide
Click forLuxrite LR23747 Dimmer Compatibility
