Description

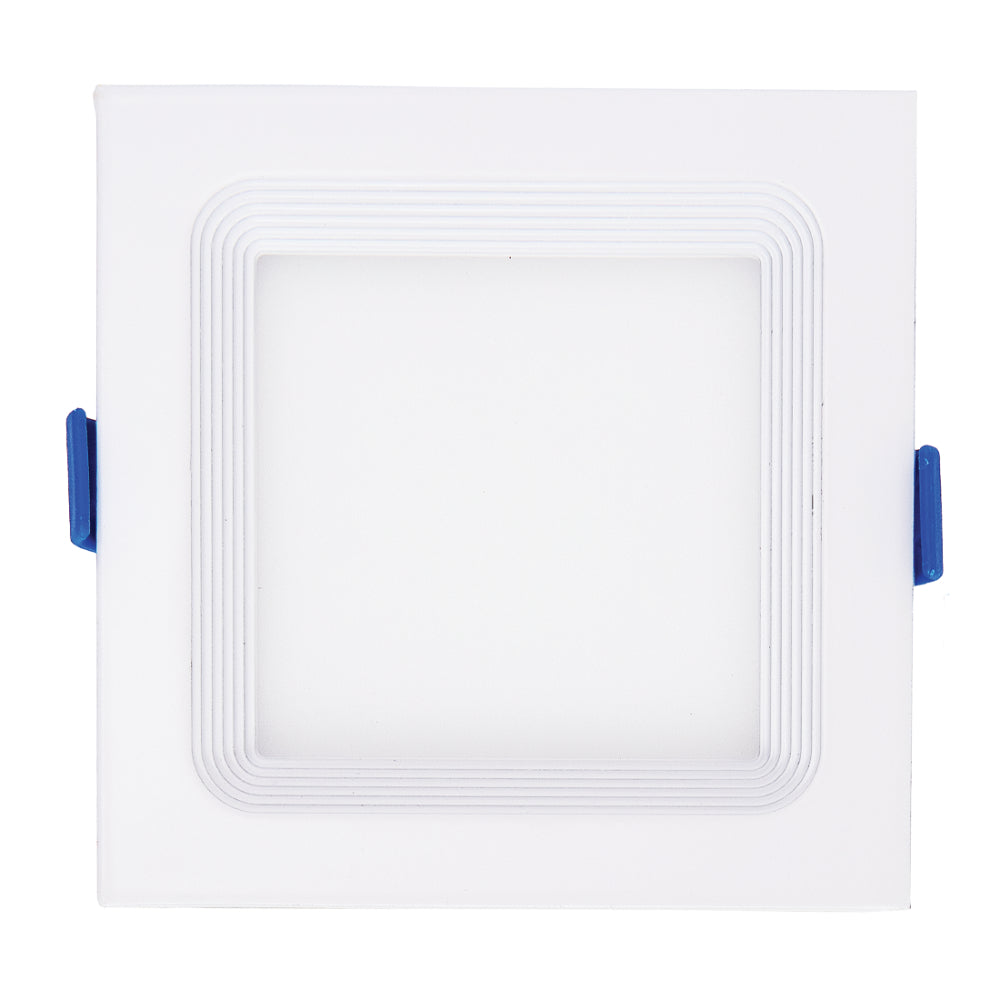

Luxrite 6" Mini Panel Square 5CCT High Output - Step Baffled Trim
Specifications
- Item description: LED/MINI6/PANEL/5CCT/SQ/B/HO
- Size: 6 Inch
- Shape: Baffled Square Wafer

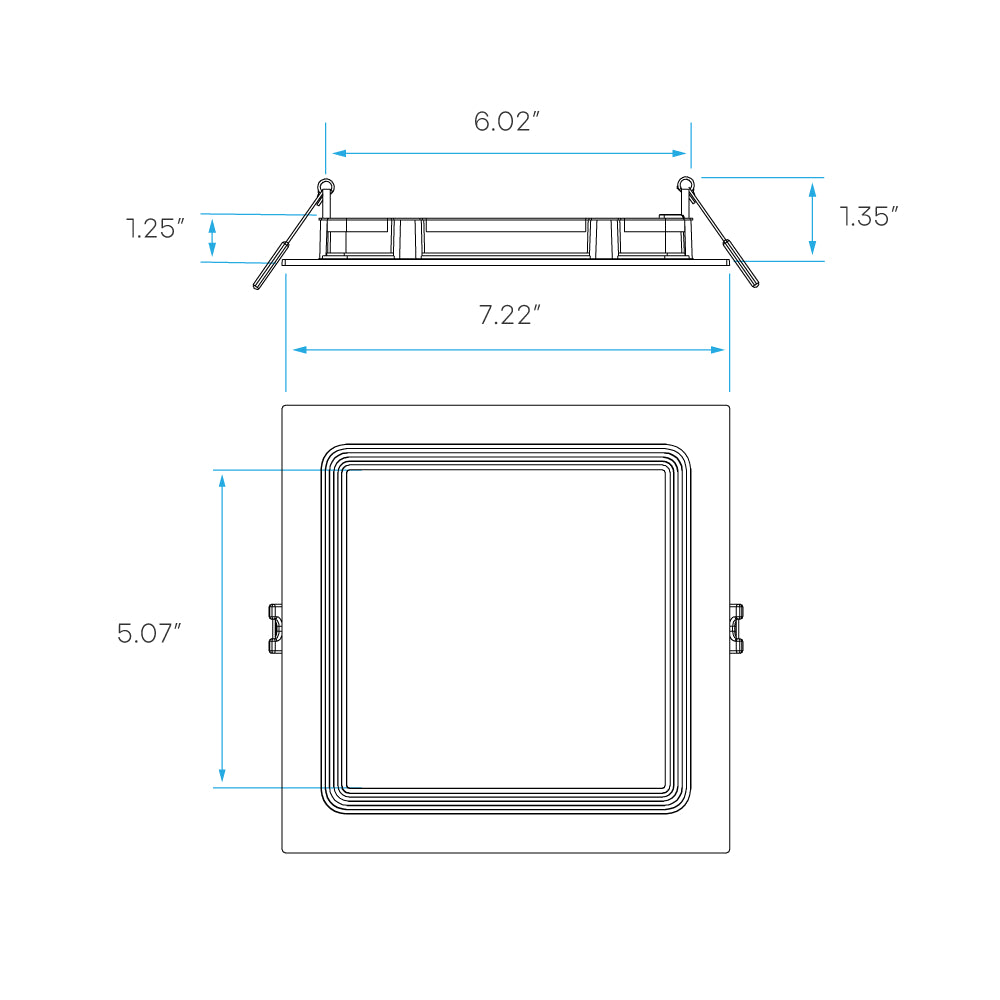

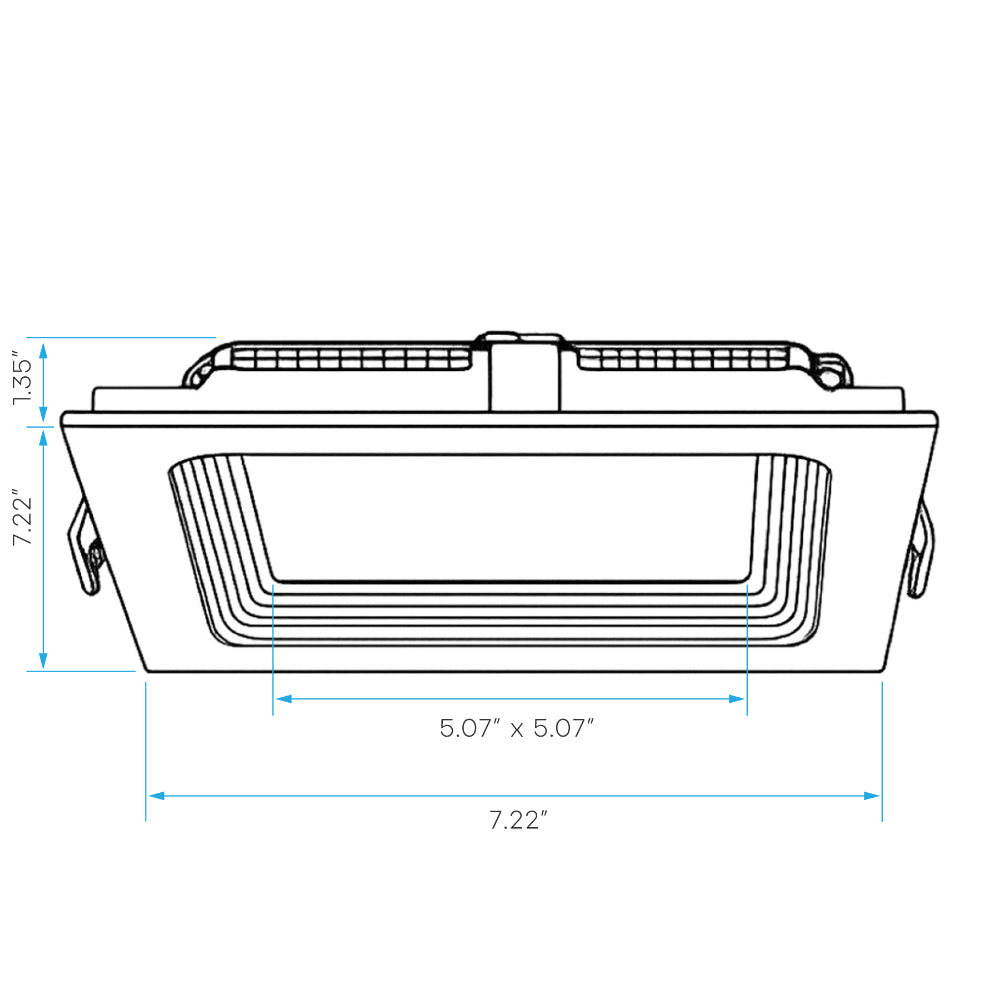

- Dimensions:
- Length: 7.17 Inch
- Width: 7.17 Inch
- Height: 1.42 Inch
- Finish: White
- Cutout: 6.3 Inch x 6.3 Inch
- Plate: Lr41005 (#2)
- MOL: 7.17 Inch

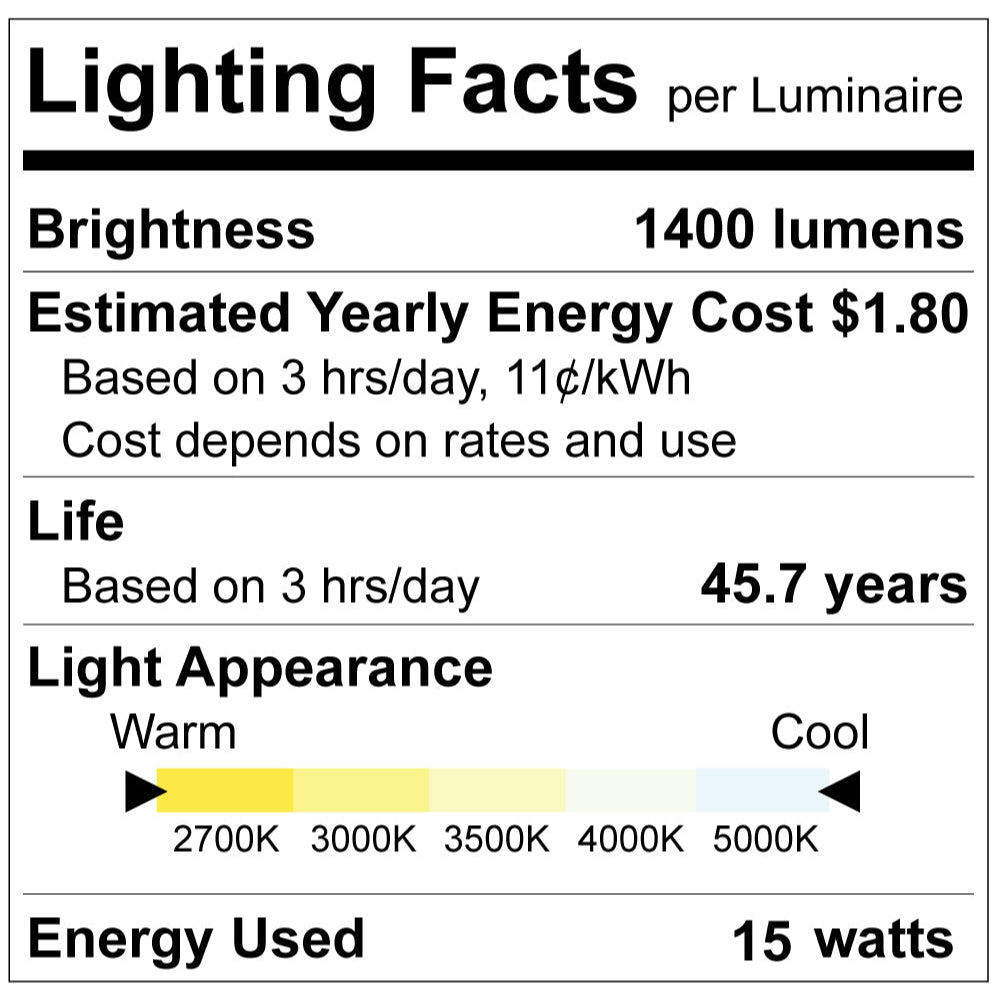

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 1400
- Beam Angle: 110º
- CRI: 80
Electrical
- Power (Wattage): 15
- Input Volts: 120V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: 0.98
- Frequency: 60Hz
- Lumen Efficacy: 75
- Operating Temp:
- Min: -4°
- Max: 113°
Product Files
Click forLuxrite LR23740 Specification Sheet
Click forLuxrite LR23740 Install Guide
Click forLuxrite LR23740 Dimmer Compatibility
