Description

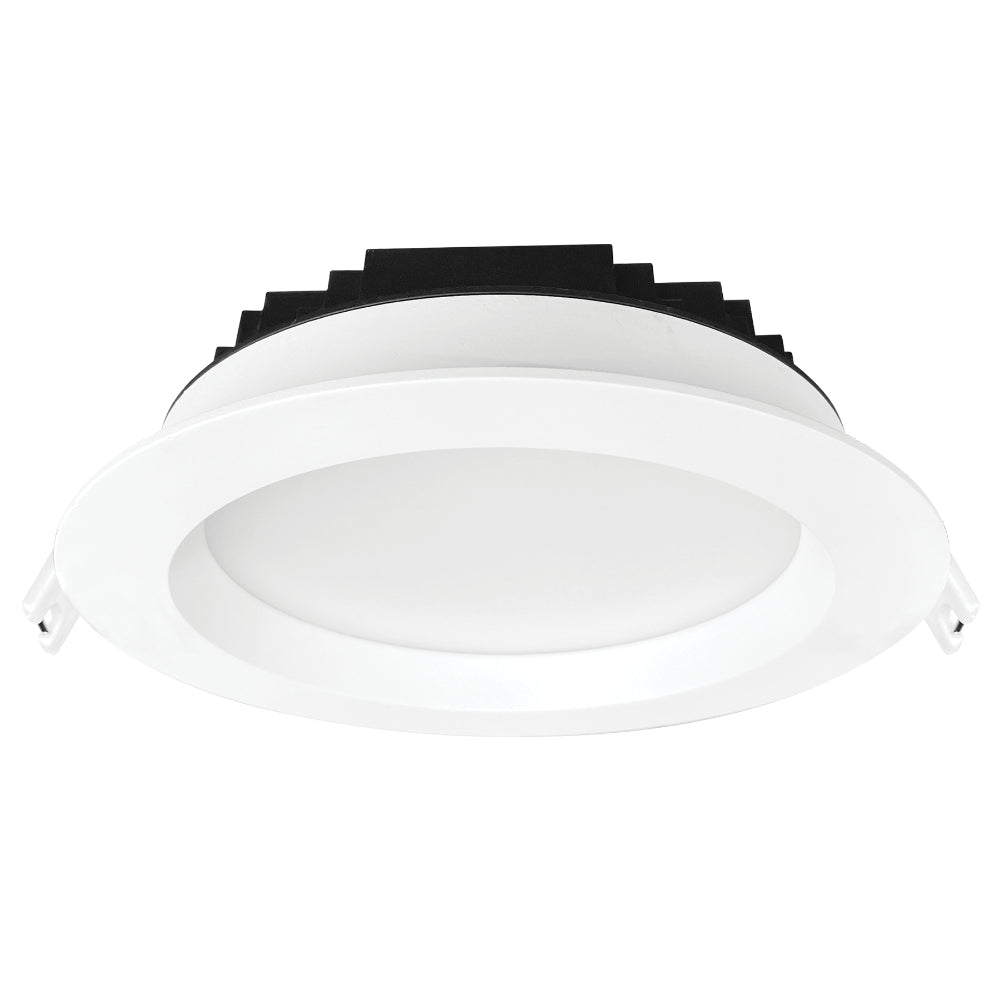

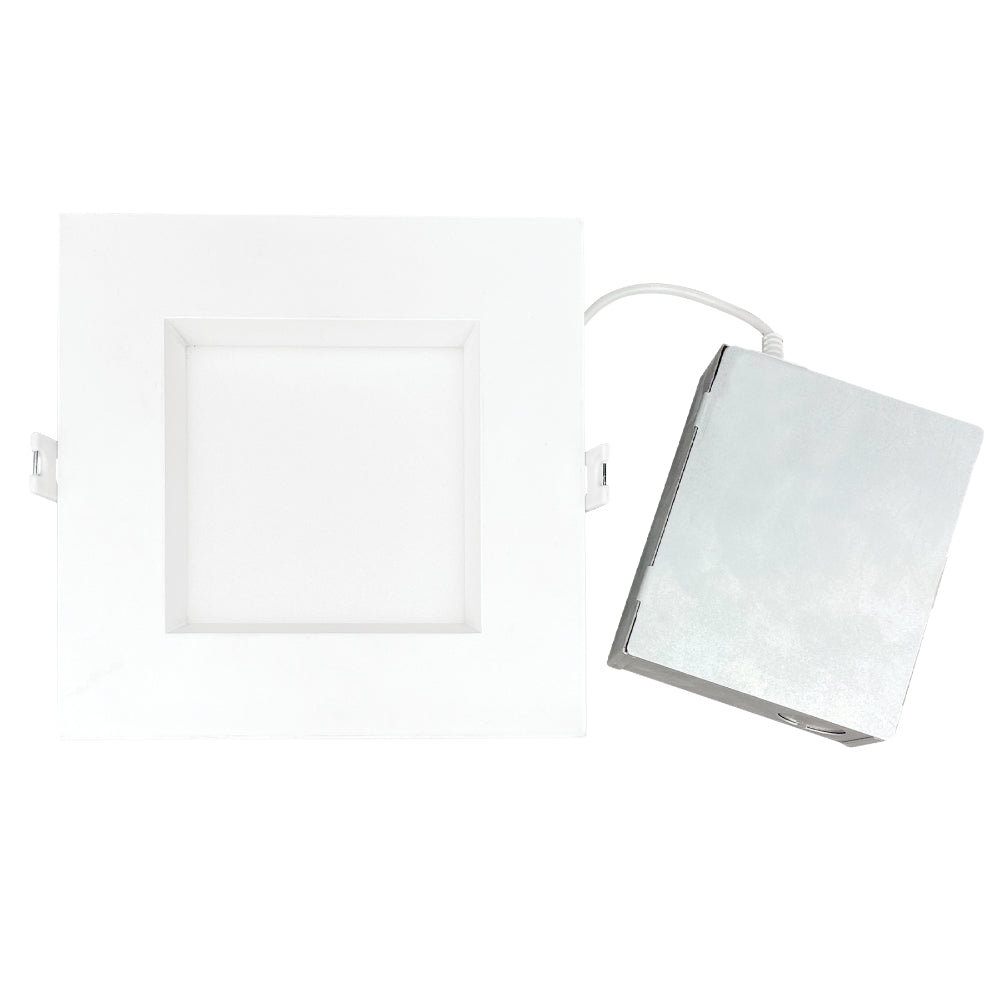

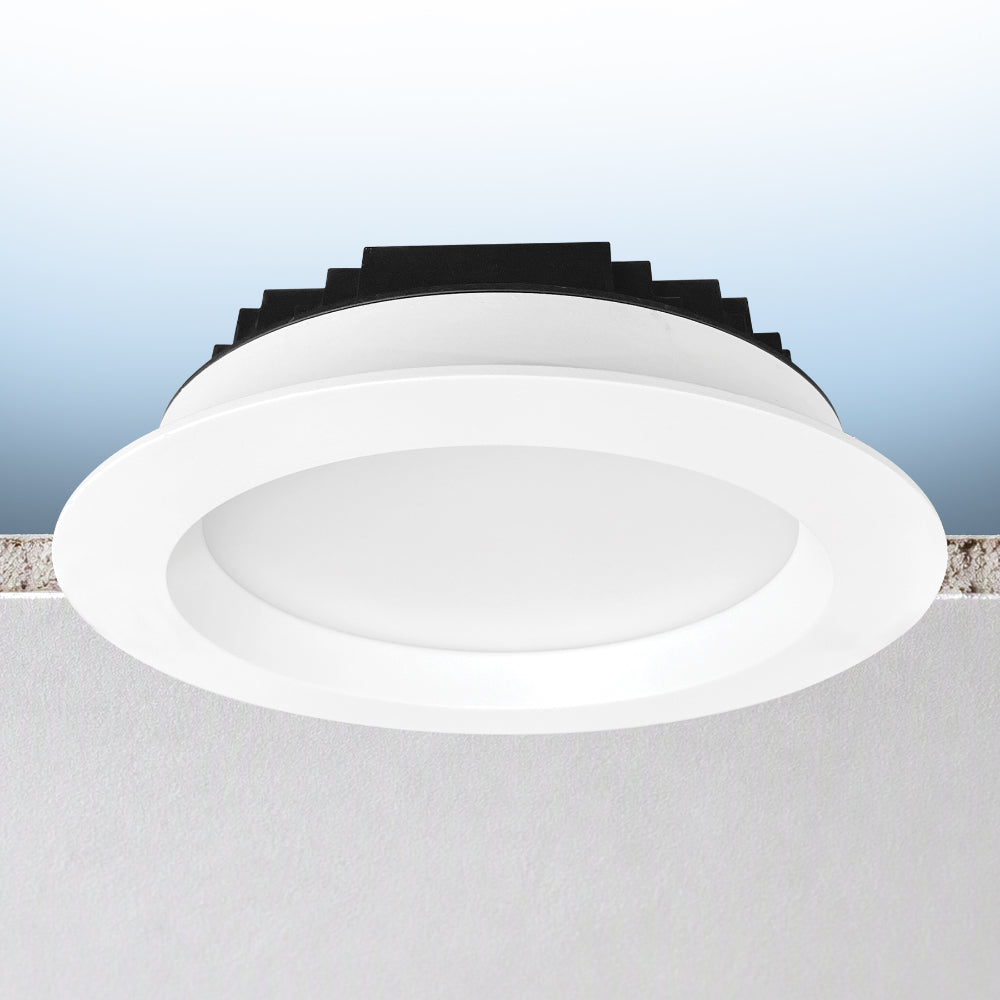

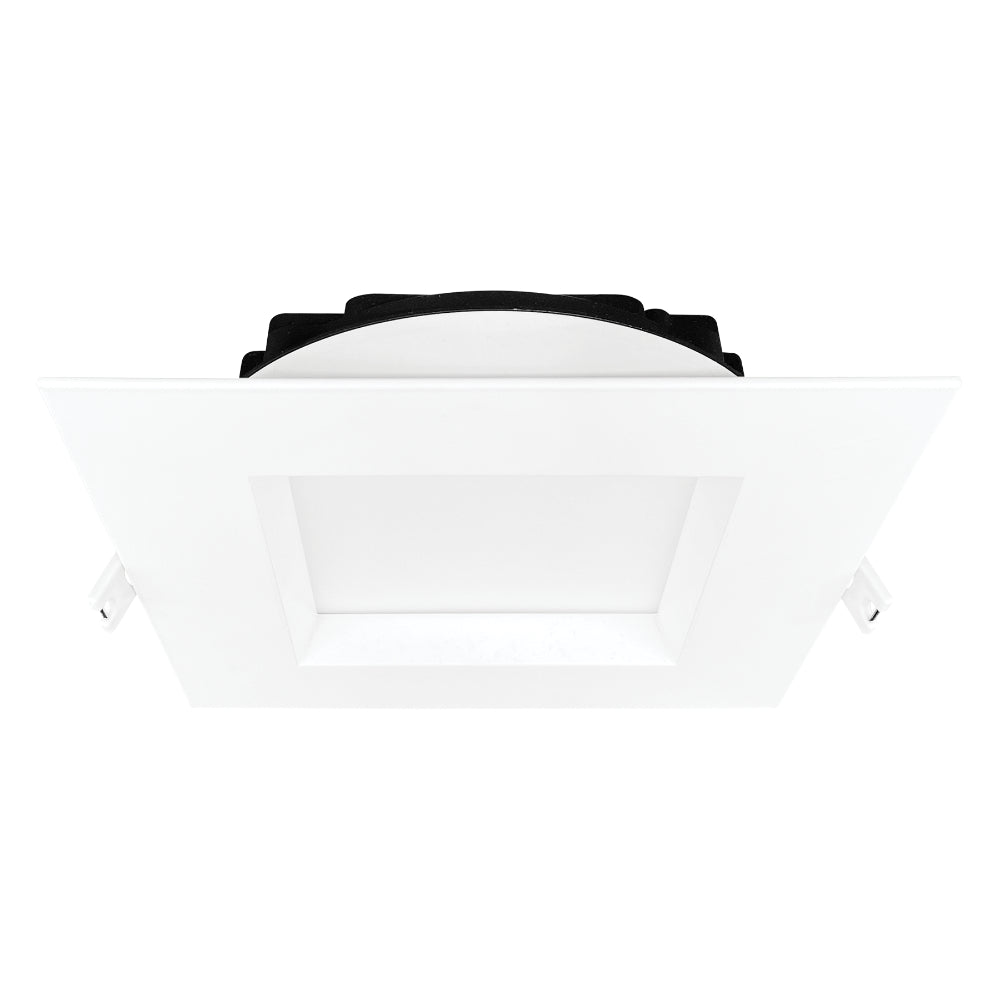

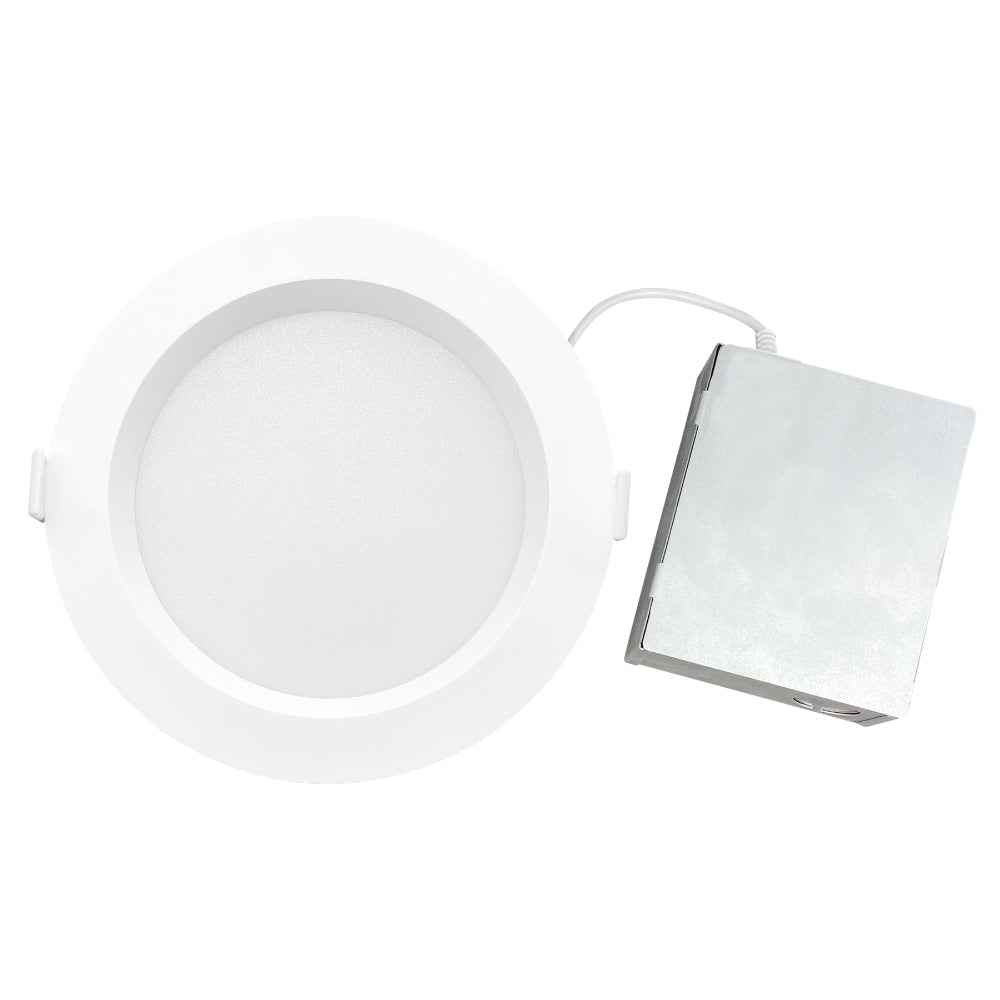

Luxrite 6" Regressed Mini Panel 5CCT - High Output
Specifications
- Item description: LEDRMP6/HO/5CCT/RD/WT/D
- Size: 6 Inch
- Shape: 6 Inch Regressed Mini Panel

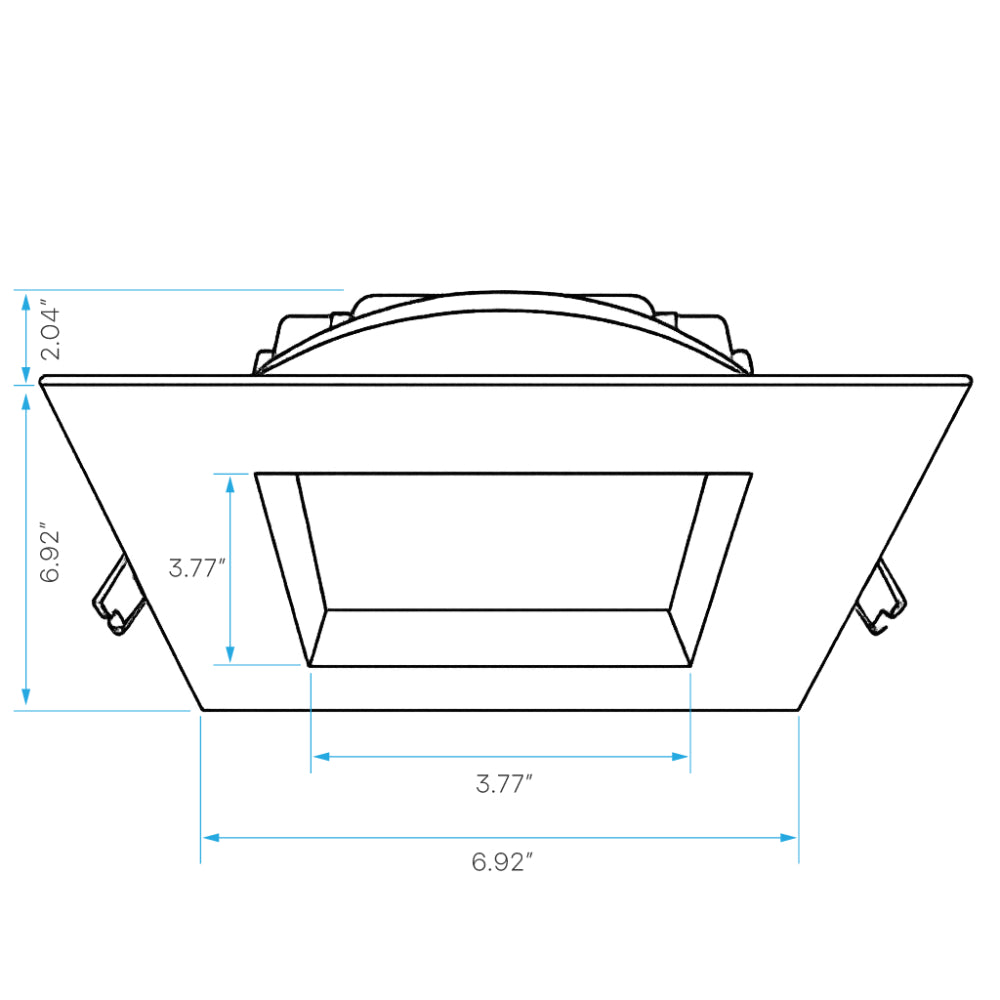

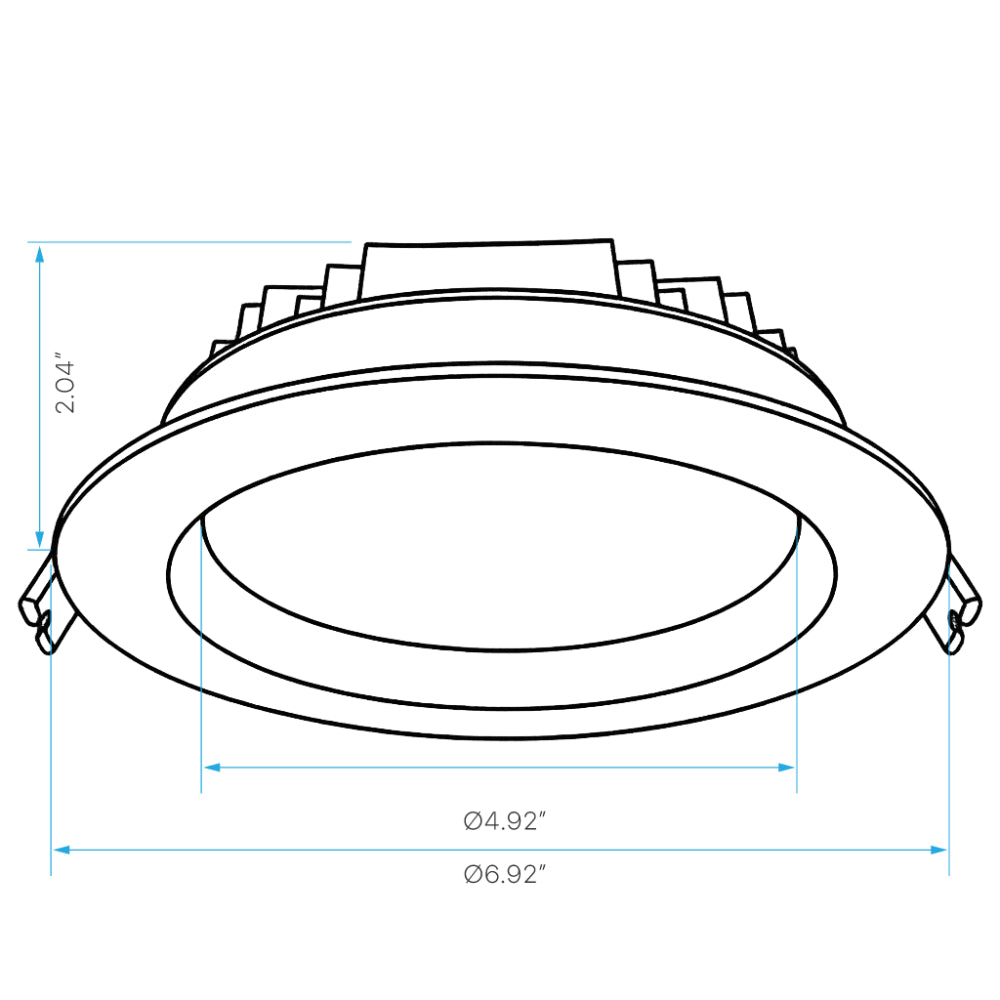

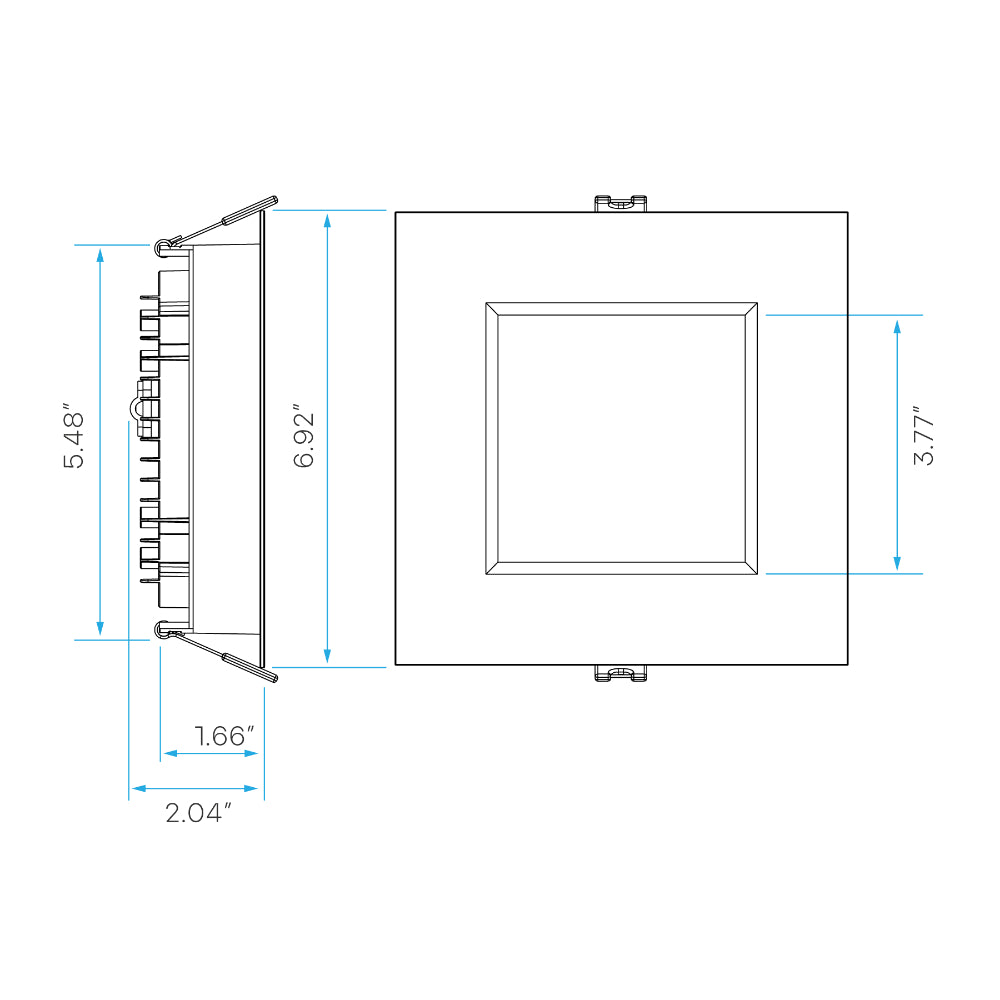

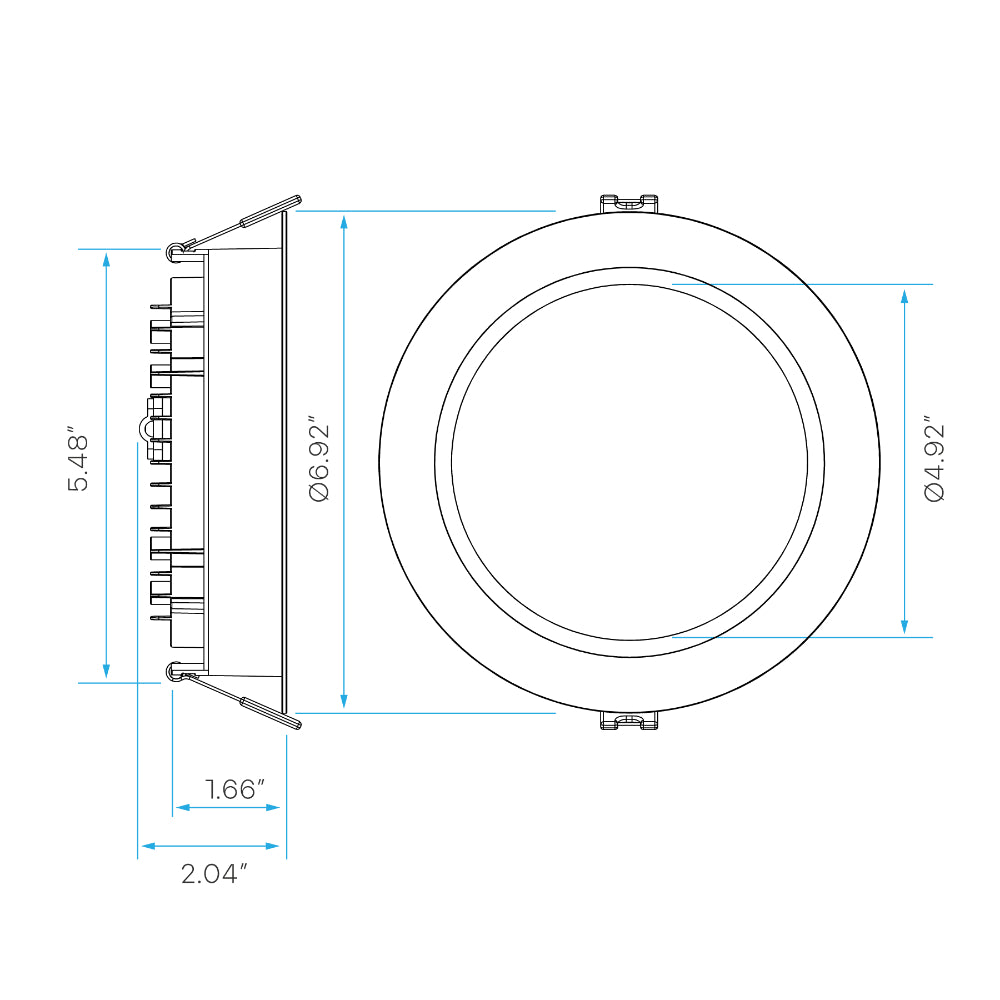

- Dimensions:
- Width: Ø6.92 Inch
- Height: 2.04 Inch
- Finish: White
- Cutout: Ø6.29 Inch
- Plate: LR41002 (#2), LR41006 (#5), LR41010 (#R3)

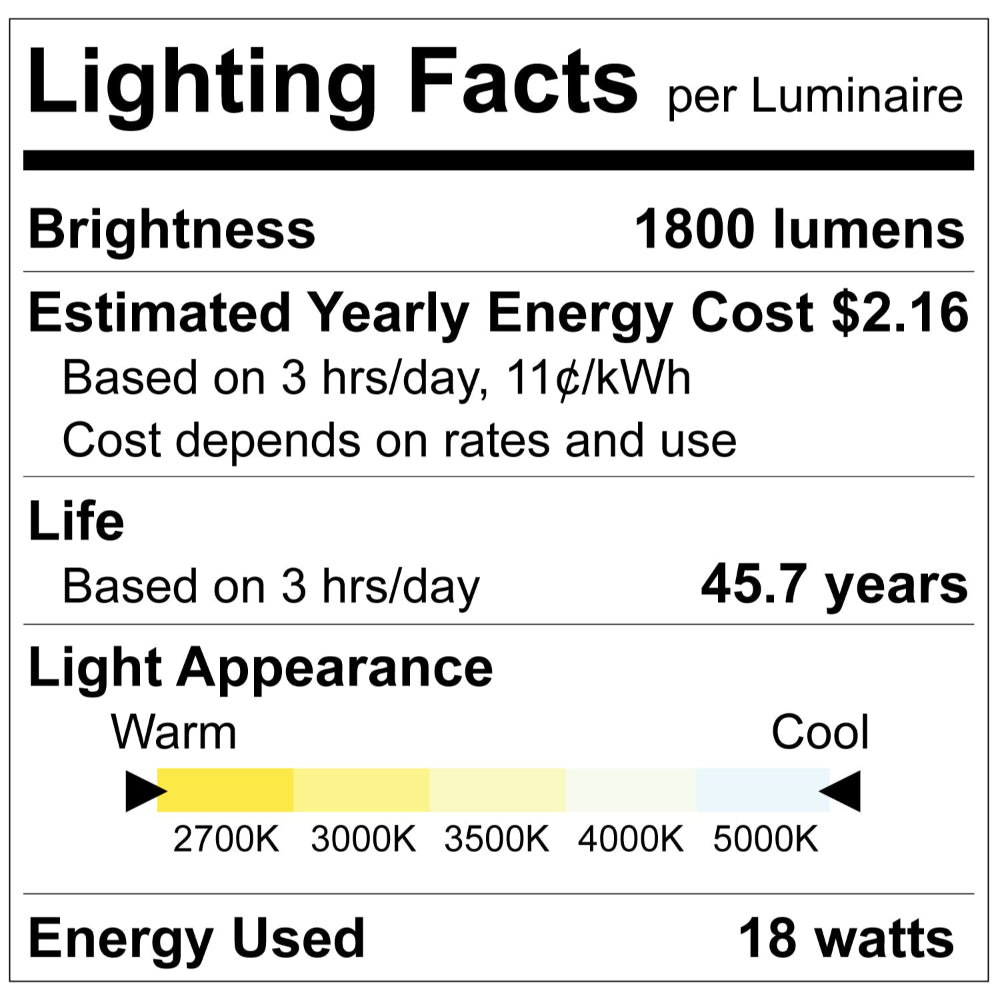

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 1800
- Beam Angle: 110°
- CRI: 80
Electrical
- Power (Wattage): 18
- Input Volts: 120V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: 0.9
- Frequency: 60Hz
- Lumen Efficacy: 100
- Operating Temp:
- Min: -4°
- Max: 104°
Product Files
Click forLuxrite LR22636 Specification Sheet
Click forLuxrite LR22636 Install Guide
Click forLuxrite LR22636 Dimmer Compatibility
Click forLuxrite LR22636 Warranty
Click forLuxrite LR22636 Certificate Of Compliance
Click forLuxrite LR22644 Install Guide
Click forLuxrite LR22644 Dimmer Compatibility
