Description

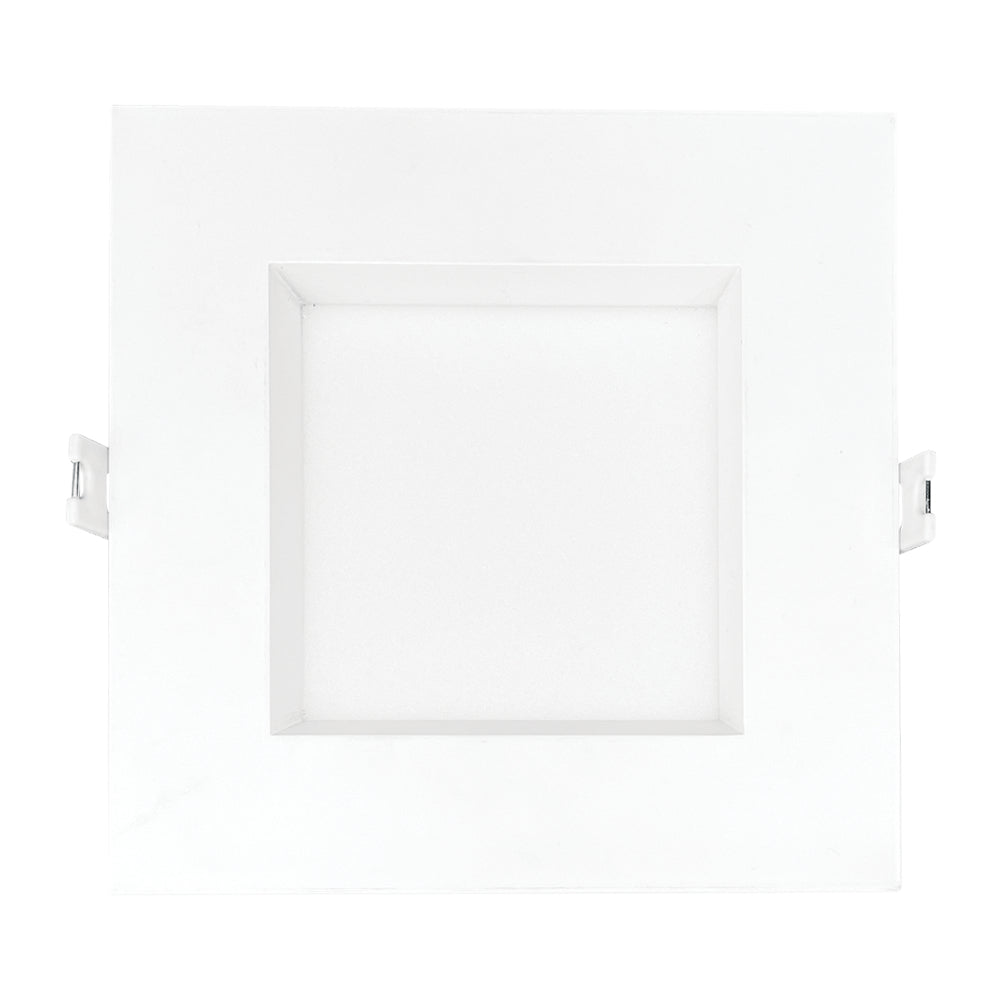

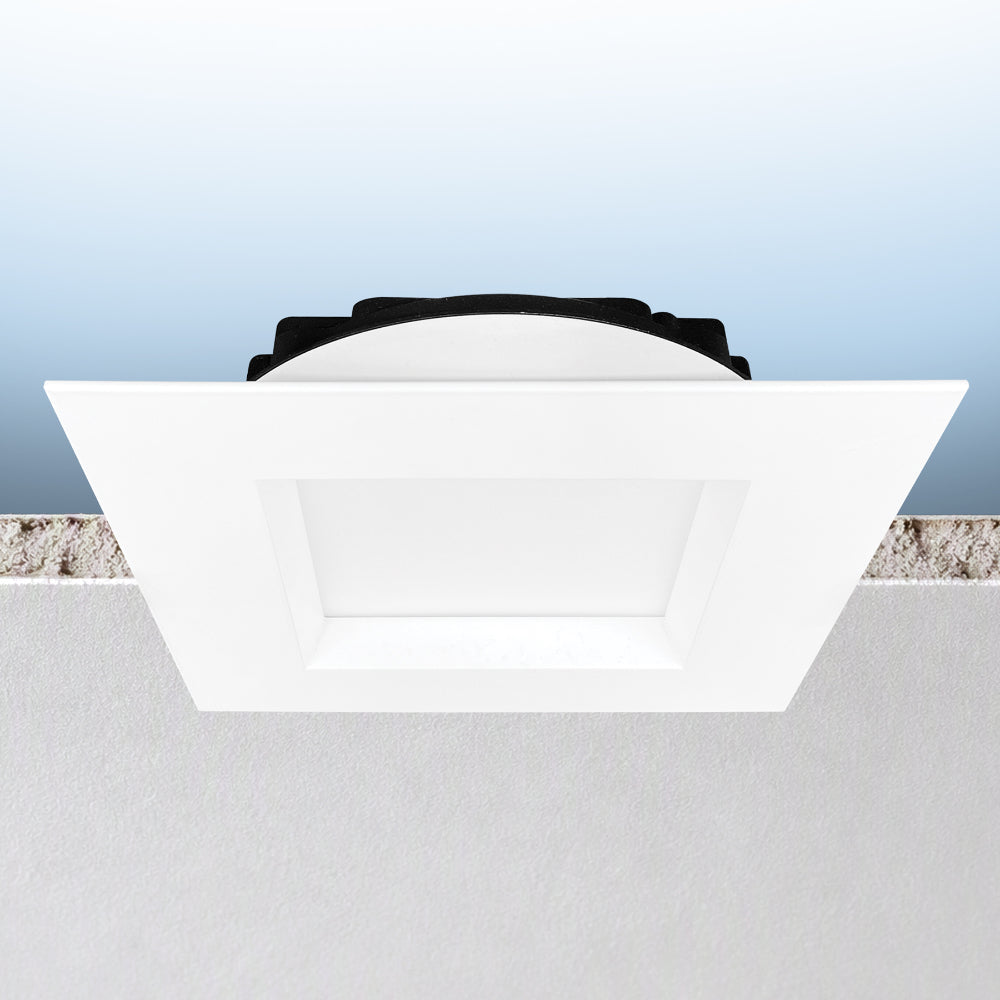

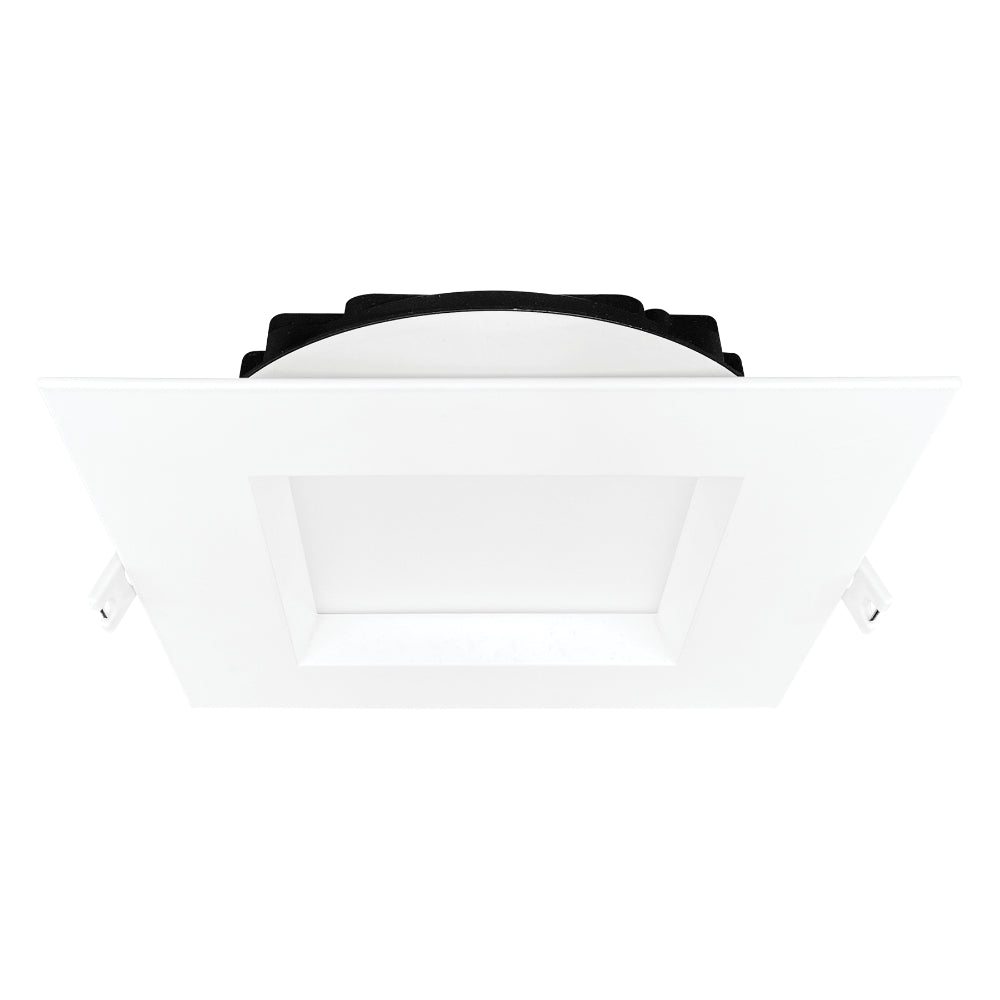

Luxrite 6" Regressed Mini Panel - CCT & Wattage Selectable - Dual Dimming/Universal Voltage
Specifications
- Item description: LEDRMP6/3WO/5CCT/SQ/WT/UNV/DD
- Size: 6 Inch
- Shape: Regressed Mini Panel

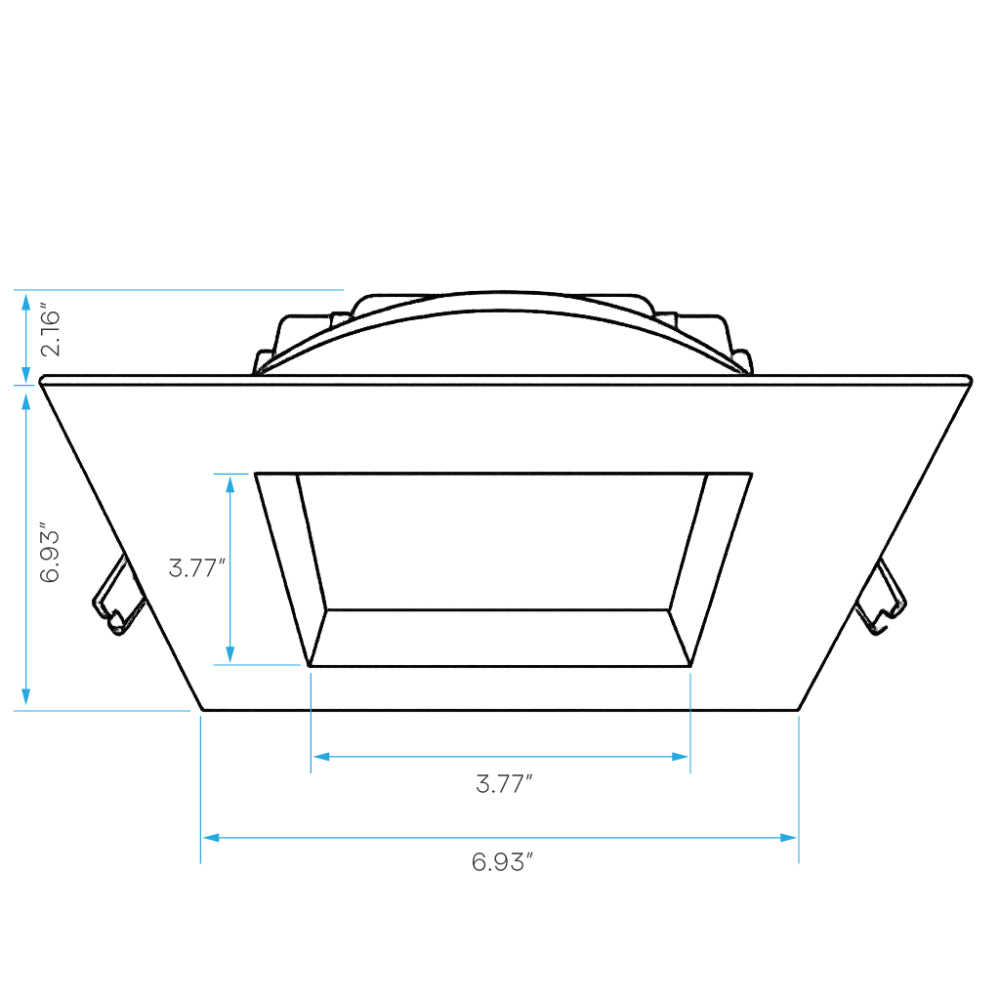

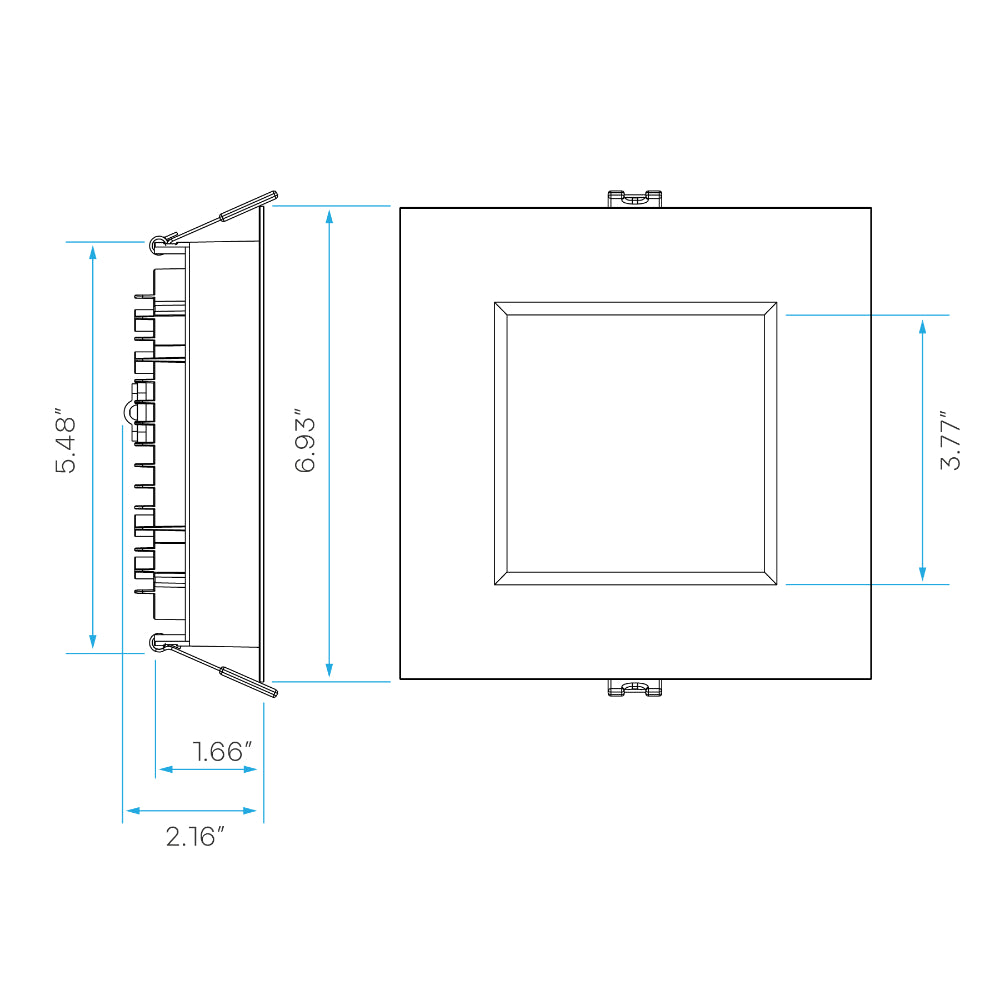

- Dimensions:
- Length: 6.93 Inch
- Width: 6.93 Inch
- Depth: 2.16 Inch
- Finish: White
- Cutout: Ø6.30 Inch
- Plate: LR41002 (#2), LR41006 (#5), LR41010 (#R3)

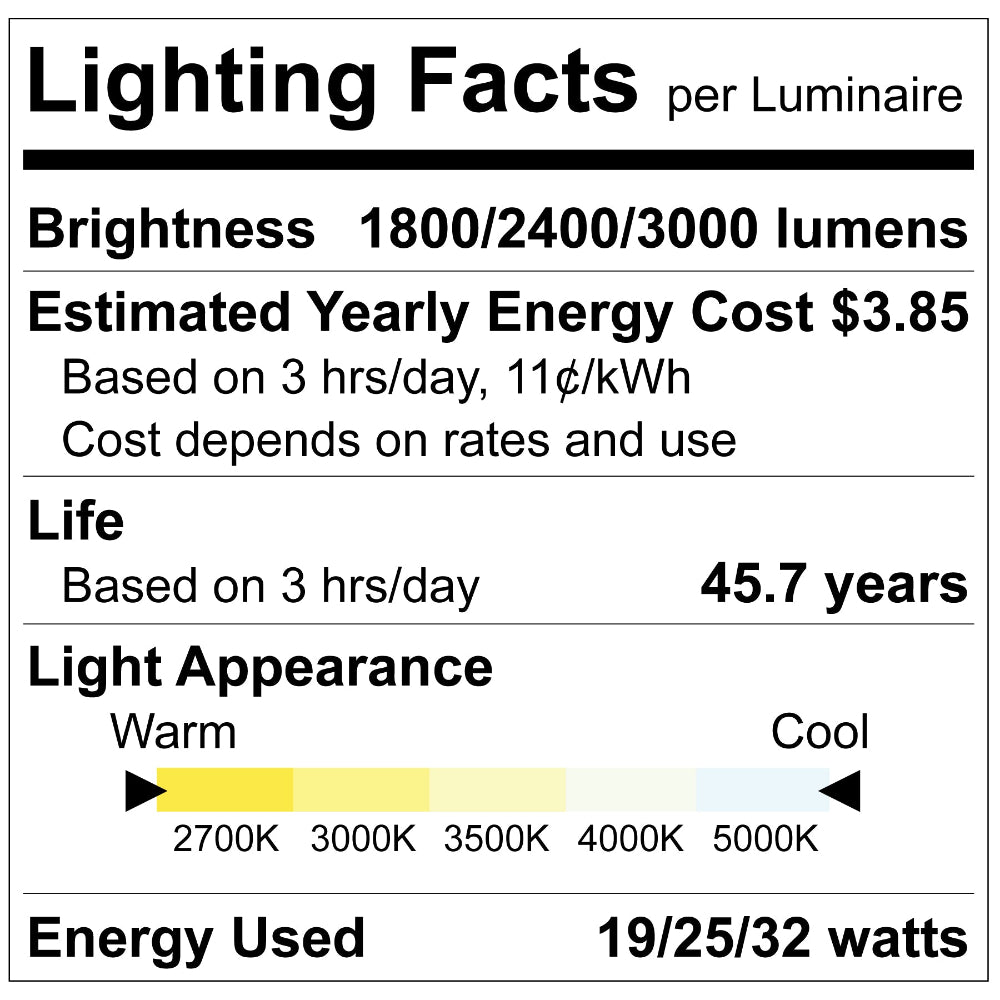

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 1800/2400/3000
- Beam Angle: 100°
- CRI: 80
Electrical
- Power (Wattage): 19/25/32
- Input Volts: 120-277V
- Rated Lifetime: 50000
- Dimmable: Dual Dimming TRIAC/0-10V
- Power Factor: 0.9
- Frequency: 60Hz
- Lumen Efficacy: 93
- Operating Temp:
- Min: -4°
- Max: 104°
Product Files
Click forLuxrite LR22684 Specification Sheet
Click forLuxrite LR22684 Install Guide
Click forLuxrite LR22684 Dimmer Compatibility
Click forLuxrite LR22684 Warranty
Click forLuxrite LR22684 Certificate Of Compliance
Click forLuxrite LR22676 Dimmer Compatibility
