Luxrite 6" Regressed Mini Panel Dim To Warm + 5CCT & 2 Wattage Selectable - Universal Voltage/Dual Dimming

LuxriteSKU: LR22836
Price:
$0.00 USD

Description

Luxrite 6" Regressed Mini Panel Dim To Warm + 5CCT & 2 Wattage Selectable - Universal Voltage/Dual Dimming

Specifications

  • Item description: LEDRMP6/2WO/5CCT/UDTW/RD/WT/UNV/DD
  • Size: 6 Inch
  • Shape: 6 Inch Regressed Mini Panel

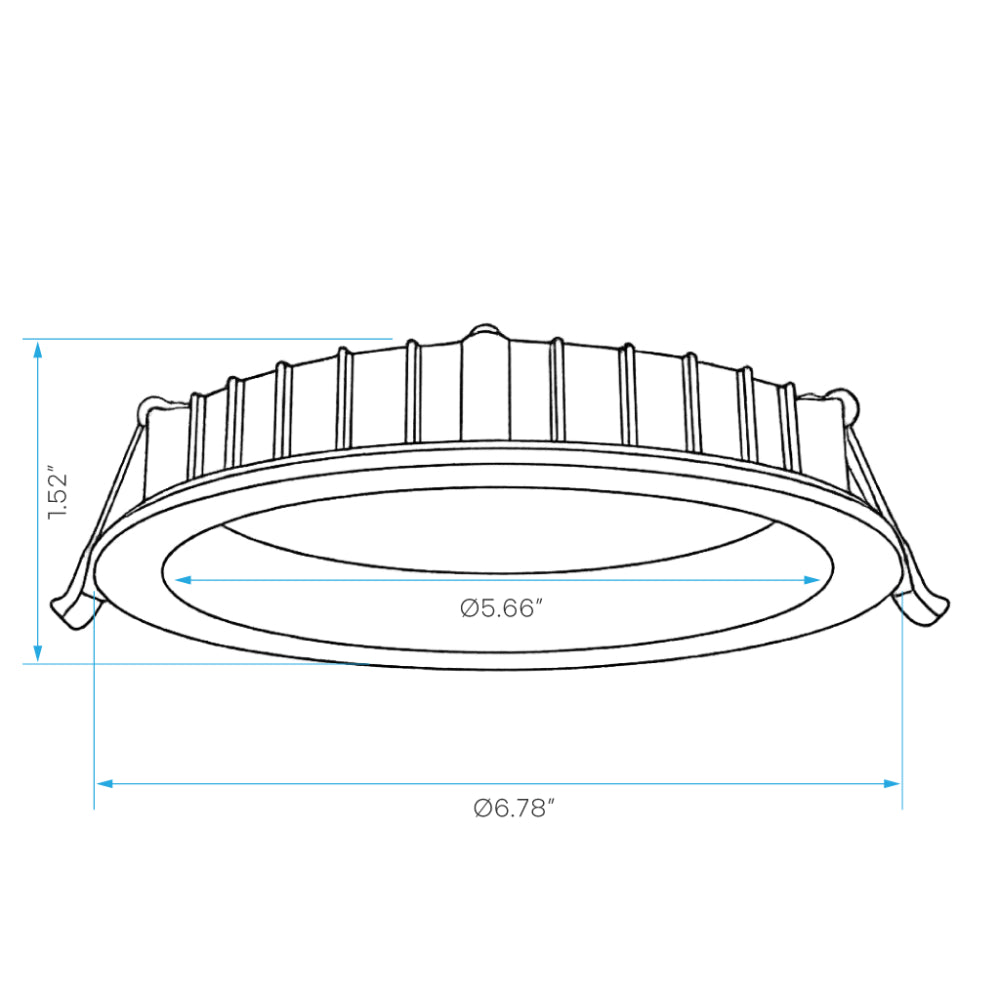

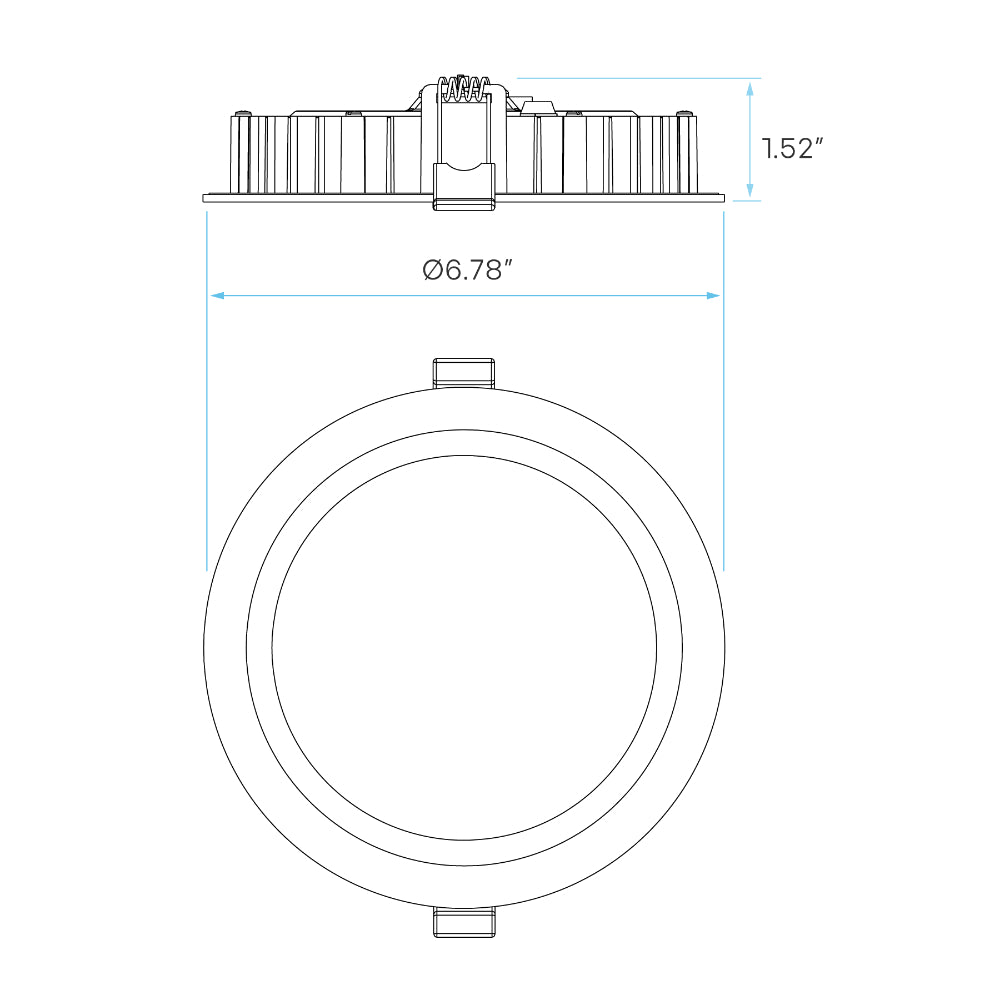

  • Dimensions:
    • Width: Ø6.78 Inch
    • Depth: 1.52 Inch
  • Finish: White
  • Cutout: Ø6.18 Inch
  • Plate: LR41002 (#2), LR41006 (#5), LR41010 (#R3)

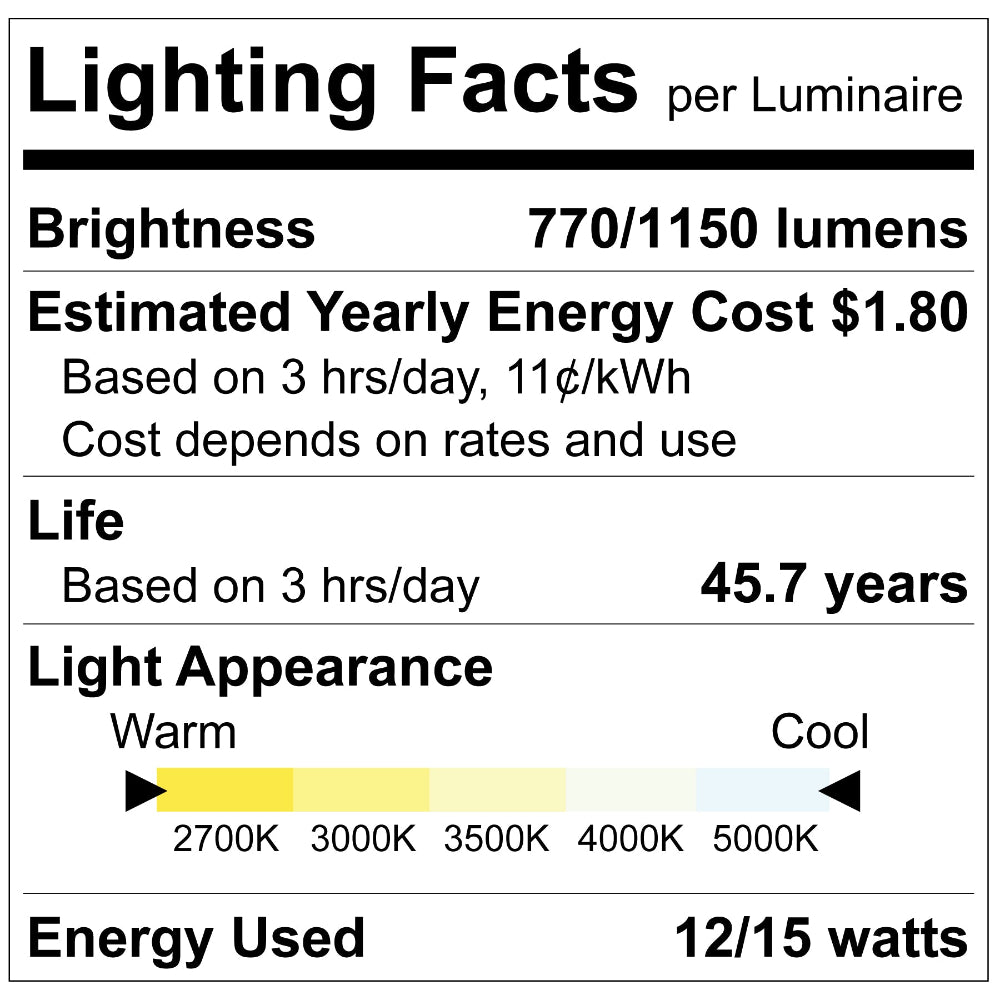

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 770/1150
  • Beam Angle: 100°
  • CRI: 90

Electrical

  • Power (Wattage): 12/15
  • Input Volts: 120-277V
  • Rated Lifetime: 50000
  • Dimmable: Dual Dimming TRIAC/0-10V
  • Input Current: 125Ma
  • Frequency: 60Hz
  • Lumen Efficacy: 64/76
  • Operating Temp:
    • Min: -4º
    • Max: 104º
Product Files

Click forLuxrite LR22836 Specification Sheet

Click forLuxrite LR22836 Family Specification Sheet

Click forLuxrite LR22836 Install Guide

Click forLuxrite LR22836 Dimmer Compatibility

Click forLuxrite LR22836 Warranty
