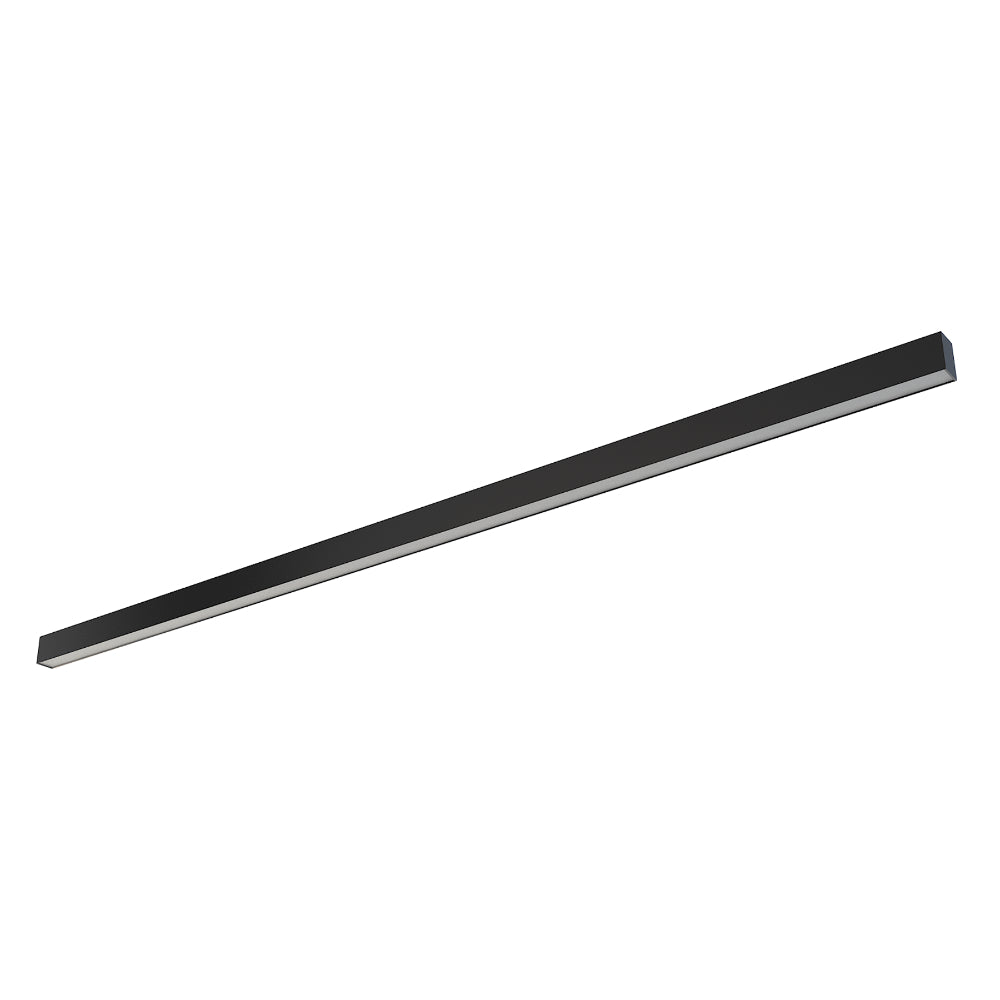

Luxrite 8' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable

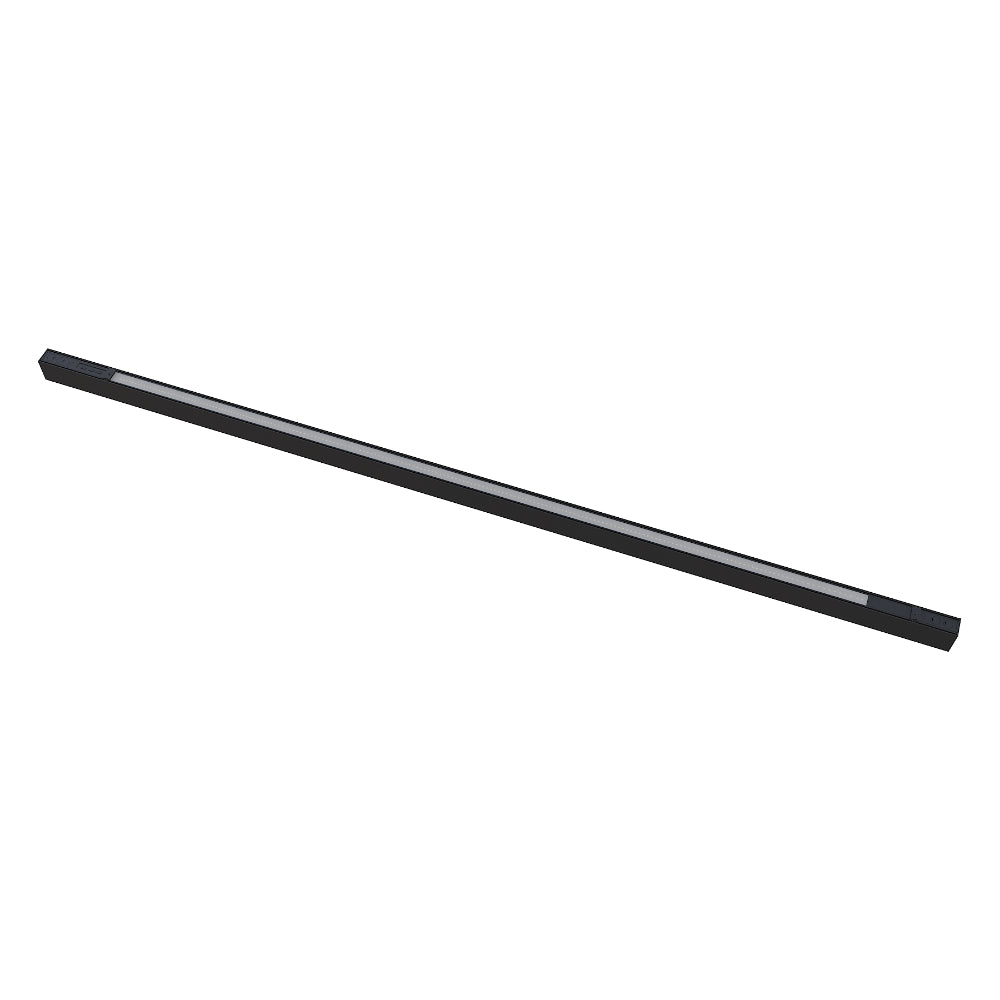

Luxrite 8' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable Additional Image 7
Luxrite 8' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable Additional Image 8
Luxrite 8' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable Additional Image 9
Roll over image to zoom in Click on image to zoom
Luxrite 8' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down SelectableLuxrite 8' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable Additional Image 1Luxrite 8' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable Additional Image 2Luxrite 8' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable Additional Image 3Luxrite 8' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable Additional Image 4Luxrite 8' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable Additional Image 5Luxrite 8' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down SelectableLuxrite 8' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable Additional Image 7Luxrite 8' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable Additional Image 8Luxrite 8' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable Additional Image 9

Luxrite 8' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable

LuxriteSKU: LR42615
Select Finish: White
Price:
$0.00 USD

Description

Luxrite 8' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable

Specifications

  • Item description: ARCHL96/3CCT/3WO/WT/UPDN
  • Size: 8'
  • Shape: Architectural Linear

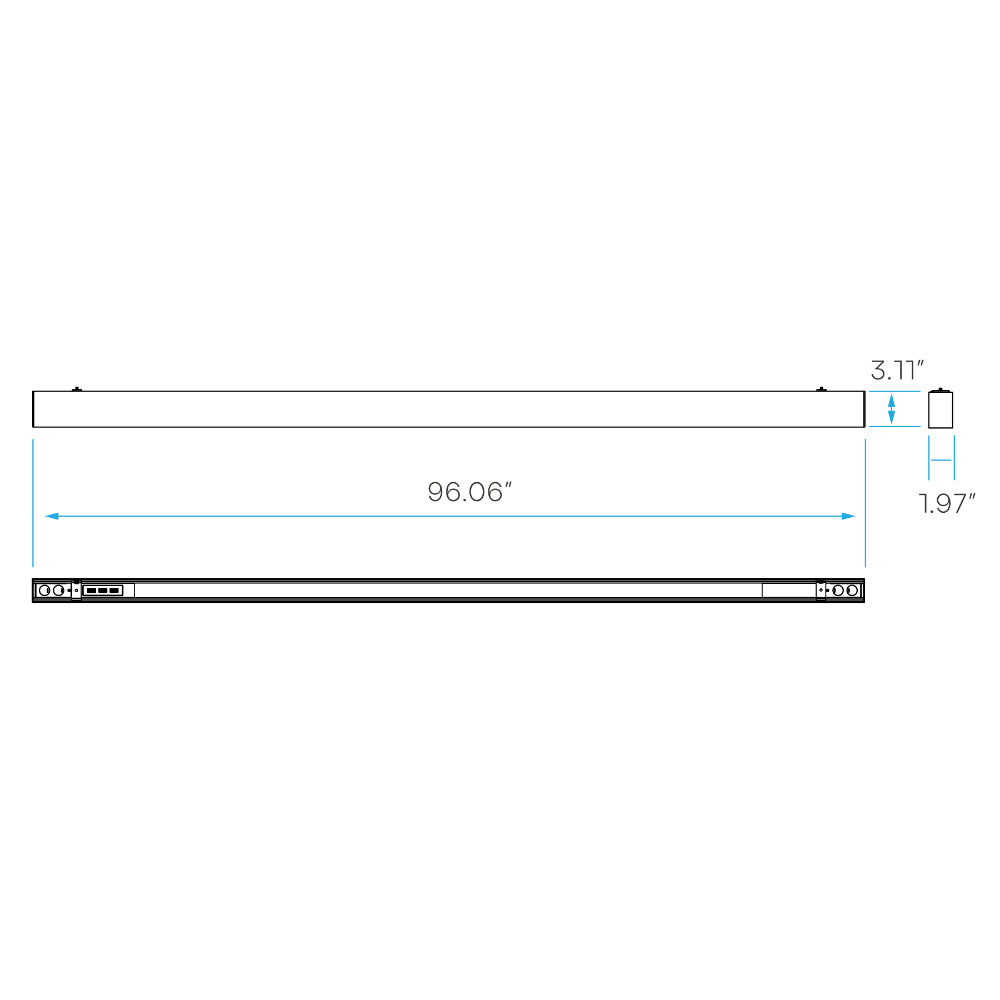

  • Dimensions:
    • Length: 96.06 Inch
    • Width: 1.97 Inch
    • Height: 3.11 Inch
  • Finish: White
  • MOL: 96.06 Inch

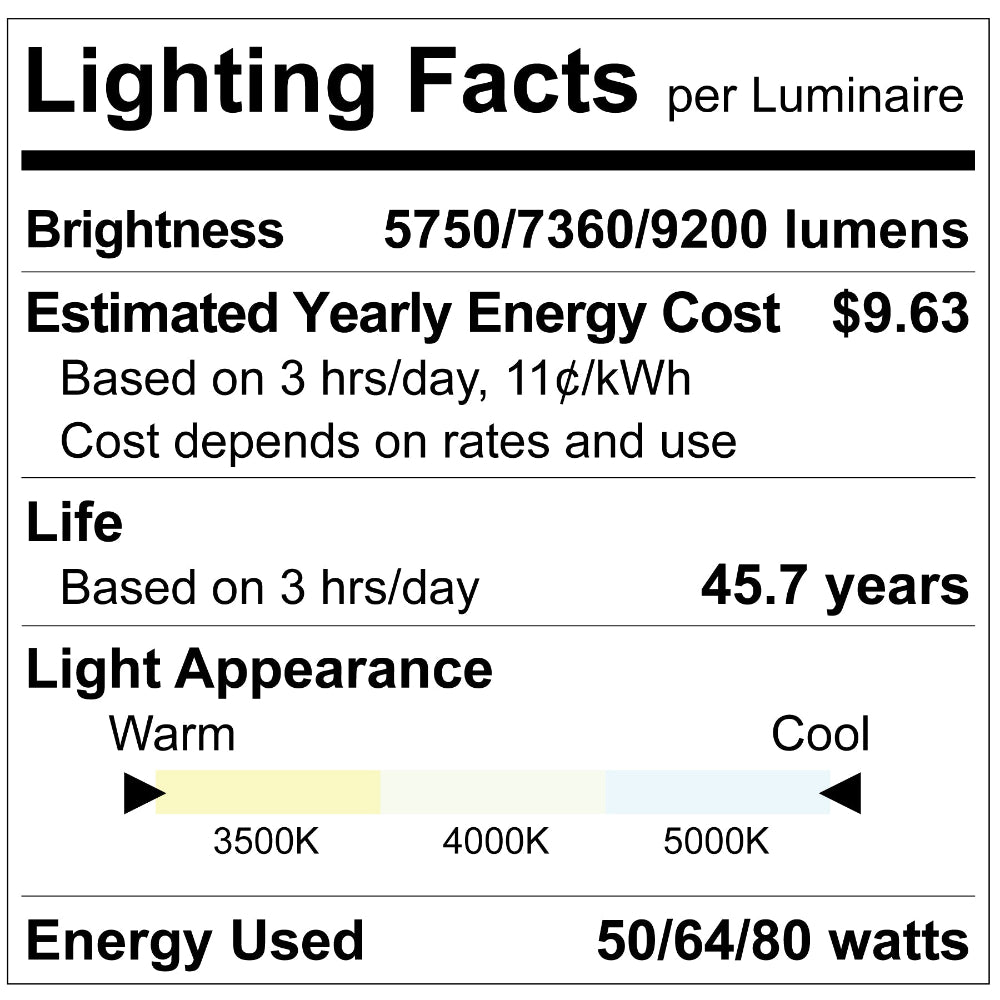

Photometric

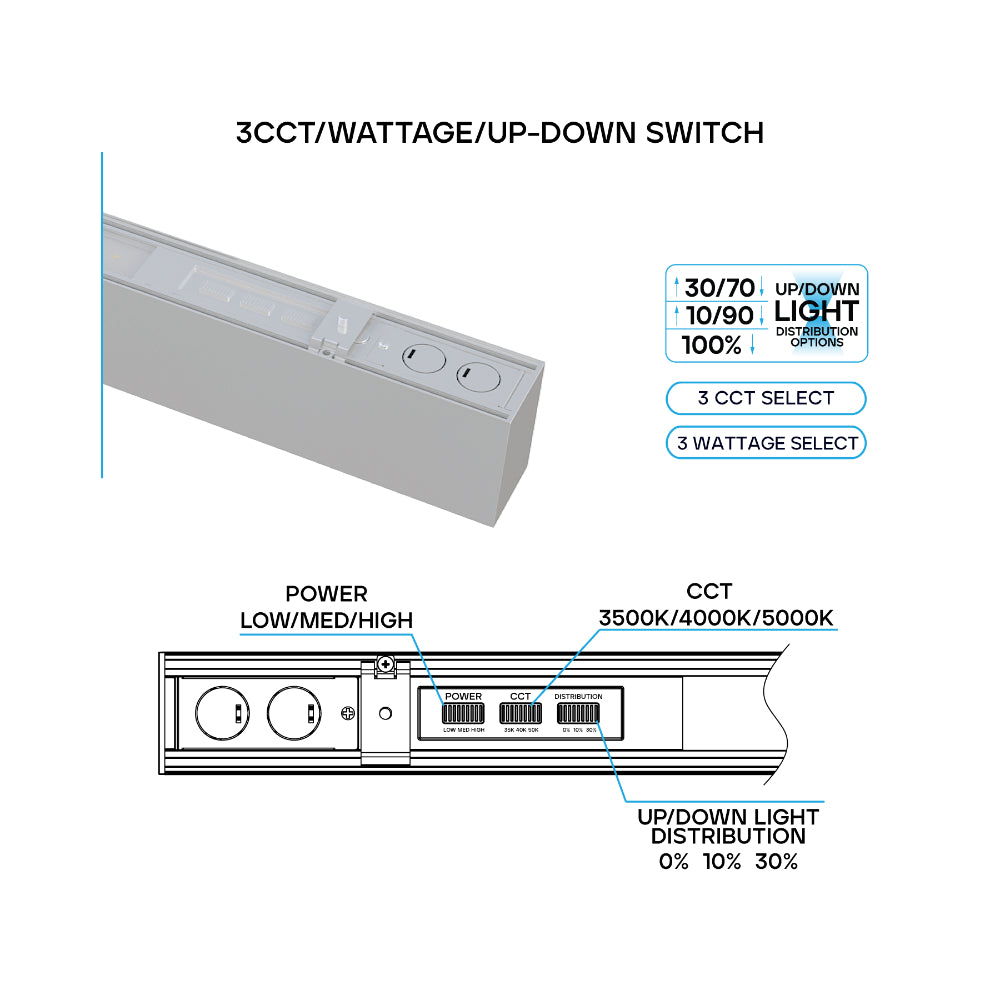

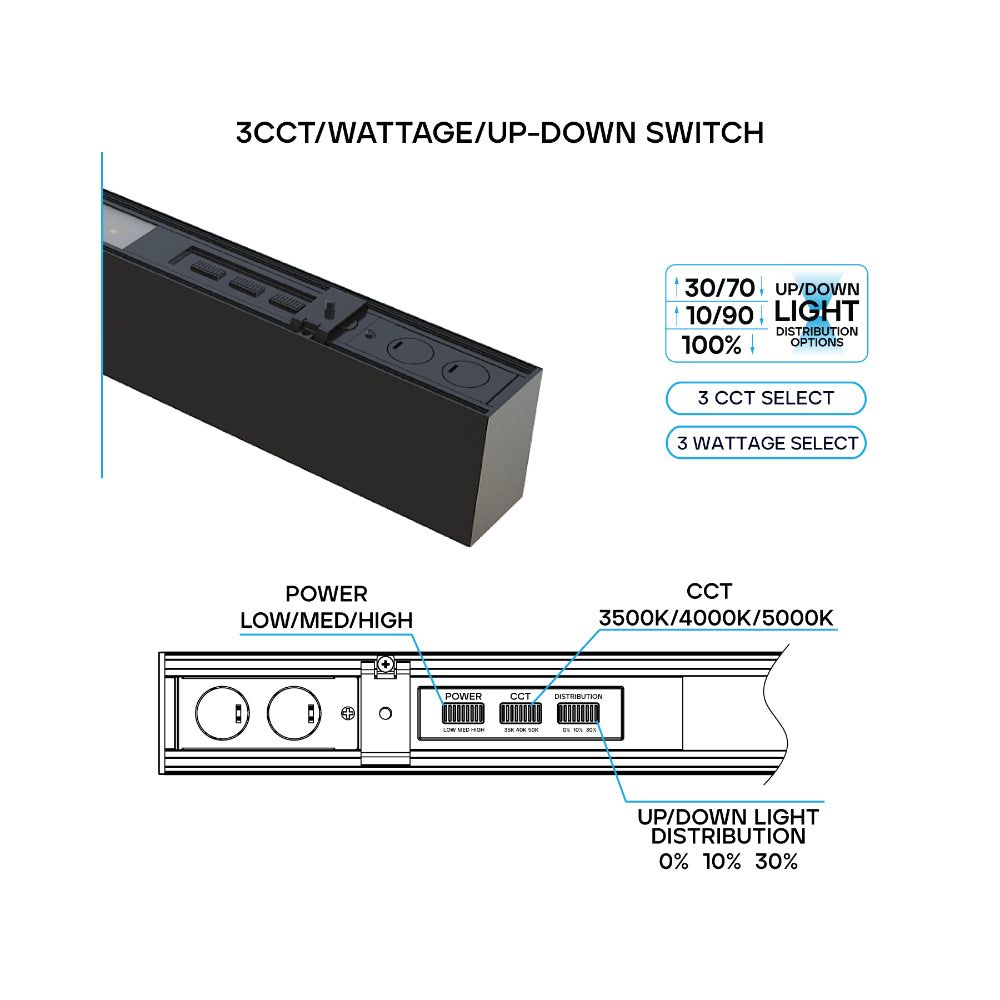

  • Color (Temp): CCT Selectable
  • Color (CCT): 3500K/4000K/5000K
  • Lumen: 5750/7360/9200
  • Beam Angle: 120º
  • CRI: 80

Electrical

  • Power (Wattage): 50/64/80
  • Input Volts: 120-277V
  • Rated Lifetime: 50000
  • Dimmable: 0-10V
  • Power Factor: 0.9
  • Lumen Efficacy: 115
  • Operating Temp:
    • Min: -4º
    • Max: 113º
Product Files

Click for Luxrite LR42615 Specification Sheet

Click for Luxrite LR42615 Install Guide

Click for Luxrite LR42615 Warranty
