Description

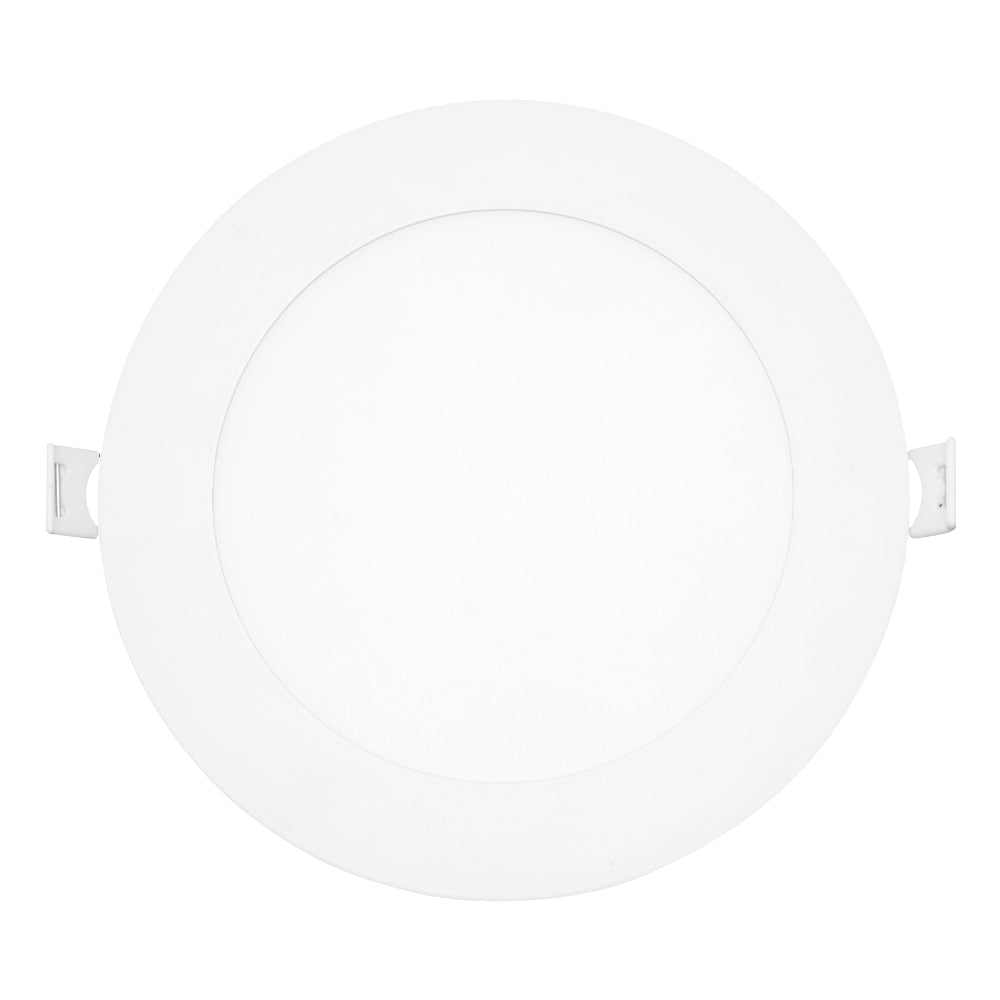

Luxrite 8" Mini Panel Canless Spotlight - CCT & Wattage Selectable Dual Dimming/Universal Voltage - High Output
Specifications
- Item description: LED/MINI8/PNL/3WO/5CCT/RD/UNV/DD
- Size: 8 Inch
- Shape: 8 Inch Mini Panel

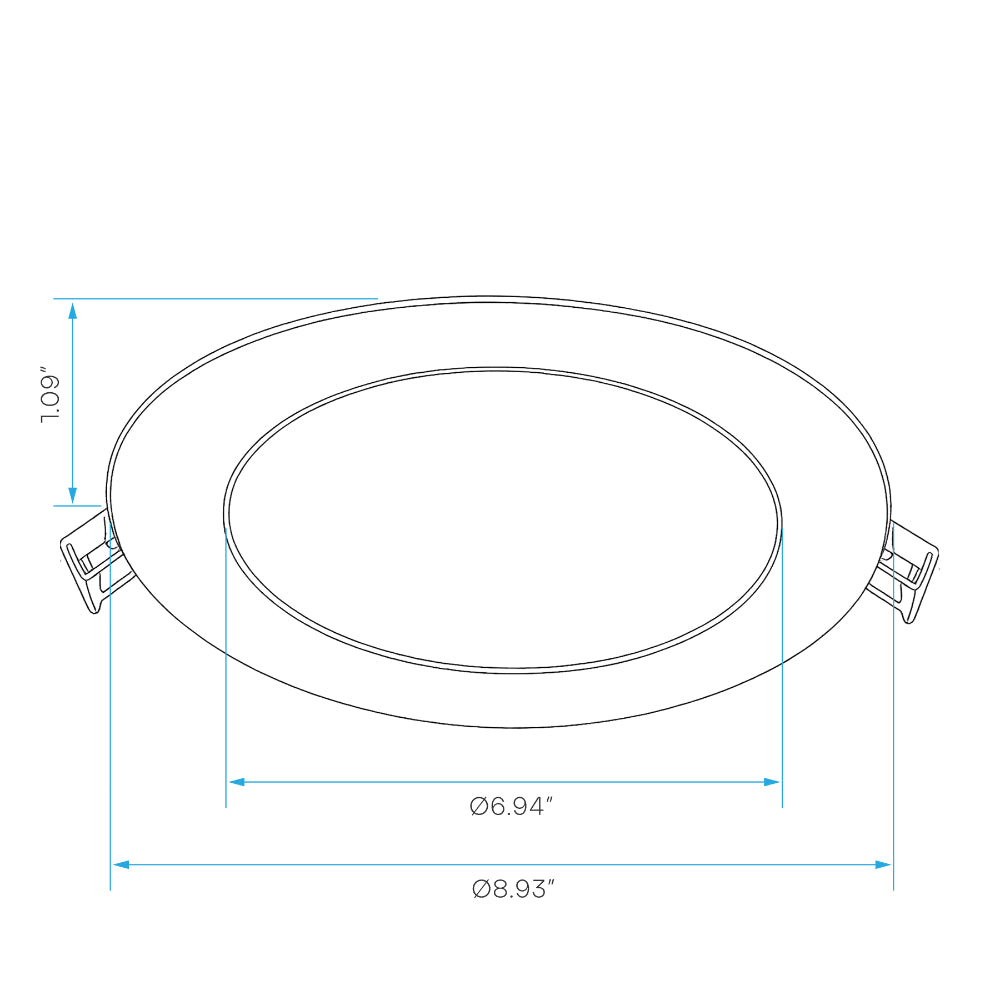

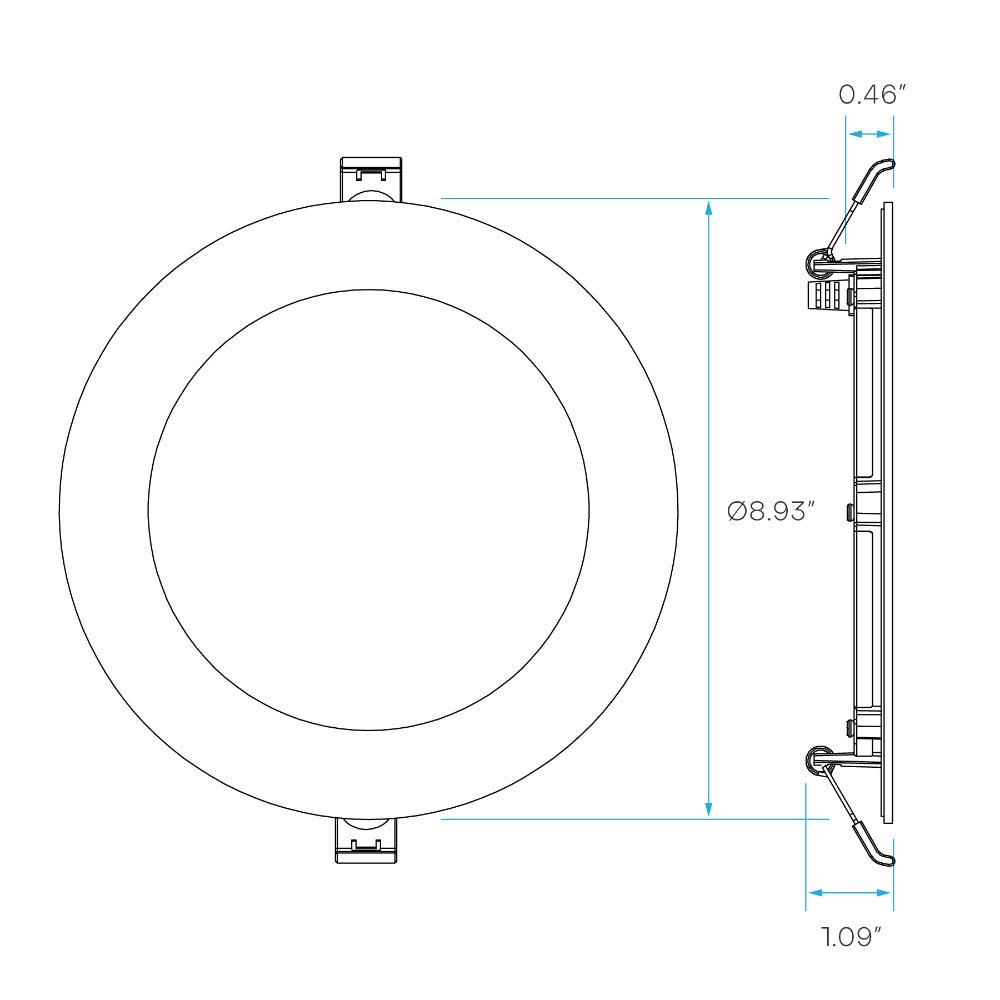

- Dimensions:
- Width: Ø8.93 Inch
- Depth: 1.09 Inch
- Finish: White
- Cutout: Ø8.25 Inch

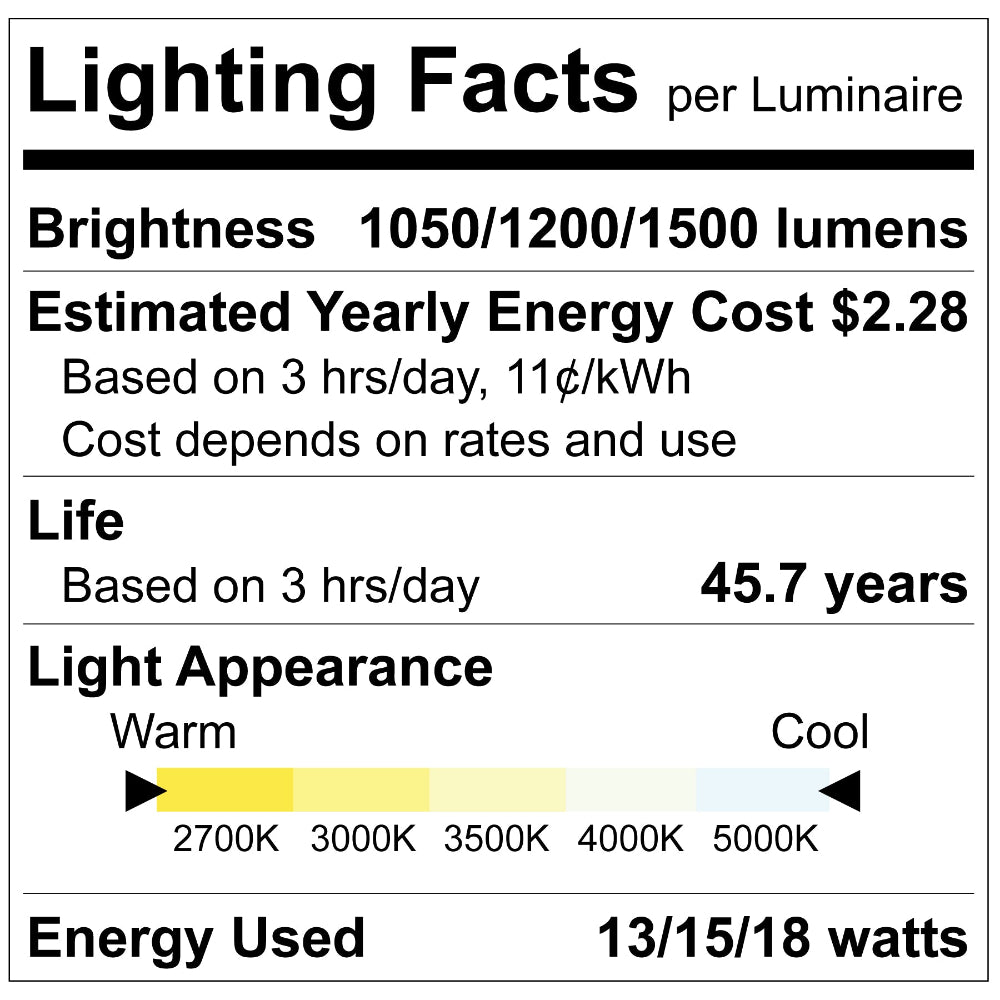

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 1050/1250/1500
- Beam Angle: 105°
- CRI: 90
Electrical
- Power (Wattage): 13/15/18
- Input Volts: 120-277V
- Rated Lifetime: 50000
- Dimmable: TRIAC/0-10V
- Power Factor: 0.9
- Frequency: 50/60Hz
- Lumen Efficacy: 82
- Operating Temp:
- Min: -4°
- Max: 104°
Product Files
Click forLuxrite LR23935 Specification Sheet
Click forLuxrite LR23935 Install Guide
Click forLuxrite LR23935 Dimmer Compatibility
