Luxrite 8" Mini Panel Round 5CCT Baffled Canless Wafer Spotlight

LuxriteSKU: LR23733
Price:
$0.00 USD

Description

Luxrite 8" Mini Panel Round 5CCT Baffled Canless Wafer Spotlight

Specifications

  • Item description: LED/MINI8/PANEL/5CCT/RD/B
  • Size: 8 Inch
  • Shape: 6 Inch Round Baffled

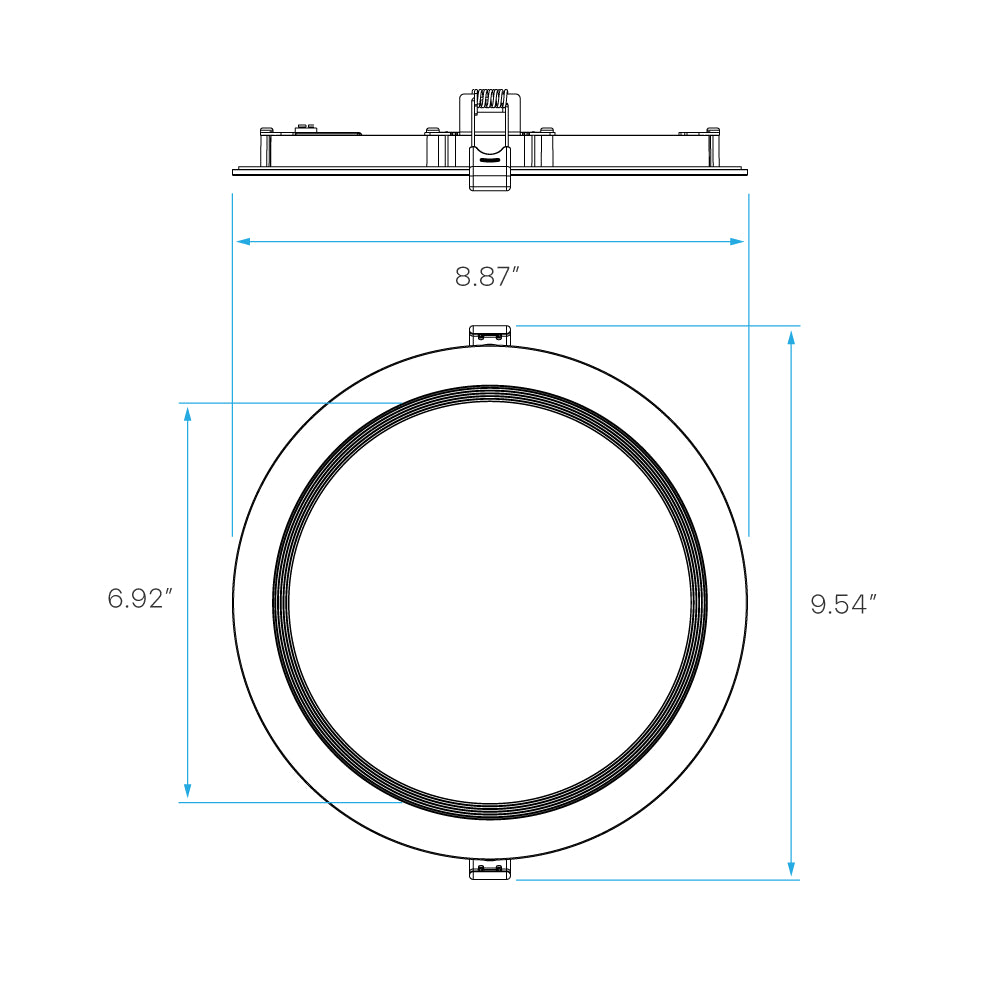

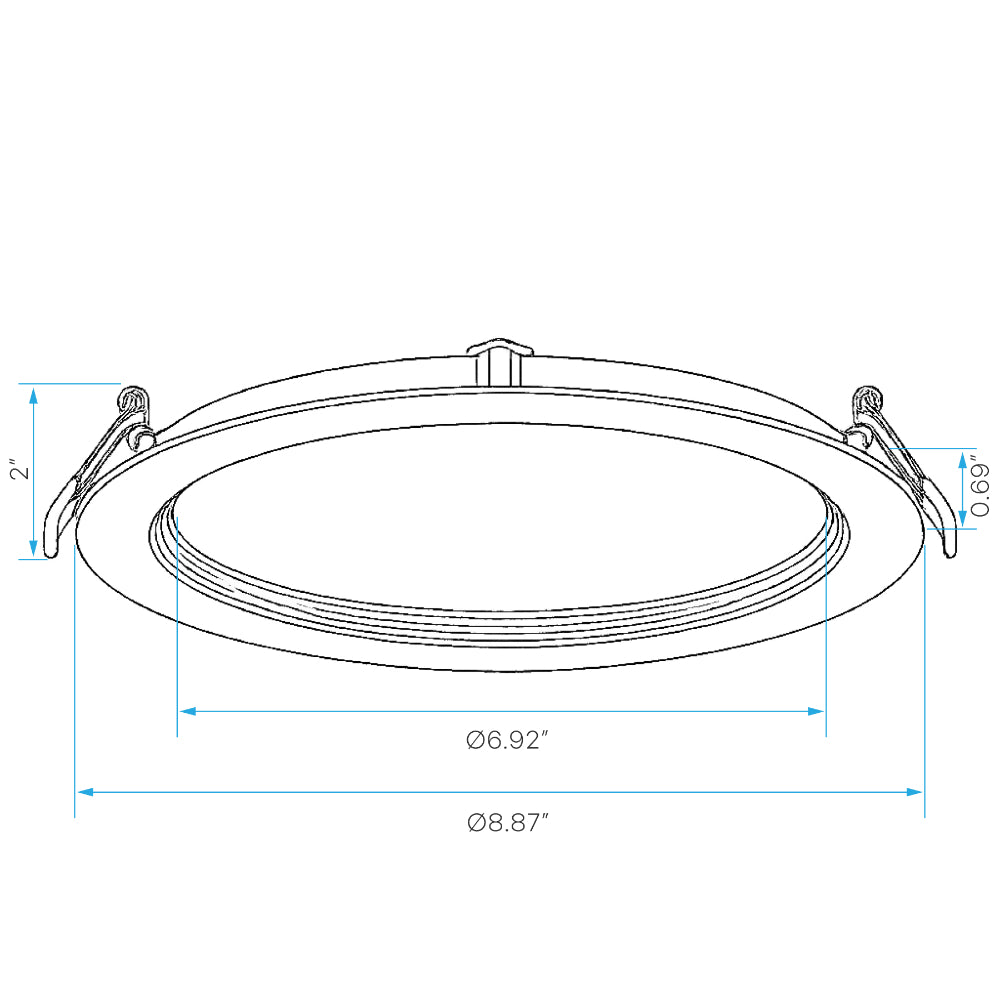

  • Dimensions:
    • Width: Ø 8.87 Inch
    • Height: 1.99 Inch
    • Depth: 0.69 Inch
  • Finish: White
  • Cutout: 8.3 Inch

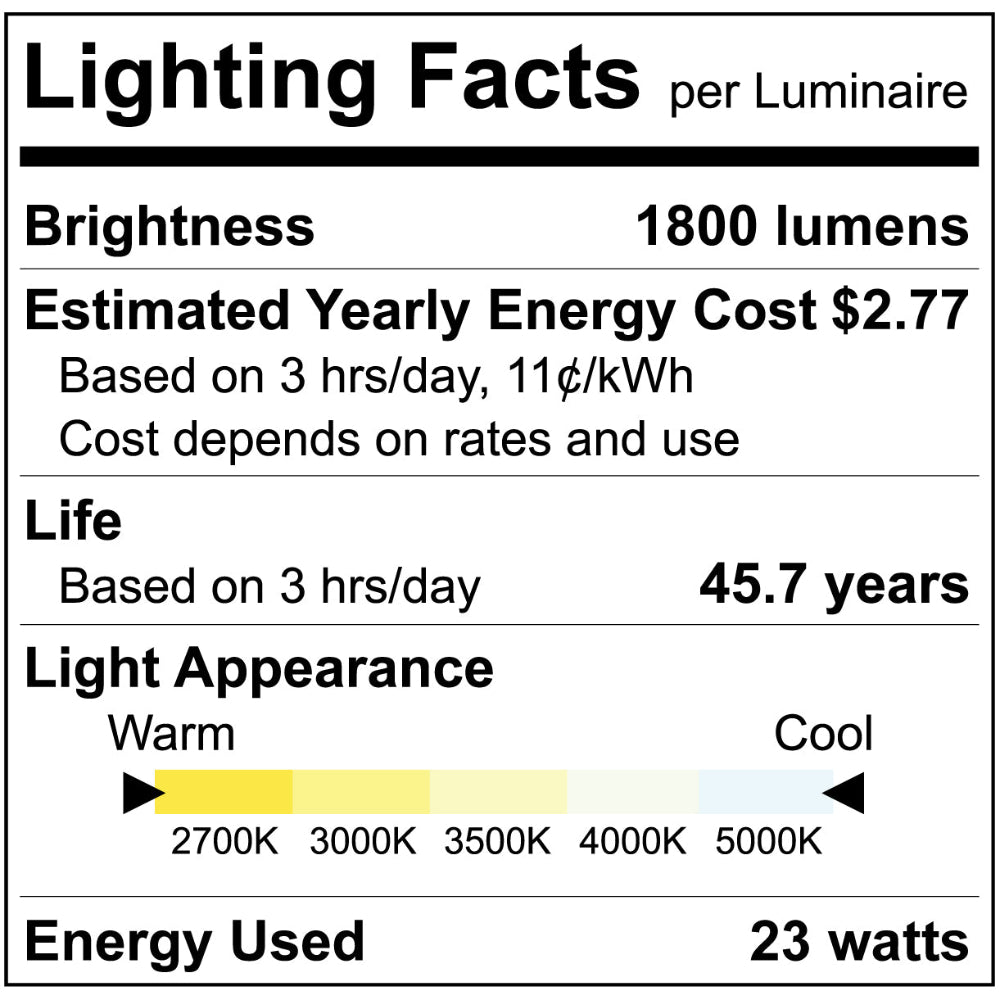

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 1900
  • Beam Angle: 110°
  • CRI: 90

Electrical

  • Power (Wattage): 23
  • Input Volts: 120V
  • Rated Lifetime: 50000
  • Dimmable: Triac
  • Power Factor: 0.9
  • Input Current: 220Ma
  • Frequency: 60Hz
  • Lumen Efficacy: 78
  • Operating Temp:
    • Min: -22°
    • Max: 104°
Product Files

Click forLuxrite LR23733 Specification Sheet

Click forLuxrite LR23733 Install Guide

Click forLuxrite LR23733 Dimmer Compatibility

Click forLuxrite LR23733 Warranty

Click forLuxrite LR23733 Certificate Of Compliance
