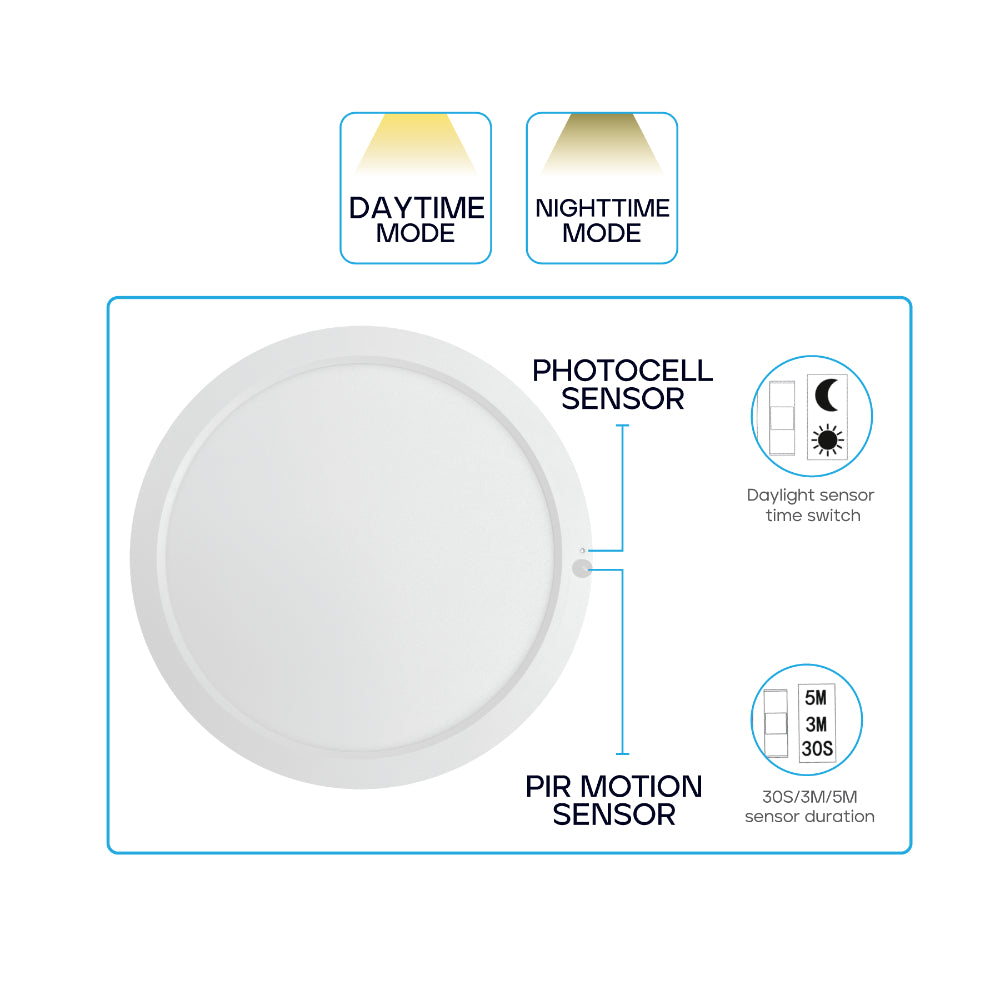

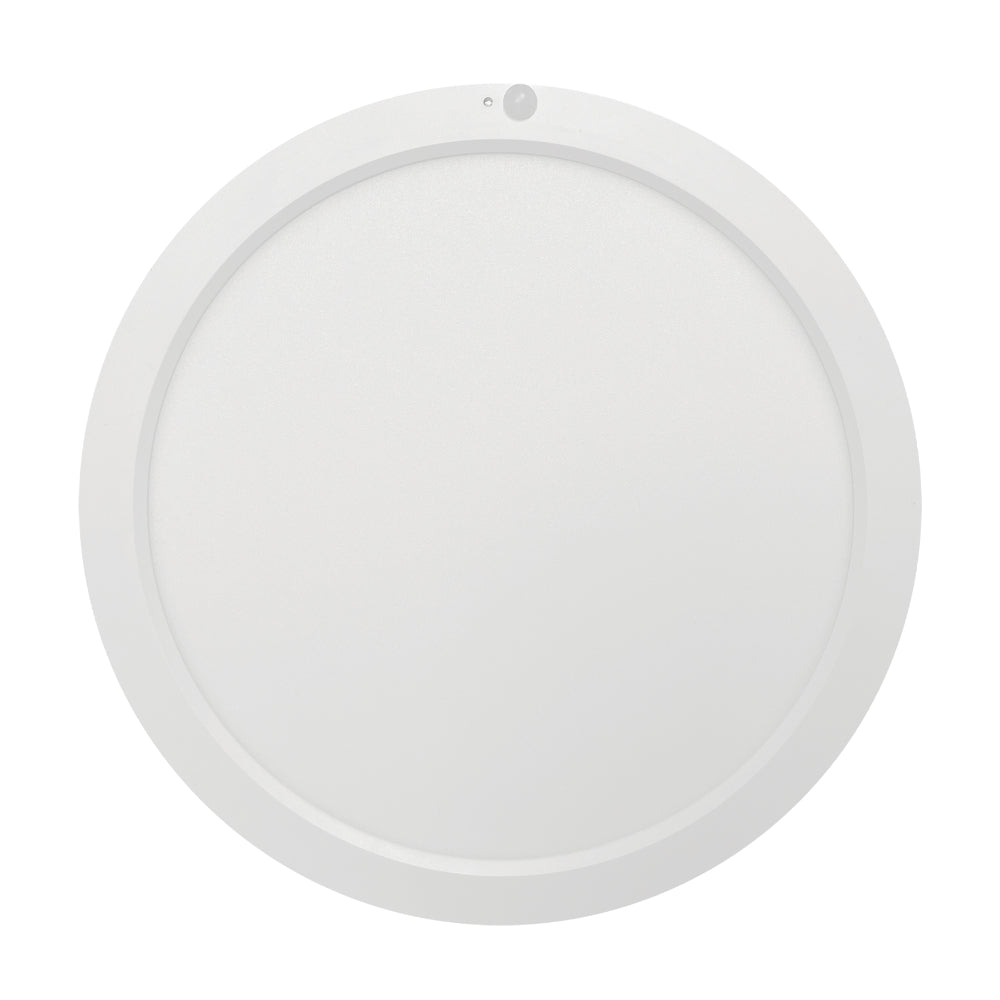

Luxrite 9" Adjustable Bi-Level PIR & Photocell Sensor Slim - CCT Selectable
Luxrite 9" Adjustable Bi-Level PIR & Photocell Sensor Slim - CCT Selectable Additional Image 1
Luxrite 9" Adjustable Bi-Level PIR & Photocell Sensor Slim - CCT Selectable Additional Image 2
Luxrite 9" Adjustable Bi-Level PIR & Photocell Sensor Slim - CCT Selectable Additional Image 3
Roll over image to zoom in Click on image to zoom
Luxrite 9" Adjustable Bi-Level PIR & Photocell Sensor Slim - CCT SelectableLuxrite 9" Adjustable Bi-Level PIR & Photocell Sensor Slim - CCT Selectable Additional Image 1Luxrite 9" Adjustable Bi-Level PIR & Photocell Sensor Slim - CCT Selectable Additional Image 2Luxrite 9" Adjustable Bi-Level PIR & Photocell Sensor Slim - CCT Selectable Additional Image 3

Luxrite 9" Adjustable Bi-Level PIR & Photocell Sensor Slim - CCT Selectable

LuxriteSKU: LR23566
Price:
$0.00 USD

Description

Luxrite 9" Adjustable Bi-Level PIR & Photocell Sensor Slim - CCT Selectable

Specifications

  • Item description: LED15/SLIM9/5CCT/W/RD/Bi/PIR/PC
  • Size: 9 Inch
  • Shape: Slim

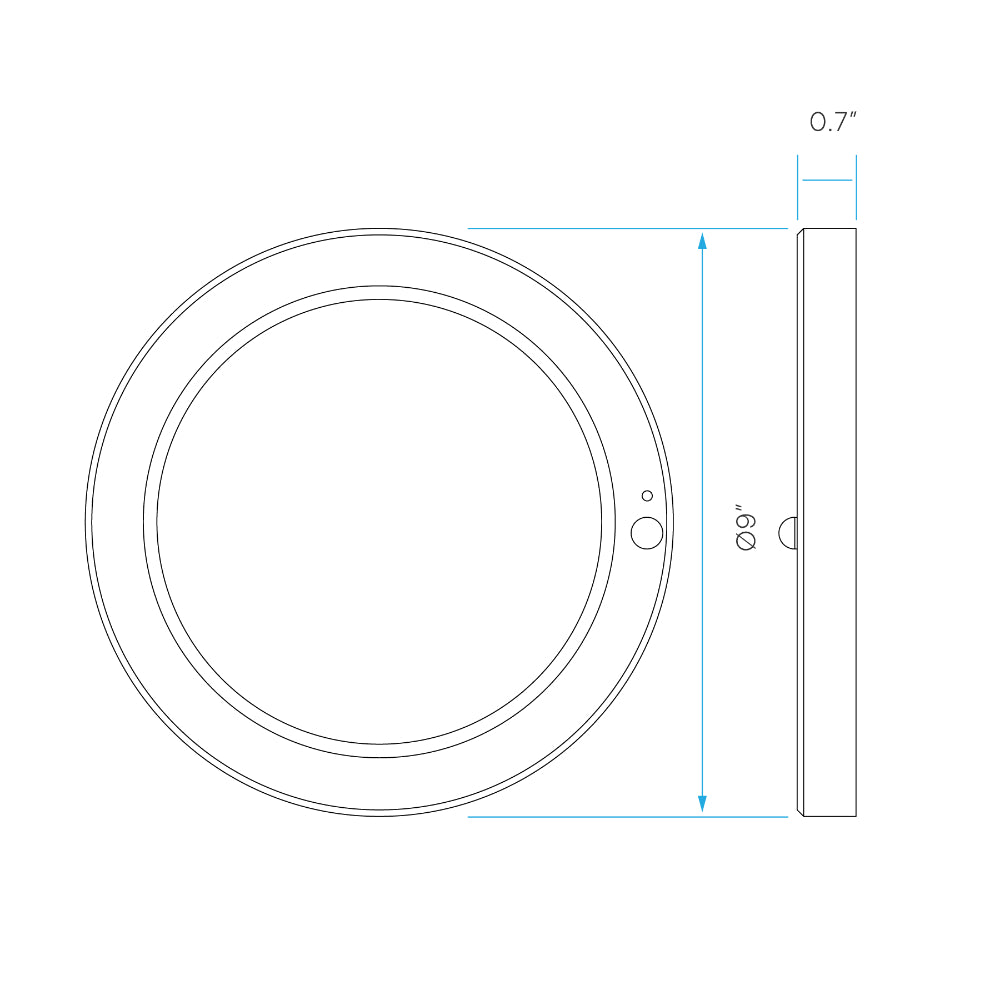

  • Dimensions:
    • Length: Ø9 Inch
    • Depth: 0.7 Inch
  • Finish: White

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 1500
  • Beam Angle: 110º
  • CRI: 90

Electrical

  • Power (Wattage): 18
  • Input Volts: 120V
  • Rated Lifetime: 50000
  • Power Factor: 0.9
  • Frequency: 60Hz
  • Lumen Efficacy: 83
  • Operating Temp:
    • Min: -4º
    • Max: 104º
Product Files

Click for Luxrite LR23566 Specification Sheet

Click for Luxrite LR23566 Install Guide

Click for Luxrite LR23566 Warranty

Click for Luxrite LR23566 Certificate Of Compliance
