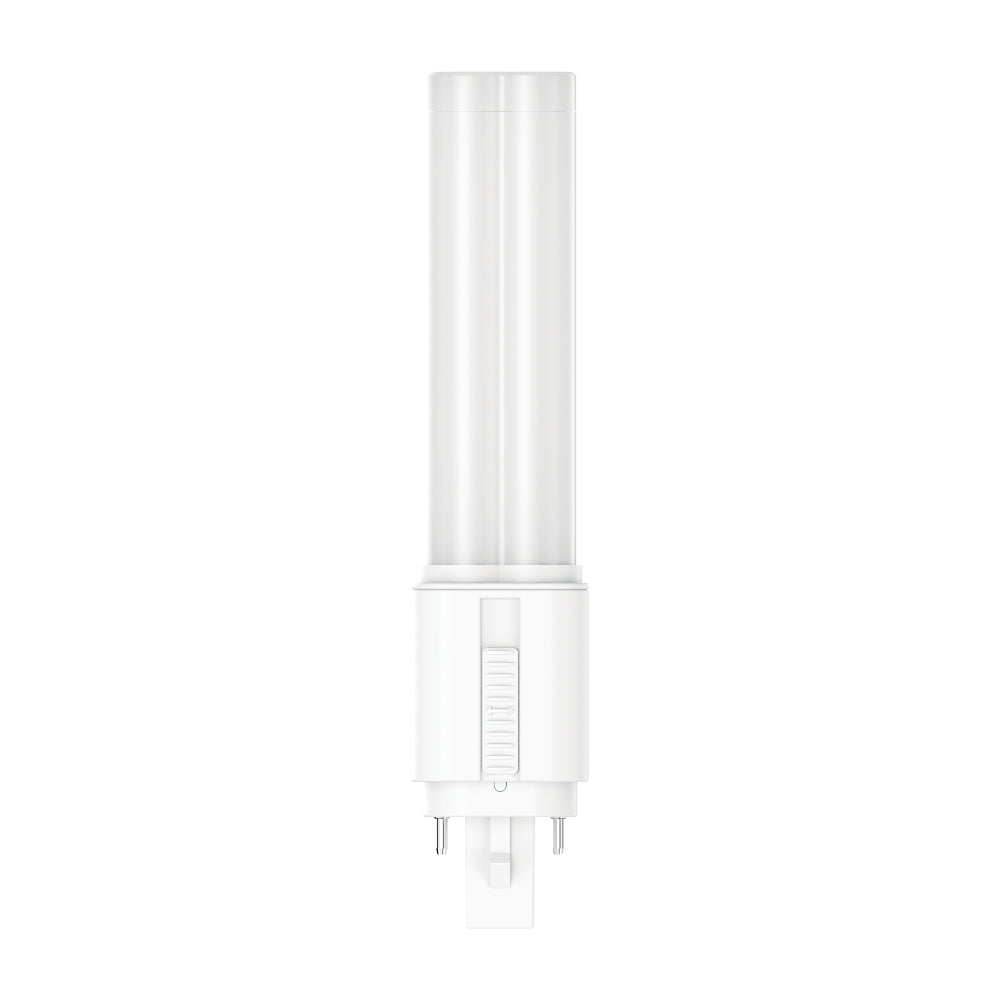

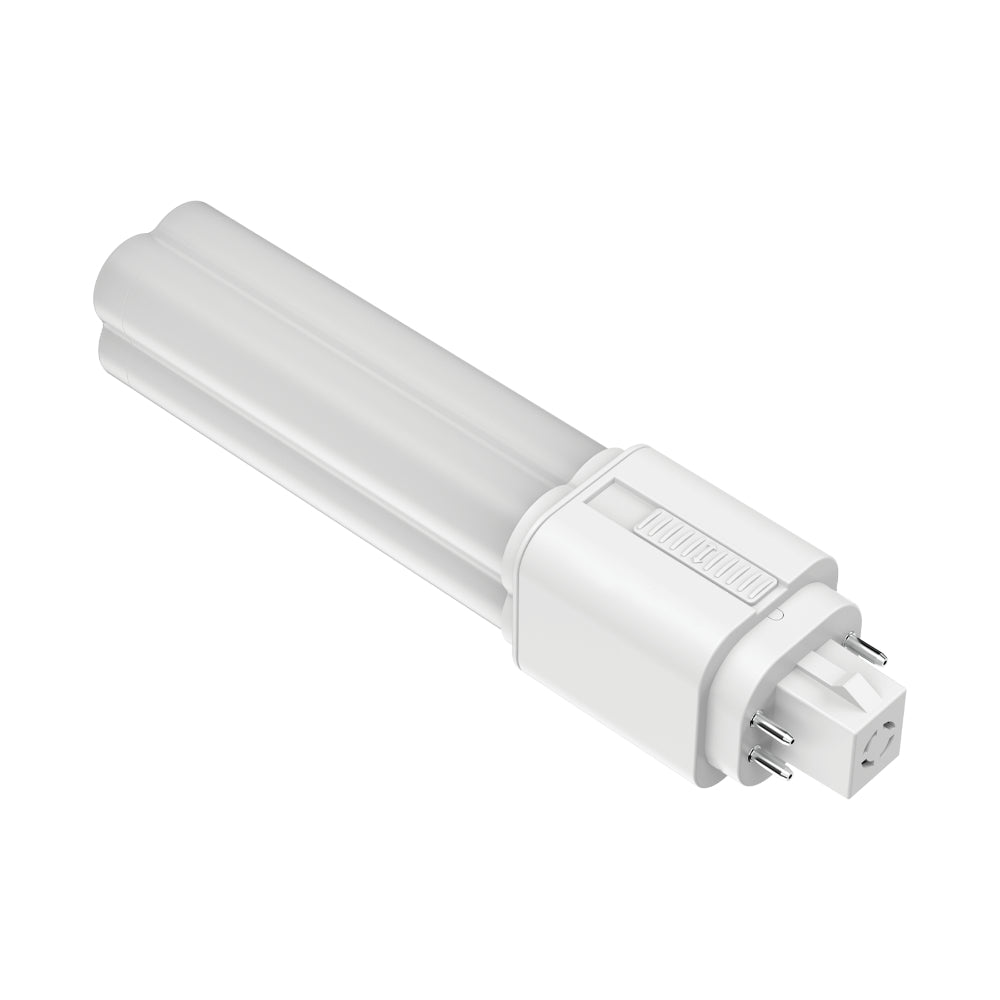

Luxrite 9W Quad Style Ballast Compatible + Bypass Ballast - 5CCT Selectable LED Lamp

LuxriteSKU: LR24568
Price:
$0.00 USD

Description

Luxrite 9W Quad Style Ballast Compatible + Bypass Ballast - 5CCT Selectable LED Lamp

Specifications

  • Item description: LED9DD/E/5CCT/UNV
  • Size: 6.51 Inch
  • Shape: Horizontal
  • Base: G24Q

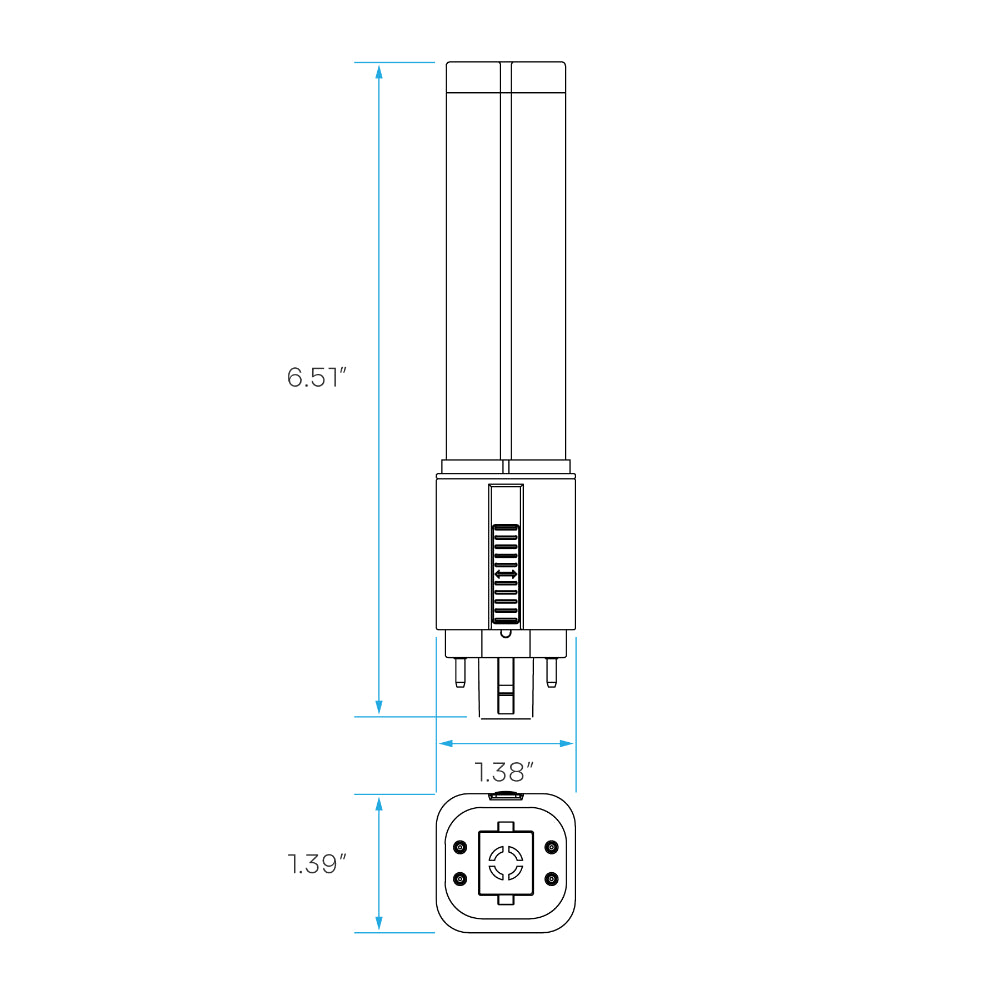

  • Dimensions:
    • Length: 6.51 Inch
    • Width: 1.39 Inch
    • Depth: 1.38 Inch
  • Finish: White

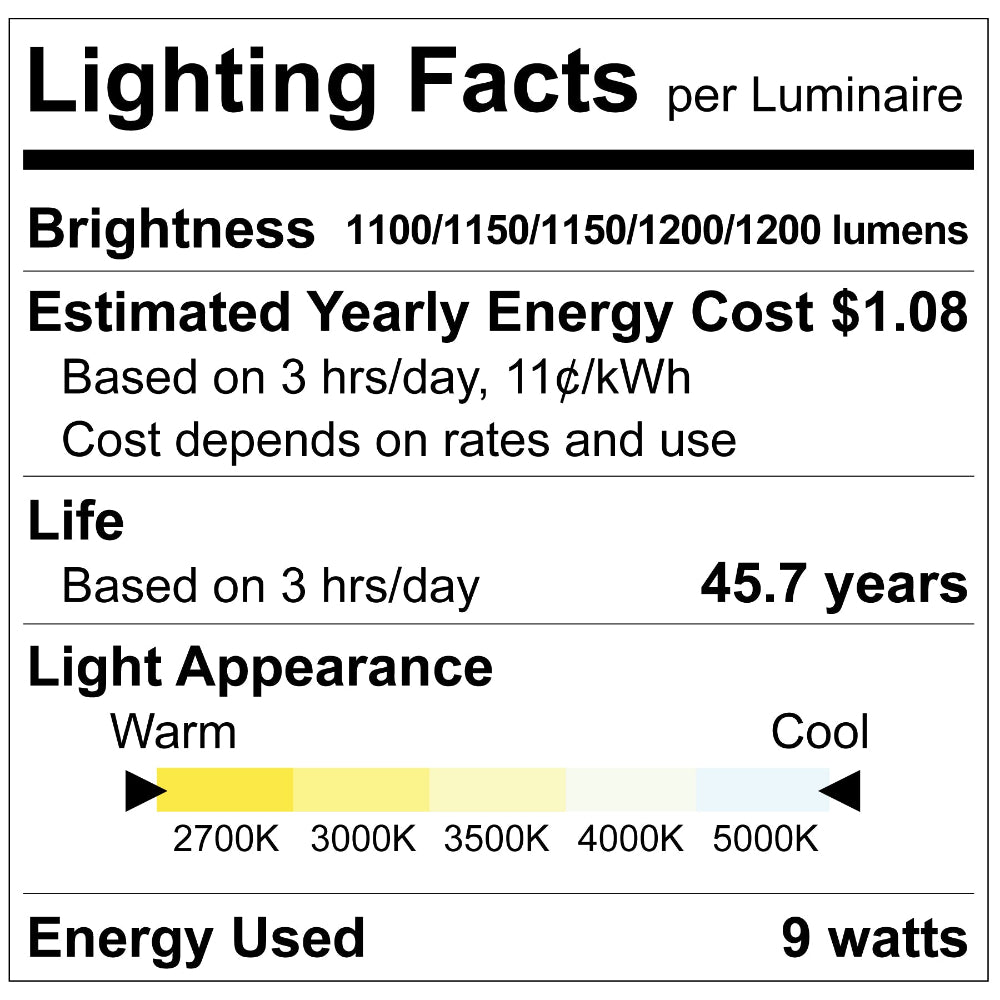

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 1200
  • Beam Angle: 360°
  • CRI: 83

Electrical

  • Power (Wattage): 9
  • Input Volts: 120-277V Or Ballast
  • Rated Lifetime: 50000
  • Ballast Compatible: True
  • Power Factor: 0.9
  • Input Current: 75Ma
  • Frequency: 50/60Hz
  • Bypass 1 Side Input: Yes
  • Lumen Efficacy: 133
Product Files

Click forLuxrite LR24568 Specification Sheet

Click forLuxrite LR24568 Install Guide

Click forLuxrite LR24568 Ballast Compatibility

Click forLuxrite LR24568 Warranty
