Description

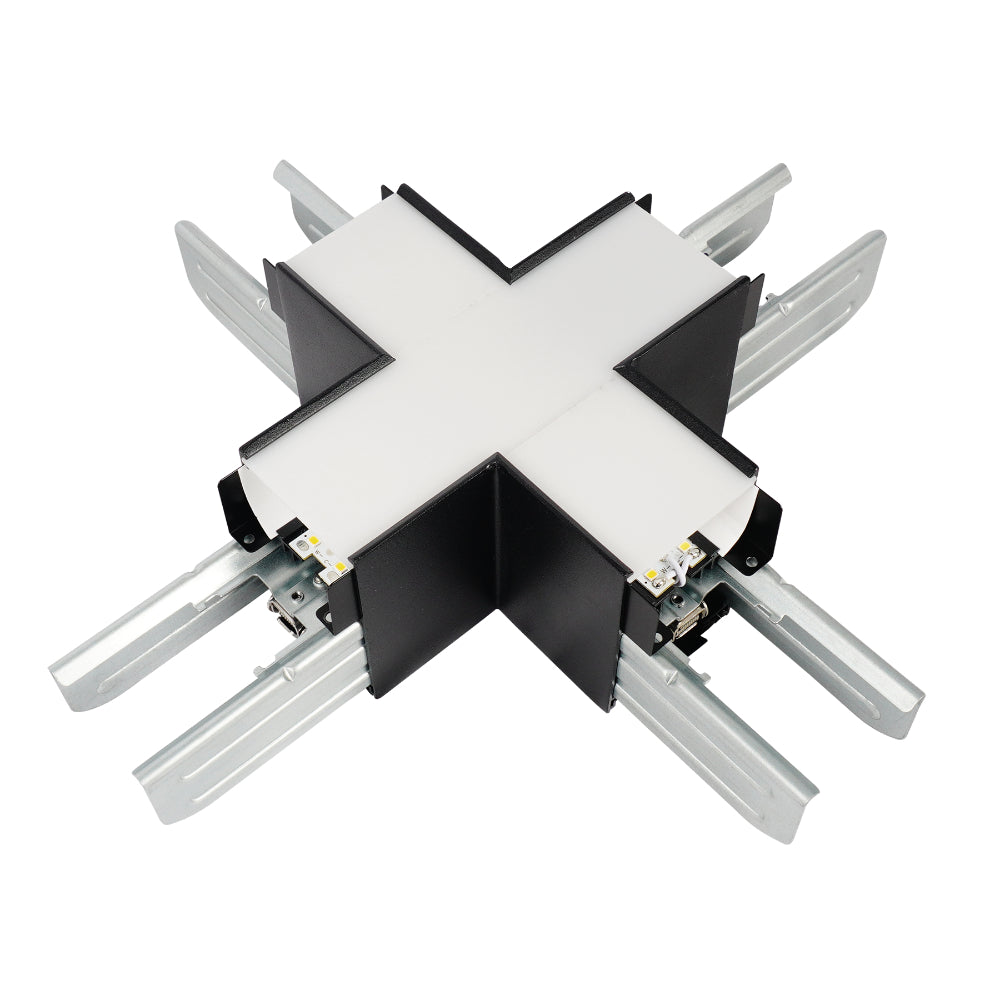

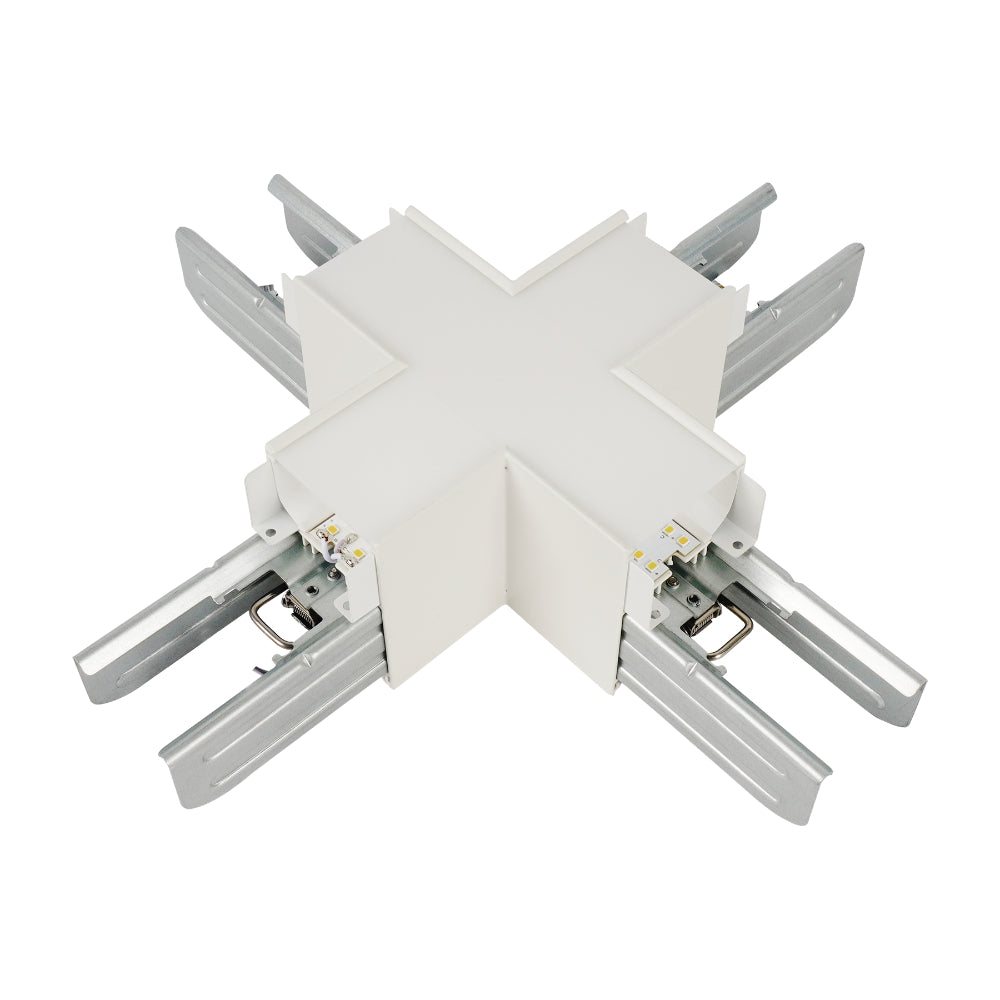

Luxrite Architectural Linkable Linear X-Connector
Specifications
- Item description: ARCHL-X/3CCT/3WO/WT
- Shape: Architectural Linear

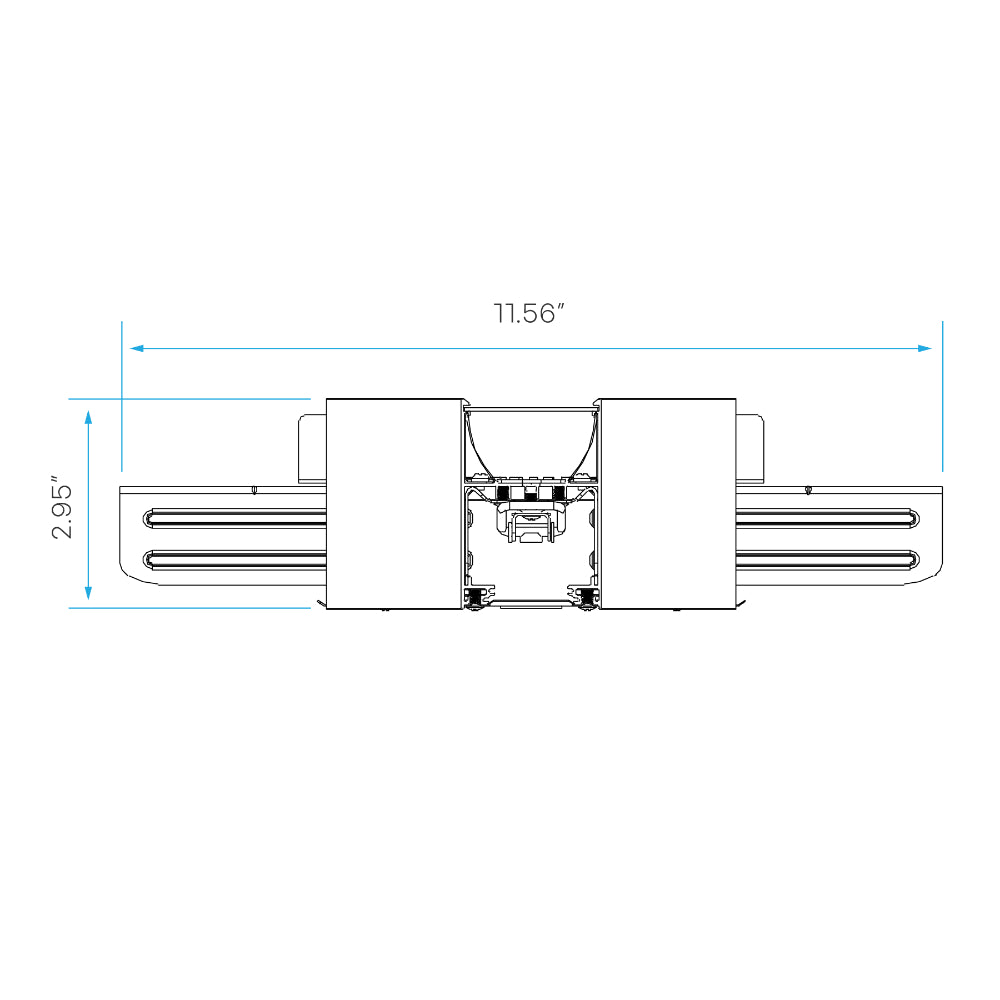

- Dimensions:
- Length: 11.56 Inch
- Width: 11.56 Inch
- Height: 2.95 Inch
- Finish: White
Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 3500K/4000K/5000K
- Beam Angle: 120º
- CRI: 80
Electrical
- Input Volts: 120-277V
- Rated Lifetime: 50000
- Dimmable: 0-10V
- Power Factor: 0.9
- Operating Temp:
- Min: -4º
- Max: 113º
Product Files
Click for Luxrite LR42620 Specification Sheet
Click for Luxrite LR42620 Install Guide
