Luxrite Omni1 - Single Head Regressed Gimbal 5CCT Selectable - Dual Dimming/Universal Voltage
Luxrite Omni1 - Single Head Regressed Gimbal 5CCT Selectable - Dual Dimming/Universal Voltage Additional Image 1
Luxrite Omni1 - Single Head Regressed Gimbal 5CCT Selectable - Dual Dimming/Universal Voltage Additional Image 2
Luxrite Omni1 - Single Head Regressed Gimbal 5CCT Selectable - Dual Dimming/Universal Voltage Additional Image 3
Luxrite Omni1 - Single Head Regressed Gimbal 5CCT Selectable - Dual Dimming/Universal Voltage Additional Image 4
Luxrite Omni1 - Single Head Regressed Gimbal 5CCT Selectable - Dual Dimming/Universal Voltage Additional Image 5
Luxrite Omni1 - Single Head Regressed Gimbal 5CCT Selectable - Dual Dimming/Universal Voltage Additional Image 6
Luxrite Omni1 - Single Head Regressed Gimbal 5CCT Selectable - Dual Dimming/Universal Voltage Additional Image 7
Roll over image to zoom in Click on image to zoom
Luxrite Omni1 - Single Head Regressed Gimbal 5CCT Selectable - Dual Dimming/Universal VoltageLuxrite Omni1 - Single Head Regressed Gimbal 5CCT Selectable - Dual Dimming/Universal Voltage Additional Image 1Luxrite Omni1 - Single Head Regressed Gimbal 5CCT Selectable - Dual Dimming/Universal Voltage Additional Image 2Luxrite Omni1 - Single Head Regressed Gimbal 5CCT Selectable - Dual Dimming/Universal Voltage Additional Image 3Luxrite Omni1 - Single Head Regressed Gimbal 5CCT Selectable - Dual Dimming/Universal Voltage Additional Image 4Luxrite Omni1 - Single Head Regressed Gimbal 5CCT Selectable - Dual Dimming/Universal Voltage Additional Image 5Luxrite Omni1 - Single Head Regressed Gimbal 5CCT Selectable - Dual Dimming/Universal Voltage Additional Image 6Luxrite Omni1 - Single Head Regressed Gimbal 5CCT Selectable - Dual Dimming/Universal Voltage Additional Image 7

Luxrite Omni1 - Single Head Regressed Gimbal 5CCT Selectable - Dual Dimming/Universal Voltage

LuxriteSKU: LR32191
Select Finish: Black
Price:
$0.00 USD

Description

Luxrite Omni1 - Single Head Regressed Gimbal 5CCT Selectable - Dual Dimming/Universal Voltage

Specifications

  • Item description: LED/OMNI1/5CCT/HC/G/WFL/DD/UNV/BK
  • Size: Single Head
  • Shape: 1 Head Gimbal

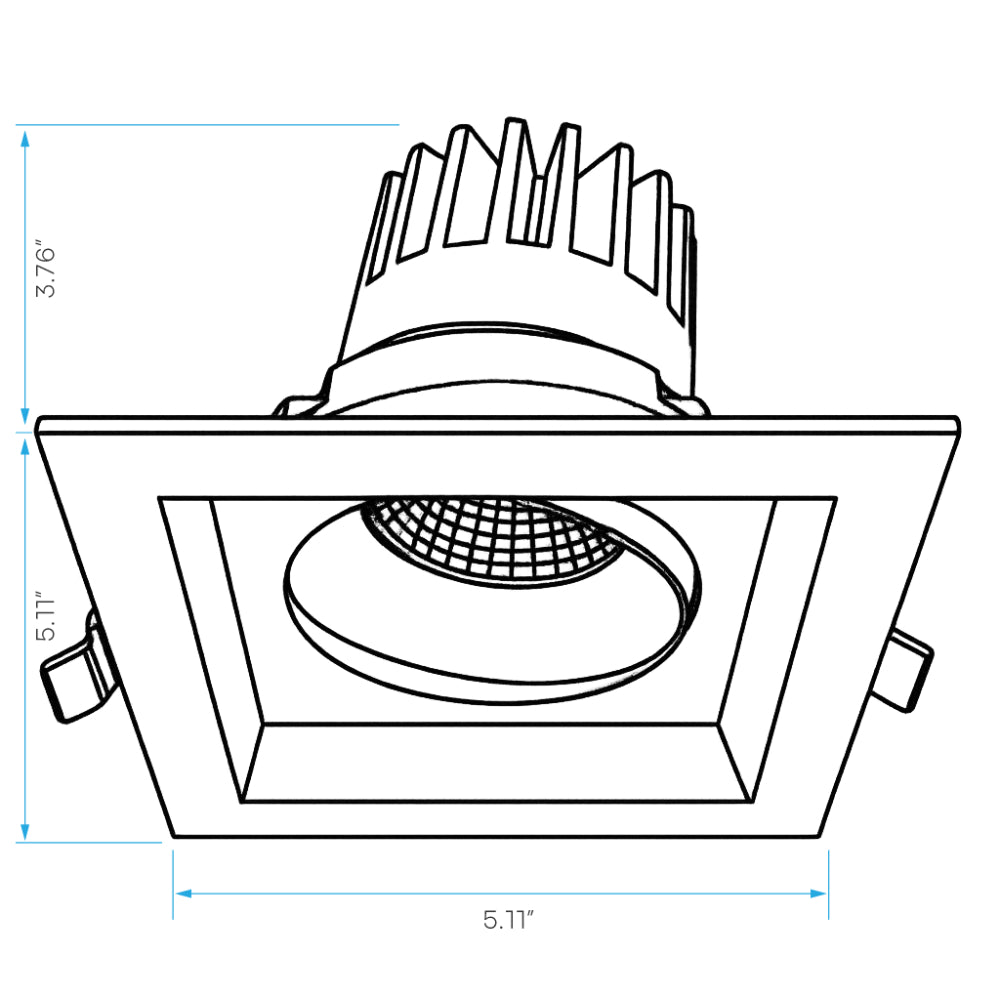

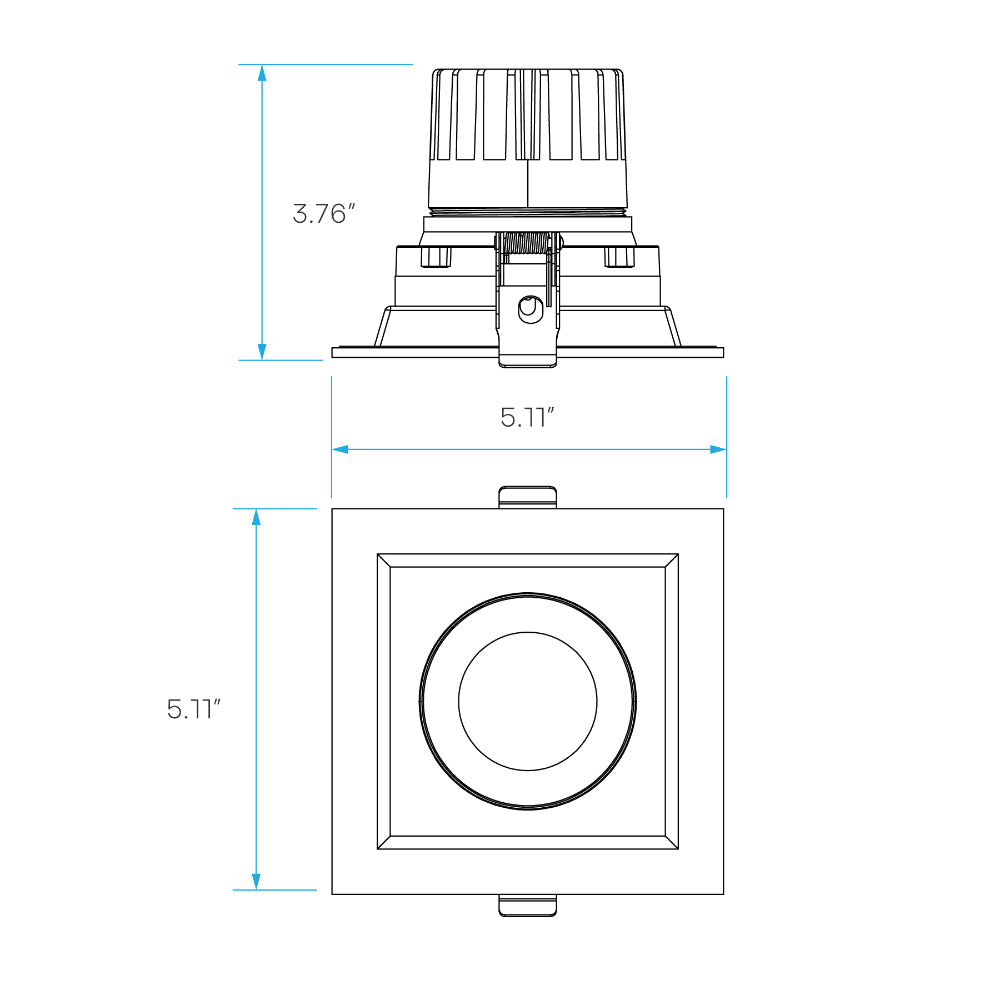

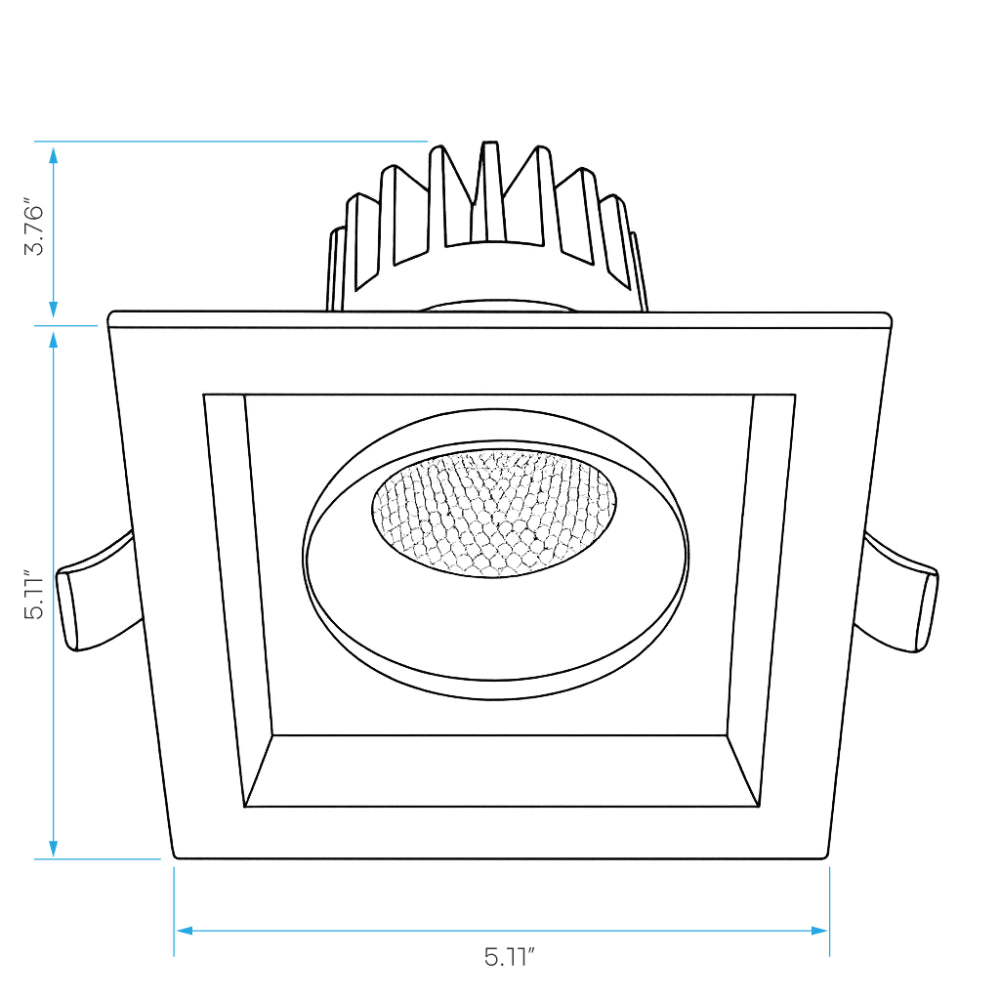

  • Dimensions:
    • Length: 5.11 Inch
    • Width: 5.11 Inch
    • Depth: 3.76 Inch
  • Cutout: 4.25 Inch x 4.25 Inch
  • Plate: LR41005 (#1), LR41013 (#0)

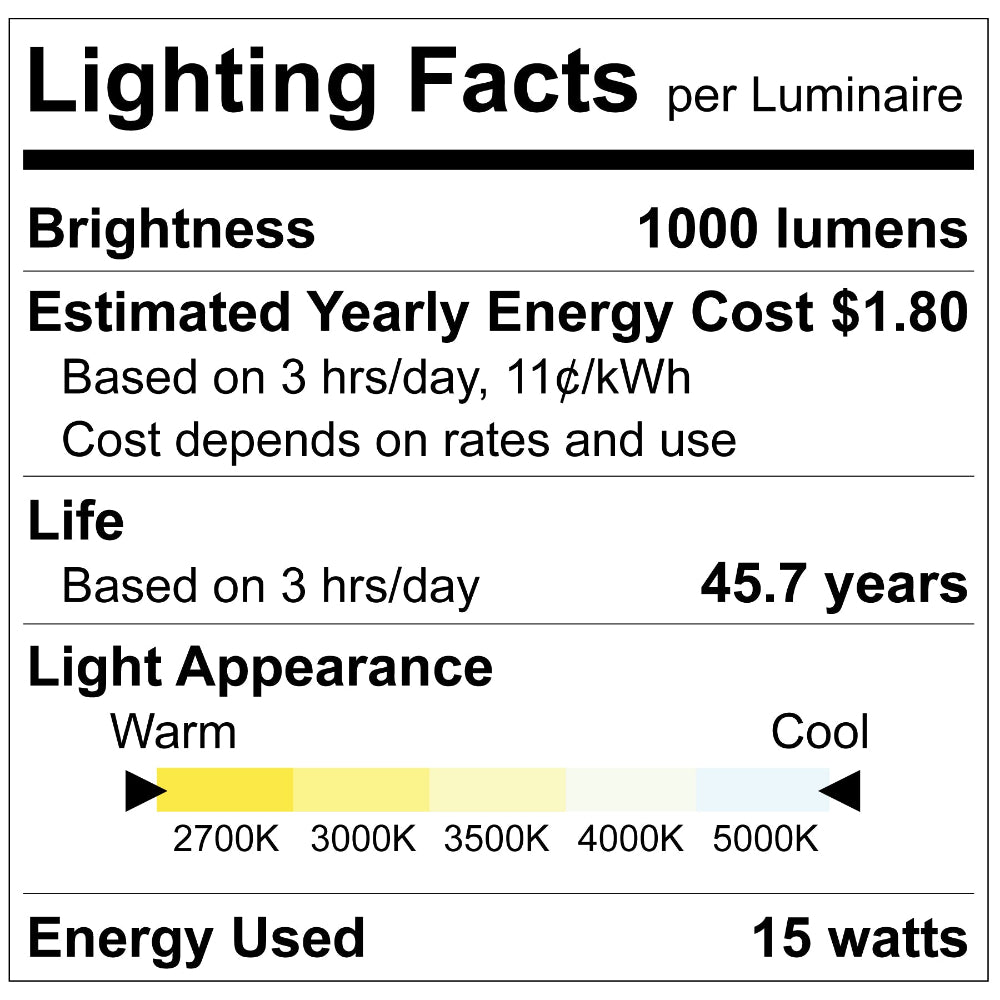

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 1000
  • Beam Angle: 60°
  • CRI: 90

Electrical

  • Power (Wattage): 15
  • Input Volts: 120-277V
  • Rated Lifetime: 50000
  • Dimmable: Dual Dimming TRIAC/0-10V
  • Input Current: 125Ma
  • Frequency: 60Hz
  • Lumen Efficacy: 67
  • Operating Temp:
    • Min: -4°
    • Max: 104°
Product Files

Click forLuxrite LR32191 Specification Sheet

Click forLuxrite LR32191 Family Specification Sheet

Click forLuxrite LR32191 Install Guide

Click forLuxrite LR32191 Dimmer Compatibility

Click forLuxrite LR32191 Warranty

Click forLuxrite LR32190 Dimmer Compatibility

Click forLuxrite LR32190 Warranty
