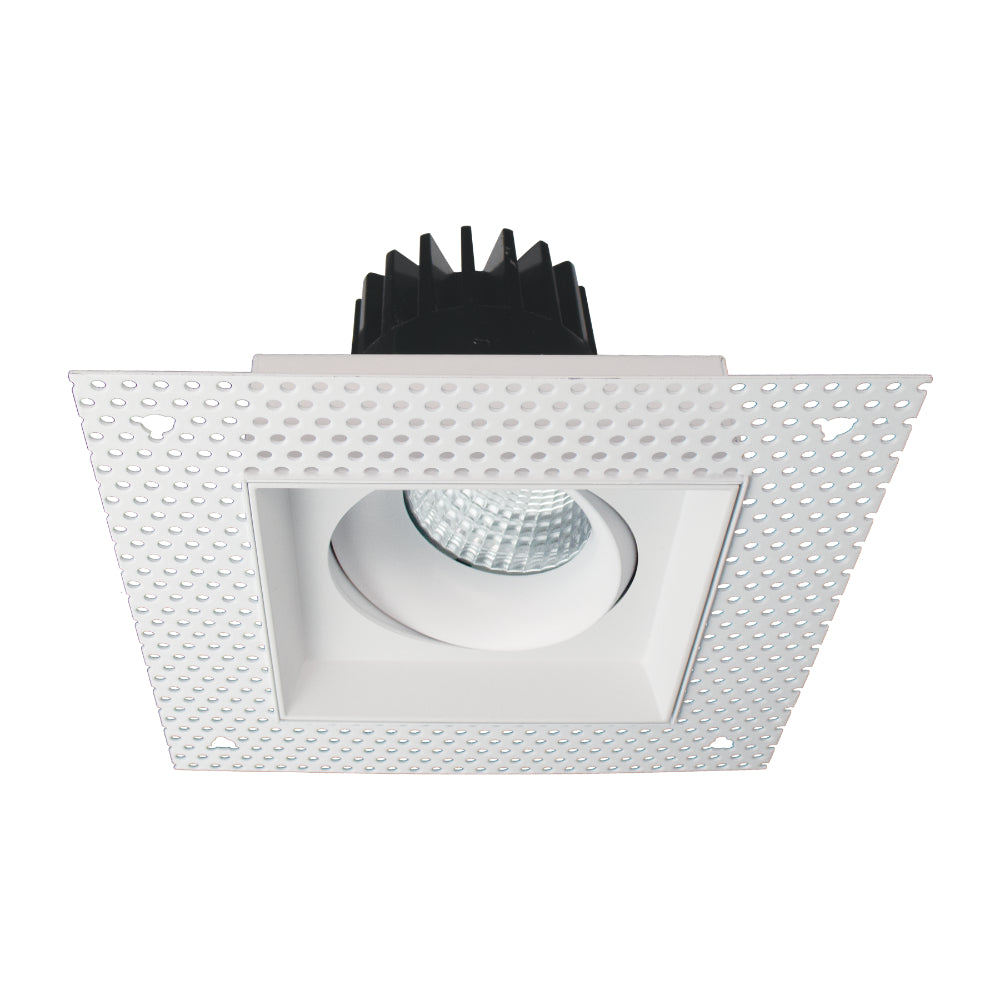

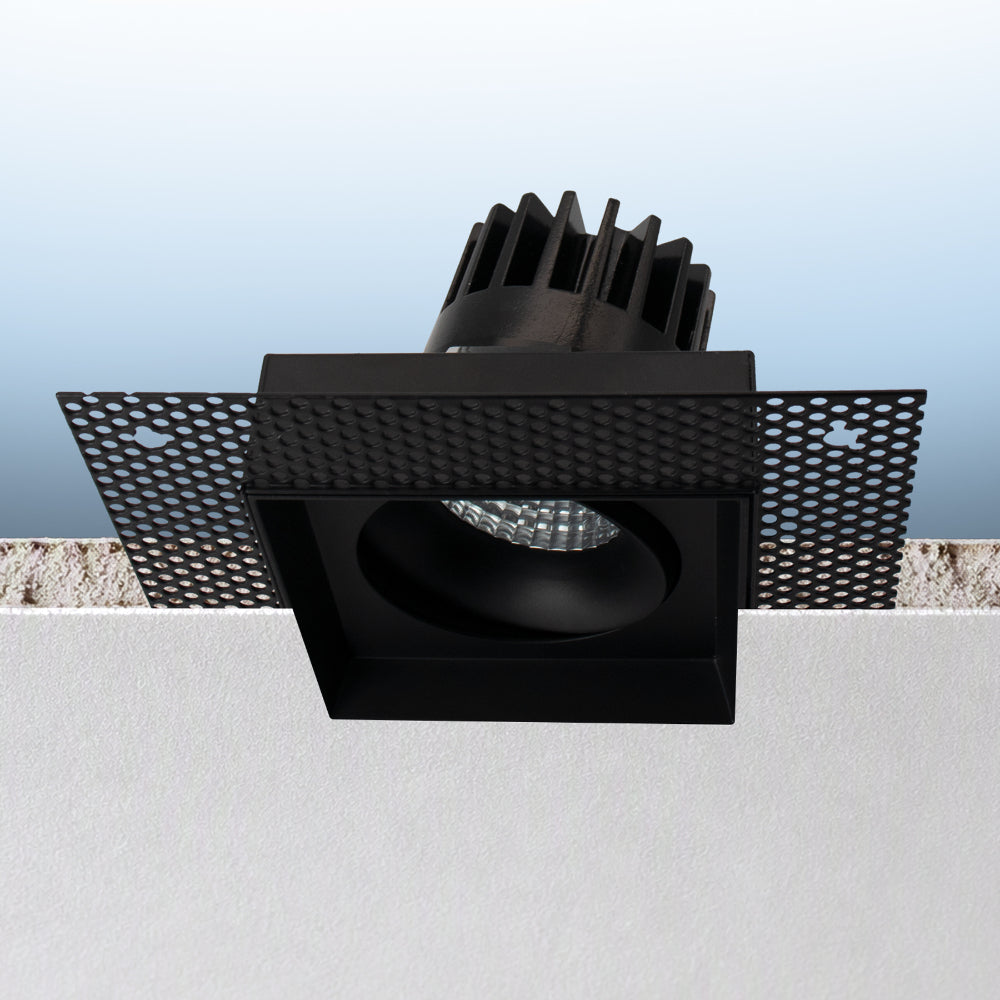

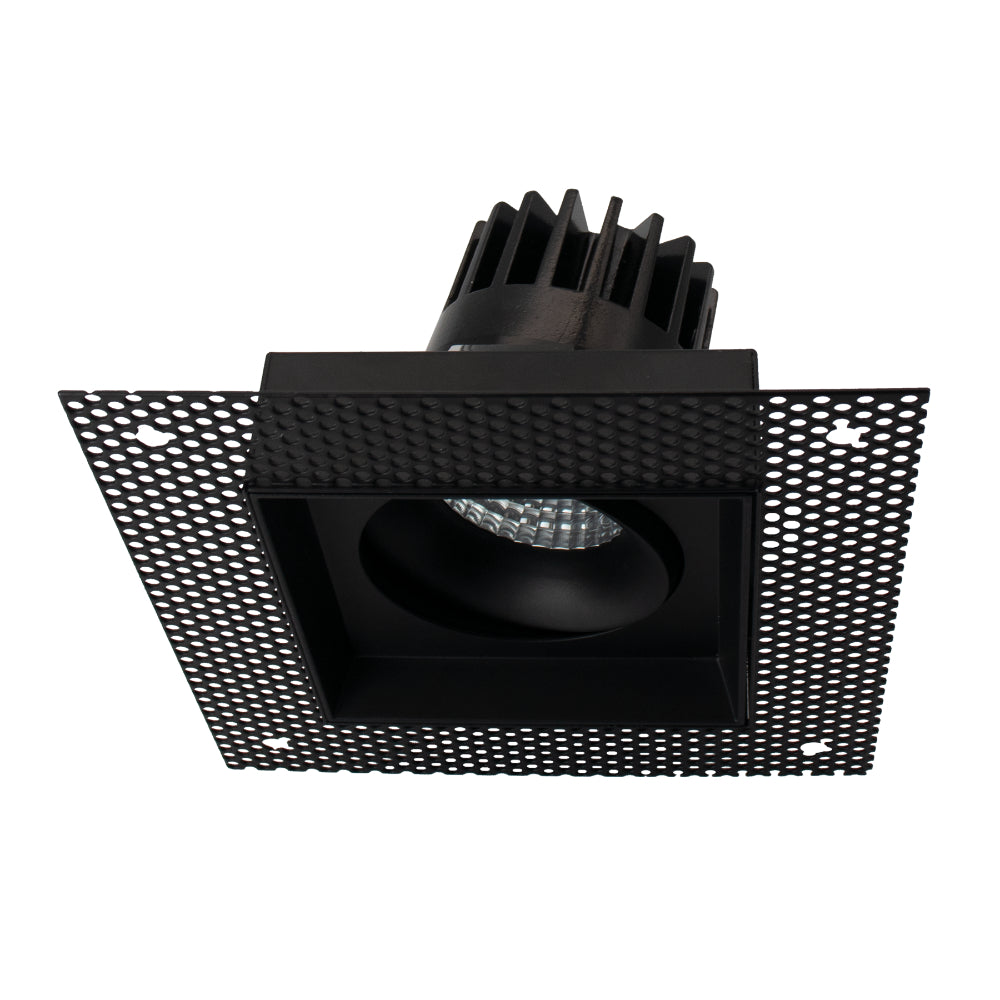

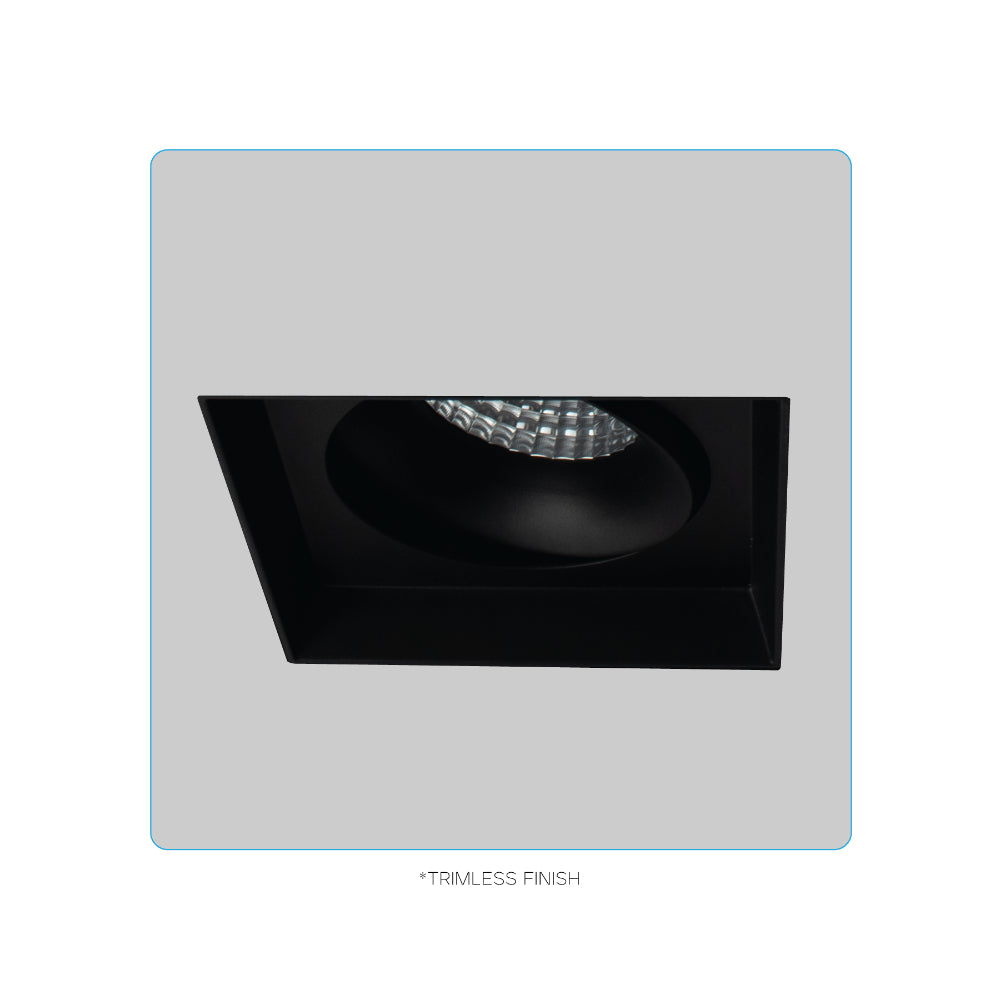

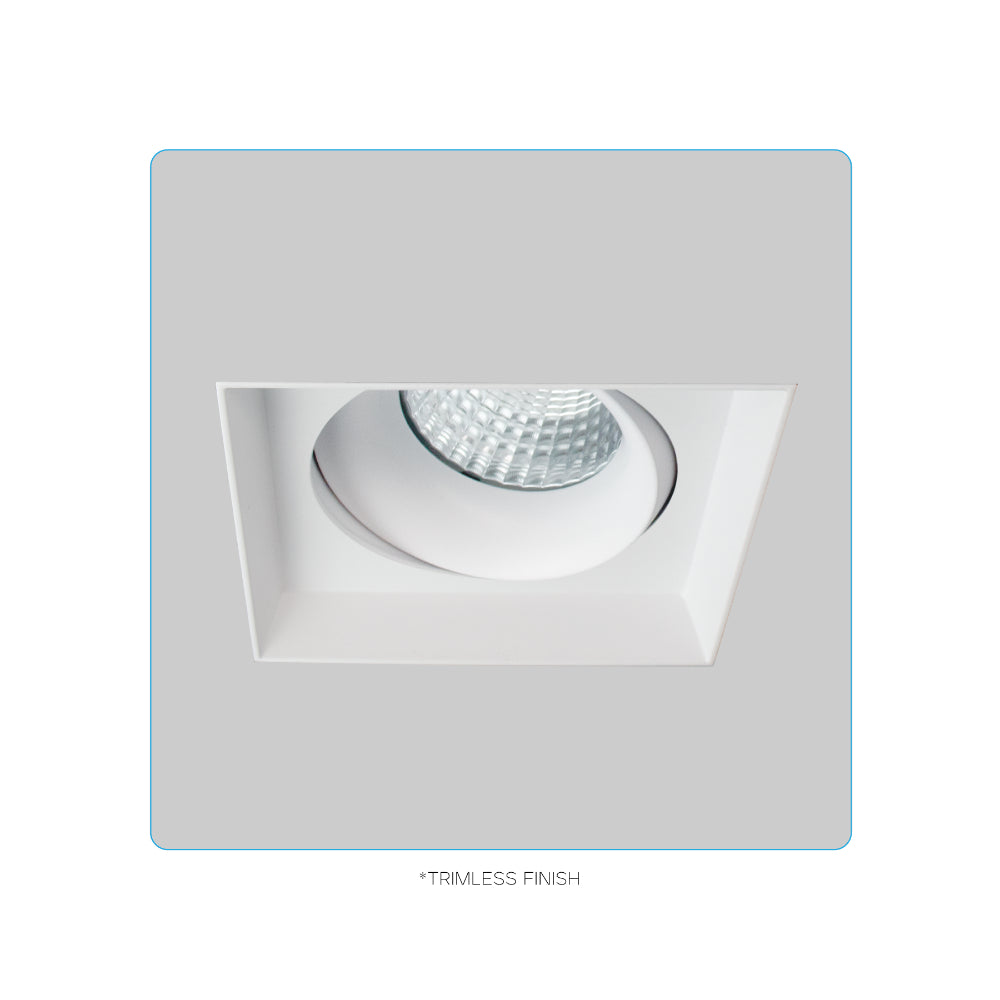

Luxrite Omni1 - Single Head Regressed Trimless Gimbal 5CCT Selectable - Dual Dimming/Universal Voltage

LuxriteSKU: LR32201
Select Finish: Black
Price:
$0.00 USD

Description

Luxrite Omni1 - Single Head Regressed Trimless Gimbal 5CCT Selectable - Dual Dimming/Universal Voltage

Specifications

  • Item description: LED/OMNI1/TL/5CCT/HC/G/WFL/DD/UNV/BK
  • Size: Single Head
  • Shape: 1 Head Gimbal

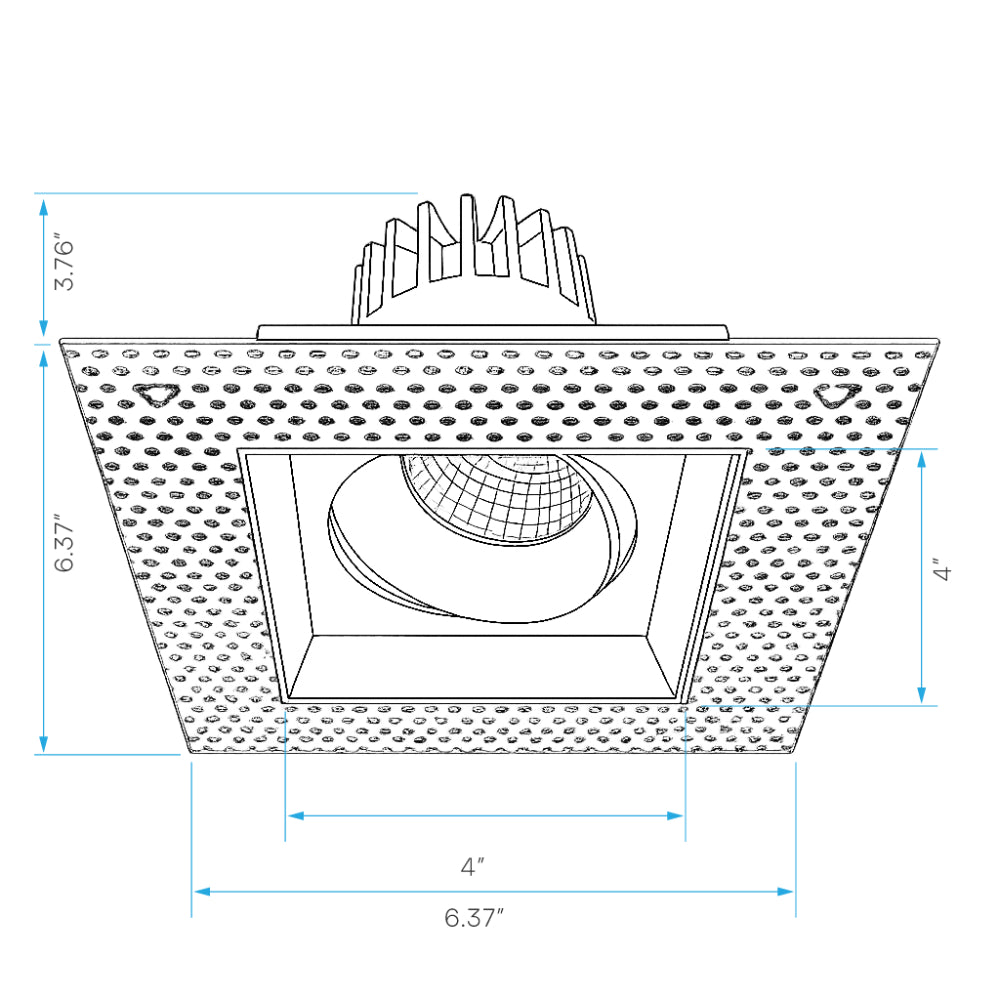

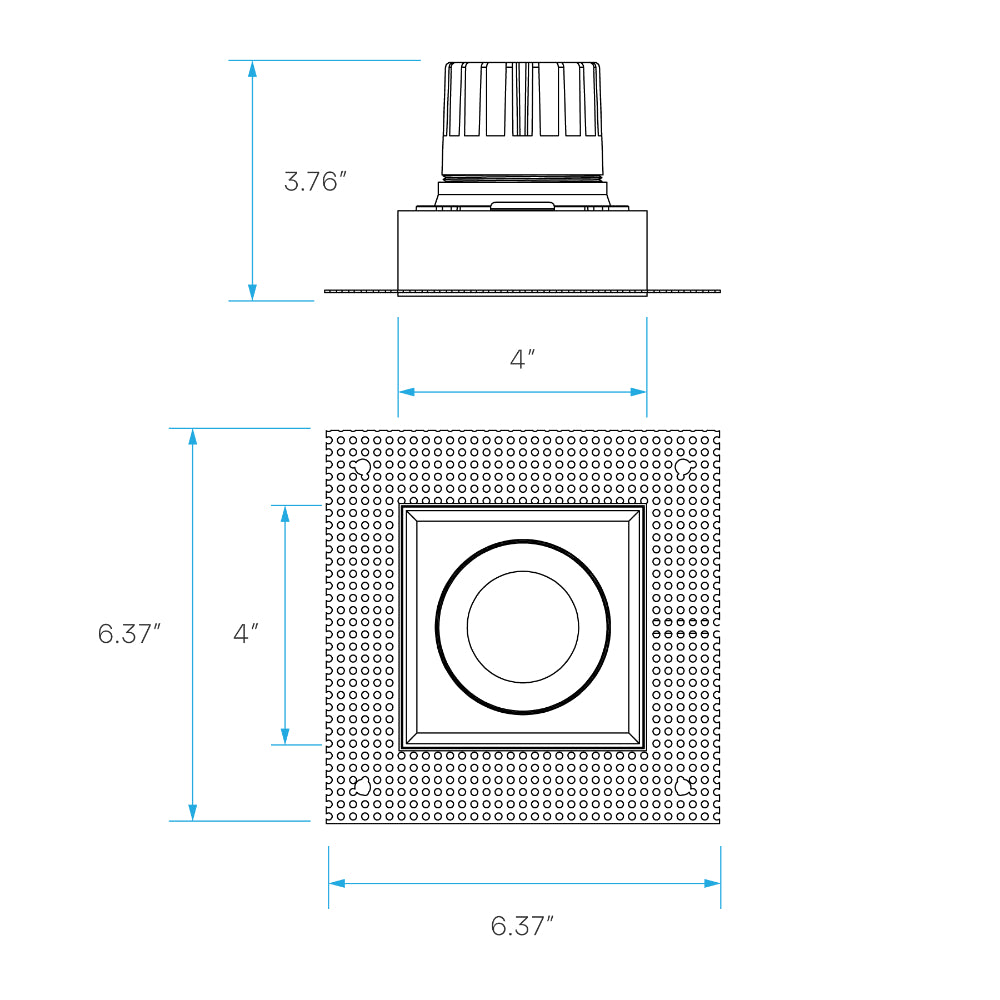

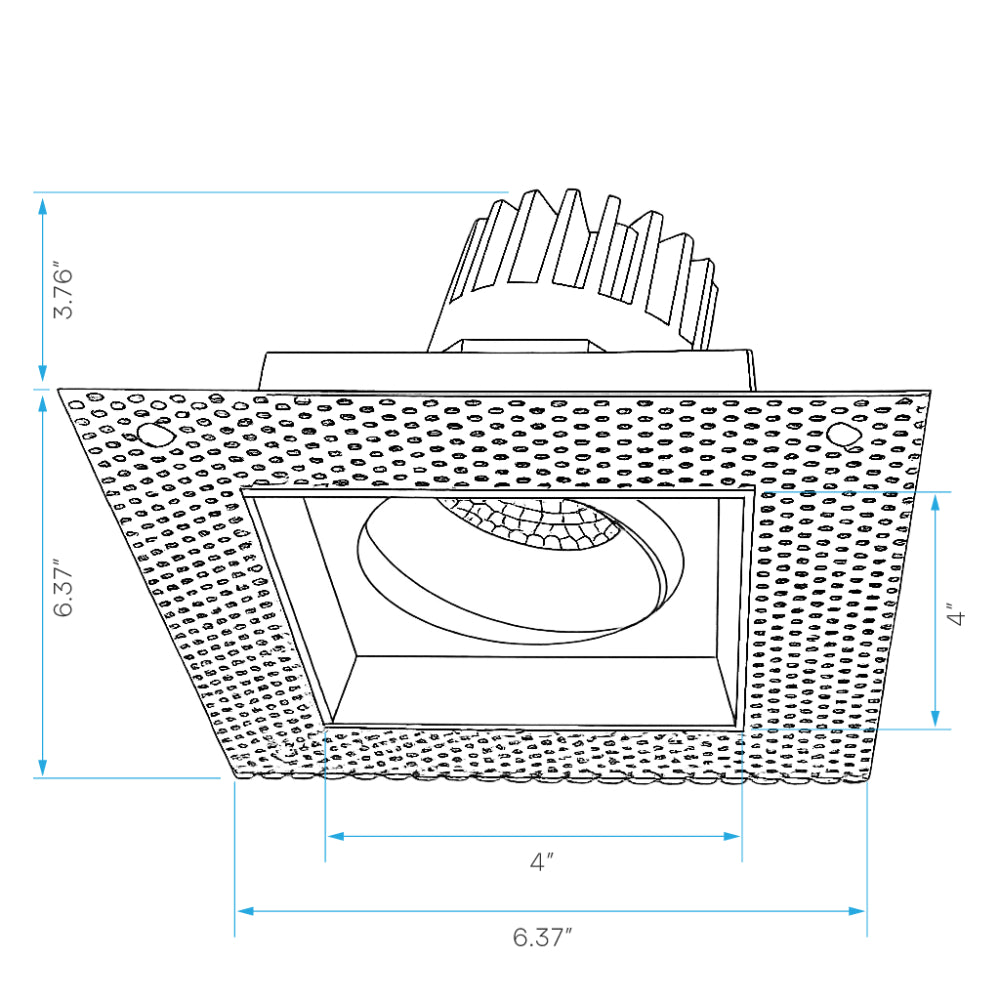

  • Dimensions:
    • Length: 6.37 Inch
    • Width: 6.37 Inch
    • Depth: 3.76 Inch
  • Cutout: 4.25 Inch x 4.25 Inch
  • Plate: LR41005 (#1), LR41013 (#0)

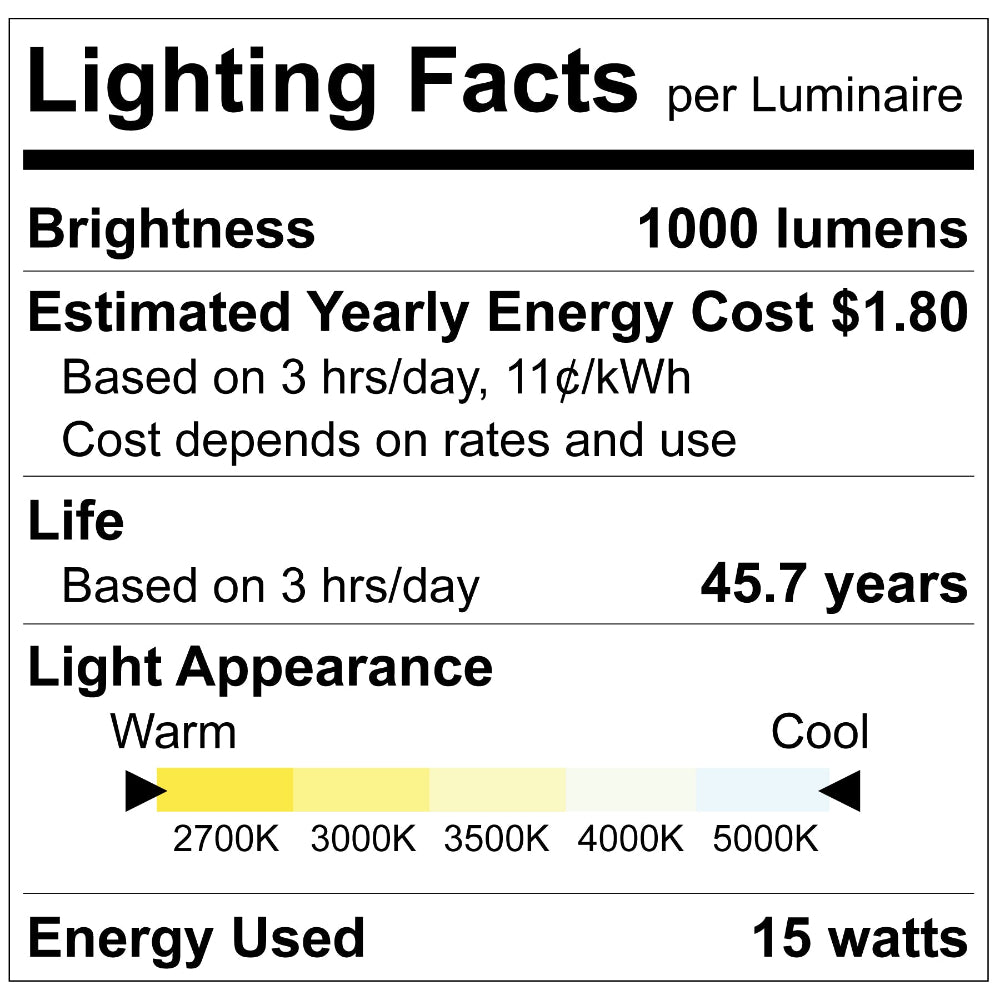

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 1000
  • Beam Angle: 60°
  • CRI: 90

Electrical

  • Power (Wattage): 15
  • Input Volts: 120-277V
  • Rated Lifetime: 50000
  • Dimmable: Dual Dimming TRIAC/0-10V
  • Input Current: 125Ma
  • Frequency: 60Hz
  • Lumen Efficacy: 67
  • Operating Temp:
    • Min: -4°
    • Max: 104°
Product Files

Click forLuxrite LR32201 Specification Sheet

Click forLuxrite LR32201 Family Specification Sheet

Click forLuxrite LR32201 Install Guide

Click forLuxrite LR32201 Dimmer Compatibility

Click forLuxrite LR32201 Warranty

Click forLuxrite LR32200 Dimmer Compatibility

Click forLuxrite LR32200 Warranty
