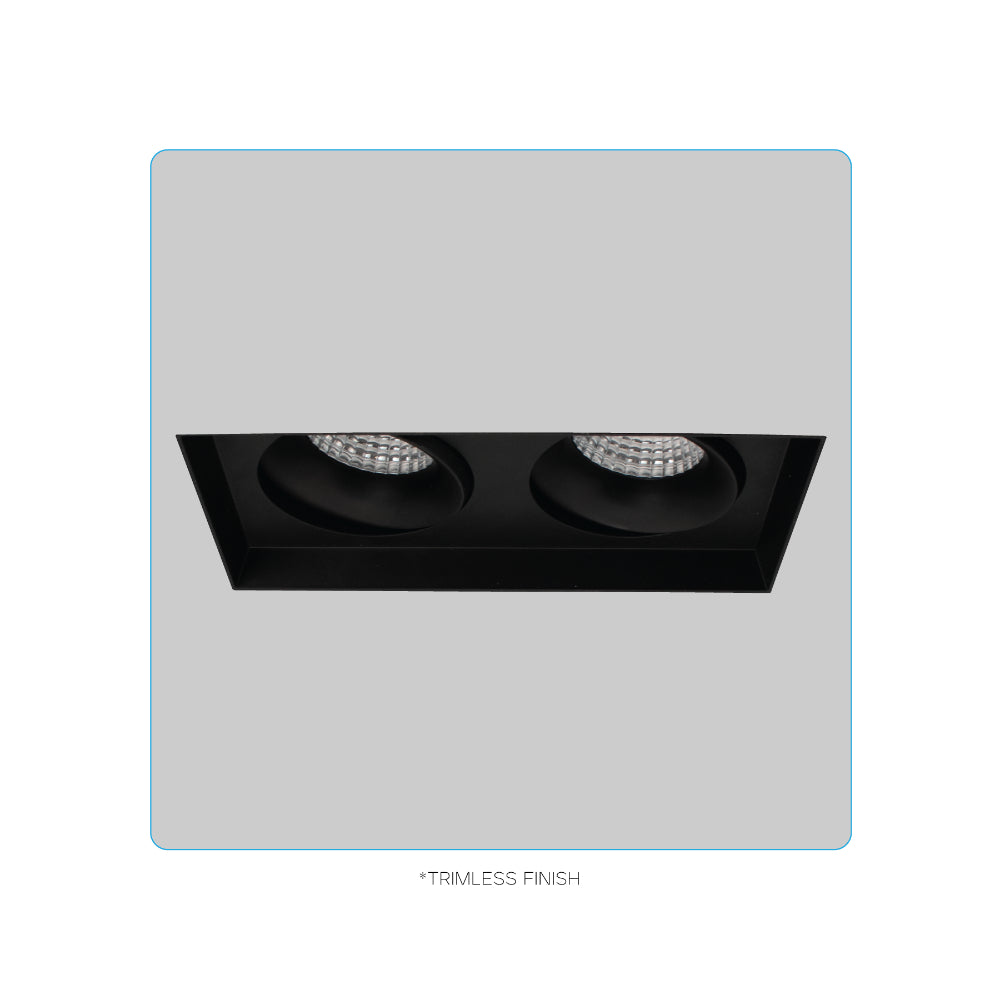

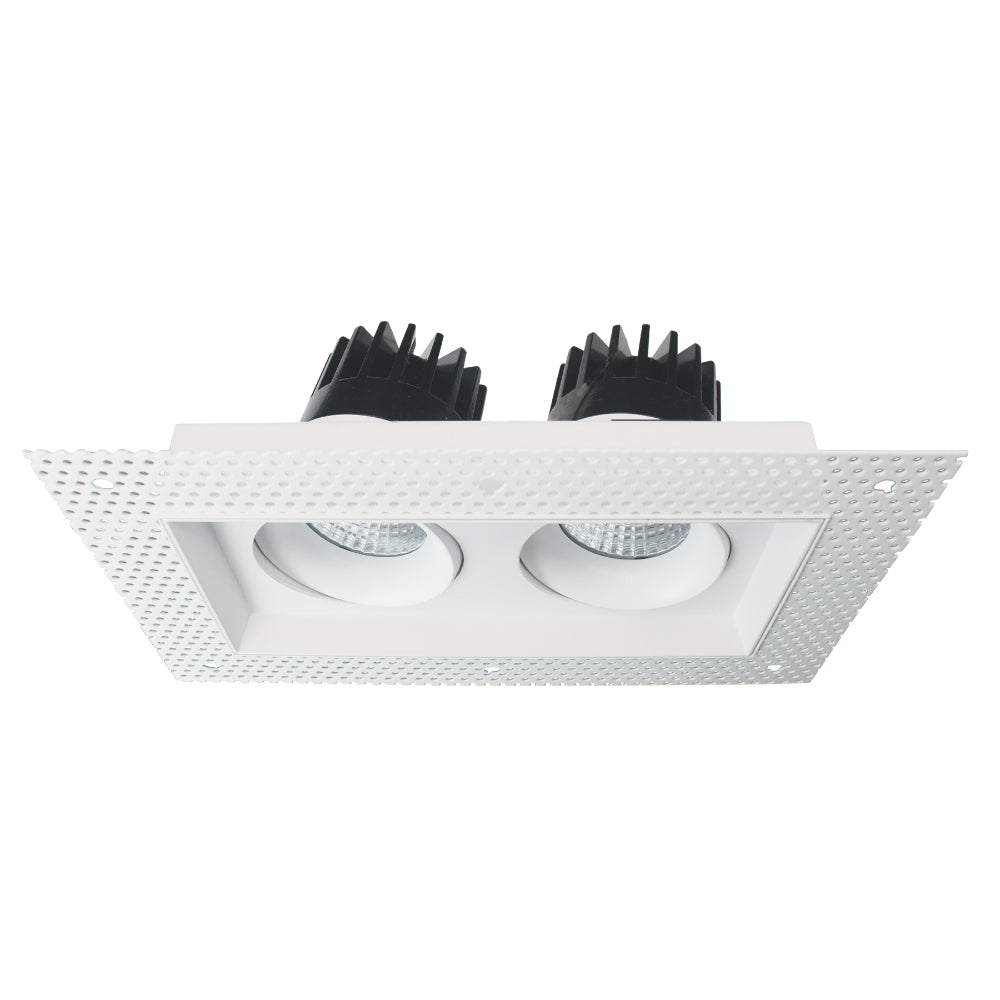

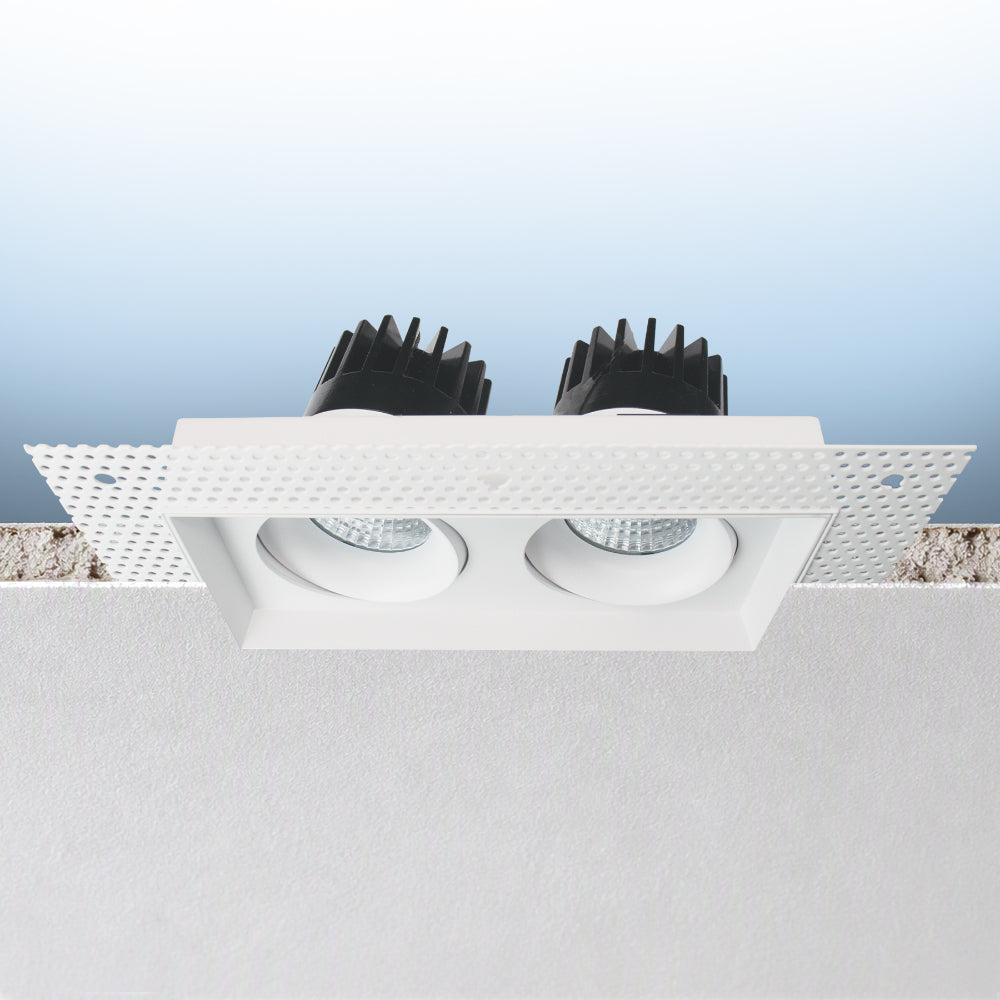

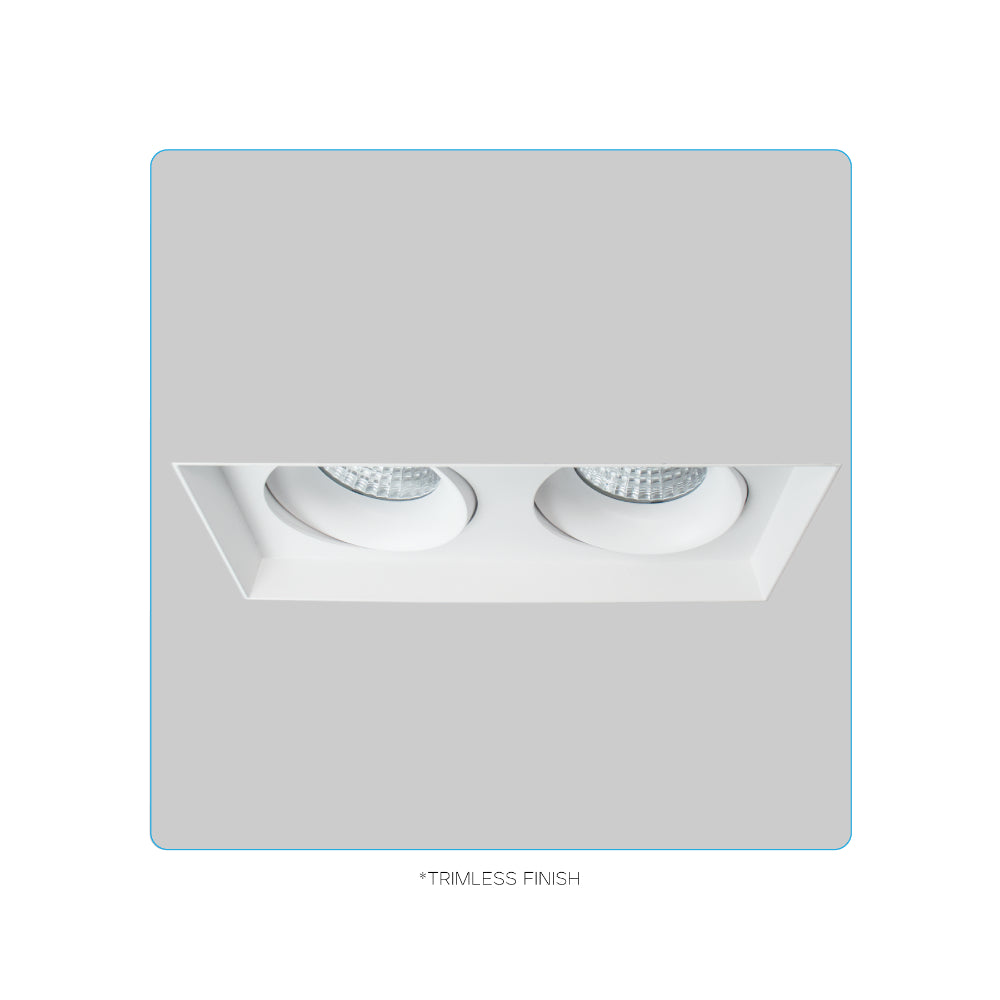

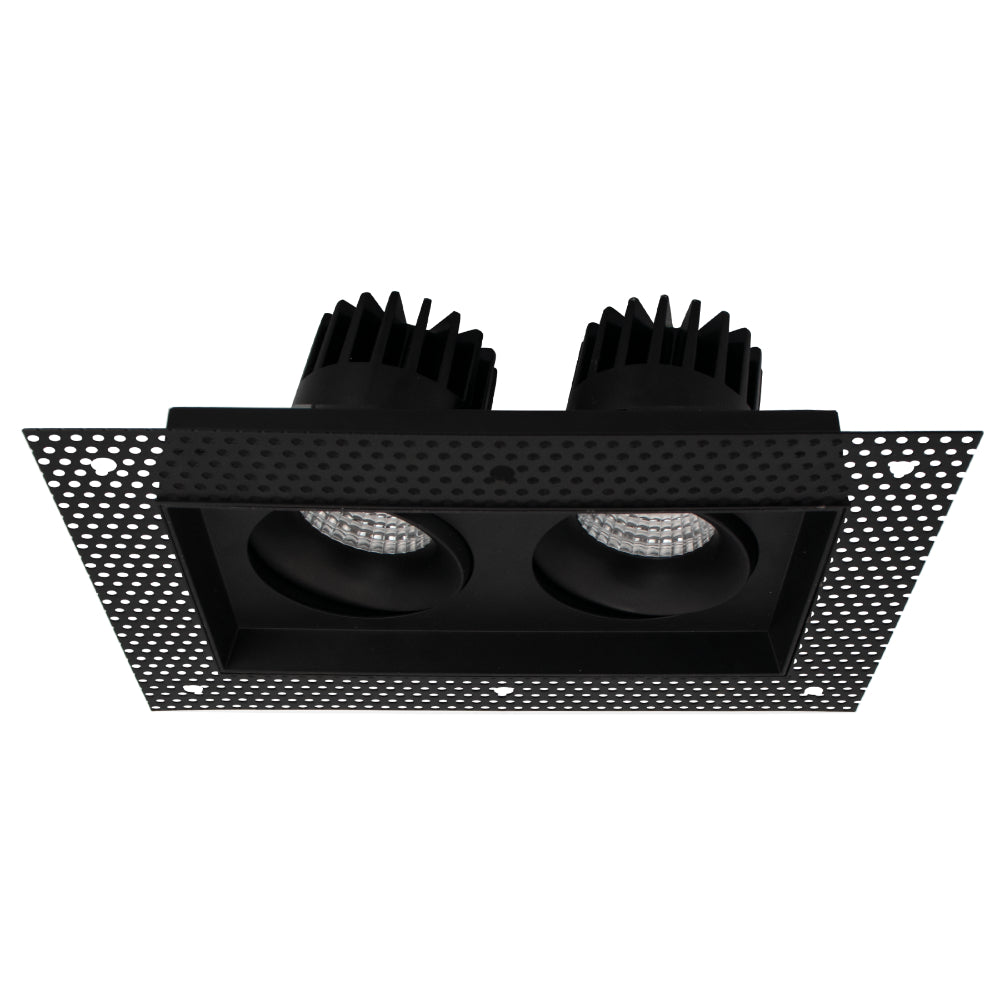

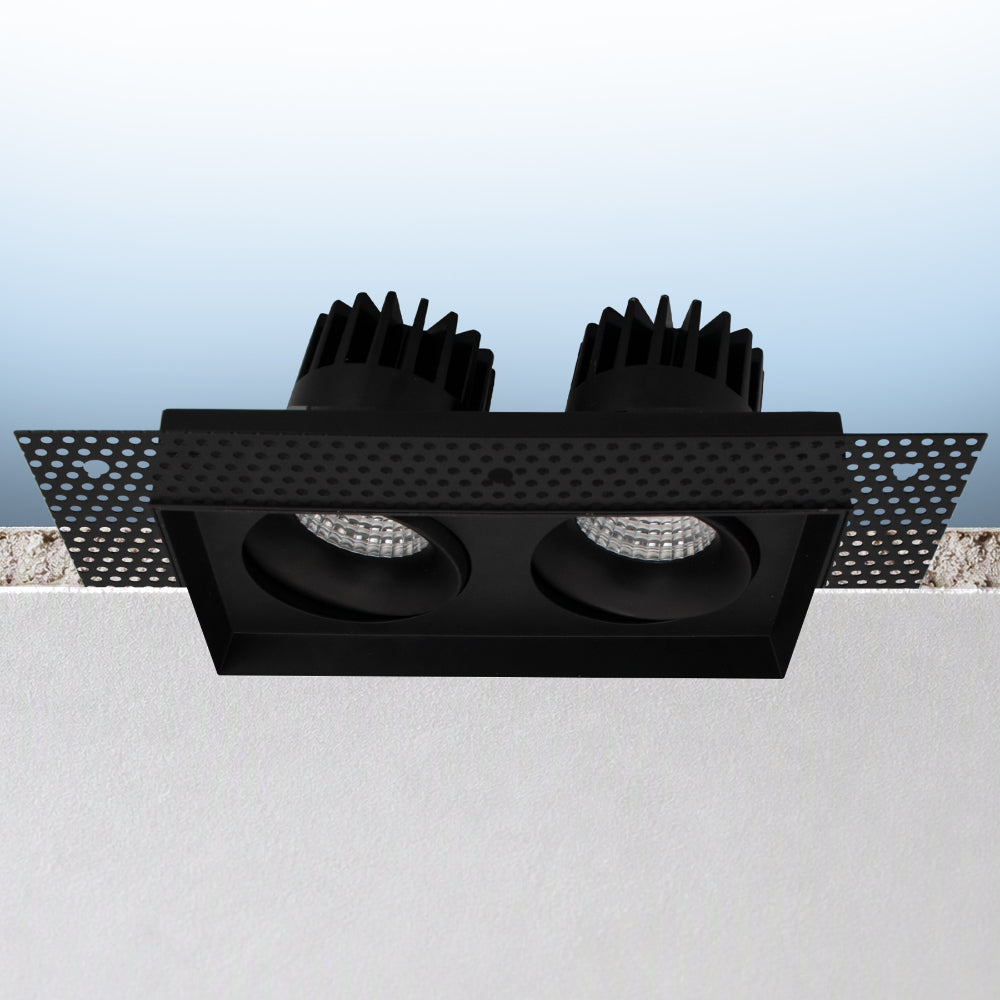

Luxrite Omni2 - Two Head Regressed Trimless Multi-Head Gimbal 5CCT Selectable - Dual Dimming/Universal Voltage

LuxriteSKU: LR32203

Select Finish: Black
Price:
Sale price$0.00 USD

Description

Luxrite Omni2 - Two Head Regressed Trimless Multi-Head Gimbal 5CCT Selectable - Dual Dimming/Universal Voltage

Specifications

  • Item description: LED/OMNI2/TL/5CCT/HC/G/WFL/DD/UNV/BK
  • Shape: 2 Head Gimbal

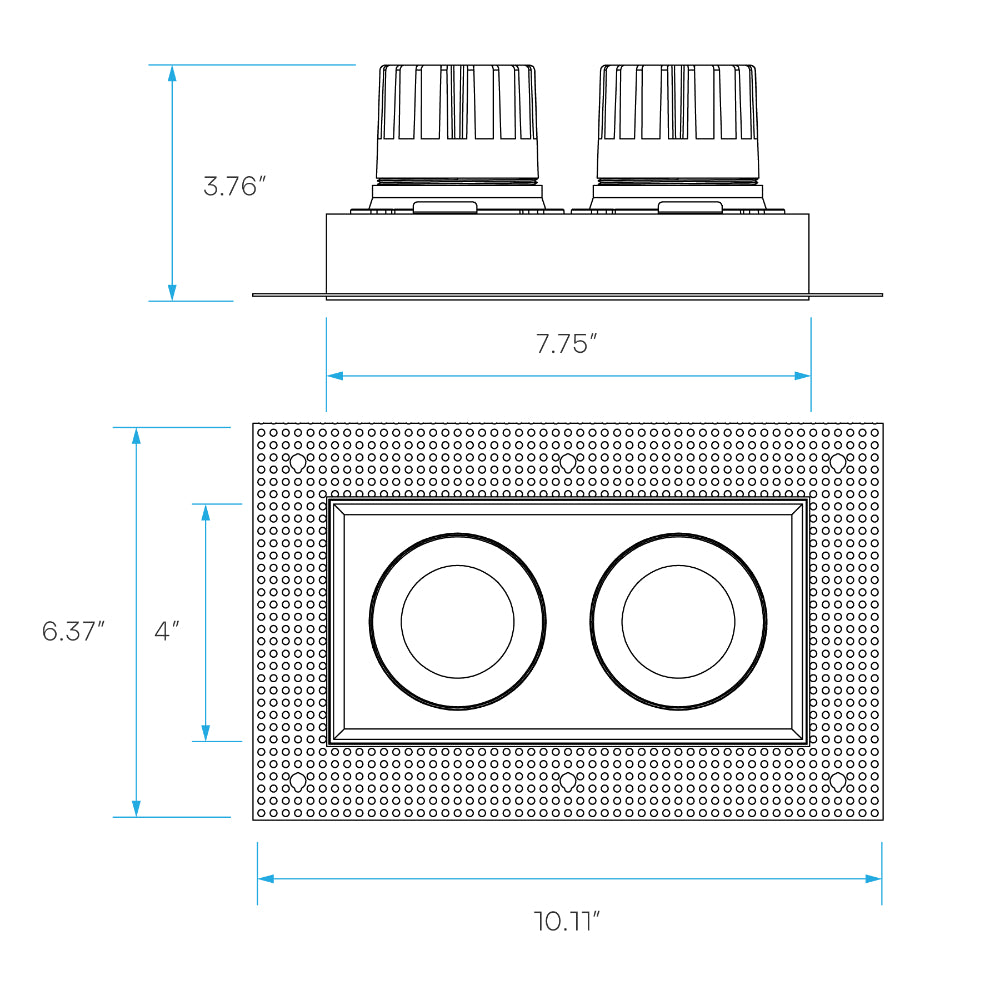

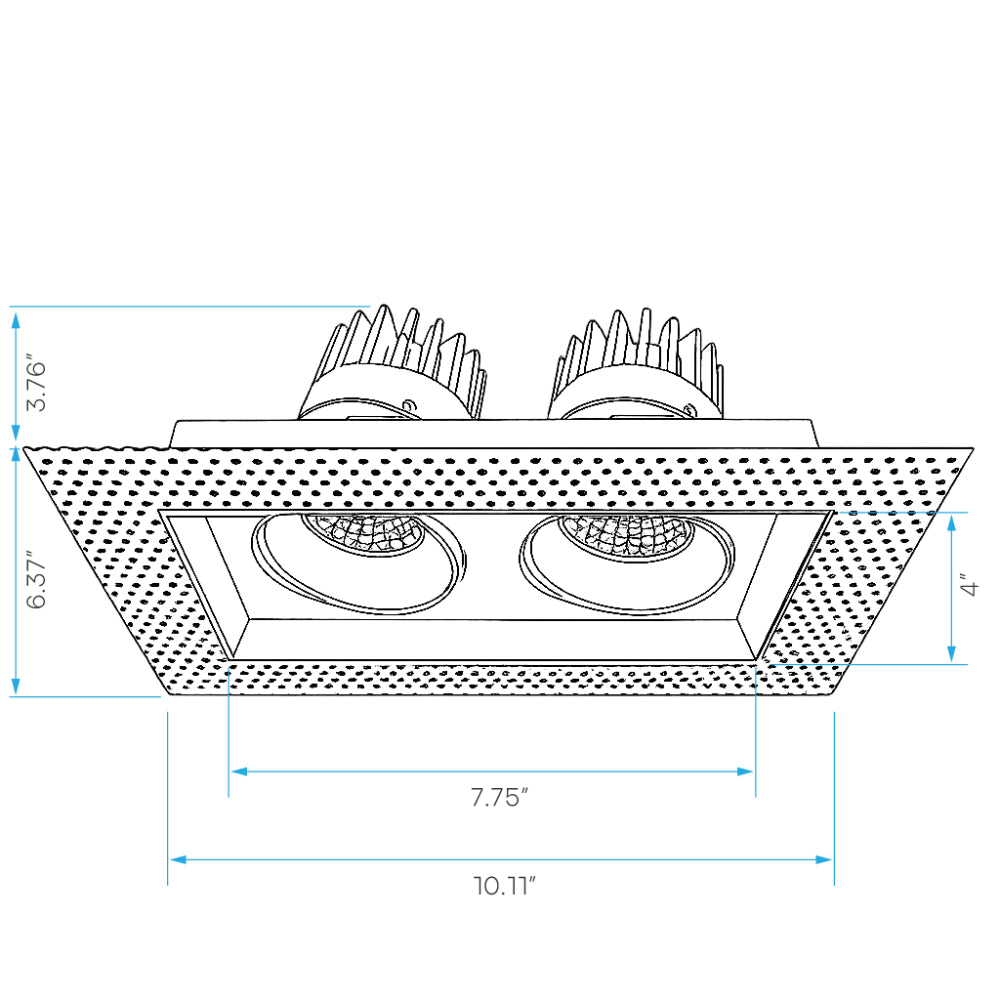

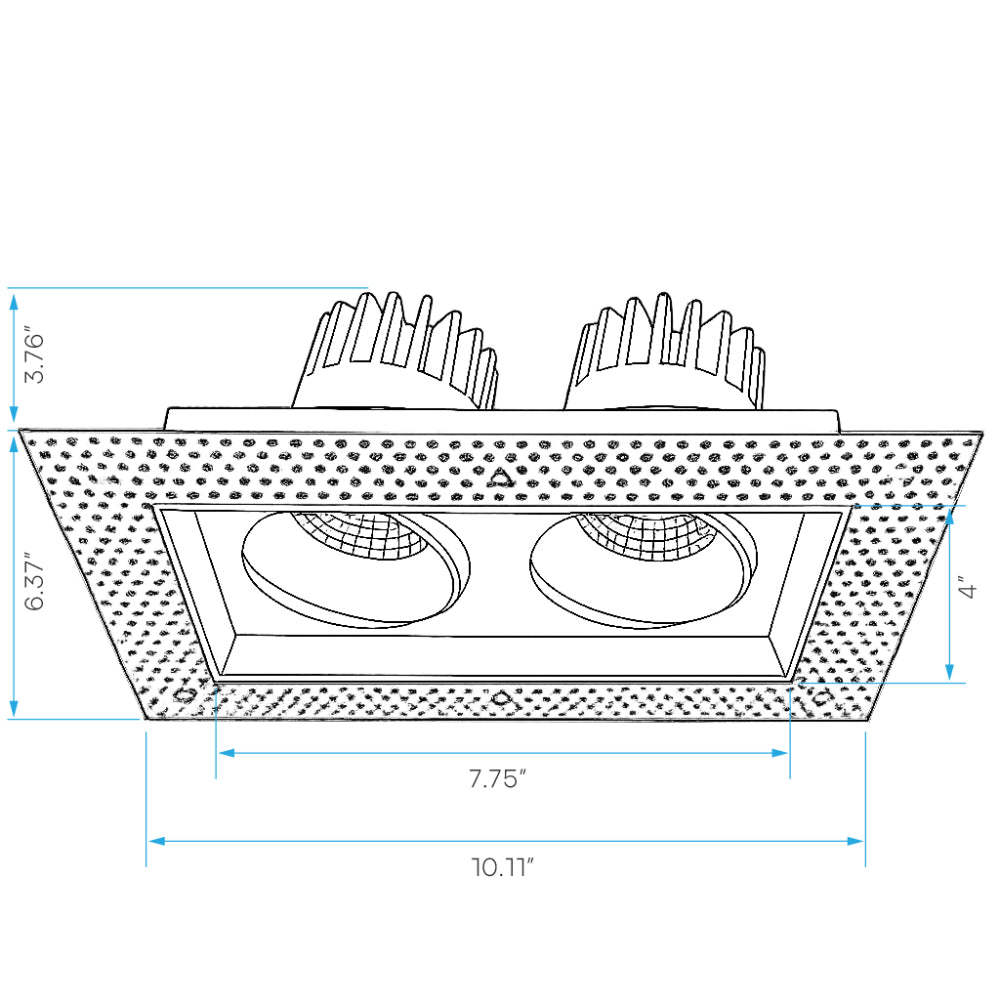

  • Dimensions:
    • Length: 10.11 Inch
    • Width: 6.37 Inch
    • Depth: 3.76 Inch
  • Cutout: 7.87 Inch x 4.25 Inch
  • Plate: Lr41013 (#1)

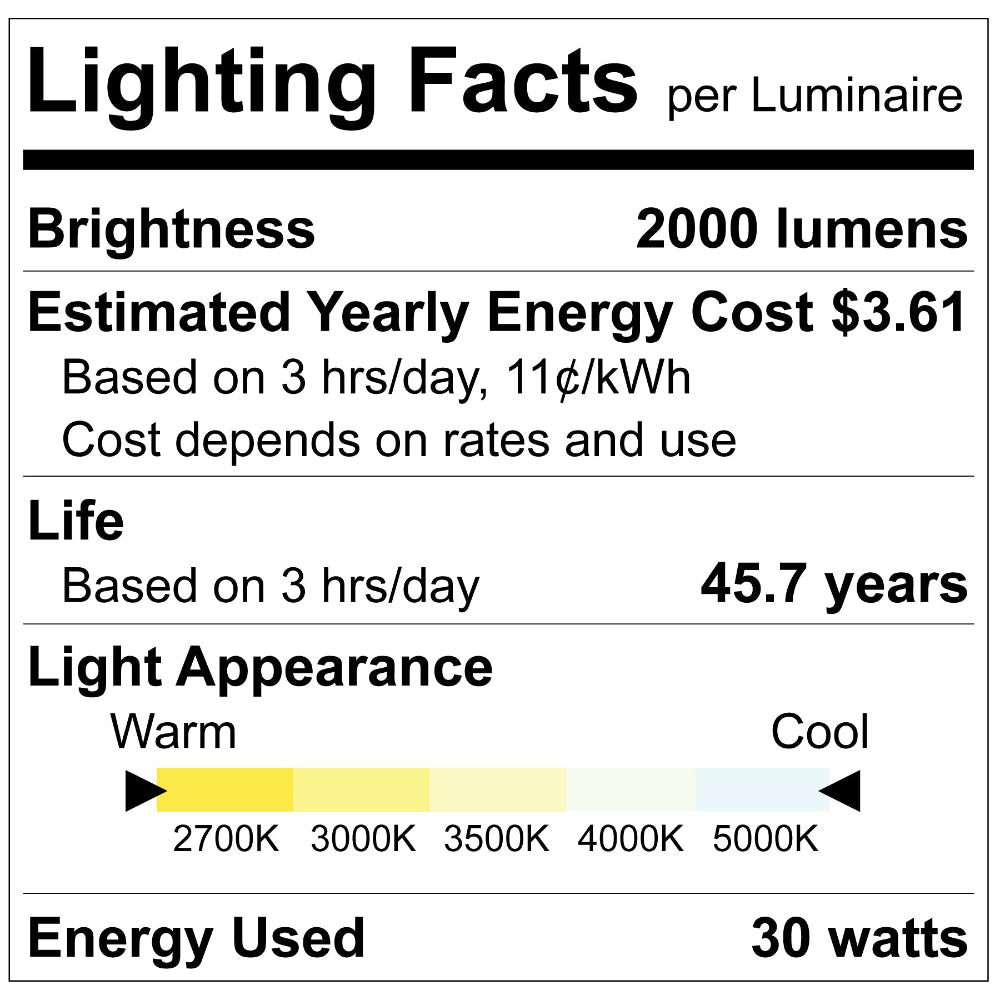

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 2000
  • Beam Angle: 60°
  • CRI: 90

Electrical

  • Power (Wattage): 30
  • Input Volts: 120-277V
  • Rated Lifetime: 50000
  • Dimmable: Dual Dimming TRIAC/0-10V
  • Power Factor: 0.9
  • Input Current: 250Ma
  • Frequency: 60Hz
  • Lumen Efficacy: 66
  • Operating Temp:
    • Min: -4°
    • Max: 104°
Product Files

Click forLuxrite LR32203 Specification Sheet

Click forLuxrite LR32203 Family Specification Sheet

Click forLuxrite LR32203 Install Guide

Click forLuxrite LR32203 Dimmer Compatibility

Click forLuxrite LR32203 Warranty

Click forLuxrite LR32202 Dimmer Compatibility

Click forLuxrite LR32202 Warranty
