Luxrite Omni3 - Three Head Regressed Multi-Head Gimbal 5CCT Selectable - Dual Dimming/Universal Voltage

LuxriteSKU: LR32195
Select Finish: Black
Price:
$0.00 USD

Description

Luxrite Omni3 - Three Head Regressed Multi-Head Gimbal 5CCT Selectable - Dual Dimming/Universal Voltage

Specifications

  • Item description: LED/OMNI3/5CCT/HC/G/WFL/DD/UNV/BK
  • Shape: 3 Head Gimbal

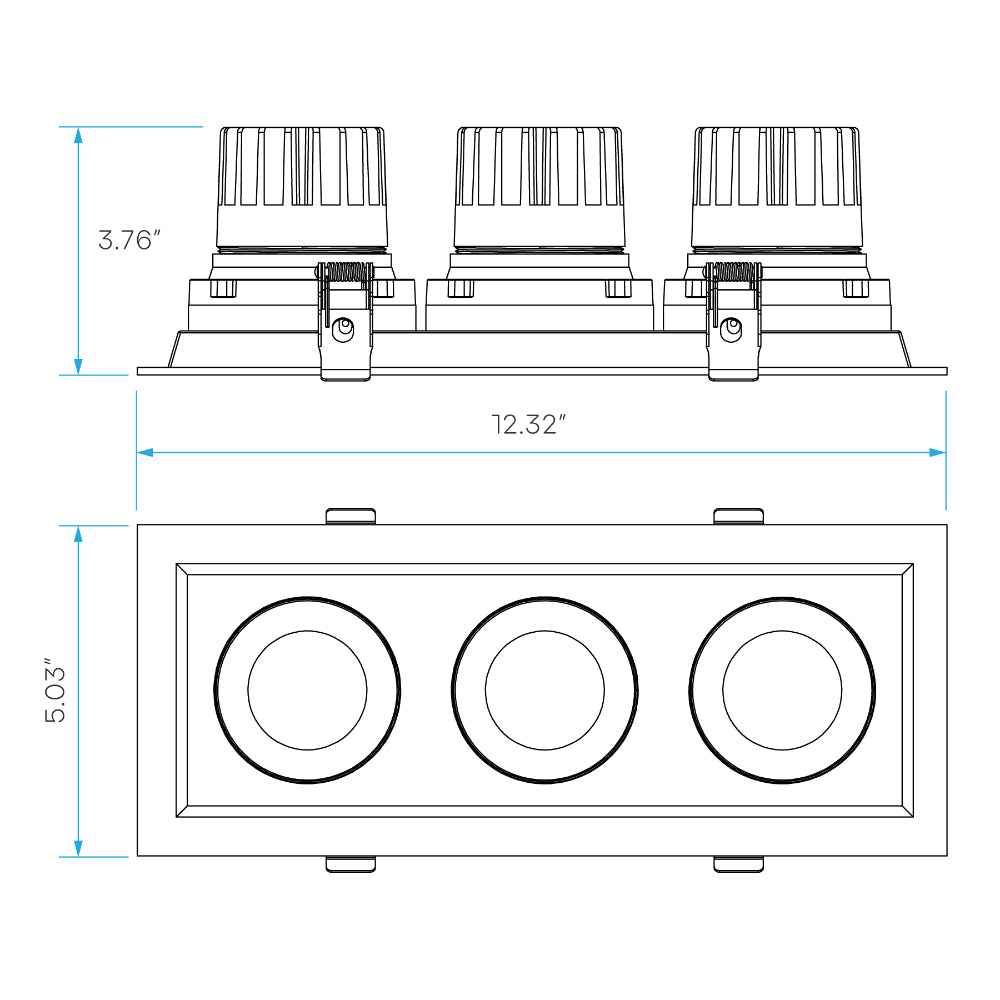

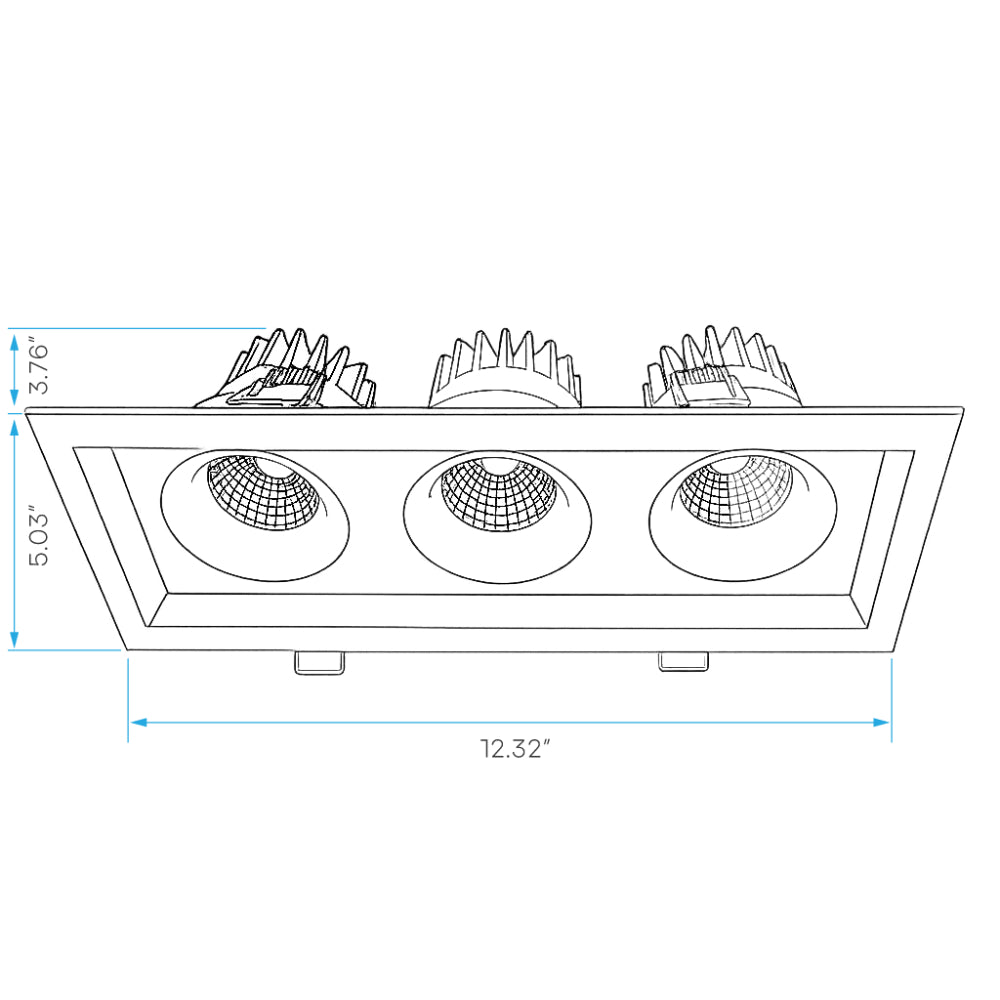

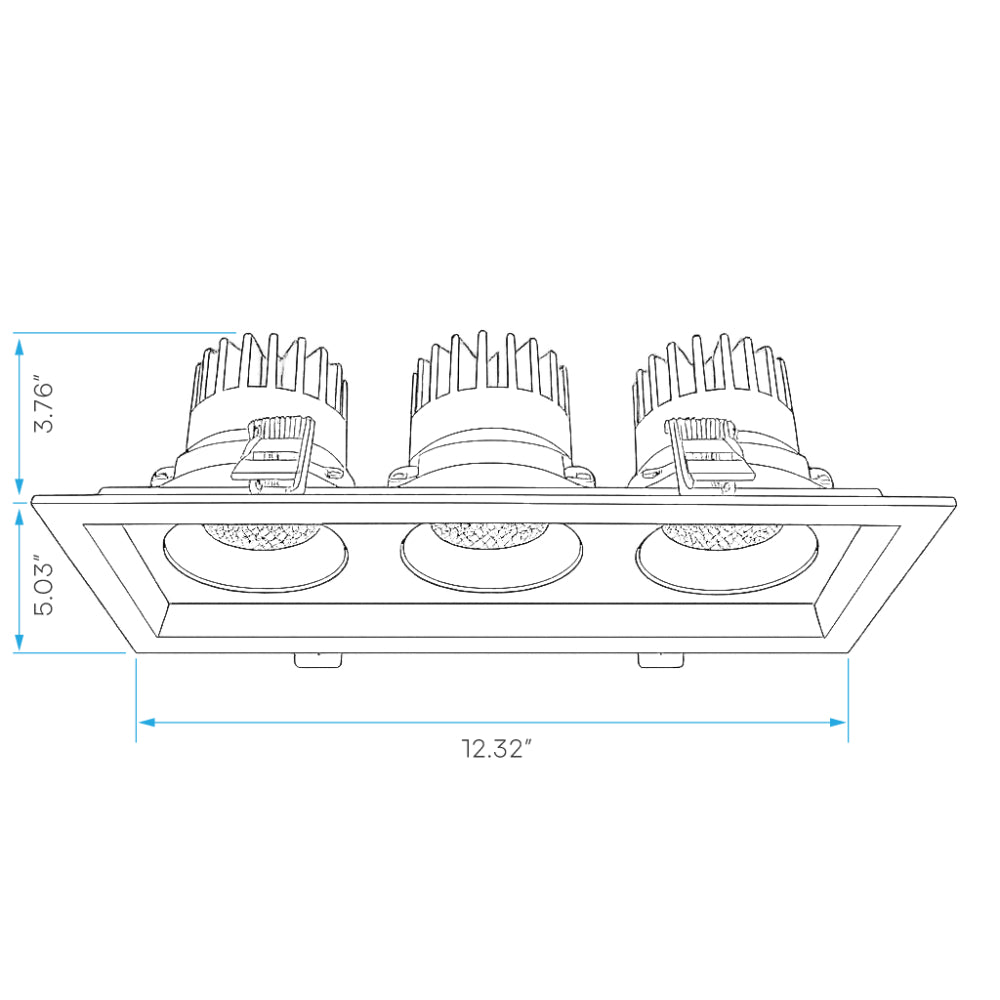

  • Dimensions:
    • Length: 12.32 Inch
    • Width: 5.03 Inch
    • Depth: 3.76 Inch
  • Cutout: 11.73 Inch x 4.25 Inch
  • Plate: Lr41013 (#2)

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 3000
  • Beam Angle: 60°
  • CRI: 90

Electrical

  • Power (Wattage): 45
  • Input Volts: 120-277V
  • Rated Lifetime: 50000
  • Dimmable: Dual Dimming TRIAC/0-10V
  • Power Factor: 0.9
  • Input Current: 375Ma
  • Frequency: 60Hz
  • Lumen Efficacy: 66
  • Operating Temp:
    • Min: -4°
    • Max: 104°
Product Files

Click forLuxrite LR32195 Specification Sheet

Click forLuxrite LR32195 Family Specification Sheet

Click forLuxrite LR32195 Install Guide

Click forLuxrite LR32195 Dimmer Compatibility

Click forLuxrite LR32195 Warranty

Click forLuxrite LR32194 Dimmer Compatibility

Click forLuxrite LR32194 Warranty
