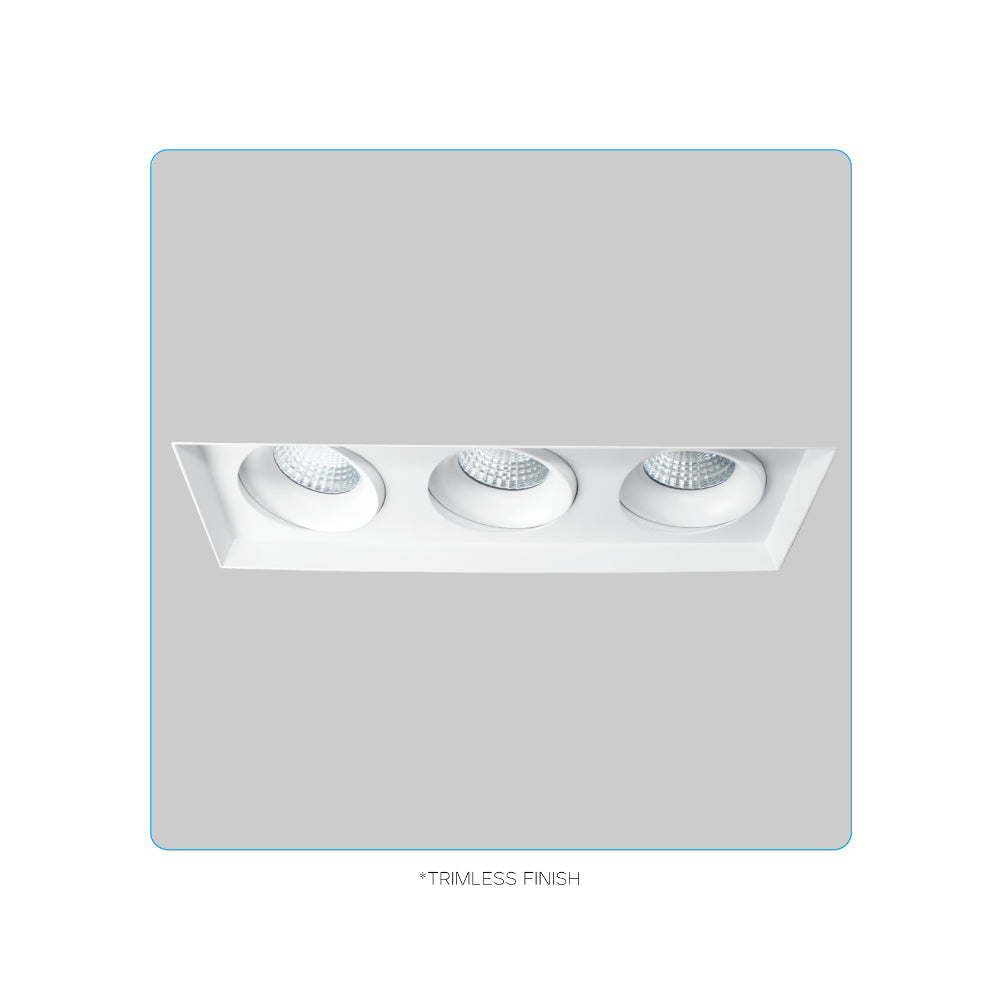

Luxrite Omni3 - Three Head Regressed Trimless Multi-Head Gimbal 5CCT Selectable - Dual Dimming/Universal Voltage

LuxriteSKU: LR32205

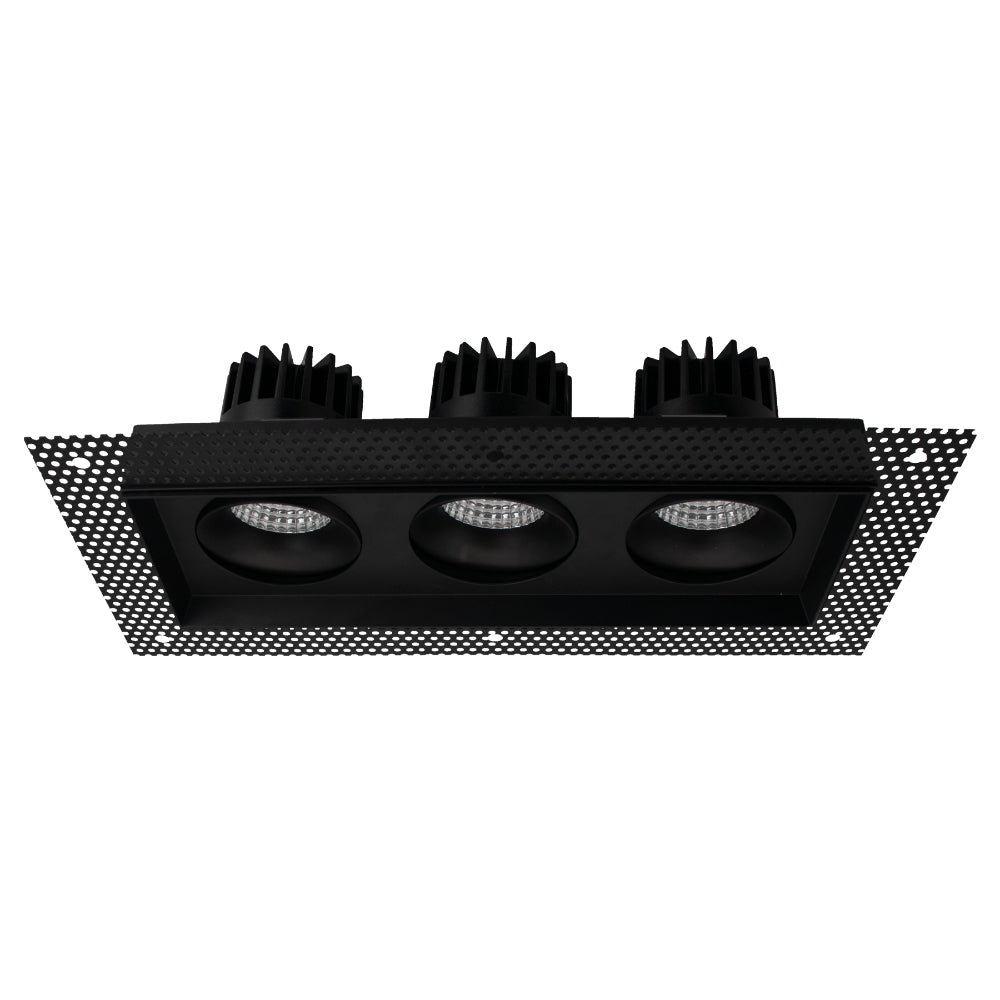

Select Finish: Black
Price:
$0.00 USD

Description

Luxrite Omni3 - Three Head Regressed Trimless Multi-Head Gimbal 5CCT Selectable - Dual Dimming/Universal Voltage

Specifications

  • Item description: LED/OMNI3/TL/5CCT/HC/G/WFL/DD/UNV/BK
  • Shape: 3 Head Gimbal

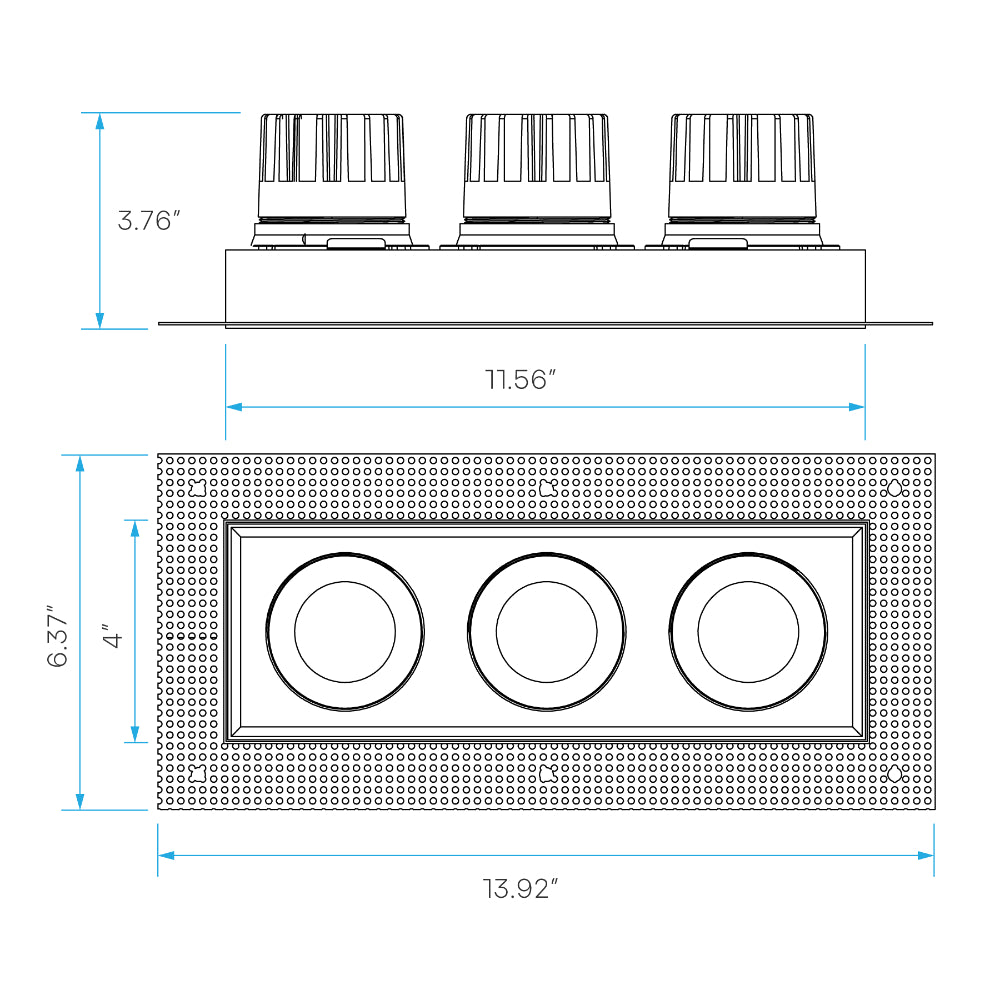

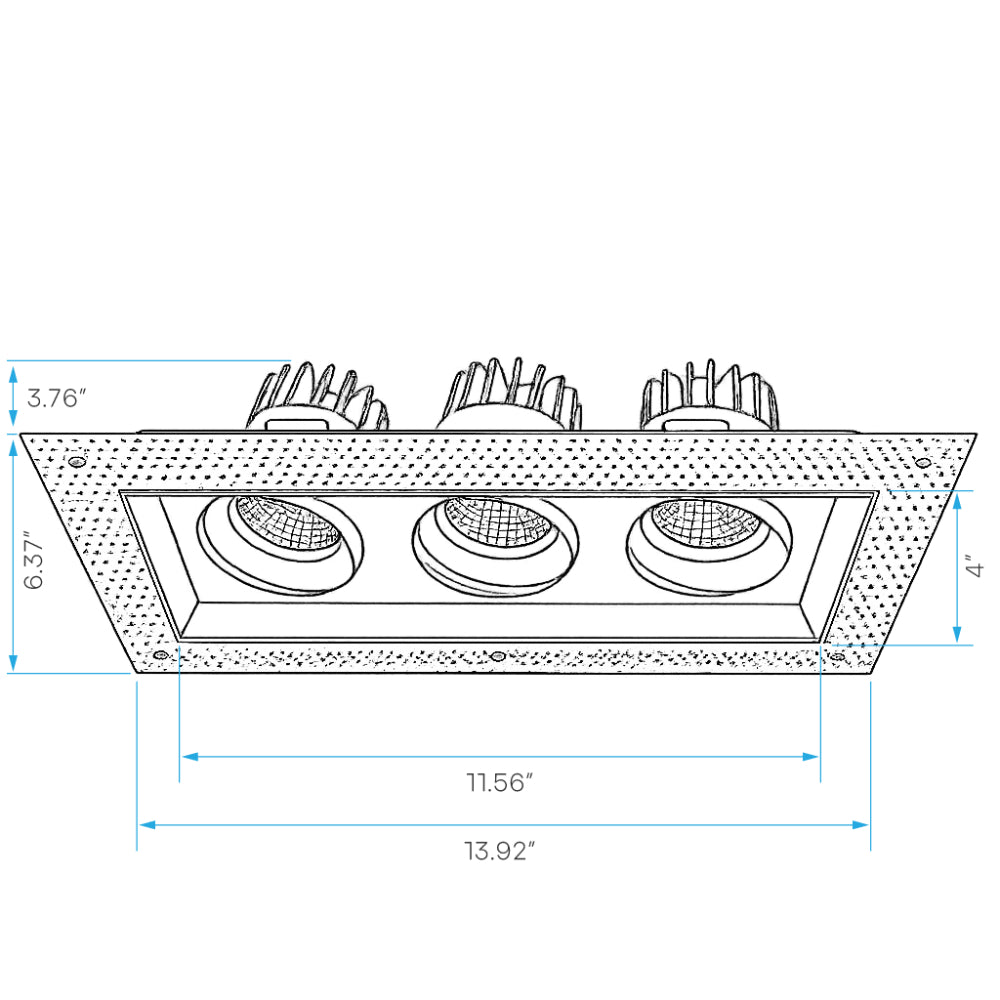

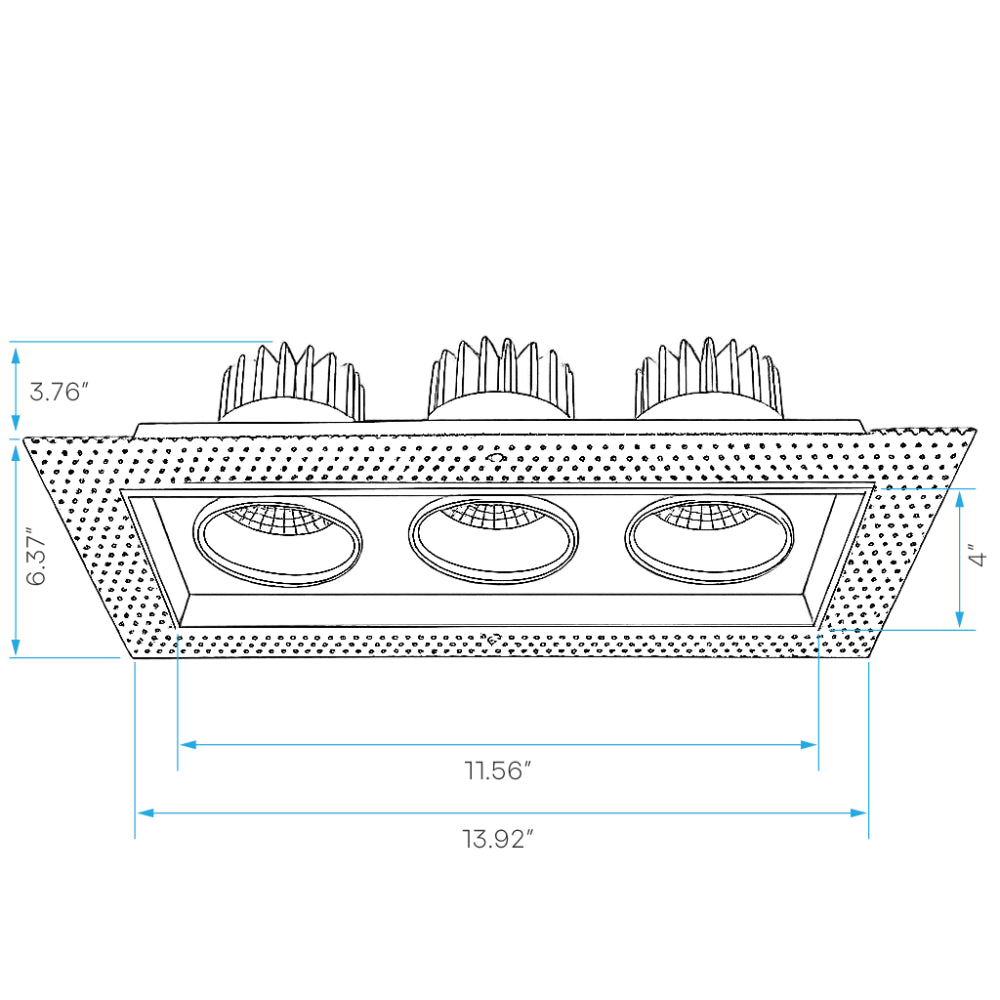

  • Dimensions:
    • Length: 13.92 Inch
    • Width: 6.37 Inch
    • Depth: 3.76 Inch
  • Cutout: 11.73 Inch x 4.25 Inch
  • Plate: Lr41013 (#2)

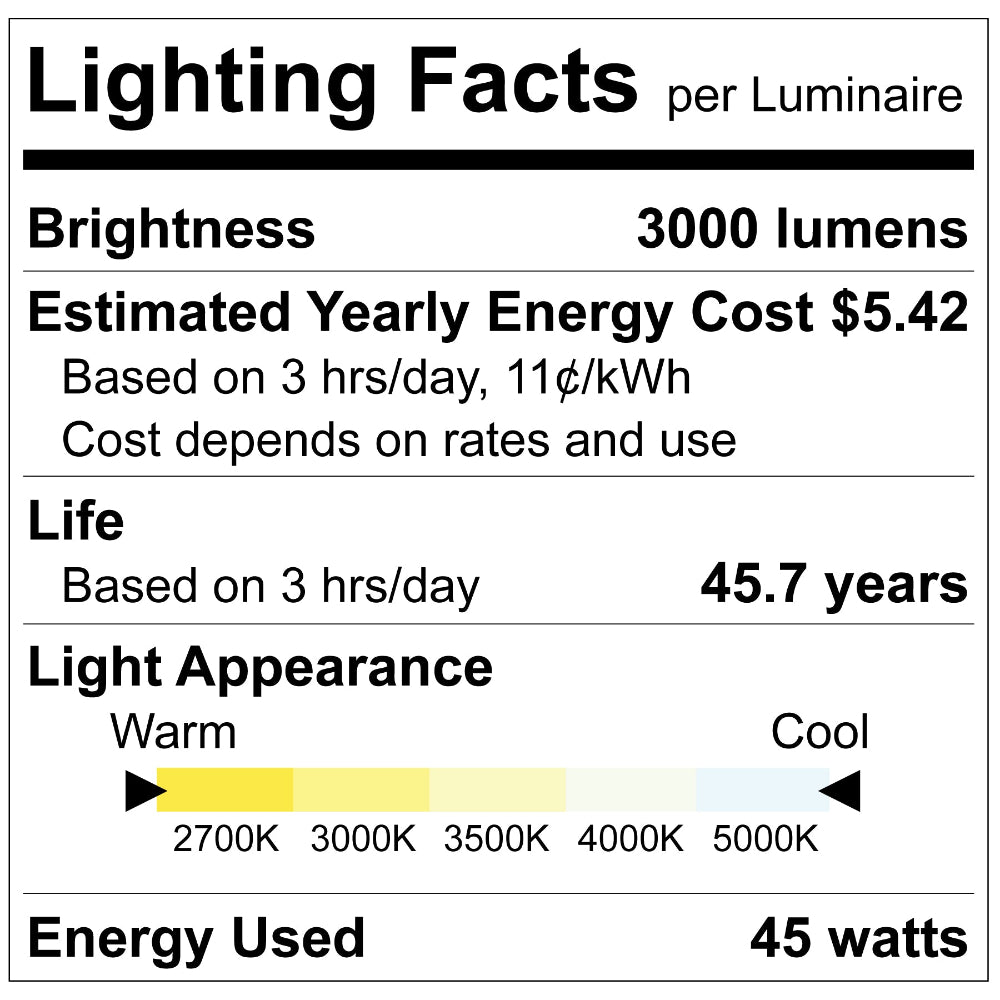

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 3000
  • Beam Angle: 60°
  • CRI: 90

Electrical

  • Power (Wattage): 45
  • Input Volts: 120-277V
  • Rated Lifetime: 50000
  • Dimmable: Dual Dimming TRIAC/0-10V
  • Power Factor: 0.9
  • Input Current: 375Ma
  • Frequency: 60Hz
  • Lumen Efficacy: 66
  • Operating Temp:
    • Min: -4°
    • Max: 104°
Product Files

Click forLuxrite LR32205 Specification Sheet

Click forLuxrite LR32205 Family Specification Sheet

Click forLuxrite LR32205 Install Guide

Click forLuxrite LR32205 Dimmer Compatibility

Click forLuxrite LR32205 Warranty

Click forLuxrite LR32204 Dimmer Compatibility

Click forLuxrite LR32204 Warranty
