Luxrite Omni4 - Four Head Regressed Multi-Head Gimbal 5CCT Selectable - Dual Dimming/Universal Voltage

LuxriteSKU: LR32197

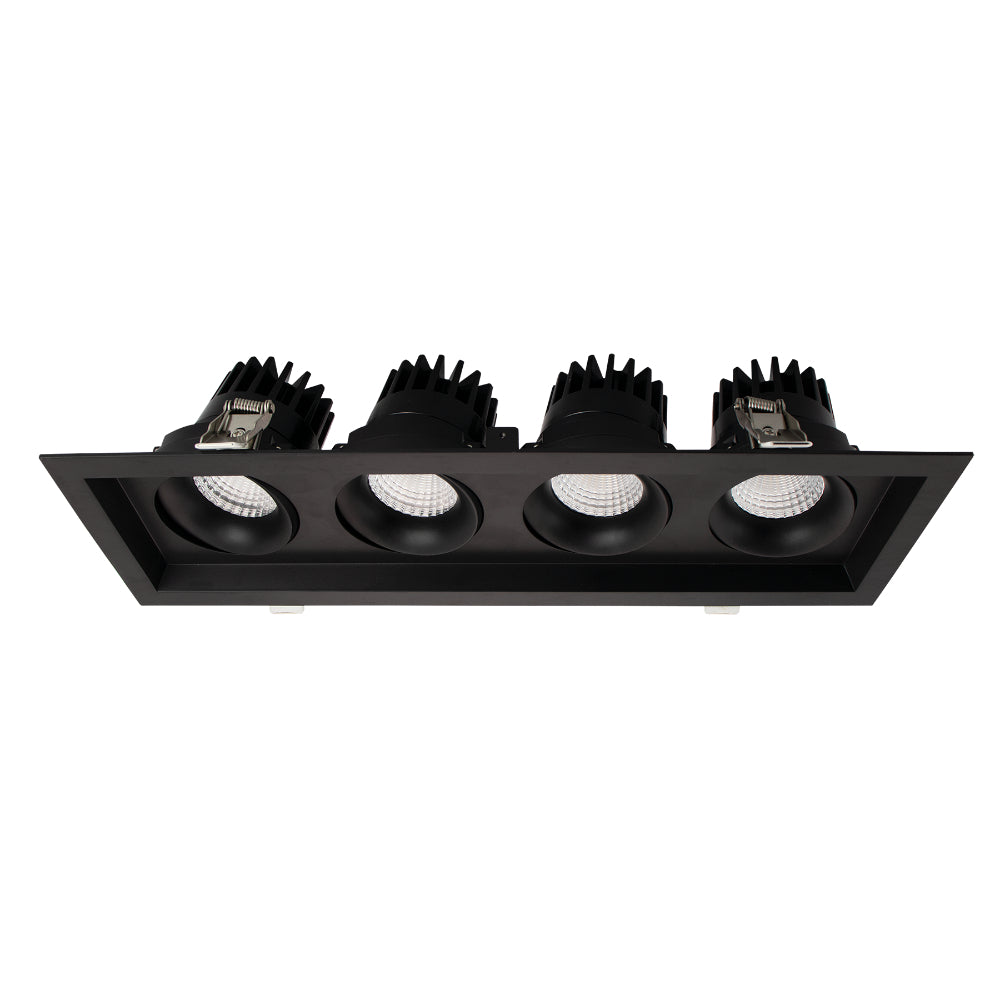

Select Finish: Black
Price:
$0.00 USD

Description

Luxrite Omni4 - Four Head Regressed Multi-Head Gimbal 5CCT Selectable - Dual Dimming/Universal Voltage

Specifications

  • Item description: LED/OMNI4/5CCT/HC/G/WFL/DD/UNV/BK
  • Shape: 4 Head Gimbal

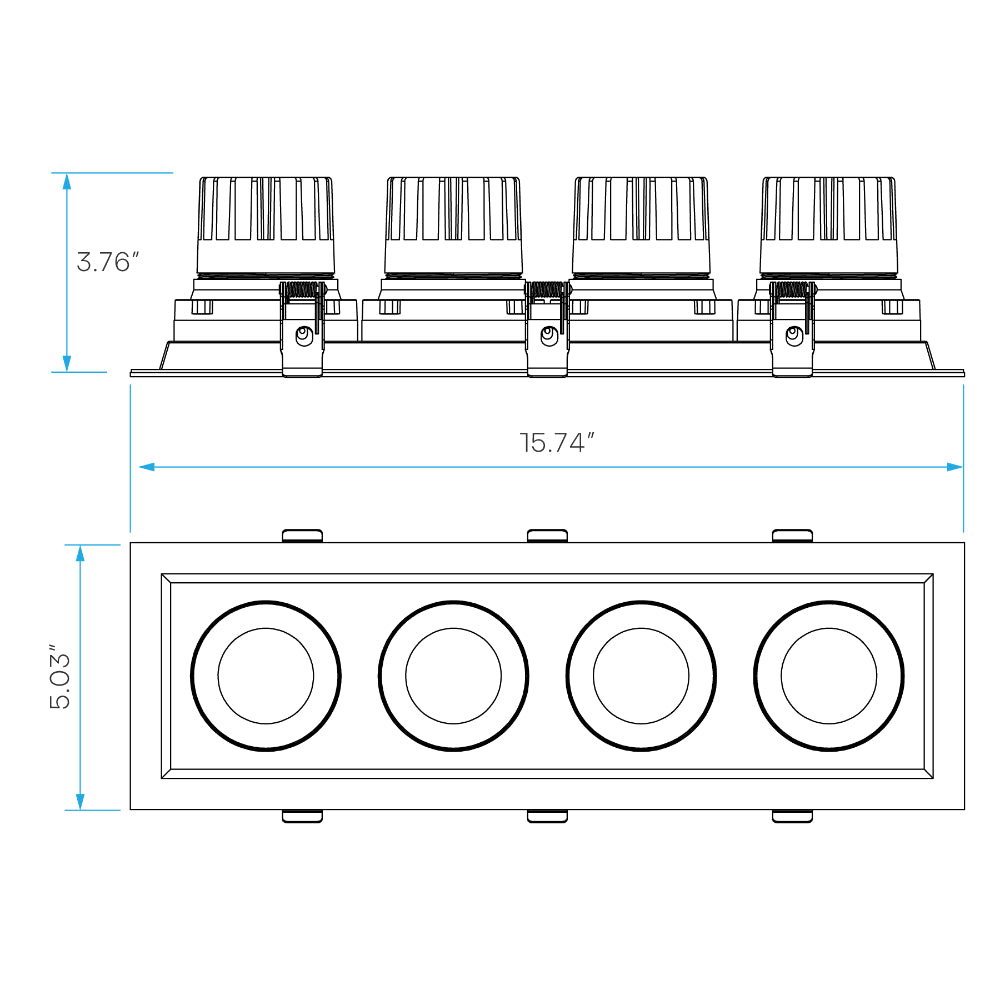

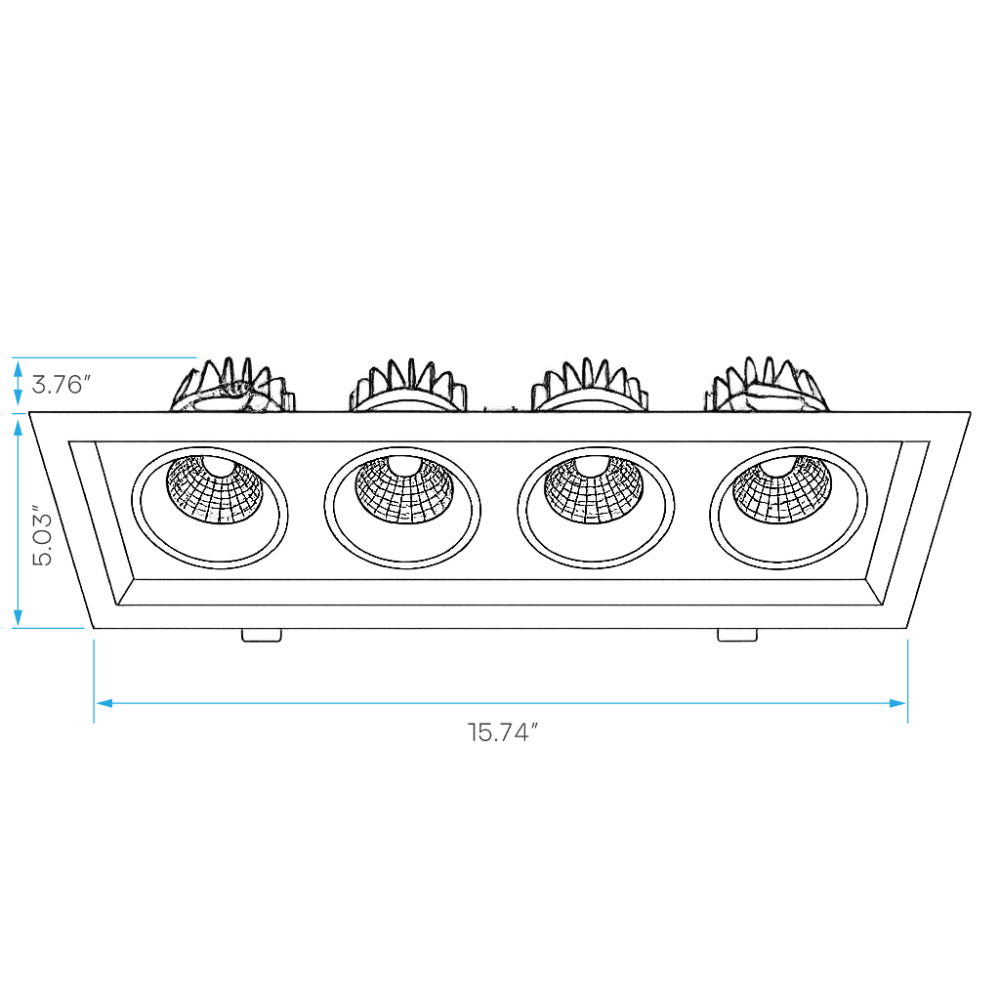

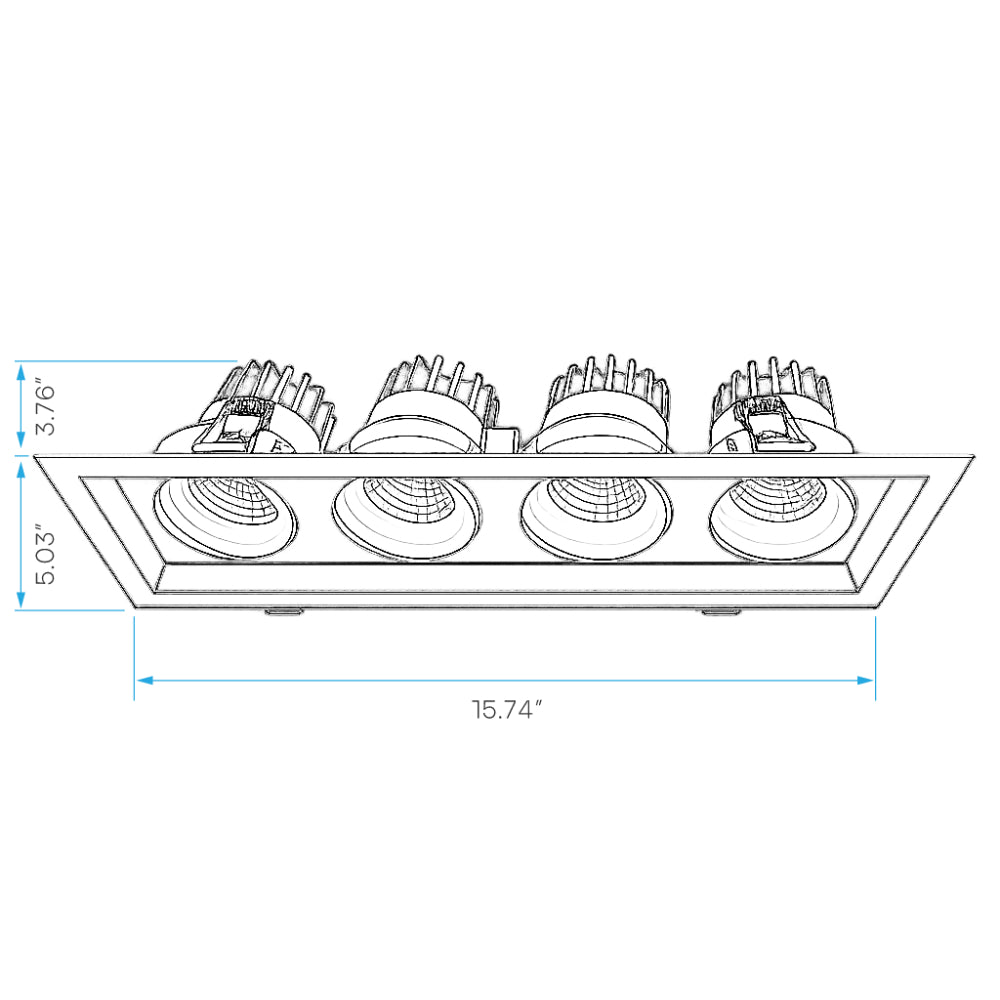

  • Dimensions:
    • Length: 15.74 Inch
    • Width: 5.03 Inch
    • Depth: 3.76 Inch
  • Cutout: 15.27 Inch x 4.25 Inch

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 4000
  • Beam Angle: 60°
  • CRI: 90

Electrical

  • Power (Wattage): 60
  • Input Volts: 120-277V
  • Rated Lifetime: 50000
  • Dimmable: Dual Dimming TRIAC/0-10V
  • Power Factor: 0.9
  • Input Current: 500Ma
  • Frequency: 60Hz
  • Lumen Efficacy: 66
  • Operating Temp:
    • Min: -4°
    • Max: 104°
Product Files

Click forLuxrite LR32197 Specification Sheet

Click forLuxrite LR32197 Family Specification Sheet

Click forLuxrite LR32197 Install Guide

Click forLuxrite LR32197 Dimmer Compatibility

Click forLuxrite LR32197 Warranty

Click forLuxrite LR32196 Dimmer Compatibility

Click forLuxrite LR32196 Warranty
