Luxrite Omni4 - Four Head Regressed Trimless Multi-Head Gimbal 5CCT Selectable - Dual Dimming/Universal Voltage

LuxriteSKU: LR32207
Select Finish: Black
Price:
$0.00 USD

Description

Luxrite Omni4 - Four Head Regressed Trimless Multi-Head Gimbal 5CCT Selectable - Dual Dimming/Universal Voltage

Specifications

  • Item description: LED/OMNI4/TL/5CCT/HC/G/WFL/DD/UNV/BK
  • Shape: 4 Head Gimbal

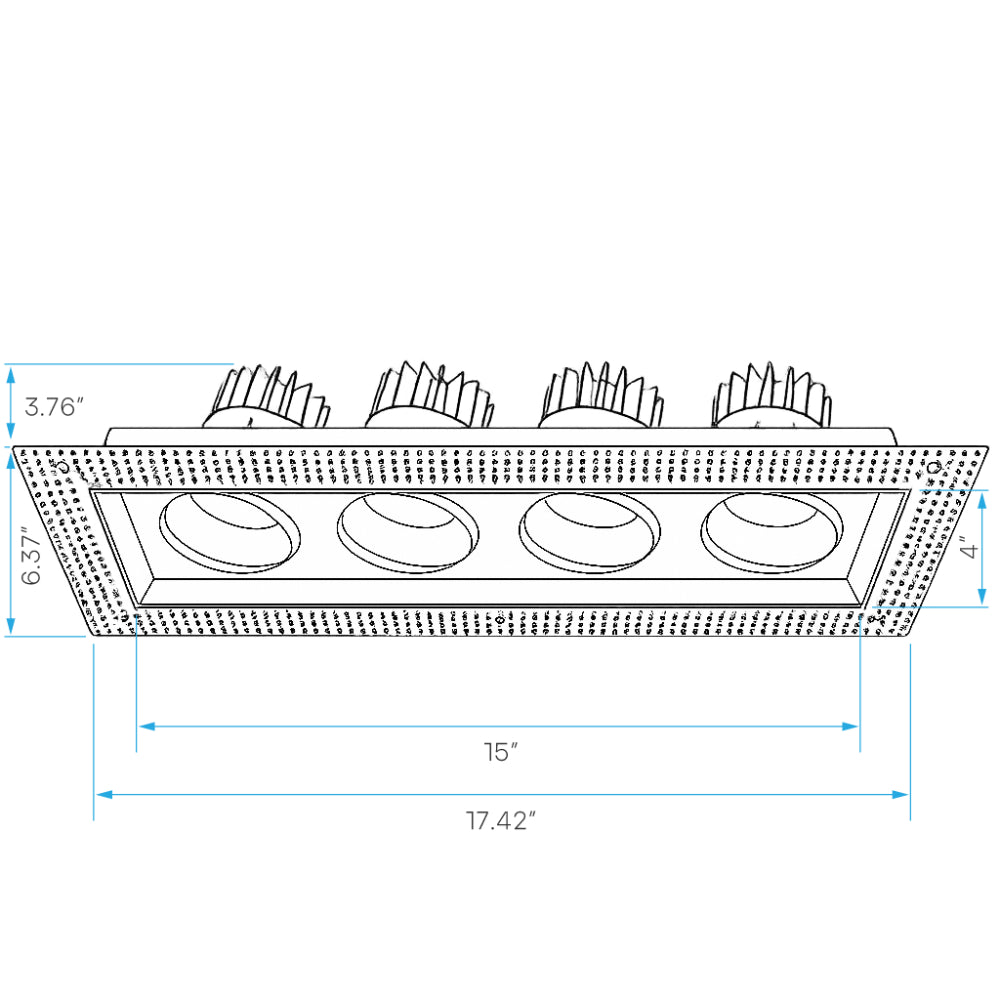

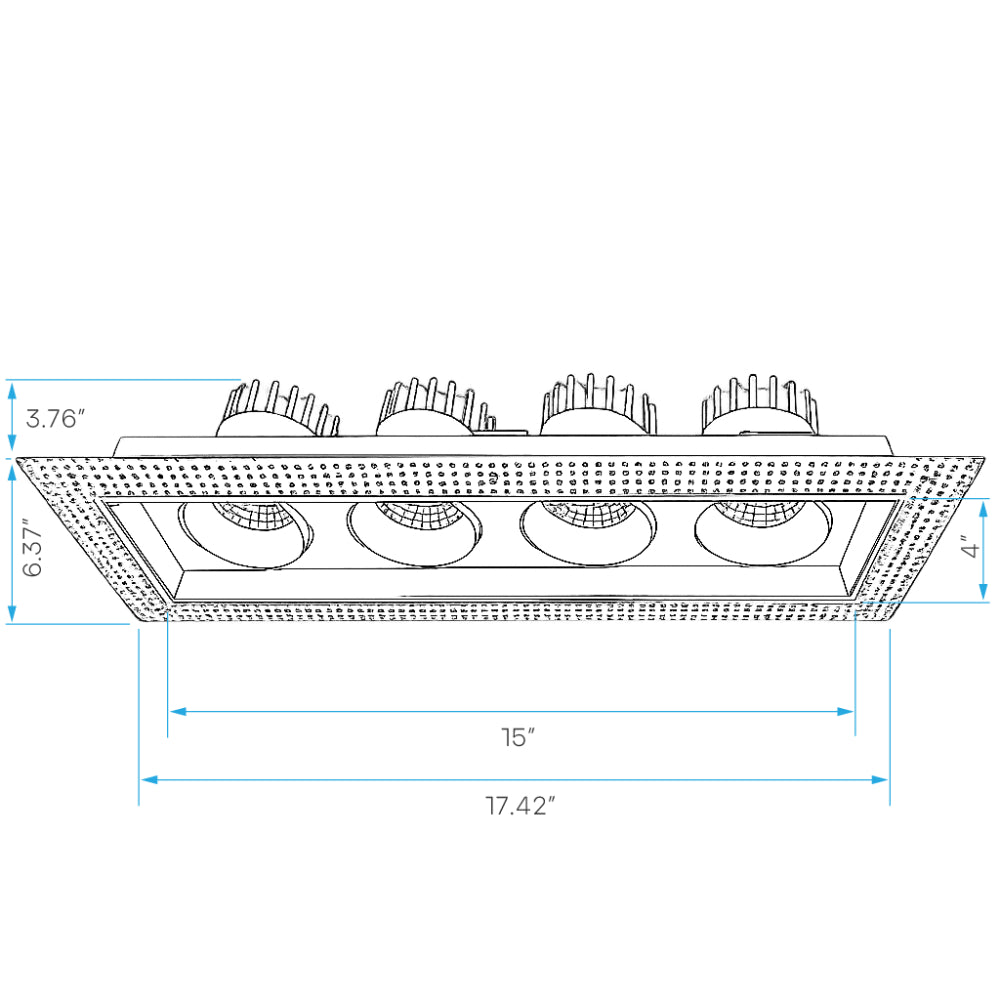

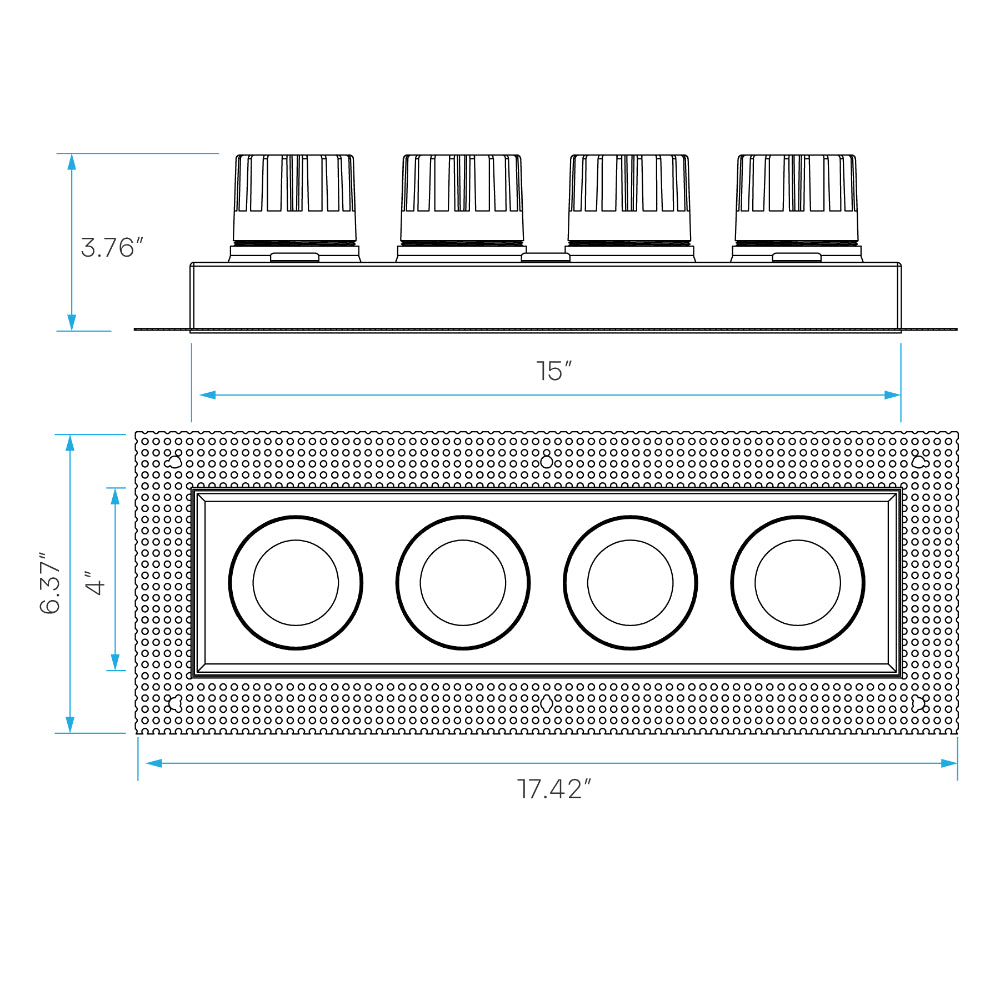

  • Dimensions:
    • Length: 17.42 Inch
    • Width: 6.37 Inch
    • Depth: 3.76 Inch
  • Cutout: 15.27 Inch x 4.25 Inch

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 4000
  • Beam Angle: 60°
  • CRI: 90

Electrical

  • Power (Wattage): 60
  • Input Volts: 120-277V
  • Rated Lifetime: 50000
  • Dimmable: Dual Dimming TRIAC/0-10V
  • Power Factor: 0.9
  • Input Current: 500Ma
  • Frequency: 60Hz
  • Lumen Efficacy: 66
  • Operating Temp:
    • Min: -4°
    • Max: 104°
Product Files

Click forLuxrite LR32207 Specification Sheet

Click forLuxrite LR32207 Family Specification Sheet

Click forLuxrite LR32207 Install Guide

Click forLuxrite LR32207 Dimmer Compatibility

Click forLuxrite LR32207 Warranty

Click forLuxrite LR32206 Dimmer Compatibility

Click forLuxrite LR32206 Warranty
