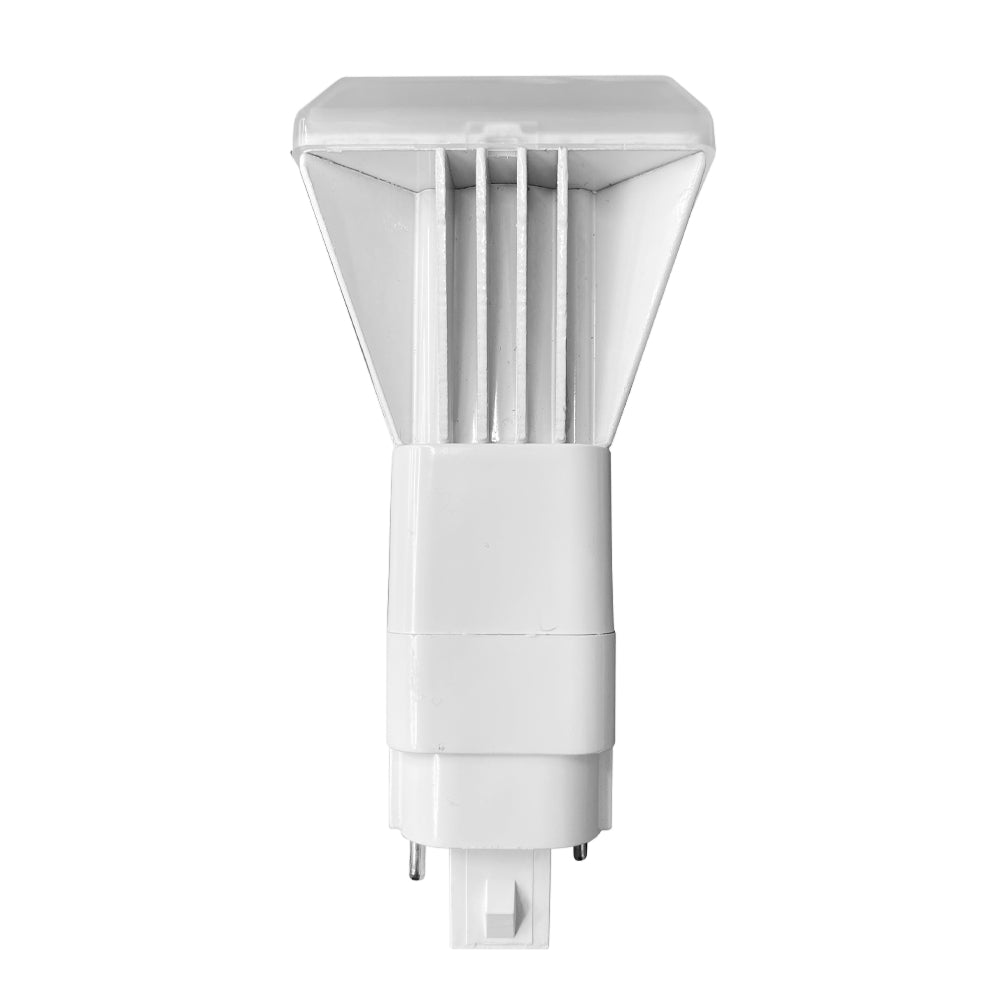

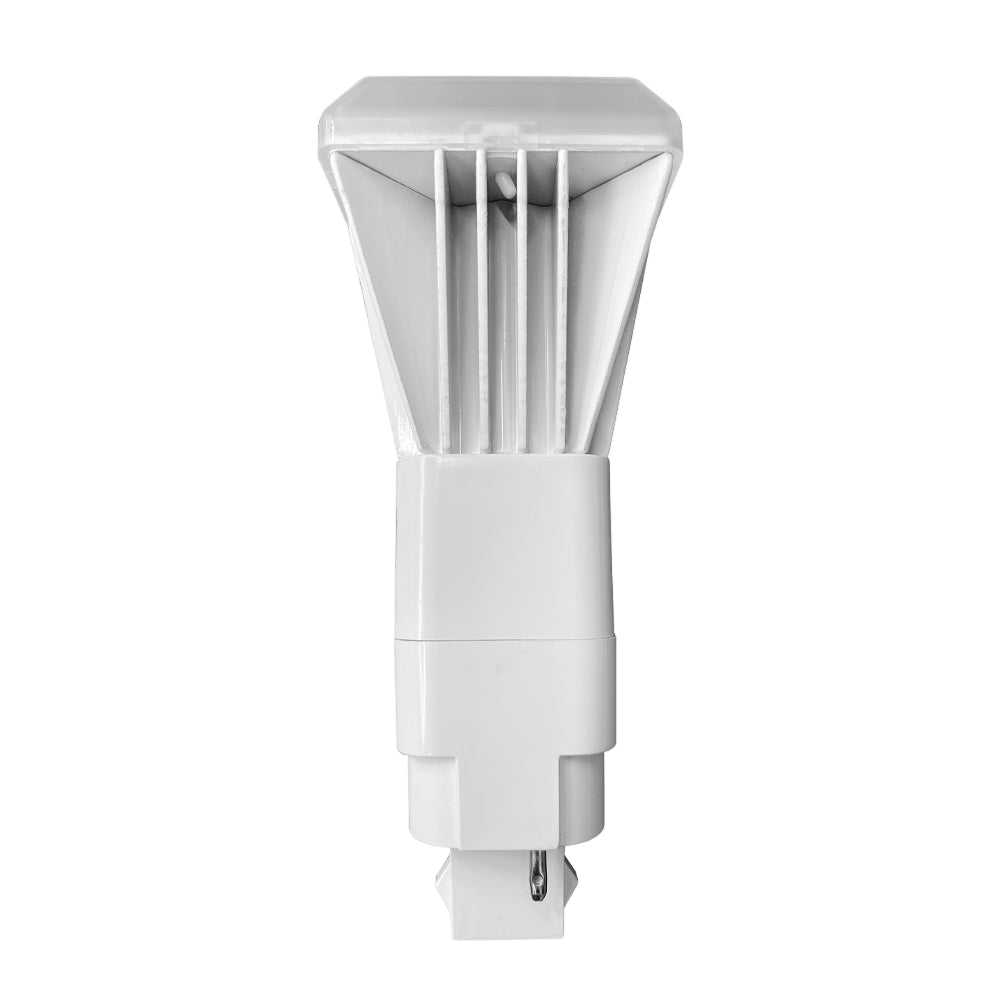

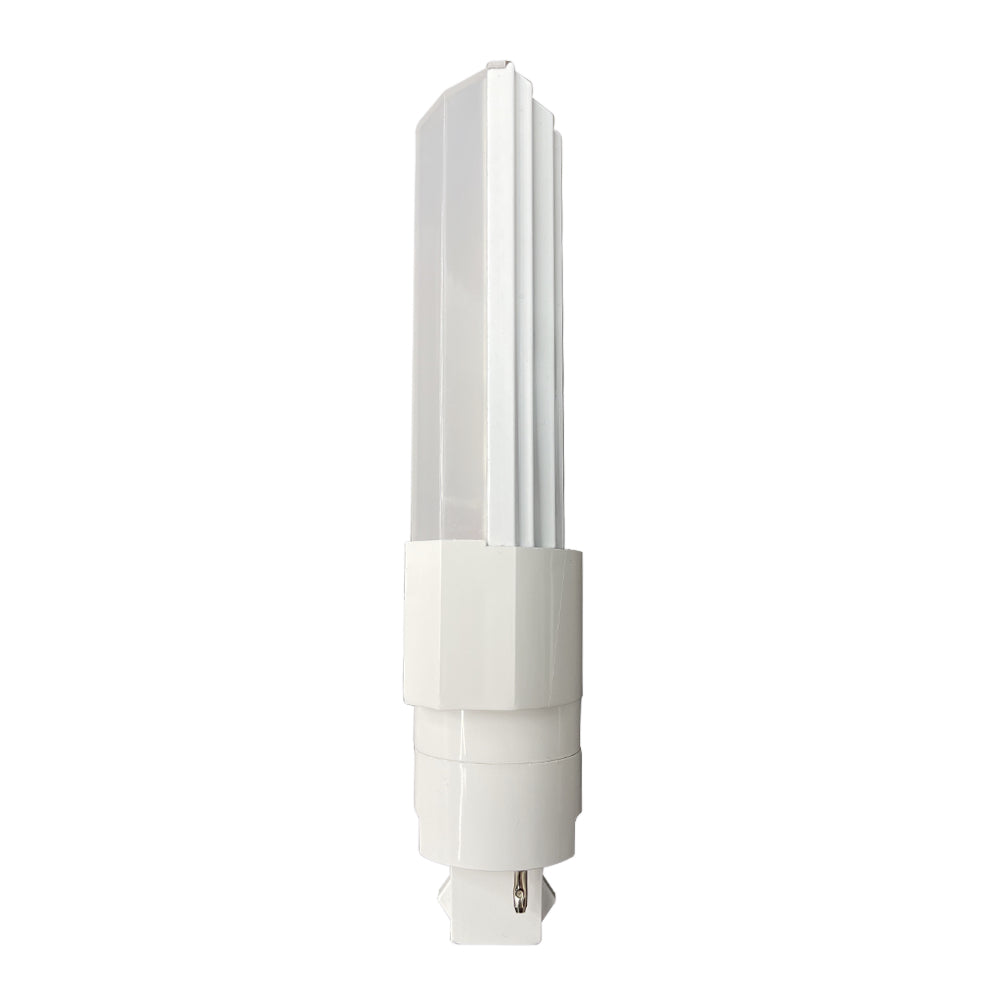

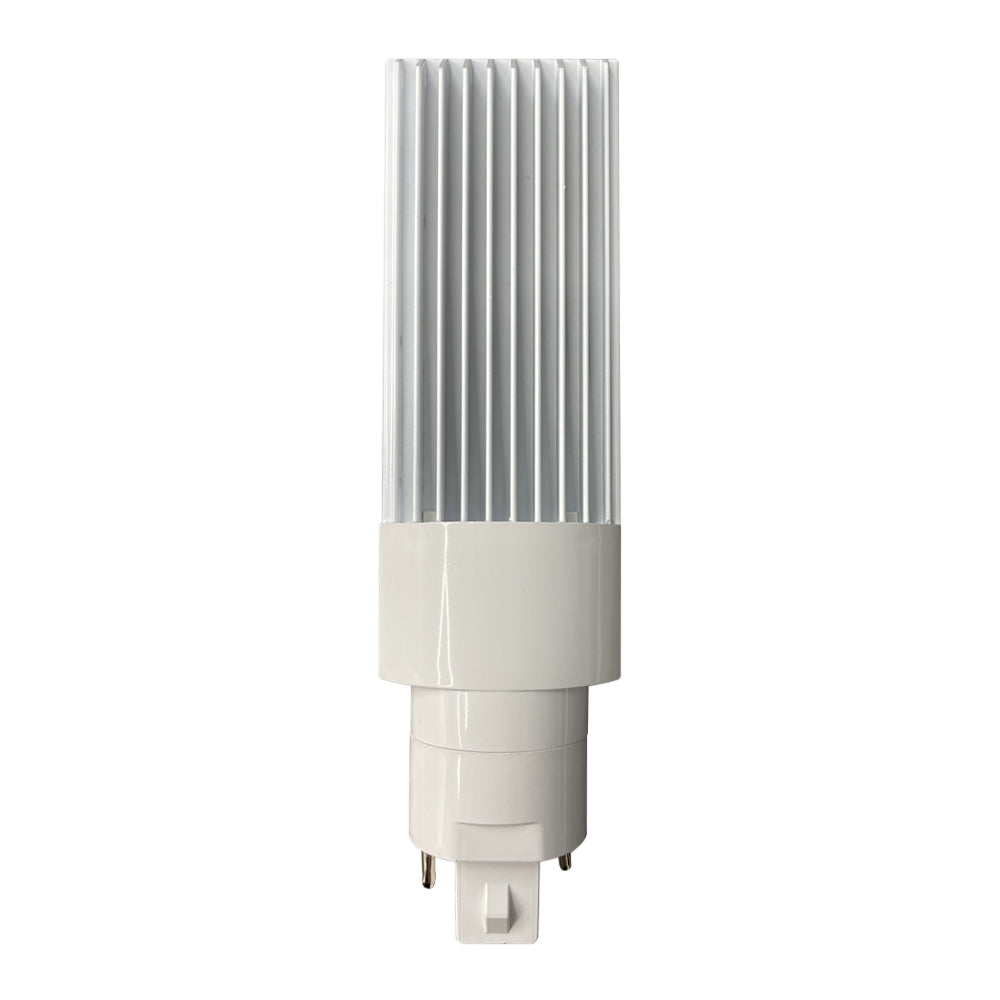

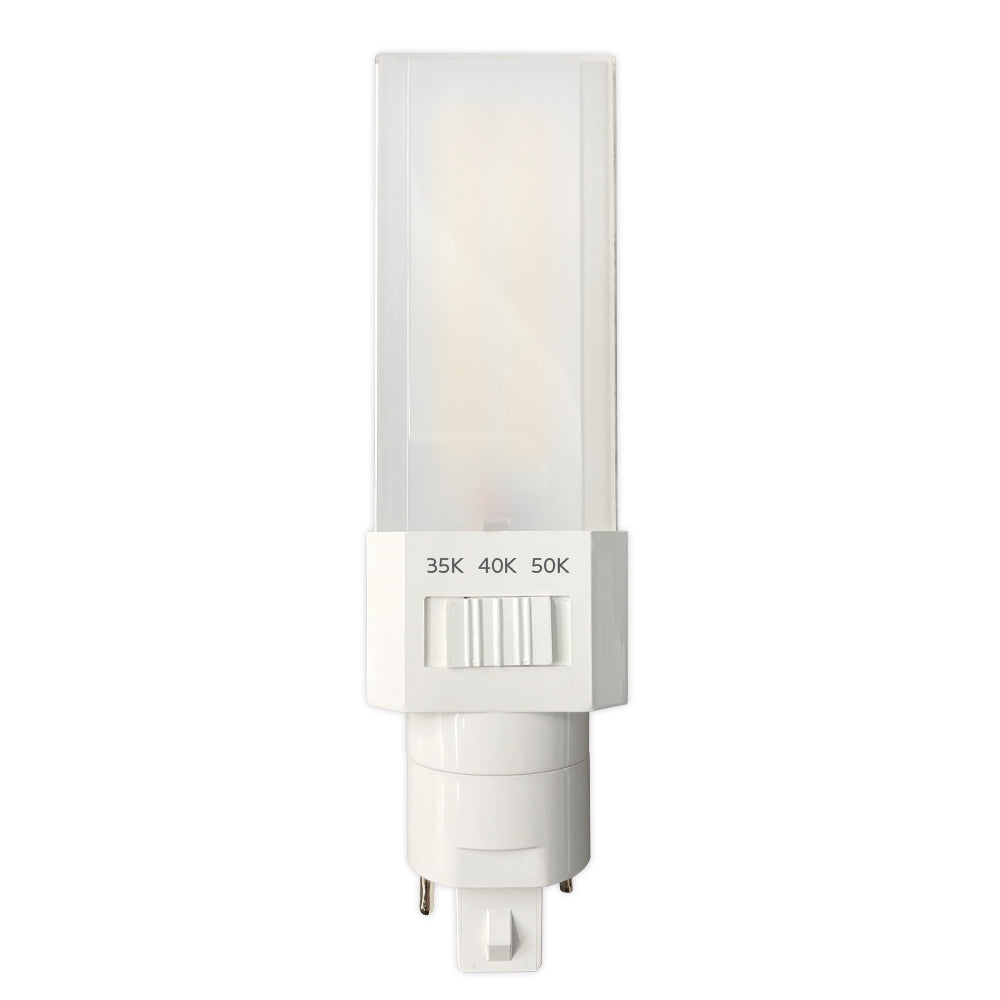

Luxrite Quad Style 11W 3CCT Bypass LED Lamp

LuxriteSKU: LR24567
Select Shape: Vertical
Price:
$0.00 USD

Description

Luxrite Quad Style 11W 3CCT Bypass LED Lamp

Specifications

  • Item description: LED11DD/E/3CCT/B-V
  • Size: 4.65 Inch
  • Base: G24D/G24Q

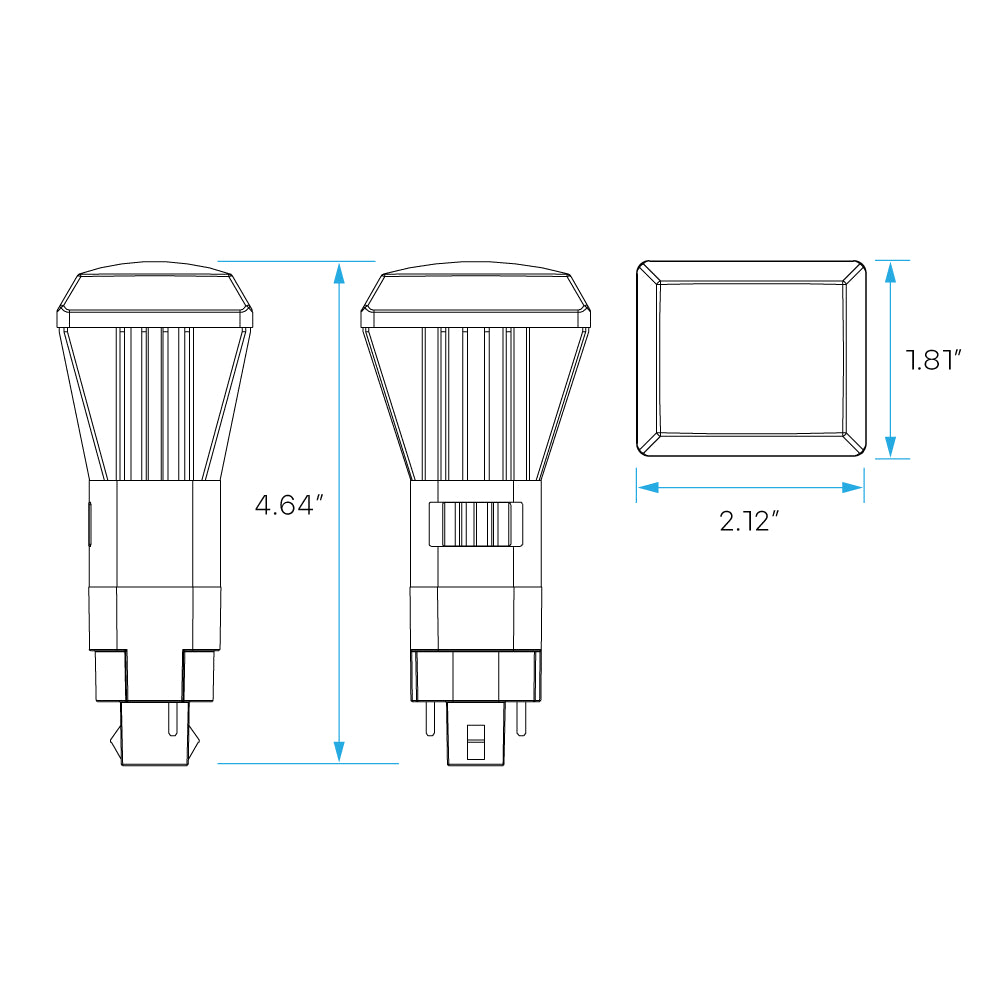

  • Dimensions:
    • Length: 4.65 Inch
    • Width: 2.09 Inch
    • Depth: 1.75 Inch
  • Finish: White

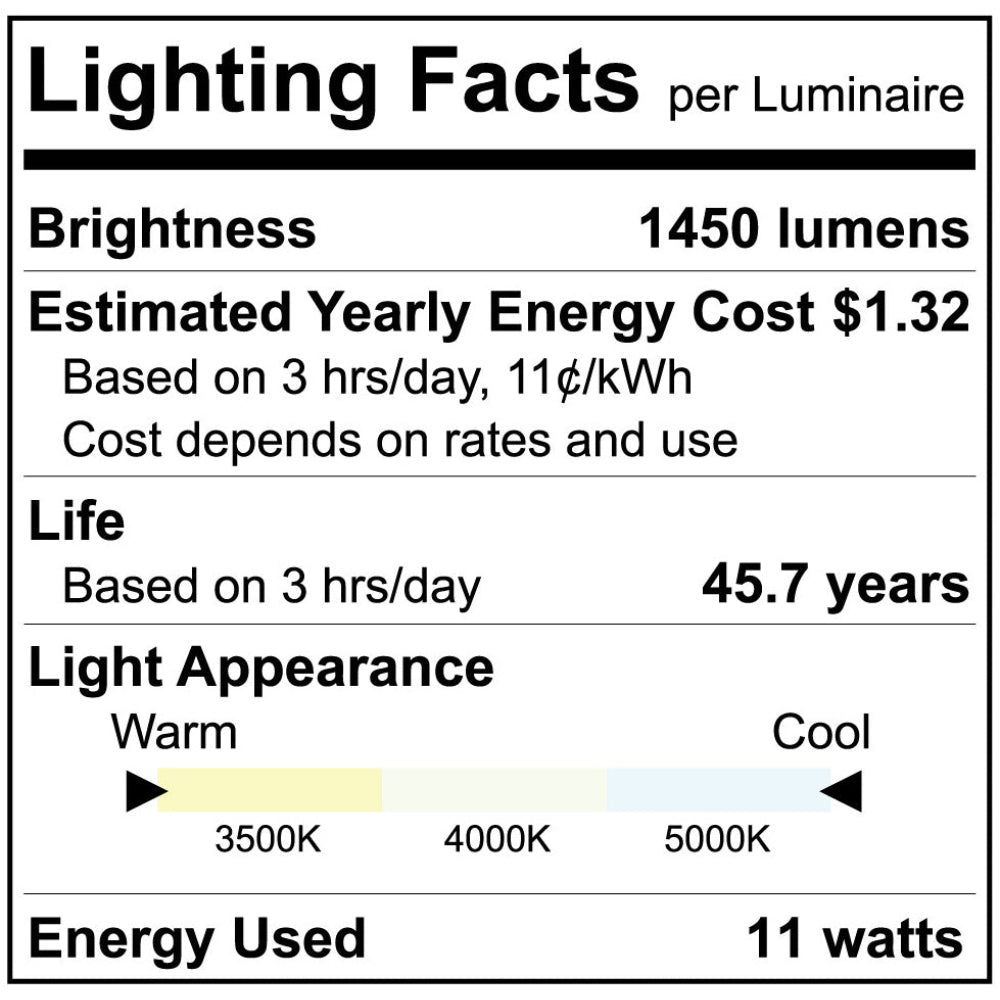

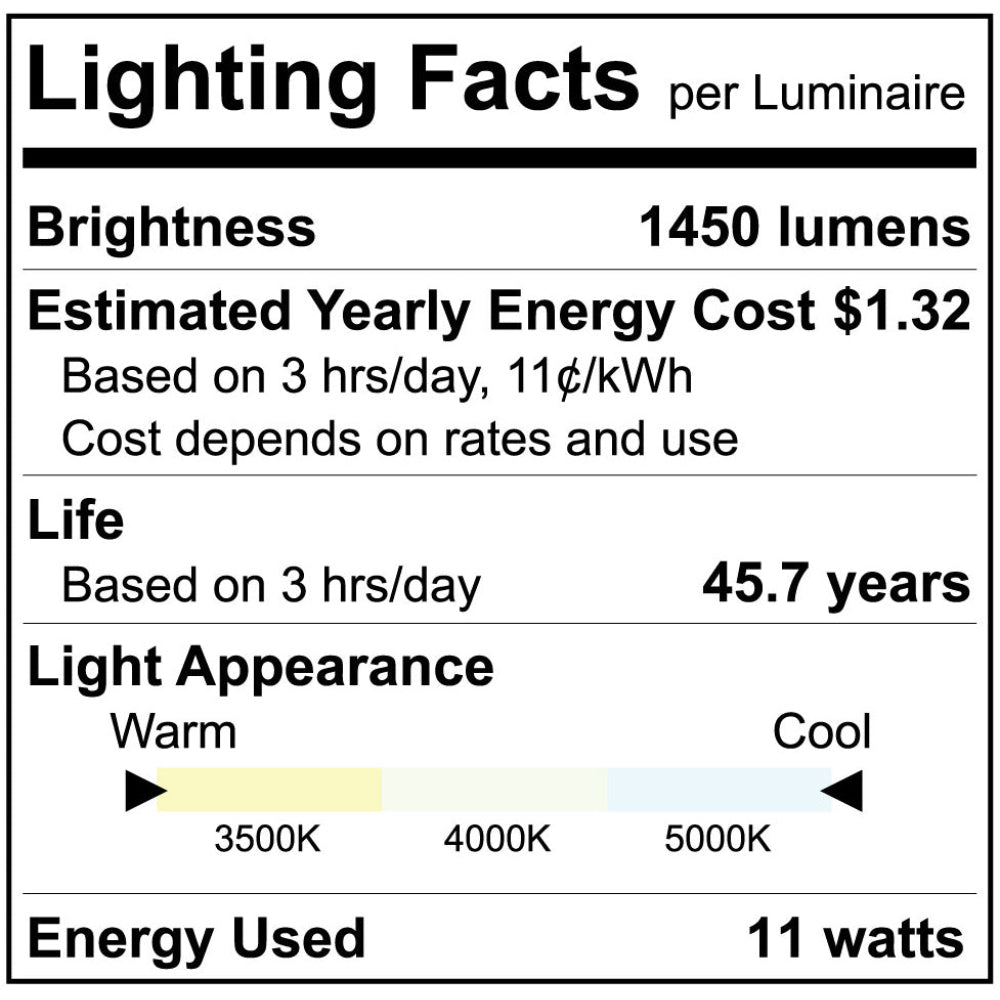

Photometric

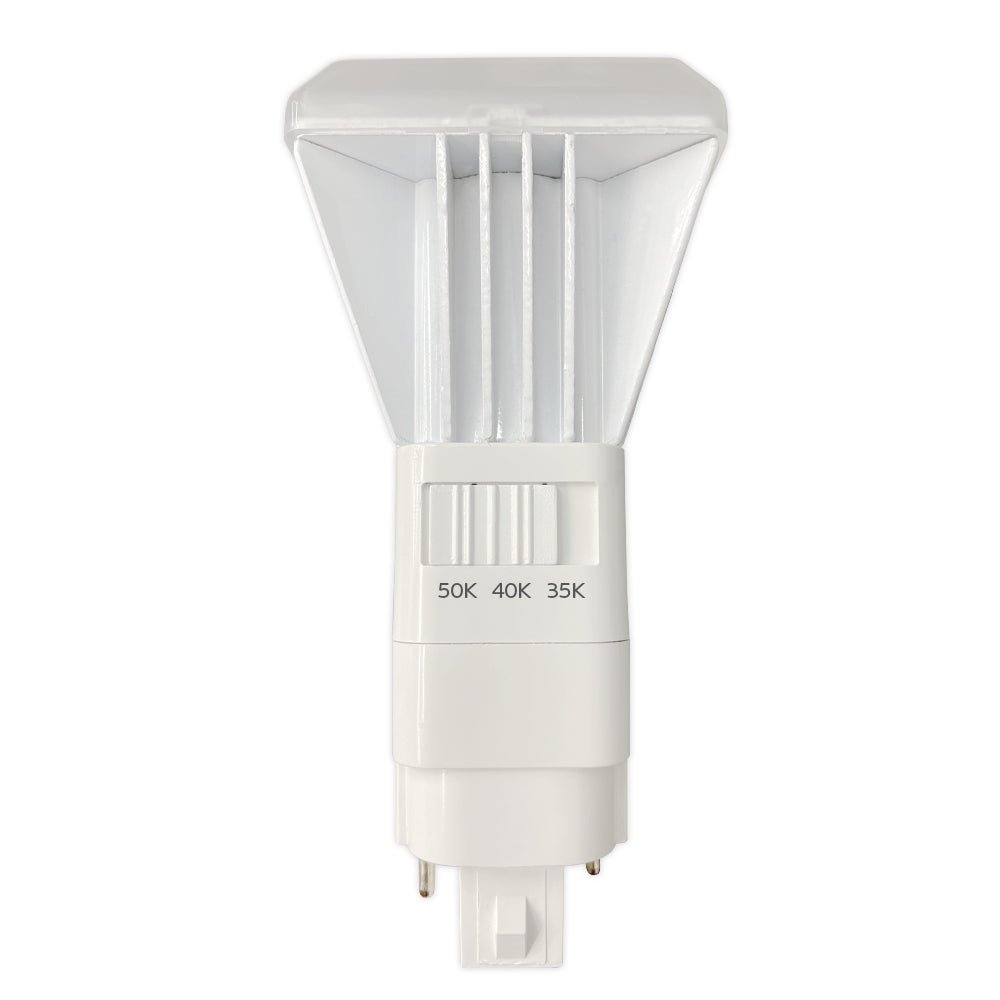

  • Color (Temp): CCT Selectable
  • Color (CCT): 3500K/4000K/5000K
  • Lumen: 1450
  • Beam Angle: 120°
  • CRI: 83

Electrical

  • Power (Wattage): 11
  • Input Volts: 120-277V
  • Rated Lifetime: 50000
  • Power Factor: 0.95
  • Frequency: 50/60Hz
  • Bypass 1 Side Input: Yes
  • Watt Replacement: 26/36/42
  • Lumen Efficacy: 139
  • Operating Temp:
    • Max: 131°
Product Files

Click forLuxrite LR24567 Specification Sheet

Click forLuxrite LR24567 Install Guide

Click forLuxrite LR24567 Warranty

Click forLuxrite LR24565 Warranty
