Description

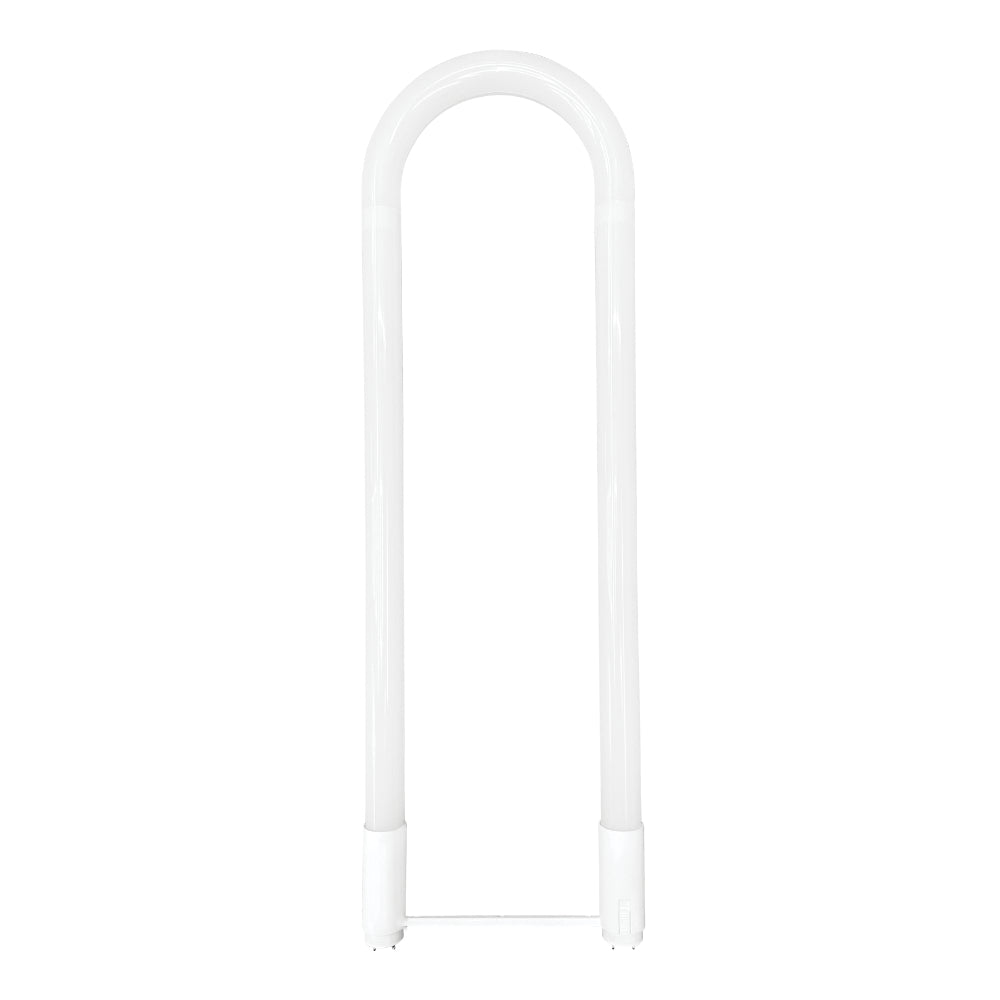

Luxrite T8 U6 17.5W 3CCT Universal Retrofit Tube LED Lamp
Specifications
- Item description: LED15T8/U6/3CCT/SG/UNV3/V2
- Size: 22.5 Inch
- Shape: T8 U6
- Base: G13

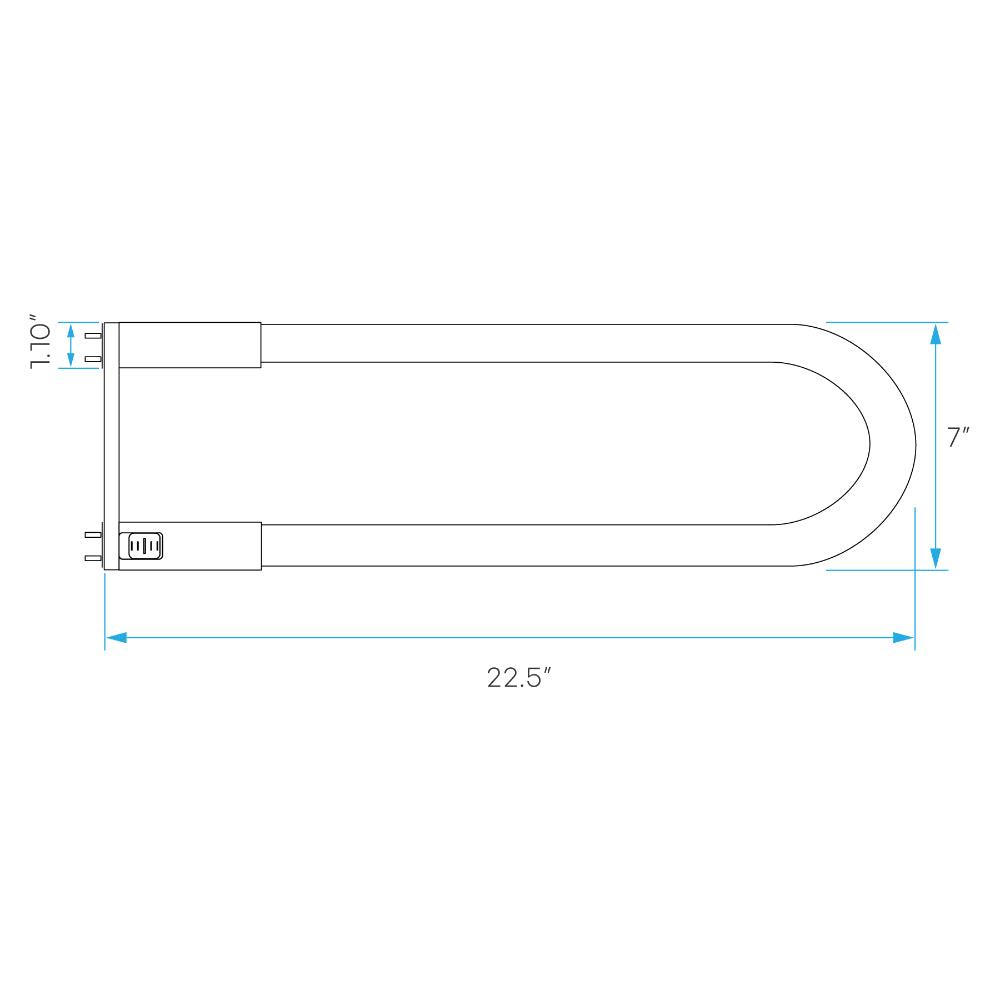

- Dimensions:
- Length: 22.5 Inch
- Width: 7 Inch
- Finish: Frost
- MOL: 22.5 Inch

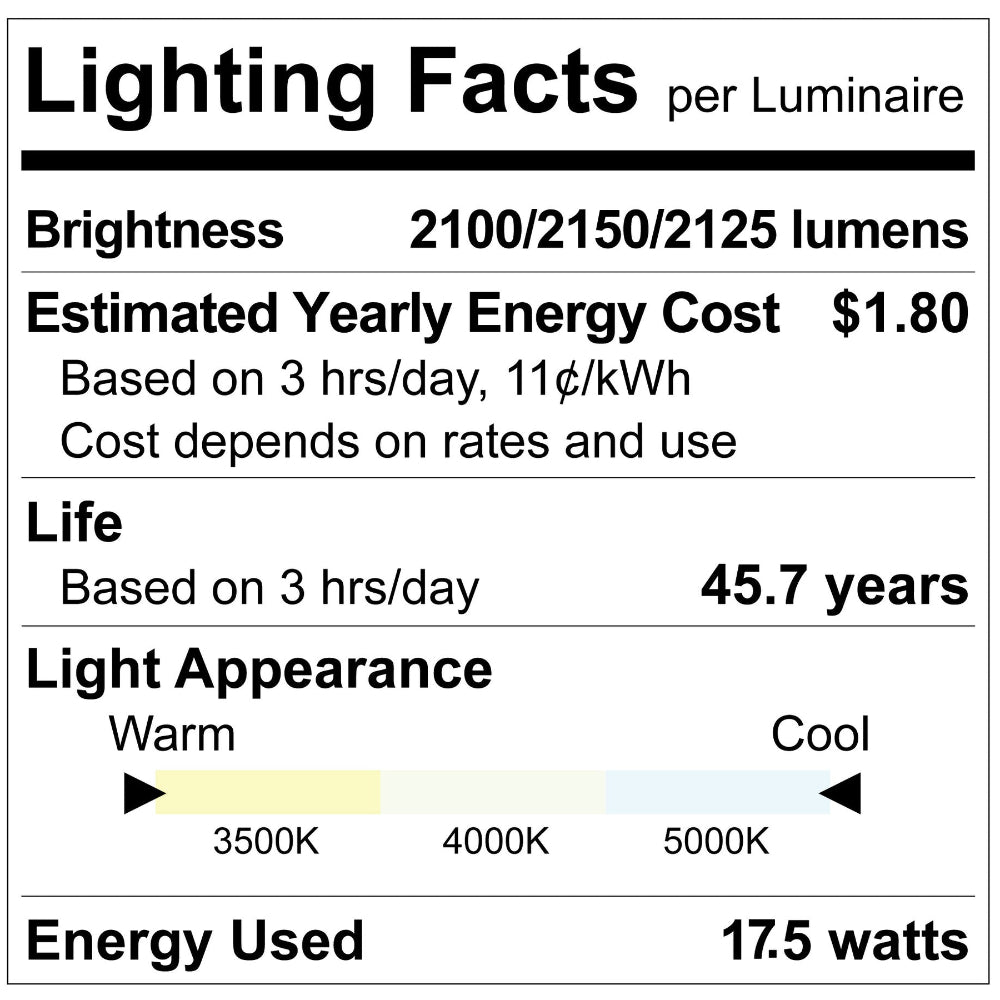

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 3500K/4000K/5000K
- Lumen: 2100/2150/2125
- Beam Angle: 160º
- CRI: 83
Electrical
- Power (Wattage): 17.5
- Input Volts: 120-277V Or Ballast
- Rated Lifetime: 50000
- Power Factor: 0.9
- Input Current: 140Ma
- Frequency: 50/60Hz
- Bypass 1 Side Input: True
- Bypass 2 Side Input: True
- Watt Replacement: 32
- Lumen Efficacy: 130
- Operating Temp:
- Min: -4º
- Max: 113º
Product Files
Click forLuxrite LR23517 Specification Sheet
Click forLuxrite LR23517 Install Guide
