Description

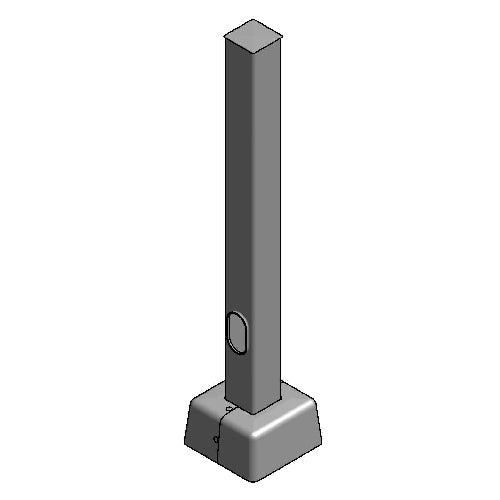

The pole shaft is one-piece construction - fabricated from a weldable-grade carbon steel structural tubing with a uniform wall thickness. The pole shaft material shall conform to ASTM A-500 Grade B with a minimum yield strength of 46,000 psi. It has a full-length longitudinal resistance weld and is uniformly square in cross section with flat sides, small corner radii, and excellent torsional properties.
A full base cover is supplied. The base cover is made of automotive structural grade ABS plastic with a UV inhibitor to eliminate color fading. It is rust proof and tamper resistant.
| Catalog Number | Mounting Height | Effective Projected Area | Shaft Dimensions | Base Info | Base Plate | Cutsheet | Template | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80 | 90 | 100 | 120 | Wall Thick. | Anchor Bolt Diameter | Bolt Circle | Square | Height | ||||
| 101-4011-10 | 10 | 25.7 | 20.8 | 16.8 | 11.8 | 11 | .75 x 20 | 8.5 | 8.00 | 0.75 | View | View |
| 101-4011-12 | 12 | 20.5 | 16.6 | 13.4 | 9.4 | 11 | .75 x 20 | 8.5 | 8.00 | 0.75 | View | View |
| 101-4011-14 | 14 | 16.6 | 13.5 | 10.9 | 7.7 | 11 | .75 x 20 | 8.5 | 8.00 | 0.75 | View | View |
| 101-4011-15 | 15 | 15.1 | 12.3 | 9.8 | 7.0 | 11 | .75 x 20 | 8.5 | 8.00 | 0.75 | View | View |
| 101-4011-16 | 16 | 13.6 | 11.0 | 8.9 | 6.3 | 11 | .75 x 20 | 8.5 | 8.00 | 0.75 | View | View |
| 101-4011-18 | 18 | 11.1 | 9.0 | 7.2 | 5.1 | 11 | .75 x 20 | 8.5 | 8.00 | 0.75 | View | View |
| 101-4011-20 | 20 | 9.0 | 7.3 | 5.9 | 4.2 | 11 | .75 x 20 | 8.5 | 8.00 | 0.75 | View | View |
| 101-4007-20 | 20 | 15.9 | 12.5 | 10.1 | 7.1 | 7 | .75 x 20 | 8.5 | 8.00 | 0.75 | View | View |
| 101-5011-20 | 20 | 16.0 | 12.9 | 10.4 | 7.4 | 11 | .75 x 20 | 11.0 | 11.00 | 0.75 | View | View |
| 101-5007-20 | 20 | 26.4 | 21.3 | 17.2 | 12.1 | 7 | 1 x 40 | 11.0 | 11.00 | 1.00 | View | View |
| 101-4011-25 | 25 | 4.1 | 3.3 | 2.6 | 1.8 | 11 | .75 x 20 | 8.5 | 8.00 | 0.75 | View | View |
| 101-4007-25 | 25 | 9.7 | 7.8 | 6.3 | 4.5 | 7 | .75 x 20 | 8.5 | 8.00 | 0.75 | View | View |
| 101-5011-25 | 25 | 8.5 | 6.9 | 5.6 | 4.0 | 11 | .75 x 20 | 11.0 | 11.00 | 0.75 | View | View |
| 101-5007-25 | 25 | 17.5 | 14.2 | 11.4 | 8.1 | 7 | 1 x 40 | 11.0 | 11.00 | 1.00 | View | View |
| 101-6007-25 | 25 | 27.5 | 22.3 | 18.0 | 12.6 | 7 | 1 x 40 | 11.5 | 12.00 | 1.00 | View | View |
| 101-5011-30 | 30 | 4.2 | 3.4 | 2.7 | 1.9 | 11 | .75 x 20 | 11.0 | 11.00 | 0.75 | View | View |
| 101-5007-30 | 30 | 10.6 | 8.6 | 6.9 | 4.9 | 7 | 1 x 40 | 11.0 | 11.00 | 1.00 | View | View |
| 101-6007-30 | 30 | 17.9 | 14.5 | 11.7 | 8.3 | 7 | 1 x 40 | 11.5 | 12.00 | 1.00 | View | View |
| 101-5007-35 | 35 | 6.1 | 4.9 | 4.0 | 2.8 | 7 | 1 x 40 | 11.0 | 11.00 | 1.00 | View | View |
| 101-6007-35 | 35 | 11.8 | 9.6 | 7.7 | 5.5 | 7 | 1 x 40 | 11.5 | 12.00 | 1.00 | View | View |
| 101-6007-39 | 39 | 7.7 | 6.2 | 4.0 | 3.5 | 7 | 1 x 40 | 11.5 | 12.00 | 1.00 | View | View |
While we don’t have specific foundation details for light poles, these are typically determined by a local electrical engineer or the manufacturer's representative, as they depend on factors like soil conditions and local regulations. Once you've selected the pole you need, please provide us with the brand name, complete SKU, and quantity. We'd be happy to assist you further with a detailed quote.
