Description

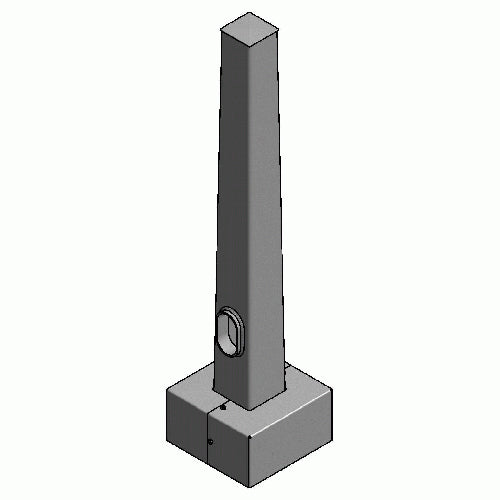

The pole shaft is fabricated from United States coil stock. It is a weldable-grade, hot-rolled commercial quality carbon steel ASTM A-595 Grade A with a guaranteed minimum yield strength of 55,000 psi after fabrication. It is a one-piece construction with a full-length, longitudinal, high-frequency resistance weld and is square in cross section, having a uniform taper of approximately 0.10" per foot in length.
A full base plate cover is supplied. For 25' and 30' poles, the base cover is steel. For 20', 25', and 39' poles, the base cover is made of two-piece formed sheet steel.
| Catalog Number | Mounting Height | Effective Projected Area | Shaft Dimensions | Base Info | Base Plate | Cutsheet | Template | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80 | 90 | 100 | 120 | Butt | Top | Wall | Anchor Bolt Diameter | Bolt Circle | Square | Height | ||||
| 201-5211-20 | 20 | 14.4 | 11.6 | 9.4 | 6.6 | 5.25 | 3.25 | 11 | 1 x 40 | 10.0 | 11.00 | 1.00 | View | View |
| 201-6211-25 | 25 | 13.1 | 10.6 | 8.5 | 6.0 | 6.25 | 3.75 | 11 | 1 x 40 | 12.5 | 12.00 | 1.00 | View | View |
| 201-6211-30 | 30 | 8.9 | 7.2 | 5.8 | 4.0 | 6.25 | 3.25 | 11 | 1 x 40 | 12.5 | 12.00 | 1.00 | View | View |
| 201-6611-35 | 35 | 6.7 | 5.5 | 4.4 | 3.1 | 6.65 | 3.25 | 11 | 1 x 40 | 12.5 | 13.00 | 1.00 | View | View |
| 201-7111-39 | 39 | 5.9 | 4.8 | 3.8 | 2.7 | 7.15 | 3.25 | 11 | 1 x 40 | 12.5 | 13.00 | 1.00 | View | View |
While we don’t have specific foundation details for light poles, these are typically determined by a local electrical engineer or the manufacturer's representative, as they depend on factors like soil conditions and local regulations. Once you've selected the pole you need, please provide us with the brand name, complete SKU, and quantity. We'd be happy to assist you further with a detailed quote.
