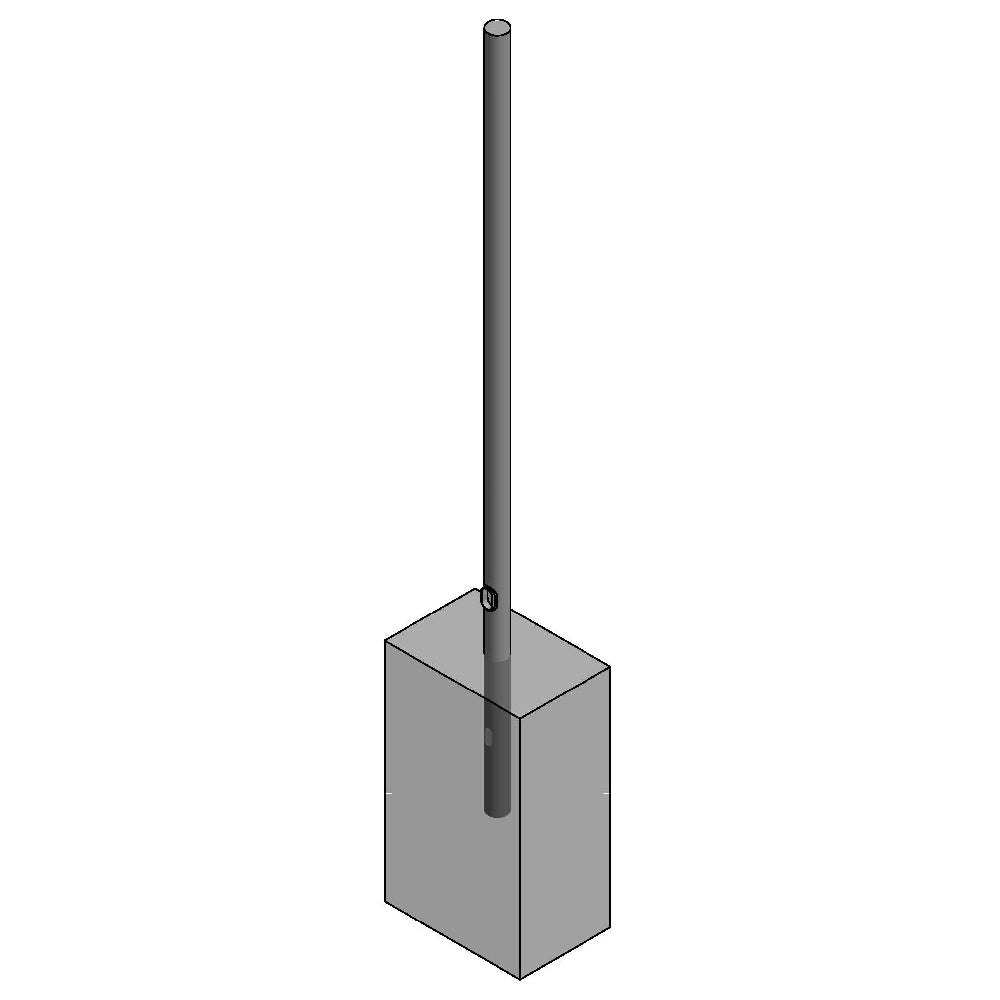

Lyte Poles 205-EMB Round Straight Aluminum Embedded Poles
Pole Shaft
The shaft is extruded from all new 6063 alloy aluminum tubing and heat treated to produce a T6 temper.
Direct Burial
An optional alkali-resistant coal tar epoxy can be applied to the burial portion of embedded poles. Our direct burial poles are supplied complete with a 2×4" wiring slot below grade.
| Catalog Number | Mounting Height | Effective Projected Area | Shaft Dimensions | Burial Depth (ft) | Cutsheet | ||||
|---|---|---|---|---|---|---|---|---|---|
| 80 | 90 | 100 | 120 | Rd. | Wall Thick. | ||||
| 205-4012-8-EMB | 8 | 11.1 | 8.7 | 6.7 | 4.5 | 4 | 0.125 | 3 | View |
| 205-4012-10-EMB | 10 | 8.5 | 6.5 | 4.9 | 3.2 | 4 | 0.125 | 3 | View |
| 205-4012-12-EMB | 12 | 6.6 | 5 | 3.7 | 2.3 | 4 | 0.125 | 3 | View |
| 205-5012-12-EMB | 12 | 10.9 | 8.4 | 6.3 | 4.3 | 5 | 0.125 | 3 | View |
| 205-5018-12-EMB | 12 | 16.8 | 13.1 | 10.1 | 7.0 | 5 | 0.188 | 3 | View |
| 205-5012-14-EMB | 14 | 8.8 | 6.7 | 4.9 | 3.2 | 5 | 0.125 | 4 | View |
| 205-5018-14-EMB | 14 | 13.9 | 10.7 | 8.1 | 5.5 | 5 | 0.188 | 4 | View |
| 205-5012-16-EMB | 16 | 7.2 | 5.3 | 3.7 | 2.2 | 5 | 0.125 | 4 | View |
| 205-5018-16-EMB | 16 | 17.5 | 13.5 | 10.1 | 7.0 | 5 | 0.188 | 4 | View |
| 205-6018-16-EMB | 16 | 17.5 | 13.5 | 10.1 | 7.0 | 6 | 0.188 | 4 | View |
| 205-6018-20-EMB | 20 | 12.8 | 9.5 | 6.8 | 4.6 | 6 | 0.188 | 4 | View |
| 205-6018-25-EMB | 25 | 8.6 | 6.0 | 3.9 | 2.5 | 6 | 0.188 | 5 | View |
| 205-6025-25-EMB | 25 | 12.9 | 9.9 | 5.8 | 5.0 | 6 | 0.250 | 5 | View |
