Description

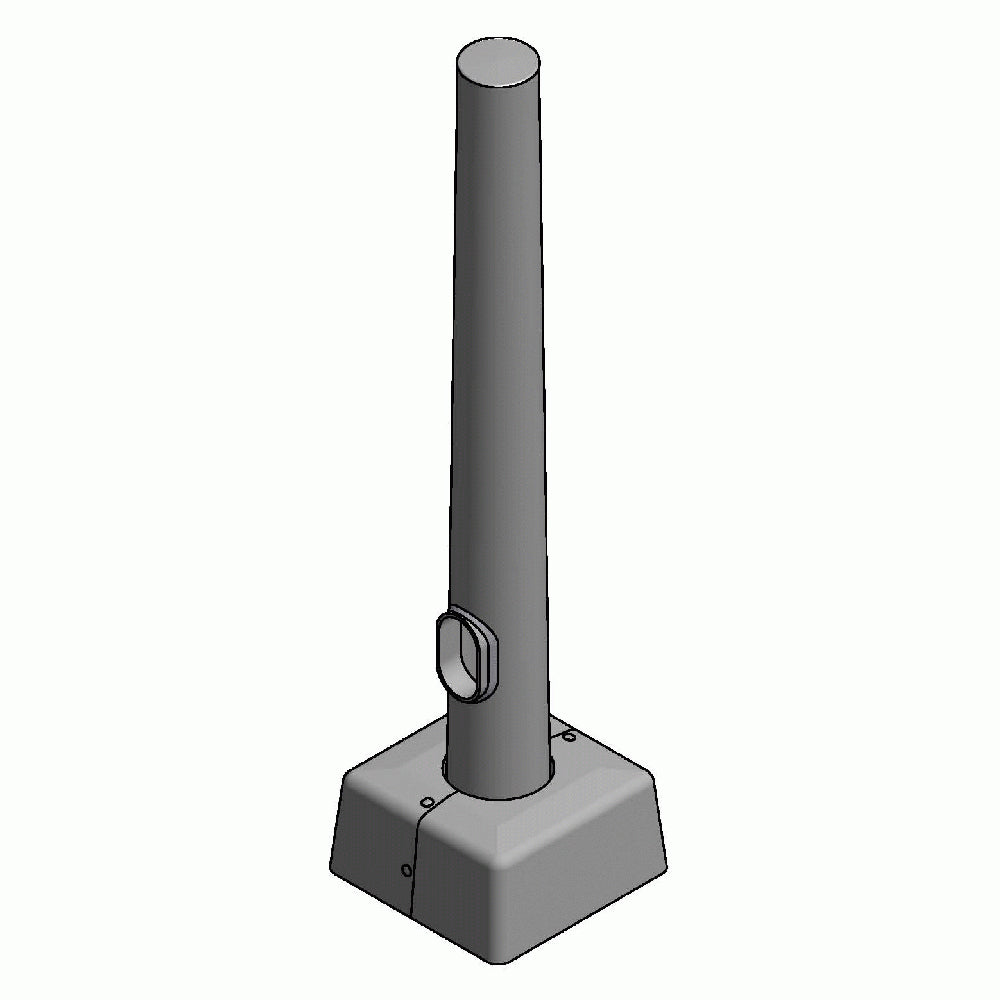

The pole shaft is fabricated from a weldable-grade, hot-rolled commercial quality carbon steel ASTM A-595 Grade A with a guaranteed minimum yield strength of 55,000 psi after fabrication. It is a one-piece construction with a full-length, longitudinal weld. The pole tapers at a rate of 0.14" per foot.
A full base plate cover is supplied. For 5- to 9-inch diameter poles, the base cover is automotive structural grade ABS plastic with a UV inhibitor to eliminate color fading. It is rust proof and tamper resistant. For 10- and 12-inch diameter poles, the base cover is made of two-piece formed sheet steel.
We reserve the right to use a pole-top adaptor for direct mounting of fixtures, as deemed necessary.
| Catalog Number | Mounting Height | Effective Projected Area | Shaft Dimensions | Base Info | Base Plate | Cutsheet | Template | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80 | 90 | 100 | 120 | Butt | Top | Wall | Anchor Bolt Diameter | Bolt Circle | Square | Height | ||||
| 301-5211-20 | 20 | 12.2 | 9.8 | 7.9 | 5.6 | 5.2 | 2.4 | 11 | .75 x 28 | 9.5 | 10.00 | 0.75 | View | View |
| 301-6511-20 | 20 | 28.6 | 23.2 | 18.7 | 13.0 | 6.5 | 3.7 | 11 | 1 x 40 | 10.0 | 11.00 | 1.00 | View | View |
| 301-5911-25 | 25 | 9.4 | 7.6 | 6.2 | 4.4 | 5.9 | 2.4 | 11 | .75 x 28 | 9.5 | 10.00 | 0.75 | View | View |
| 301-7011-25 | 25 | 22.0 | 17.8 | 14.4 | 10.0 | 7.0 | 3.5 | 11 | 1 x 40 | 10.0 | 11.00 | 1.00 | View | View |
| 301-6511-30 | 30 | 8.1 | 6.6 | 5.3 | 3.8 | 6.6 | 2.4 | 11 | 1 x 40 | 10.0 | 11.00 | 1.00 | View | View |
| 301-8011-30 | 30 | 22.1 | 17.9 | 14.5 | 10.0 | 8.0 | 3.8 | 11 | 1 x 40 | 11.0 | 12.00 | 1.00 | View | View |
| 301-8511-35 | 35 | 19.3 | 15.6 | 12.6 | 9.0 | 8.5 | 3.6 | 11 | 1 x 40 | 11.5 | 12.00 | 1.00 | View | View |
| 301-9011-39 | 39 | 17.9 | 14.5 | 11.7 | 8.2 | 9.0 | 3.5 | 11 | 1 x 40 | 12.5 | 13.00 | 1.00 | View | View |
| 301-1011-39 | 39 | 23.3 | 18.8 | 15.2 | 10.7 | 10.0 | 4.5 | 11 | 1 x 40 | 13.5 | 14.00 | 1.00 | View | View |
| 301-1207-39 | 39 | 63.4 | 51.3 | 41.4 | 29.0 | 12.0 | 6.5 | 7 | 1.5 x 60 | 16.0 | 17.00 | 1.50 | View | View |
While we don’t have specific foundation details for light poles, these are typically determined by a local electrical engineer or the manufacturer's representative, as they depend on factors like soil conditions and local regulations. Once you've selected the pole you need, please provide us with the brand name, complete SKU, and quantity. We'd be happy to assist you further with a detailed quote.
