Description

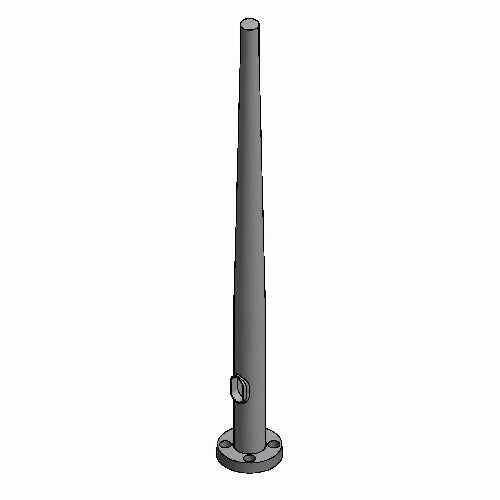

The shaft is spun tapered from all new seamless 6063 alloy aluminum tubing and heat treated to produce a T6 temper. It is gracefully cone tapered to the butt diameter. Each shaft has a 6"-long straight section at the top that may be drilled to the luminaire manufacturers mounting specifications. An aluminum tenon may also be supplied as standard.

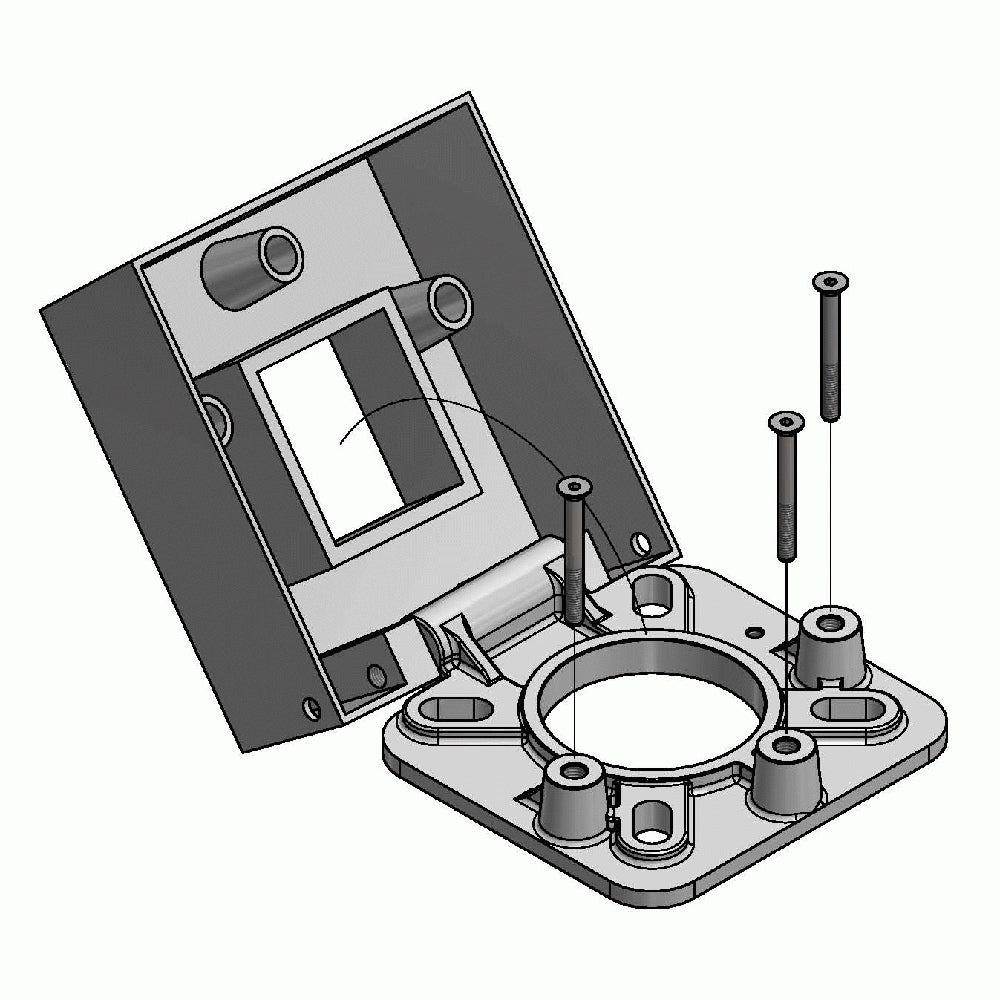

Cast from A356 alloy aluminum, the anchor base is heat treated to produce a T6 condition and inserted into the anchor base casting. The two pieces are joined by a continuous circumferential weld at the outside top and inside bottom of the anchor base. The base has a hinge pin to allow lowering of the pole to maintain luminaires.
| Catalog Number | Mounting Height | Effective Projected Area | Shaft Dimensions | Base Info | Base Plate | Cutsheet | Template | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80 | 90 | 100 | 120 | Butt | Top | Wall | Anchor Bolt Diameter | Bolt Circle | Square | Height | ||||
| 505-4012-8 | 8 | 13.3 | 10.3 | 8.2 | 5 | 4 | 3 | 0.125 | .75 x 20 | 7.5 - 9 | 10.75 | 3.5 | View | View |
| 505-4012-10 | 10 | 10 | 7.4 | 5.7 | 3.4 | 4 | 3 | 0.125 | .75 x 20 | 7.5 - 9 | 10.75 | 3.5 | View | View |
| 505-5012-10 | 10 | 16.1 | 12.4 | 9.9 | 6.2 | 5 | 3 | 0.125 | .75 x 20 | 7.5 - 9 | 10.75 | 3.5 | View | View |
| 505-4012-12 | 12 | 7.2 | 5.3 | 3.9 | 2 | 4 | 3 | 0.125 | .75 x 20 | 7.5 - 9 | 10.75 | 3.5 | View | View |
| 505-5012-12 | 12 | 12.5 | 9.5 | 7.4 | 4.7 | 5 | 3 | 0.125 | .75 x 20 | 7.5 - 9 | 10.75 | 3.5 | View | View |
| 505-4012-14 | 14 | 5.3 | 3.8 | 2.7 | 1.6 | 4 | 3 | 0.125 | .75 x 20 | 7.5 - 9 | 10.75 | 3.5 | View | View |
| 505-5012-15 | 15 | 8.6 | 6.6 | 5 | 3.3 | 5 | 3 | 0.125 | .75 x 20 | 7.5 - 9 | 10.75 | 3.5 | View | View |
| 505-5015-15 | 15 | 11.1 | 8.4 | 6.8 | 4.5 | 5 | 3 | 0.156 | .75 x 20 | 7.5 - 9 | 10.75 | 3.5 | View | View |
| 505-5012-18 | 18 | 5.7 | 4.1 | 3 | 1.8 | 5 | 3 | 0.125 | .75 x 20 | 7.5 - 9 | 10.75 | 3.5 | View | View |
| 505-5015-18 | 18 | 7.7 | 5.6 | 4.2 | 2.6 | 5 | 3 | 0.156 | .75 x 20 | 7.5 - 9 | 10.75 | 3.5 | View | View |
| 505-6015-18 | 18 | 11.6 | 9.3 | 7.4 | 4.7 | 6 | 3 | 0.156 | .75 x 20 | 8.5 - 9 | 10.75 | 3.5 | View | View |
| 505-5015-20 | 20 | 6.2 | 4.3 | 3 | 1 | 5 | 3 | 0.156 | .75 x 20 | 7.5 - 9 | 10.75 | 3.5 | View | View |
| 505-6015-20 | 20 | 10 | 7.5 | 5.8 | 3.7 | 6 | 3 | 0.156 | .75 x 20 | 8.5 - 9 | 10.75 | 3.5 | View | View |
While we don’t have specific foundation details for light poles, these are typically determined by a local electrical engineer or the manufacturer's representative, as they depend on factors like soil conditions and local regulations. Once you've selected the pole you need, please provide us with the brand name, complete SKU, and quantity. We'd be happy to assist you further with a detailed quote.
The Company warrants that the Products manufactured by it and delivered under this Contract are free of substantial defects in material and workmanship for a period of twelve months from the date of shipment to Partner. Partner or end user must promptly report to the Company in writing any failure of the Products to conform to the warranty within the one-year warranty period. The Company will, at its discretion, correct such nonconformity by suitable field repair to such Products or it will furnish a replacement part FCA point of shipment (Incoterms 2012), provided the Partner and any affiliated parties have stored, installed, maintained and operated such Products in accordance with good industry practices and has complied with specific recommendations of the Company.
The Company is not liable for any repairs, replacements, or adjustments to the Products or any costs of labor performed by Partner or others without the Company’s prior written approval. The Company is not responsible for any costs associated with the taking down or putting up of defective products. Repair or replacement of defective Products will constitute fulfillment of all responsibility and liability of the Company for such nonconformities. Products will not be accepted for return without the prior consent of Company. If approved for return, Company will issue a return goods authorization (RGA). A restocking charge will apply to Products that are authorized for return and are in first-class, resalable condition, and accompanied by the RGA, freight prepaid.
All products are designed and fabricated to withstand the load applied when properly selected using the EPA chart in the catalog. Some geographical areas have special wind conditions that can create wind induced vibrations causing a fatigue problem. No method has yet been found for predicting destructive lighting pole vibration. These conditions are unique but cannot be guaranteed against, and are the responsibility of a local site engineer. As a result, Company expressly disclaims any warranties (express or implied, oral or written) with respect to damage caused to the products or caused by the products due to wind-induced (Aeolian) vibrations.
Except for the warranties set forth above which are limited warranties and the only warranties made by the Company, the products, services, and deliverables are provided strictly “as is,” and the company makes no additional warranties, expressed or implied, arising from course of dealing or usage of trade, or statutory, as to the products, deliverables or services provided under this contract, or any matter whatsoever. In particular, any and all implied warranties of merchantability, title, satisfactory quality, fitness for a particular purpose and non-infringement are hereby disclaimed by the company and are excluded by the parties.
