Description

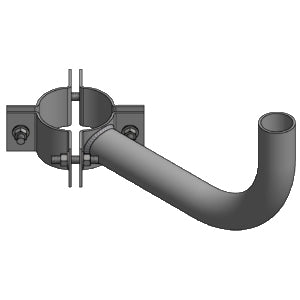

Our series PCB pole top floodlight mounting brackets for wood poles are constructed of 2" schedule 40 pipe. The brackets are easily clamped onto 5-13" wooden poles.
The maximum capacity for each is one (1) to four (4) 50 lb max weight luminaire. Each PCB bracket comes supplied with clamping nuts and bolts.

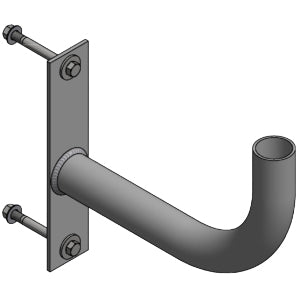

Our series PWB-1 is a combination wall and wood-pole mounting bracket constructed of steel pipe and a rugged steel plate. Two (2) 10" bolts with washers and nuts are provided with this bracket.
| Catalog Number | Num. of Floodlights | Description | Shipping Weight (lb) | Cutsheet |
|---|---|---|---|---|
| PCB3-1 | 1 | Brackets for 5" - 9" Poles | 14 | View |
| PCB3-2 | 2 | Brackets for 5" - 9" Poles | 20 | View |
| PCB3-3 | 3 | Brackets for 5" - 9" Poles | 28 | View |
| PCB3-4 | 4 | Brackets for 5" - 9" Poles | 36 | View |
| PWB-1 | 1 | Wall or Wood Pole | 10 | View |
| PWB-1-WM-12 | 1 | Wall Mount | 12 | View |
| PWB-1-RD-12 | 1 | Round Pole Mount | 12 | View |
| PCB8-1 | 1 | Brackets for 10''-13'' Poles | 24 | View |
| PCB8-2 | 2 | Brackets for 10''-13'' Poles | 30 | View |
| PCB8-3 | 3 | Brackets for 10''-13'' Poles | 38 | View |
| PCB8-4 | 4 | Brackets for 10''-13'' Poles | 46 | View |
While we don’t have specific foundation details for light poles, these are typically determined by a local electrical engineer or the manufacturer's representative, as they depend on factors like soil conditions and local regulations. Once you've selected the pole you need, please provide us with the brand name, complete SKU, and quantity. We'd be happy to assist you further with a detailed quote.
