Description

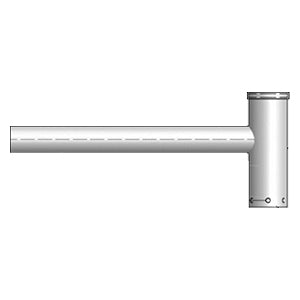

Our series SB pole top mounting brackets slip fit 2" pipe size pole tenon standards. Arms are constructed of 2" pipe size. Each bracket has a maximum capacity of one (1) to four (4) luminaires, depending on mounting configuration. Brackets come complete with locking set screws and are finished to match the pole.
All of our brackets cataloged here are of steel construction and designed for use on both steel and aluminum poles.
| Catalog Number | Fig. No | Num. of Arms | Bracket Size | Max Per Fixture | Shipping Weight (lb) | Cutsheet | ||
|---|---|---|---|---|---|---|---|---|
| Weight (lb) | E.P.A | Weight (lb) | E.P.A. | |||||
| SB-19 | A | 1 | 8 | 0.3 | 125 | 6 | 8 | View |
| SB-218 | B | 2 @ 180 | 11 | 0.4 | 125 | 6 | 11 | View |
| SB-29 | C | 2 @ 90 | 11 | 0.4 | 125 | 6 | 11 | View |
| SB-39 | D | 3 @ 90 | 15 | 0.5 | 125 | 6 | 15 | View |
| SB-312 | E | 3 @ 120 | 15 | 0.5 | 125 | 6 | 15 | View |
| SB-49 | F | 4 @ 90 | 18 | 0.6 | 125 | 6 | 18 | View |
While we don’t have specific foundation details for light poles, these are typically determined by a local electrical engineer or the manufacturer's representative, as they depend on factors like soil conditions and local regulations. Once you've selected the pole you need, please provide us with the brand name, complete SKU, and quantity. We'd be happy to assist you further with a detailed quote.
