Hunza MAGTECH 700mA Constant Current Driver 3-17V 12W

Hunza LightingSKU: LD-CU7017-05

Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

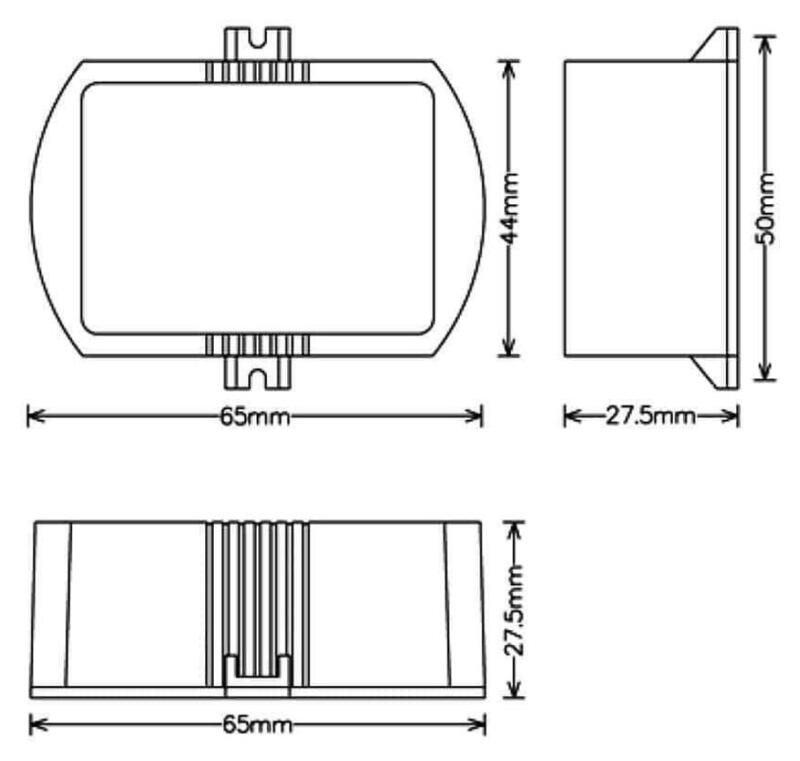

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

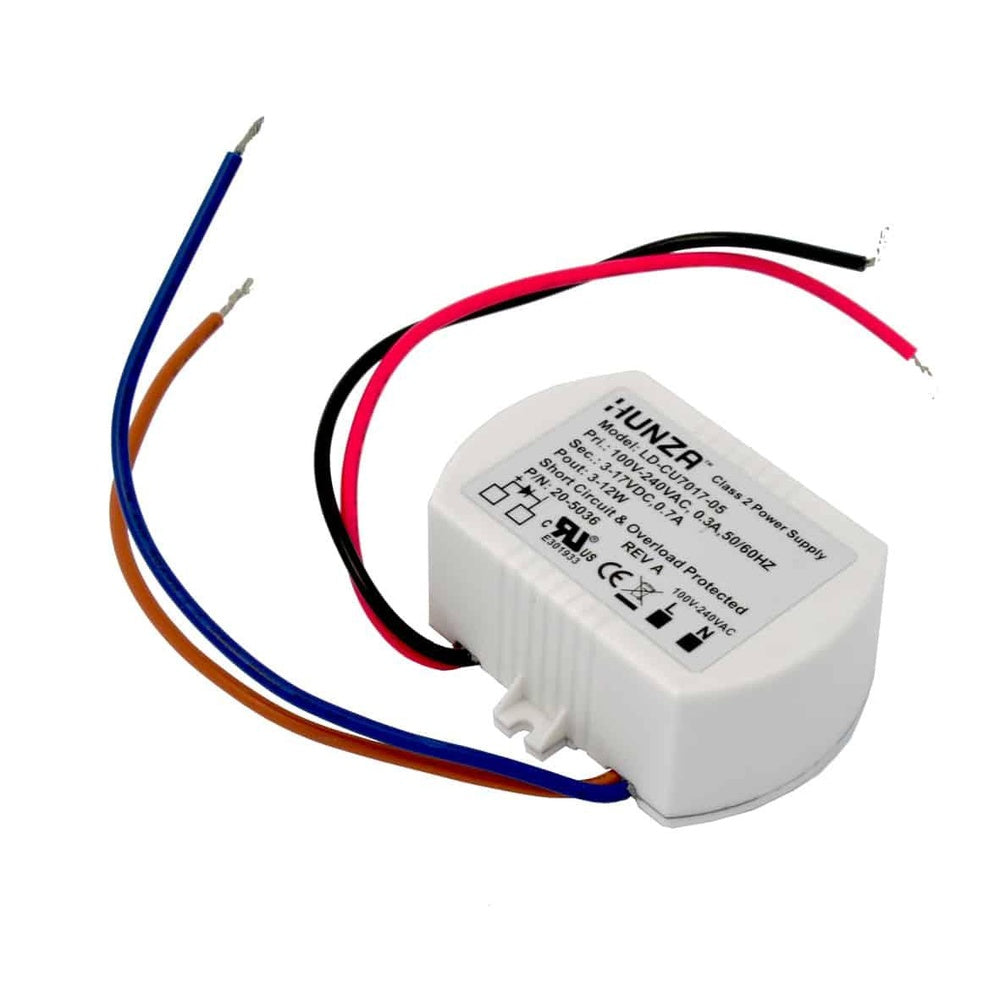

Hunza MAGTECH 700mA Constant Current Driver 3-17V 12W

The Magtech LD-CU7017-05 is a 700mA constant current driver supplied with Hunza 120V PureLED Retro fixtures. It includes over temperature protection, short-circuit protection, waterproof potting and a plastic case. Not dimmable.

Product Specifications

Driver Type
  • Constant Current
Output Voltage
  • 3-17V
Output Current
  • 700mA
Output Power (W)
  • 12W
Input Voltage
  • 100-240VAC
Input Current
  • 0.3A (115VAC) - 0.15A (230VAC)
Frequency
  • 50/60Hz
Ambient/Operating Temperature (ta)
  • -20 …+ 50°C
Ingress Protection
  • IP65
Standards
  • UL Recognised
Dimensions
  • 6.5 x 5 x 2.4 cm ( 2.56" x 1.97" x 0.94" )
Weight
  • 0.12 kg ( 0.26 lb )
Product Files

Click for MAGTECH Constant Current Retro™ Driver (3-17v) 12W - LD-CU7017-05 - Specification Sheet

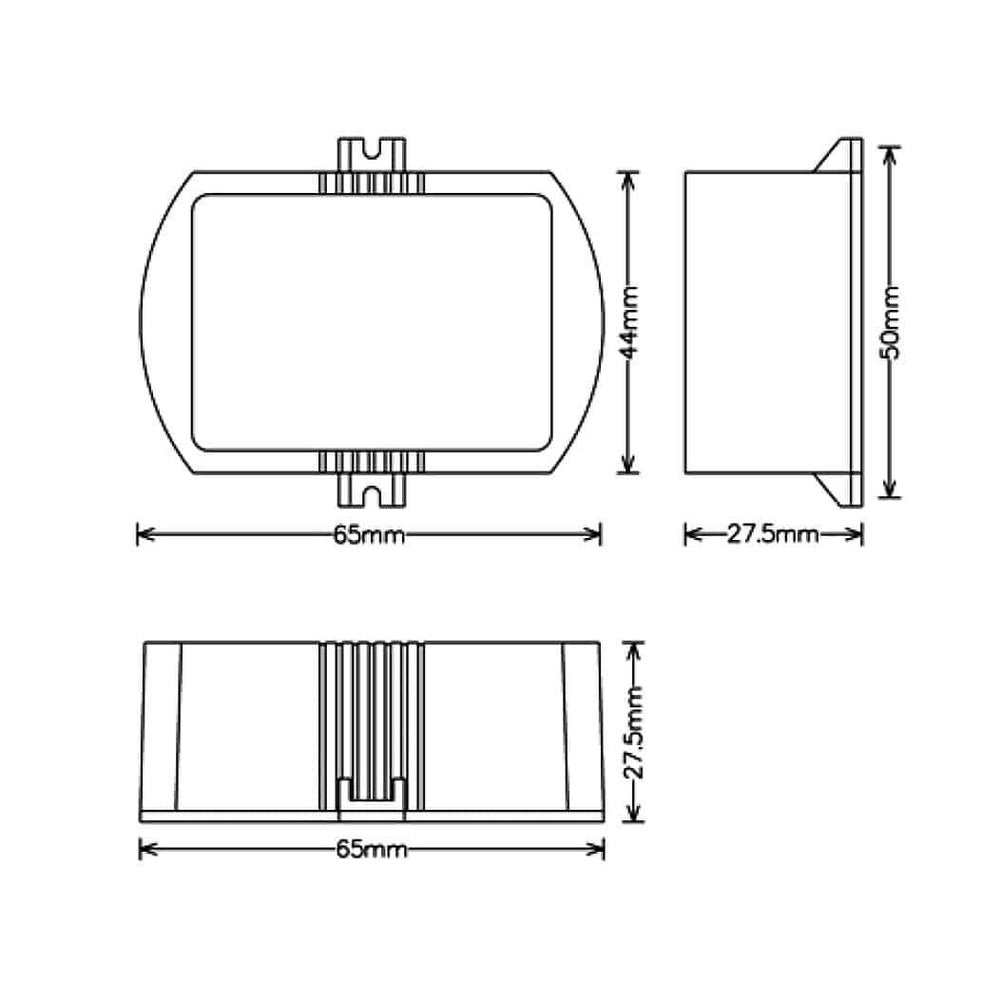

Click for MAGTECH Constant Current Retro™ Driver (3-17v) 12W - LD-CU7017-05 - Product Diagram

Diagram Image
