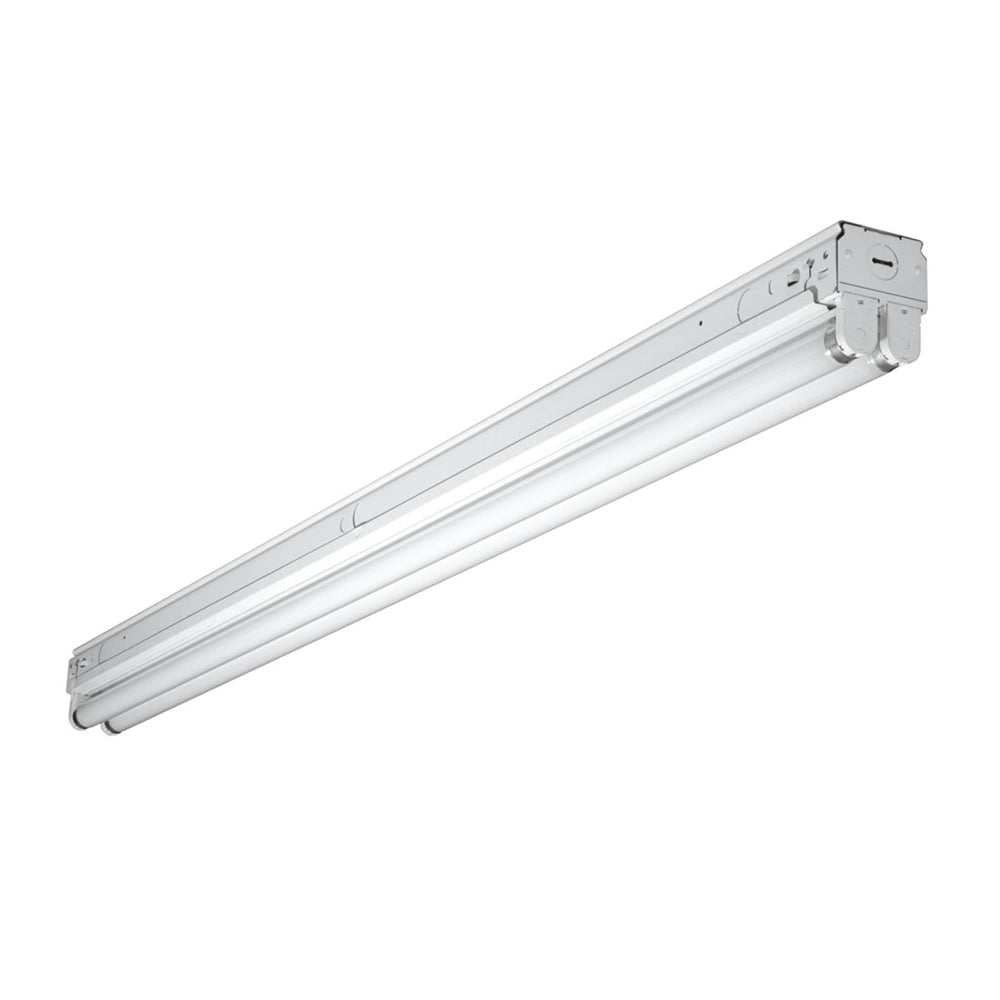

Metalux Lighting SNF Series
The SNF Series is a functional and multi-purpose narrow strip family that incorporates premium performance and construction durability. Designed with our easy-to-use Flip-Up socket design, the SNF significantly reduces installation time. The performance and application versatility of this series can be increased by incorporating symmetrical or asymmetrical reflectors. The SNF Series can be installed using various mounting methods and numerous options and accessories are available. The small size of the SNF makes it an ideal choice for size-restricted architectural applications. The SNF Series can be the illumination solution in commercial, industrial, retail and residential applications. Fixtures can be used in storage/utility areas, coves, display cases, shops, task and general area lighting. Certain airborne contaminants can diminish the integrity of acrylic components. Refer to the Material Compatibility tables for additional information.
Features:
- ENERGY STAR® qualified. Learn more at energystar.gov
- Flip-up socket feature for faster installation
- Commercial or residential ballast types available
- Heavy-duty, die-formed, cold-rolled steel channel includes knockouts
- Tong hanger groove offered for easy mounting
- Pre-painted material standard, PAF optional
- Tandem 8' lengths
- Optional reflectors in specular or white finishes
- Storage and utility, display case, cove, task and general applications
- Lamps are not included
Click for Metalux 18\ Spec Sheet
Click for Metalux 2' or 4' Narrow Striplite, 1 or 2 T5 or T5HO Lamps Spec Sheet
Click for Metalux 2', 3' or 4' Narrow Striplite, 1 or 2 T8 Lamps Spec Sheet
Click for Metalux Flip-Up Striplites Brochure
Click for Metalux SNF Gripper Installation Installation Instructions
Click for Metalux SNF Hanger Installation Installation Instructions
Click for Metalux SNF/SSF Assembly Instructions Installation Instructions
Click for Metalux SSF/SNF Connector Installation Installation Instructions
Click for Metalux SSF/SNF Socket Track Installation Installation Instructions
Click for Metalux Material Compatibility Bulletin Technical Information
