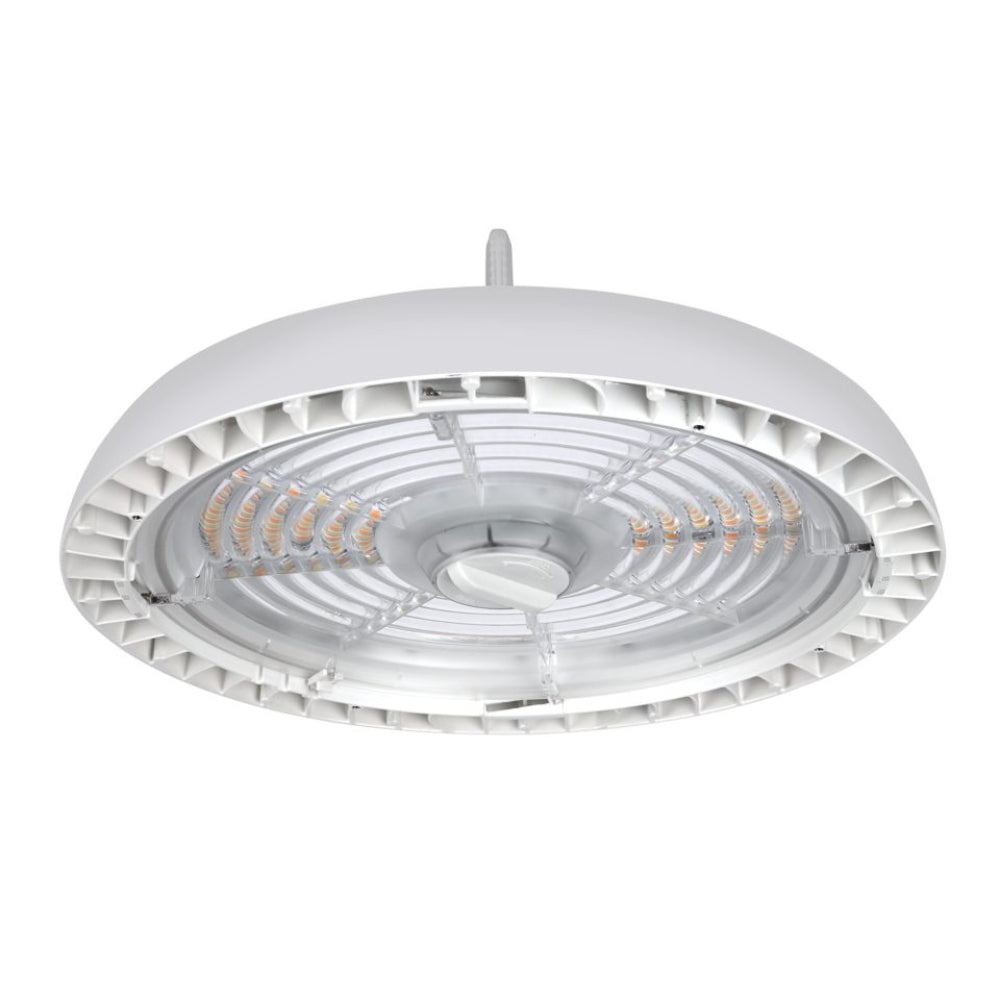

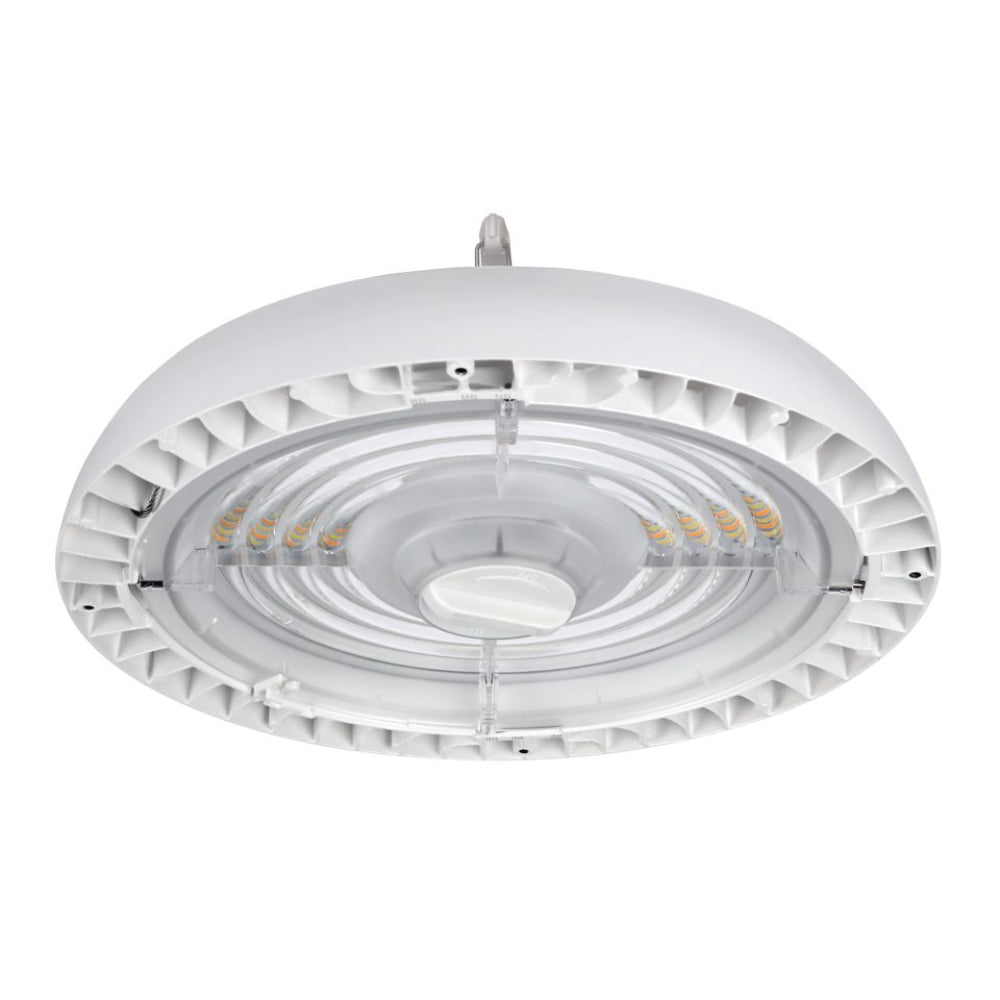

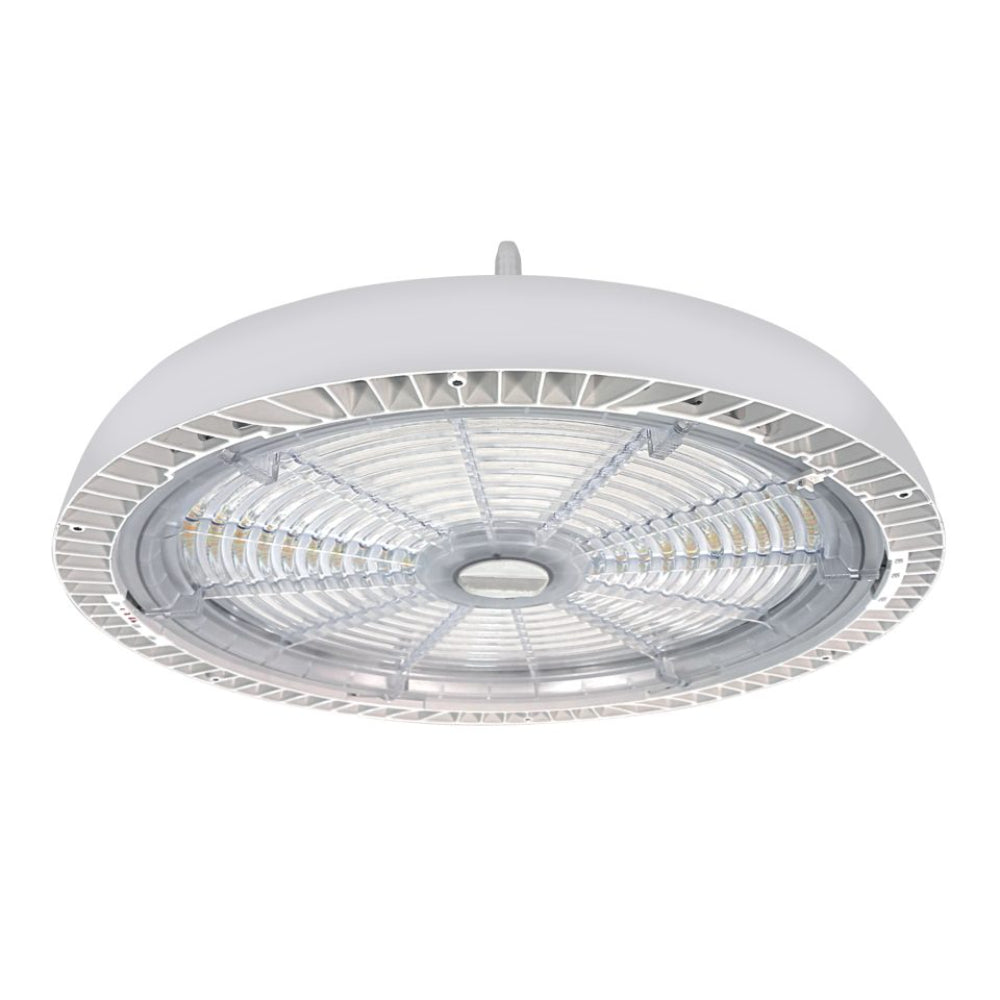

Metalux Lighting UHBS2 Selectable LED High-bay
Superior efficiency. High Output. Exceptional Coverage

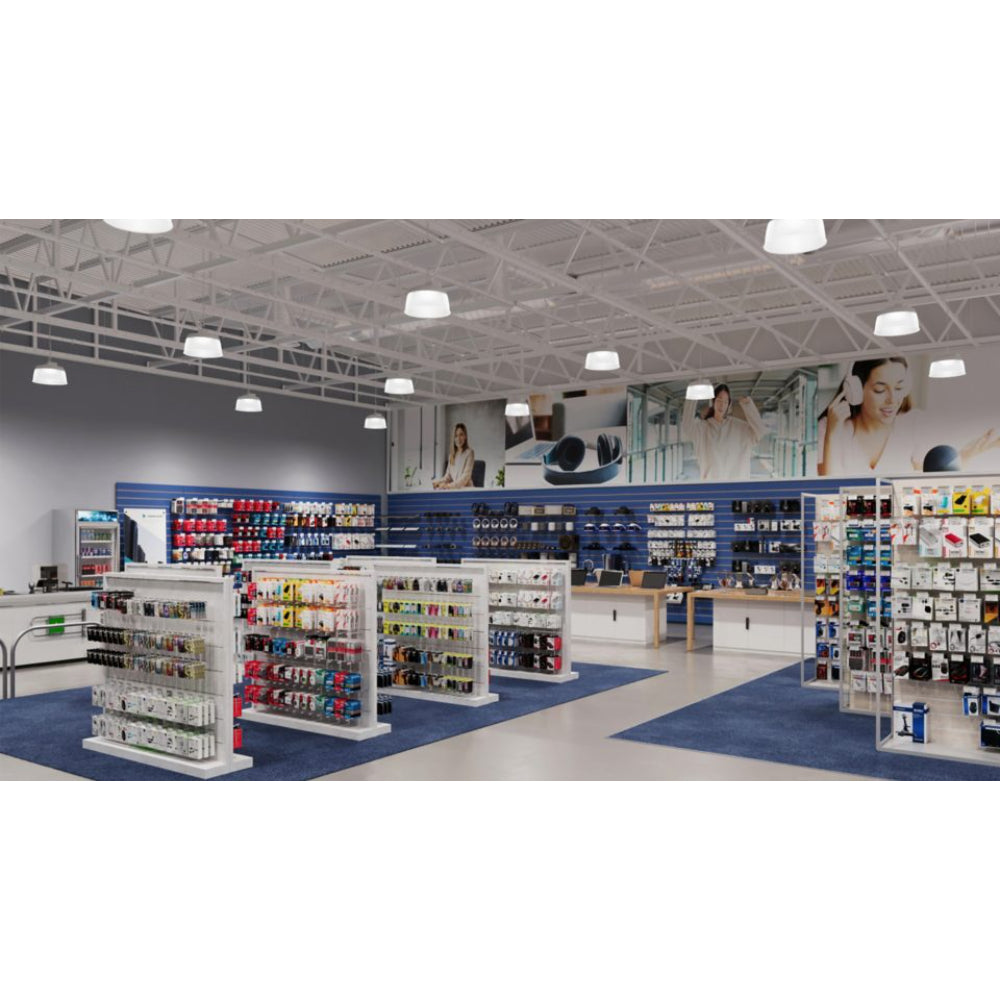

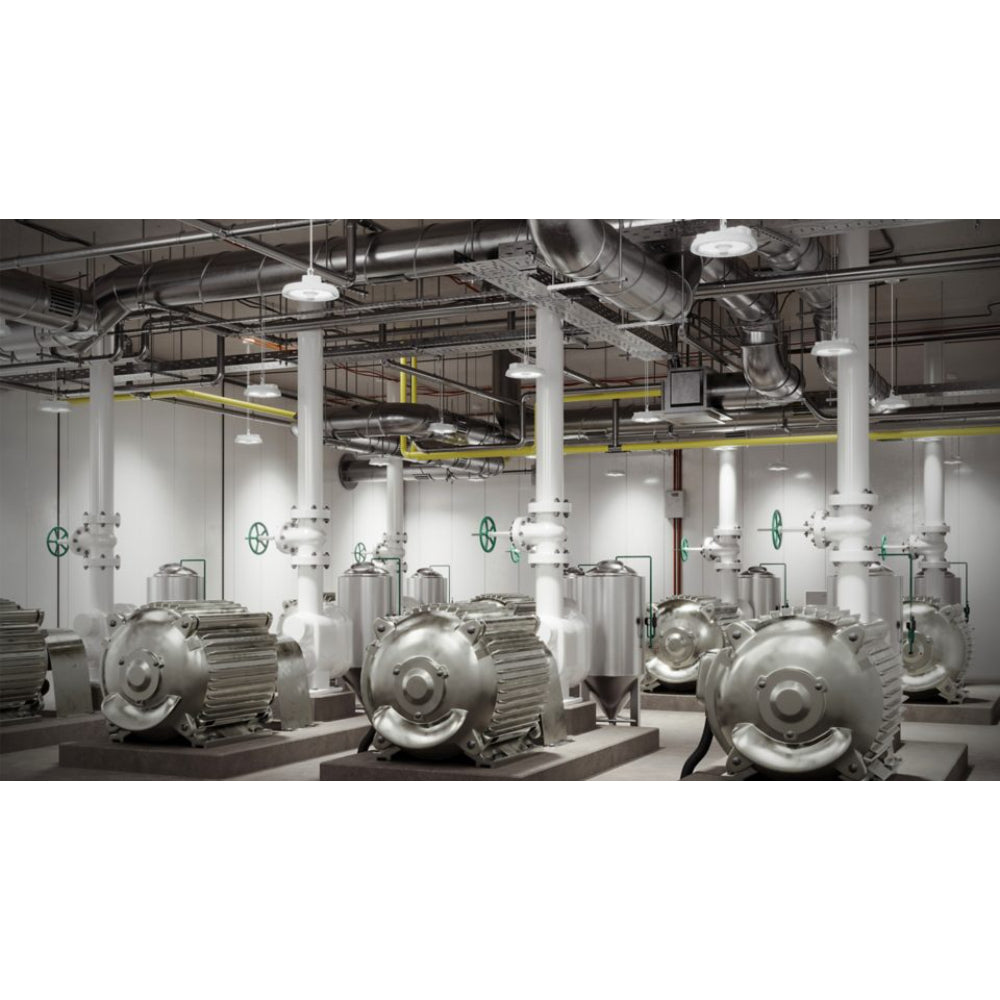

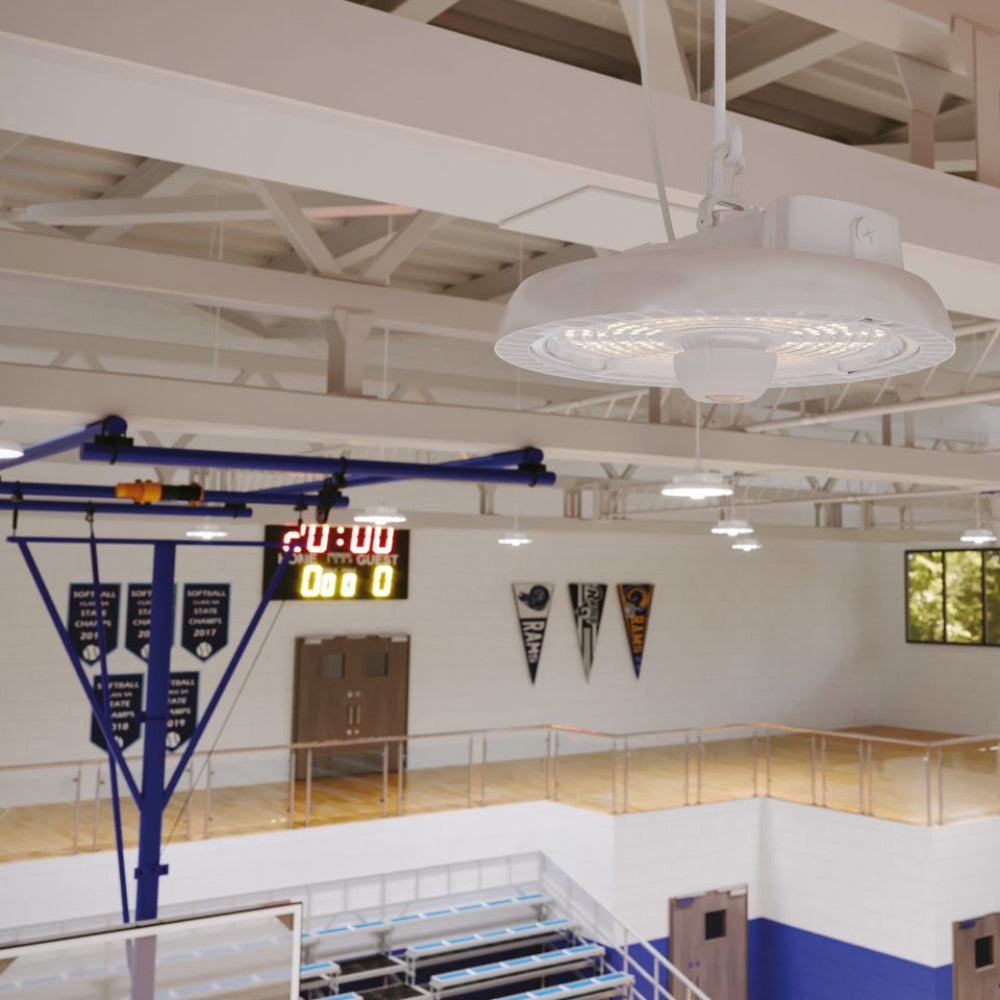

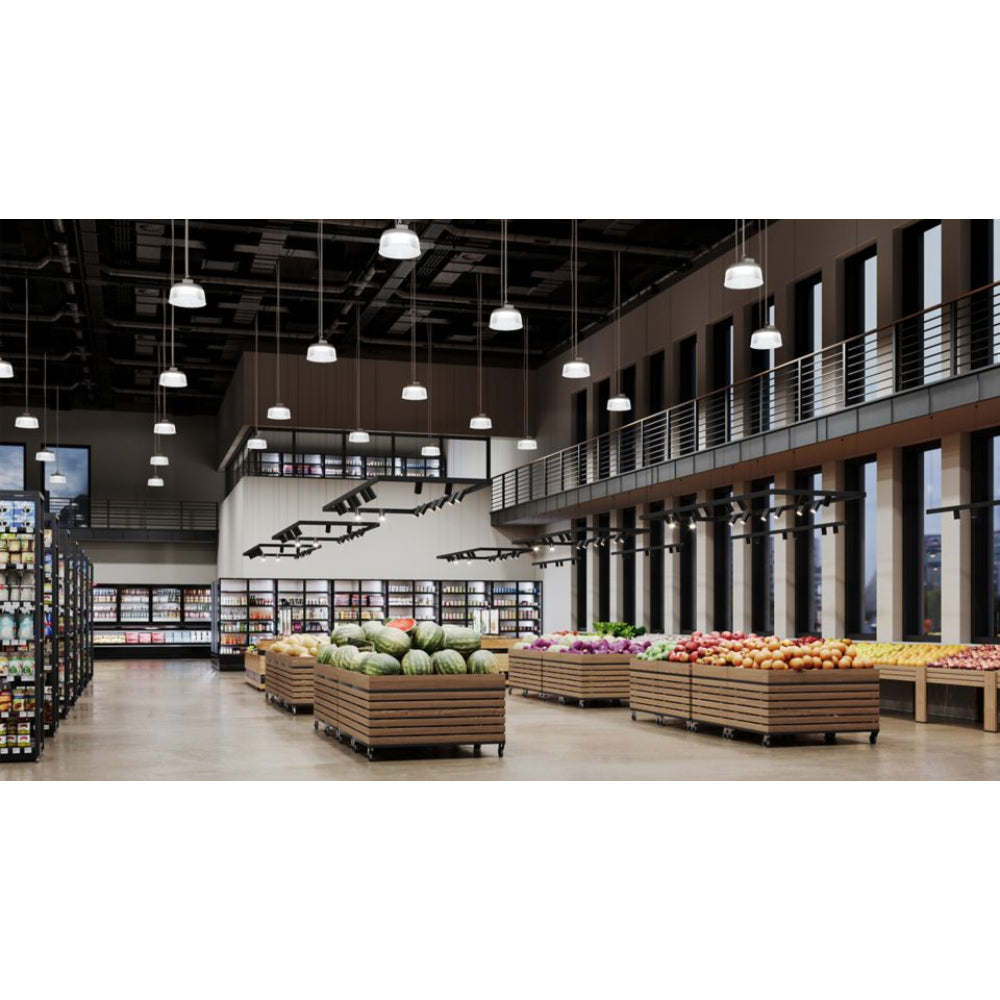

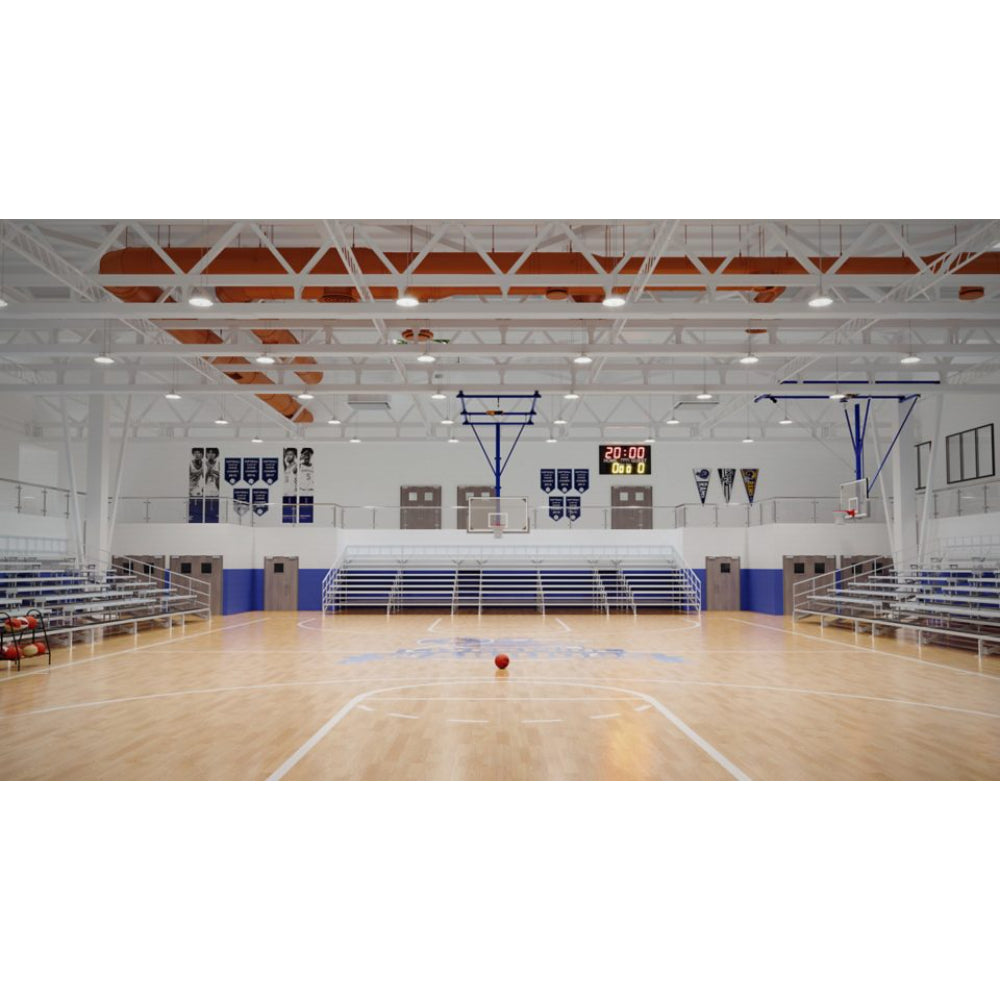

The UHBS2 is the next generation round LED high-bay. The innovative and high efficiency UHBS2 can be used in any indoor setting. With 3 power levels, 5 CCT and 3 optical distributions, the UHBS2 gives you the ultimate flexibility for any application. Our fixture has a 120-347 volt operating range and 0-10V dimming, including contractor friendly features such as a universal hook and 3/4" hub mount for install and a plug-and-play sensor port for added energy savings benefits. Built to last, the Metalux UHBS2 is NEMA 4X, IP65 and NSF listed with an IK10 polycarb lens, die cast housing, and 6kV surge protection.
Features
- Field Selectable Optical Distribution - Narrow, Medium, or Wide
- 5 CCT Color Select - 3000/3500/4000/5000/6500K
- Sensor ready port for quick plug and play install
- Compact, 12" and 14" round die cast aluminum housing
- 120-347V 0-10V dimming FCC Class A driver
- NEMA 4X, IP65 and NSF rated
- Polycarbonate lens with IK10 impact rating

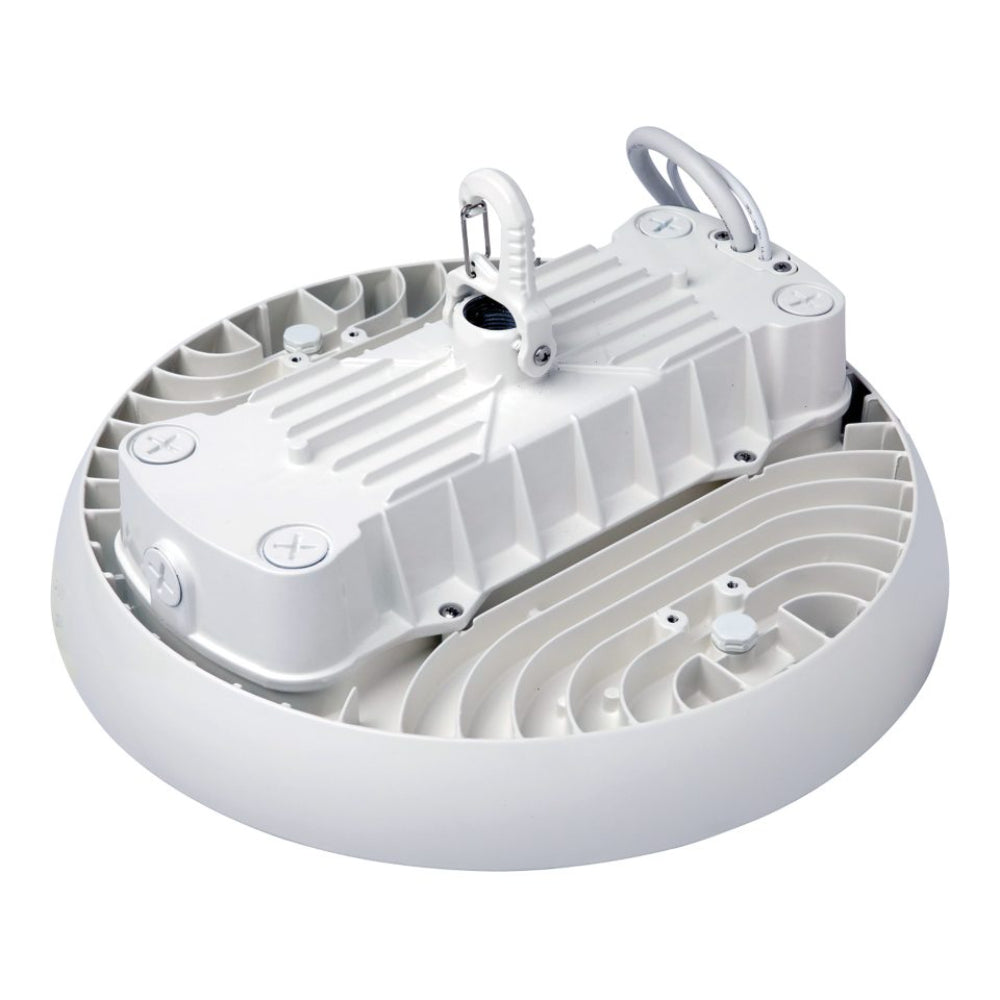

- Universal Hook and 3/4" Hub Combo Mount
- 10ft power and dimming cords for easy installation
- 6kV surge protection based on ANSI C82.77-5-2015
Product Files
Click for Metalux UHBS2 Round Selectable LED High Bay Specification Sheet
Click for EBPRM40R - Emergency LED Driver for UHBS Selectable HIgh Bay Specification Sheet
Click for Metalux High Bay Sensor Module Specification Sheet
Click for Sure-Lites Metalux Industrial Lighting and Controls Brochure
Click for Metalux Selectable Brochure
Click for Metalux UHBS2 Round Selectable LED High Bay Instruction Sheet
Click for Metalux HBS/UHBS Sensor Remote Control Instruction Sheet
Click for Metalux Sensor Module Accessory Instruction Sheet
Click for Metalux UHBS2-2436 Wire Guard Accessory Instructions
Click for Metalux UHBS2-2436 Reflector Accessory Instructions
Click for Metalux UHBS Surface Mount Bracket Accessory Instruction Sheet
Click for Emergency Battery Pack Instruction Sheet
Click for Metalux UHBS2 Adapter Plate Wire Guard and Reflector Installation Instructions
Click for Connected Buildings Product Selection Guide
Click for Metalux Product Selection Guide
Click for Metalux Industrial LED High Bay Selection Guide
Click for Metalux UHBS2 Round Selectable LED Highbay Sell Sheet
